EgoHand

EgoHand reconstructs SOMA hand poses, 3D joints, and meshes from egocentric video, camera calibration, and 2D hand boxes. It runs directly on decoded video frames, and the code lives in src/python/isaaccapture_egopost. The method is described in the EgoHand paper.

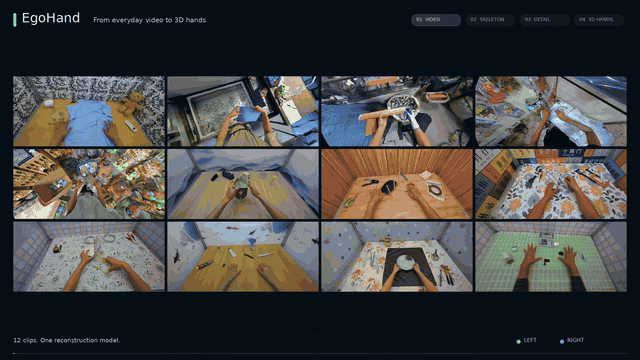

Video, skeletons, hand detail, and 3D meshes.

The EgoHand pipeline supports integration with any SLAM or camera localization algorithm (e.g., NVIDIA ViPE) to produce hand reconstructions in world coordinates.

EgoHand inference pipeline.

To capture egocentric video with a camera, see Cameras.

Setup

System requirements

Component	Requirement
OS	Ubuntu 24.04
GPU	NVIDIA RTX 6000 Ada Generation, L40, L20, or RTX PRO 6000 Blackwell
Memory	32 GB
Storage	25 GB

Clone and install

git clone https://github.com/NVIDIA/IsaacCapture.git
cd IsaacCapture/src/python/isaaccapture_egopost

uv venv .venv --python 3.12
uv pip install --python .venv/bin/python torch
uv pip install --python .venv/bin/python -r requirements.txt

# Install the pinned DINOv3 implementation (requires Git)
uv pip install --python .venv/bin/python --no-deps -r requirements-dinov3.txt
.venv/bin/python -c "from dinov3.models.vision_transformer import DinoVisionTransformer"

Run EgoHand commands on this page from src/python/isaaccapture_egopost/.

Prepare your inputs

Input	What you need
Video	An .mp4 file, or a folder of .mp4 files.
Camera calibration	A JSON file in the format described in Camera input formats.
2D hand boxes	Saved boxes from your own detector or ground truth, or the optional RT-DETR detector. See 2D Hand Boxes.
EgoHand checkpoint	The default EgoHand-v1 checkpoint (egohand_s060000.ckpt) downloads automatically and is cached locally. To use a local file, pass --egohand_ckpt /path/to/model.ckpt.
SOMA-X hand assets	Hand rig assets download automatically from nvidia/SOMA-X and are cached locally. They are needed even with a local checkpoint or your own boxes.

Check out the example of EgoHand running on a video from the NVIDIA Video-to-Data Challenge.

Model weights

The model weights are hosted on Hugging Face and ready to be downloaded.

Model	Used when
EgoHand-v1	Reconstructing with the default checkpoint, including runs with your own boxes.
RT-DETR Hand Detector-v1	Detecting hand boxes with the optional detector.

To run without network access, download the weights in advance and pass the local files: --egohand_ckpt for the EgoHand checkpoint, and weights in the detector config for RT-DETR (see Use the optional RT-DETR detector):

.venv/bin/hf download nvidia/EgoHand-v1 egohand_s060000.ckpt --local-dir weights
.venv/bin/hf download nvidia/RT-DETR-Hand-Detector-v1 hand_detector.onnx --local-dir weights

Anonymous downloads have lower rate limits. If you hit 429 Too Many Requests, sign in with .venv/bin/hf auth login (or set HF_TOKEN), or use local copies. A 401 Client Error on these public repositories usually means a stale or invalid stored token; run .venv/bin/hf auth logout or unset HF_TOKEN.

For offline or restricted hosts, download the SOMA-X assets once and pass --soma_hand_assets /path/to/assets. The directory must contain:

SOMAHand.npz
SOMA_neutral.npz
SOMA_template_rig.usda
SOMA_procedural_transforms.json
MHR/mhr_model_lod1.pt
MHR/base_body_lod1.obj
MHR/SOMA_wrap_lod1.obj

Example

This example runs EgoHand on a head-mounted RGB video from the NVIDIA Video-to-Data Challenge, using the calibration included in docs/nvidia_v2d_ego_cam_a.json:

.venv/bin/hf download nvidia/video_to_data_challenge --repo-type dataset \
  --local-dir nv_v2d_challenge \
  track_3/public/videos/chunk-000/observation.images.ego_cam_a/episode_000045.mp4

PYOPENGL_PLATFORM=egl PYTHONPATH="$(pwd)" .venv/bin/python \
  inference/scripts/run_egohand_inference_pipeline.py \
  --input nv_v2d_challenge/track_3/public/videos/chunk-000/observation.images.ego_cam_a/episode_000045.mp4 \
  --bbox_detector_config inference/hand_detector_2d/configs/rtdetr.yaml \
  --intrinsics_json docs/nvidia_v2d_ego_cam_a.json \
  --perspective_cropping \
  --draw_skeleton --no_mesh \
  --dtype bfloat16 \
  --output_dir outputs/nv_v2d_challenge_example

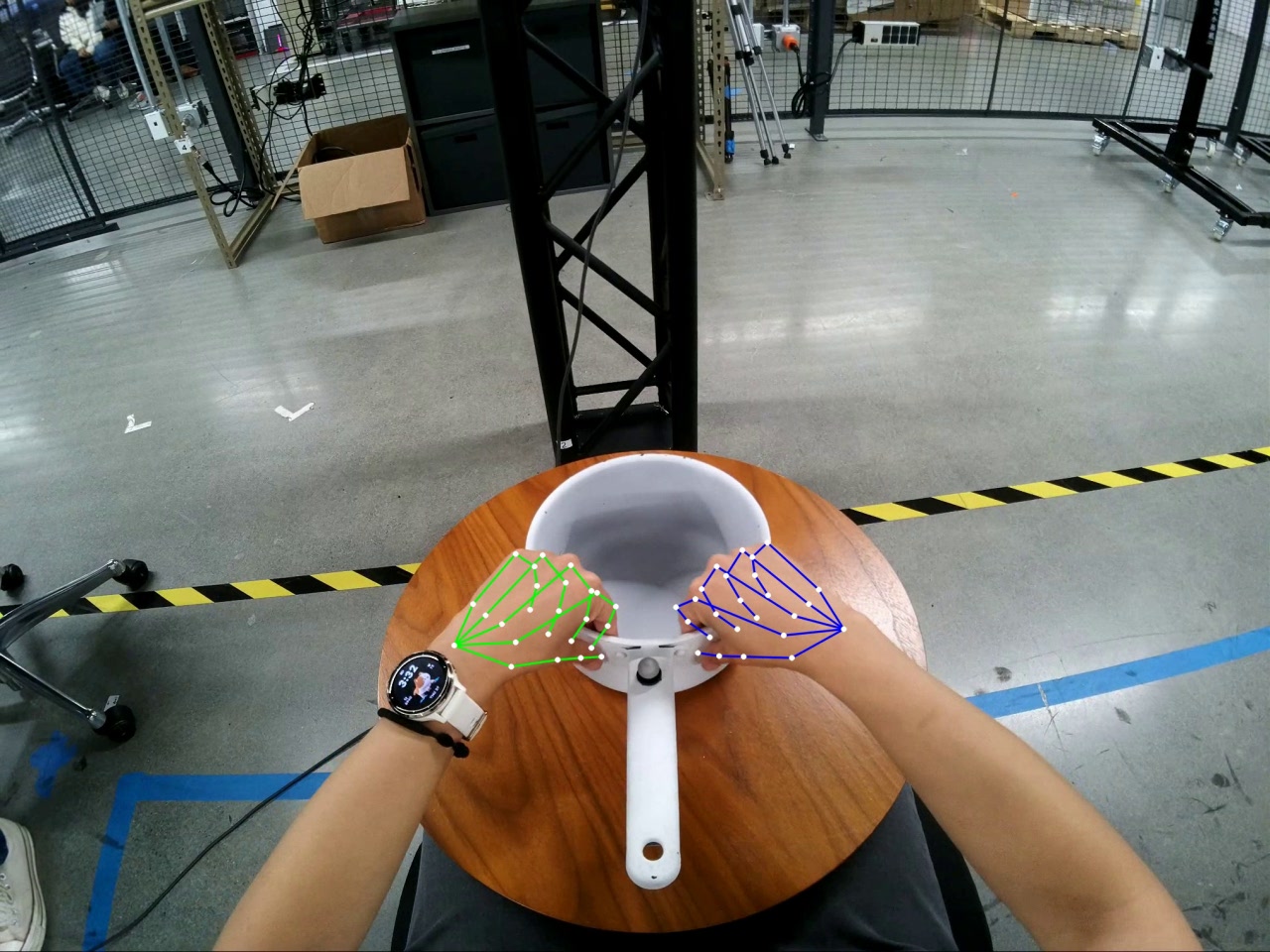

Example output.

Outputs

Results are saved under --output_dir, one subfolder per input video:

<output_dir>/
└── <video_stem>/
    ├── <video_stem>_left_bbox.json   # Live RT-DETR runs only
    ├── <video_stem>_right_bbox.json
    ├── left_results.npz              # Per-hand poses, joints, vertices, translation
    ├── right_results.npz
    ├── perf.json                     # Model load and per-stage timings
    ├── fullimg_overlay.mp4           # Reconstruction over the source video
    ├── bbox_viz.mp4                  # Hand boxes
    ├── crop_overlay_{left,right}.mp4 # Only with --save_crop_overlays (PINHOLE, no perspective cropping)
    └── quality_control.json          # Only with --postprocessing_qc

Overlay videos are skipped with --no_save_videos or --frame_batch_size.

Result arrays

left_results.npz and right_results.npz contain the arrays below. N is the number of predictions for that hand, not the video length; use frame_names[i] to locate row i in the source video. Missing predictions are omitted, so the two hands can have different frame lists. An empty hand file contains only num_frames=0 and an empty frame_names.

Array	Shape	Meaning and units
num_frames	scalar	Number of saved predictions.
frame_names	(N,)	Zero-based source frame IDs, stored as strings.
hand_poses	(N, 25, 3, 3)	Joint rotation matrices in the SOMA pose convention.
identity_coeffs	(N, 20) or (N, 5)	Dimensionless SOMA or MHR identity coefficients.
global_scale	(N,)	Dimensionless uniform scale.
scale_params	(N, 26)	Optional MHR scale parameters.
vertices	(N, Vh, 3)	Wrist-relative mesh vertices in meters; Vh depends on the hand model.
joints	(N, 25, 3)	Wrist-relative SOMA-25 joint positions in meters.
cam_t	(N, 3)	Wrist translation in camera coordinates, in meters.
pred_kp2d_crop_presence	(N, 25)	Optional score in [0, 1] for each joint being inside the model crop.
pred_kp2d_sigma	(N, 25, 2)	Optional RLE uncertainty scales for x/y in normalized model-crop coordinates; one unit is the crop side length.

Geometry uses camera axes: x right, y down, z forward. Camera-space joints are joints + cam_t[:, None, :]; perspective-cropped predictions are already rotated back to the source camera axes. The SOMA-25 order is wrist 0, thumb 1–4, index 5–9, middle 10–14, ring 15–19, and little finger 20–24, each finger ordered from base to tip.

The two optional joint signals come from the direct 2D head and stay raw even with pose smoothing. They describe the model crop, not source pixels, and are neither calibrated 3D confidence nor an occlusion label. Checkpoints without the 2D head omit both fields. --per_frame_results writes the same fields without the leading N axis, with frame IDs in the filenames.

Hand Reconstruction

With saved boxes:

export BBOX_DIR="/path/to/bboxes"

PYOPENGL_PLATFORM=egl PYTHONPATH="$(pwd)" .venv/bin/python \
  inference/scripts/run_egohand_inference_pipeline.py \
  --input "$INPUT_VIDEO_PATH" \
  --bbox_detector_config inference/hand_detector_2d/configs/saved_bboxes.yaml \
  --intrinsics_json "$INTRINSICS_JSON_PATH" \
  --perspective_cropping \
  --draw_skeleton --no_mesh \
  --dtype bfloat16 \
  --output_dir "$OUTPUT_PATH"

To detect and reconstruct in one run, pass --bbox_detector_config inference/hand_detector_2d/configs/rtdetr.yaml instead and skip BBOX_DIR.

Note

Metric depth scales with the focal length in --intrinsics_json. Without it, the pipeline estimates focal = max(W, H) and prints a warning; hands are placed at the wrong distance whenever the true focal length differs. The overlay renders through the same camera, so the error does not show in the video. Always pass real camera intrinsics.

One or two hands

--hand defaults to both, which also handles single-hand footage: the absent hand gets an empty result file. Pass --hand left or right only if the footage never shows the other hand, to skip its reconstruction. --postprocessing_qc requires --hand both and flags genuinely single-hand footage as a delivery failure, so do not combine the two. The combined Docker image hardcodes --hand both.

Camera input formats

Pass the calibration as JSON with --intrinsics_json. A pinhole example:

{
  "model": "PINHOLE", "image_width": 1920, "image_height": 1080,
  "camera_matrix": {
    "matrix_3x3": [
      [1000.0, 0.0, 960.0], [0.0, 1000.0, 540.0],
      [0.0, 0.0, 1.0]
    ]
  },
  "distortion_coefficients": []
}

Camera model	distortion_coefficients	Description
PINHOLE	[]	Pinhole camera without lens distortion.
KB4	[k1, k2, k3, k4]	OpenCV equidistant fisheye.
FISHEYE624	[k0, k1, k2, k3, k4, k5, p0, p1, s0, s1, s2, s3]	Project Aria fisheye, used in HOT3D.
RATIONAL_POLYNOMIAL	[k1, k2, p1, p2, k3, k4, k5, k6, s1, s2, s3, s4, tau_x, tau_y]	14-coefficient rational polynomial, used in the NVIDIA Video-to-Data Challenge.

Command-line reference

run_egohand_inference_pipeline.py options. --input, --output_dir, and --bbox_detector_config are required. --intrinsics_json is required with --perspective_cropping and strongly recommended otherwise.

Flag	Default	Description
--input	—	MP4 file or folder of MP4 files.
--output_dir	—	Output root; each video’s results go to <output_dir>/<video_stem>/.
--bbox_detector_config	—	Box source config (see 2D Hand Boxes). Supports ${ENV_VAR} substitution.
--intrinsics_json	—	Camera calibration (see Camera input formats).
--hand	both	left, right, or both.
--perspective_cropping	off	Project each hand region into a virtual pinhole view, correcting lens distortion. Recommended for all cameras. Without it, PINHOLE frames are used as-is and other models are undistorted first. Per-hand crop overlays are disabled in this mode.
--rectify_pixel_aspect_ratio / --no-rectify_pixel_aspect_ratio	on	For calibrations with fx != fy, resize frames to square pixels before detection and inference. Overlays, box JSONs, and 3D outputs are expressed in the original frame; for PINHOLE input, per-frame files from --save_npzs keep pred_keypoints_2d normalized to the crop in the corrected image. No effect with --perspective_cropping or when fx == fy.
--egohand_ckpt	Hosted checkpoint	Local EgoHand .ckpt file. If unset, --egohand_ckpt_hf_path is downloaded from nvidia/EgoHand-v1.
--egohand_ckpt_hf_path	egohand_s060000.ckpt	Hosted checkpoint file to download when --egohand_ckpt is unset.
--batch_size	32	Reconstruction batch size. RT-DETR uses rtdetr_config.batch_size.
--dino_compile	off	torch.compile each DINOv3 block for full-size inference batches. Speeds up long videos; warm-up can outweigh the gain on short ones. Output can differ from eager by up to ~1e-2, so validate once against an eager run.
--device	cuda	Torch device.
--dtype	float32	float32, float16, or bfloat16.
--postprocessing_smooth / --no-postprocessing_smooth	on	Adaptive smoothing of SOMA rotations, translation, and shape over the whole clip; joints and vertices are rebuilt to match.
--postprocessing_qc / --no-postprocessing_qc	off	Write a per-video quality-control report (see 3D quality control). Requires --hand both and --intrinsics_json.
--qc_max_bad_frac	0.02	Tolerated fraction of flagged frame-hand predictions, in [0, 1]. Only used with --postprocessing_qc.
--soma_hand_assets	Hosted assets	Local SOMA-X hand asset folder (see Model weights for the required files; the default checkpoint uses the MHR identity model).
--no_save_videos	off	Skip the .mp4 overlays.
--no_mesh	off	Skip mesh rendering in overlays. Meshes are rendered only for PINHOLE input and are skipped automatically for other camera models.
--draw_skeleton / --no-draw_skeleton	on	Draw the 2D joint skeleton overlay.
--save_crop_overlays	off	Save crop_overlay_<hand>.mp4, a debugging aid for box and crop alignment. The crop follows the raw boxes, so it can look jittery even when the hand is smoothed. Only for PINHOLE input without --perspective_cropping.
--save_images	off	Save per-frame .jpg outputs.
--save_npzs	off	Save per-frame full SOMA .npz outputs.
--per_frame_results	off	Write one result .npz per frame under <video>/<hand>/results/ instead of one file per hand.
--perf_output	Per video	Where to write performance metrics. Defaults to <output_dir>/<video_stem>/perf.json; pass one path to collect a whole run in one file.
--max_seconds	Full video	Only process the first N seconds of each video.
--frame_batch_size	Whole clip	Decode this many frames at a time to cap memory on long videos. Disables overlay rendering; predictions and smoothing still cover the whole clip. Rejected with live RT-DETR box smoothing; with bbox_smoothing: false, live tracking runs within each batch. For whole-clip tracking, use saved boxes from run_hand_detector.py.

Postprocessing

The code lives in inference/postprocessing. Adaptive smoothing and quality control run inside the reconstruction command; world-coordinate projection is a separate step afterwards.

Adaptive hand smoothing

adaptive_smoothing.py is on by default; pass --no-postprocessing_smooth for raw predictions.

• It smooths hand rotations on SO(3), camera translation, and shape, then rebuilds joints and vertices with the matching SOMA hand model, so saved parameters, geometry, and overlays all describe the same filtered hand.

• It uses physical time (frame_index / fps) and adapts to local motion. Missing or non-finite predictions and timestamp gaps split tracks.

• With --frame_batch_size, raw predictions are collected across batches and filtered once for the whole video, before QC and export.

• Filtered joints are reprojected using the corresponding pinhole or fisheye camera model.

• The filter defaults are experimental.

From Python, smoothing is off by default. Pass EgoHandPredictor(..., smooth=True) and supply frame_times={image_id: timestamp_in_seconds} to run() or EgoHandInferencePipeline.run(); timestamps must strictly increase in image order.

Smoothing is separate from detector box tracking, which processes the 2D boxes before inference, and from the world-coordinate refinement below.

3D quality control

clip_quality_control.py checks both hands for implausible motion, geometry and size inconsistencies, handedness errors, off-frame wrists, and missing predictions. It is off by default. Add these options to the reconstruction command:

--postprocessing_qc --qc_max_bad_frac 0.02

• QC requires --hand both (the default) and a real calibration in --intrinsics_json. Pinhole and both supported fisheye models work; the estimated-intrinsics fallback does not.

• Each video gets <output_dir>/<video_stem>/quality_control.json with a keep/drop verdict, per-rule counts, and source frame IDs. A drop verdict does not delete predictions or requested visualizations.

• frames[hand][rule] lists the zero-based frame IDs each rule flagged; rules with no flagged frames are omitted. missing_frames[hand] lists frames with no prediction or non-finite 3D joints, including at the start and end of the video. Missing does not mean occluded.

• --qc_max_bad_frac (in [0, 1], default 0.02) is the tolerated fraction of flagged frame-hand predictions. Delivery and frame-coverage checks apply regardless of it. The Python API defaults to zero tolerance.

The checks are heuristics: a smooth but misplaced hand can pass a geometry check. Review the report alongside the overlays when choosing a threshold.

World coordinates and camera-pose refinement

EgoHand exports camera-relative hands. To place them in a world frame, supply an external camera-to-world trajectory, for example from NVIDIA ViPE. Camera-pose error shows up as jitter when that trajectory is composed with the hands, so world_coordinate_projection.py uses both hands jointly to refine the camera poses. Run it after reconstruction:

PYTHONPATH="$(pwd)" .venv/bin/python \
  inference/postprocessing/world_coordinate_projection.py \
  --left "$OUTPUT_PATH/$VIDEO_NAME/left_results.npz" \
  --right "$OUTPUT_PATH/$VIDEO_NAME/right_results.npz" \
  --pose "$CAMERA_POSE_NPZ_PATH" \
  --out "$OUTPUT_PATH/$VIDEO_NAME/pose_stabilized.npz"

Inputs. The hand files are the reconstruction’s left_results.npz and right_results.npz. The pose NPZ uses ViPE’s layout:

{
    "data": ...,  # (F, 4, 4) camera-to-world transforms
    "inds": ...,  # (F,) source frame indices, used to sort the poses
}

A bare (F, 4, 4) array under data, poses, or arr_0 without inds is also accepted. The tool does not estimate a trajectory from video.

Both hand arrays must contain the same source frames as the camera poses, in pose order: poses are sorted by inds when present and otherwise kept in stored order. The tool pairs rows by position and checks only that the frame counts are equal; it does not read the hands’ frame_names. EgoHand exports can omit different frames for each hand, so check alignment with frame_names and reorder before running. Equal lengths alone do not guarantee alignment.

Outputs. The --out NPZ (default <pose>_stabilized.npz) contains:

Field	Contents
poses	Refined camera-to-world transforms, (F, 4, 4).
poses_raw	Original transforms, for comparison.
left_cam, right_cam	Hand joints in the refined camera frame, in meters.
inds	Sorted input pose indices, or row indices 0..F-1 when the pose input has no inds.
metrics	JSON with quality metrics and parameters.

Compose poses with left_cam / right_cam for world coordinates; the Python result’s to_world() does this.

Options.

Flag	Default	Description
--smooth_post	1.0	Final Gaussian smoothing (sigma, in frames) of the world track. It removes per-hand jitter the pose correction cannot, but edits the keypoints; set 0 to keep their image reprojection exact.
--sigma_smooth	3.0	Smoothing of the target trajectory the poses are fitted to.
--sigma_keep	0.0	Above 0, keeps the input’s slow trajectory and corrects only fast jitter; 0 leaves the correction unconstrained.
--mode	rigid	rigid corrects rotation and translation; translation corrects translation only.
--iters	30	Optimization iterations.

The pose fit itself never changes the camera-frame keypoints. It assumes jitter shared by both hands comes from camera motion, so check the reported common versus differential motion metrics before adopting the corrected trajectory; the result is not guaranteed to be physically plausible.

2D Hand Boxes

EgoHand needs a 2D box for each hand it reconstructs. --bbox_detector_config selects where the boxes come from:

Box source	Configuration	Notes
Your own detector or ground-truth boxes	inference/hand_detector_2d/configs/saved_bboxes.yaml	No RT-DETR weights needed.
Optional RT-DETR detector	inference/hand_detector_2d/configs/rtdetr.yaml	Works as-is with the hosted weights.

Use your own detector or ground-truth boxes

Arrange one folder per video under a root directory, named after the video’s stem (the filename without .mp4):

bboxes/
└── my_video/
    ├── my_video_left_bbox.json
    └── my_video_right_bbox.json

Each file maps a zero-based, six-digit frame ID to a square box in source-video pixels, ordered [center_x, center_y, side_length]:

{
  "000000": [640.0, 360.0, 180.0],
  "000001": [642.0, 358.0, 182.0]
}

• Use anatomical left/right labels.

• Coordinates must match the decoded input video, including any rotation or resize applied before inference. Do not pre-rectify the saved boxes: perspective cropping uses source-frame boxes directly, and standard pinhole cropping maps them internally when pixel-aspect rectification is enabled.

• To convert an xyxy box: center_x = (x_min + x_max) / 2, center_y = (y_min + y_max) / 2, and side_length = max(x_max - x_min, y_max - y_min). Include any hand padding in the side length. Values must be finite, with a positive side length.

• Omit frames with no box rather than writing a zero or null box. Missing frames and missing hand files count as no detection, but each video needs a file for at least one requested hand.

• Frame IDs are the decode order from the start of the video, not timestamps.

saved_bboxes.yaml reads the root from the BBOX_DIR environment variable:

detector_backend: saved_bboxes
saved_bbox_path: "${BBOX_DIR}"

Set BBOX_DIR to the root (bboxes/, not bboxes/my_video/), then run Hand Reconstruction with this config.

Warning

Keep --output_dir separate from BBOX_DIR. When the calibration has fx != fy, pixel-aspect rectification (on by default) rewrites the bbox JSON in the output folder. If that folder is your input box tree, the mapping is applied twice and the input files are silently corrupted.

Use the optional RT-DETR detector

With the default rtdetr.yaml, the ONNX weights are downloaded from the RT-DETR Hand Detector-v1 repository and cached locally:

detector_backend: rtdetr
rtdetr_config:
  bbox_smoothing: true
  bbox_size_scale: 0.8
  bbox_size_alpha_grow: 0.12
  bbox_size_alpha_shrink: 0.06
  bbox_max_size_change: 0.01
tracking: true

tracking: true enables native temporal tracking; false (the default when omitted) uses independent per-frame detections. Box smoothing requires tracking: true.

To use a local ONNX model, save your own config with weights set and export RTDETR_WEIGHT_PATH=/path/to/hand_detector.onnx:

detector_backend: rtdetr
rtdetr_config:
  weights: "${RTDETR_WEIGHT_PATH}"
  bbox_smoothing: true
tracking: true

Every rtdetr_config field is optional:

Field	Default	Description
weights	Hosted model	Path to the RT-DETRv2 .onnx file. If unset, the file named by rtdetr_hf_weights is downloaded from Hugging Face.
rtdetr_hf_weights	hand_detector.onnx	File to download when weights is unset.
batch_size	8	Frames per ONNX forward pass. The model is launch-bound, so larger batches only cost memory.
score_thr	0.5	Minimum detection confidence. Ignored by the native tracker.
padding	0.3	Fractional box padding (side *= 1 + padding). Ignored by the native tracker, which applies its own.
clip	false	Keep boxes inside the image bounds.
lr_order	true	Native tracker only. Make the smaller-x box the left hand when both are present.
drop_gap_filled	false	Native tracker only. Emit boxes only on frames with a real detection.
bbox_smoothing	false	Offline smoothing and tighter crops over the whole clip; requires tracking: true. The supplied configs enable it; set false for the raw native boxes.
bbox_size_scale	0.8	Target box side relative to the native square, in (0, 1].
bbox_size_alpha_grow	0.12	Size-growth EMA weight at 20 fps, in (0, 1]; smaller smooths more.
bbox_size_alpha_shrink	0.06	Size-shrink EMA weight at 20 fps, in (0, 1].
bbox_max_size_change	0.01	Maximum fractional size change per 20-fps interval; 0 holds the size constant within a track segment.

An unknown key or invalid value raises an error naming the key. Older configs must drop the removed rtdetr_config.tracker key.

Box smoothing is offline, whole-clip processing, so live RT-DETR with bbox_smoothing: true rejects --frame_batch_size. Setting bbox_smoothing: false permits batching, but live tracking then runs independently within each batch; tracker state is not carried across batches. For whole-clip tracking on long videos, run detection separately (the standalone script tracks the complete clip once) and reconstruct in batches with saved_bboxes.yaml.

Run detection separately

To inspect or reuse detections before reconstruction, run RT-DETR on its own. When the second pass uses --perspective_cropping, disable pixel-aspect rectification in the detector pass:

PYTHONPATH="$(pwd)" .venv/bin/python \
  inference/hand_detector_2d/scripts/run_hand_detector.py \
  --input "$INPUT_VIDEO_PATH" \
  --output_dir "$BBOX_OUTPUT_PATH" \
  --bbox_detector_config inference/hand_detector_2d/configs/rtdetr.yaml \
  --intrinsics_json "$INTRINSICS_JSON_PATH" \
  --no-rectify_pixel_aspect_ratio

It writes the per-hand JSON format above. Set BBOX_DIR="$BBOX_OUTPUT_PATH" and reconstruct with saved_bboxes.yaml. To match live detection:

• Use the same video and the same --intrinsics_json in both passes.

• With --perspective_cropping in the second pass, keep --no-rectify_pixel_aspect_ratio as shown: perspective cropping skips full-frame rectification, so the detector should see source images too. Boxes are always mapped back to source coordinates either way; rectifying only changes what the detector sees, which can change its detections.

• For standard pinhole cropping (no --perspective_cropping), drop --no-rectify_pixel_aspect_ratio and use the same rectification setting in both passes (on by default).

• For distorted cameras (FISHEYE624, KB4, RATIONAL_POLYNOMIAL), pass --perspective_cropping in the second pass. Saved boxes are in source-frame coordinates; without it the pipeline undistorts full frames first, so the boxes no longer line up and the run stops with an error.

• Match --max_seconds if both passes should cover the same frames. Truncation never shifts frame IDs, but whole-clip tracking and smoothing can change boxes on shared frames when only the detector pass is truncated.

• Write reconstruction results to a different --output_dir than the boxes.

This script runs only RT-DETR and does not need PyTorch or the egohand package. It accepts --hand (both), --device (cuda), --max_seconds, --rectify_pixel_aspect_ratio / --no-rectify_pixel_aspect_ratio (on), and --frame_batch_size (256 frames decoded at once). Only detector_backend: rtdetr is accepted.

Keypoints to SOMA converter

keypoint_2_soma_converter is a standalone tool that fits an undistorted video and frame-aligned, camera-space 21-point hand tracks (MANO keypoint convention) to the native SOMA hand model with the MHR identity backend. The result has 25 native SOMA joints, mesh reconstruction parameters, and optional skeleton videos. It consumes existing 3D tracks; it does not detect hands or estimate 3D keypoints from video.

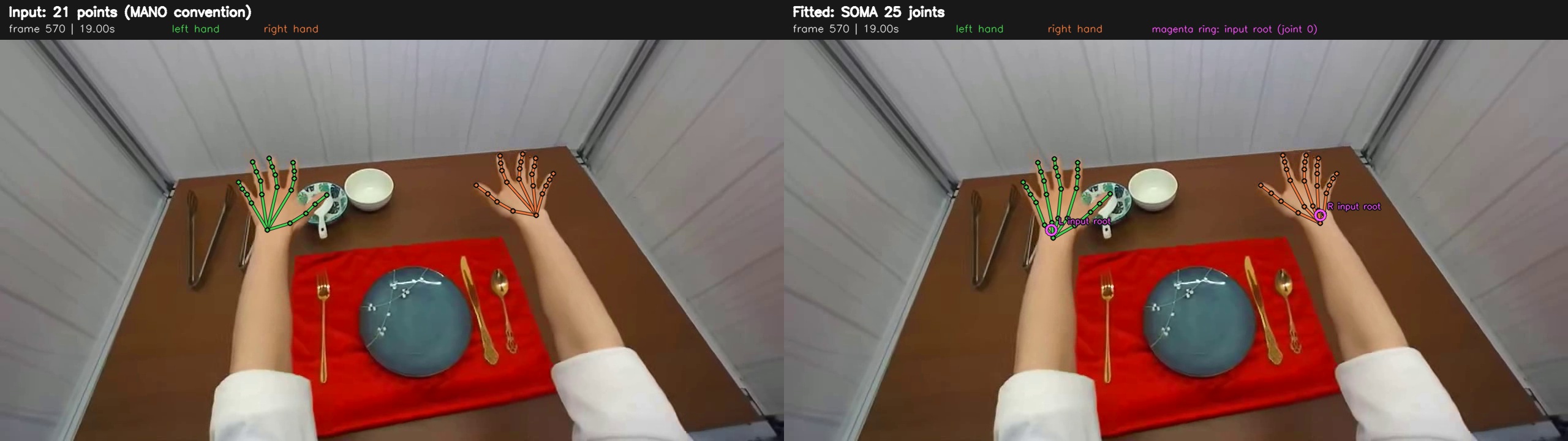

Input 21-point skeleton (left) and fitted SOMA 25-joint skeleton (right). Green is the left hand, orange the right; magenta rings mark the input root.

Set up

Run keypoints to SOMA converter commands from src/python/isaaccapture_egopost/keypoint_2_soma_converter/. The default preset needs Linux and an NVIDIA CUDA GPU; the requirements pin PyTorch 2.7.1 with CUDA 12.8, so the driver must support that runtime.

# Either a Conda environment
conda env create -f environment.yml
conda activate soma-fit

# or an existing Python 3.12 environment
python -m pip install -r requirements.txt

python -m soma_sequence_fit --help

The commands are assets, fit, and compare. Download the native SOMA/MHR files from nvidia/SOMA-X (revision v0.3.0) once:

python -m soma_sequence_fit assets --out assets

Prepare the landmark NPZ

The video must already be undistorted, and NPZ frame t must match decoded video frame t; mismatched frame counts are rejected.

Field	Shape	Meaning
points3d	(T, 2, 21, 3)	Anatomical left, then right; camera-space 3D points with metric depth.
confidence	(T, 2, 21)	Optional, in [0, 1]; zero marks a missing point.
K	(3, 3) or (T, 3, 3)	Pinhole intrinsics in source-video pixels.
timestamps	(T,)	Optional, strictly increasing seconds; otherwise derived from FPS.
units	scalar string	m, cm, or mm.
coordinate_system	scalar string	opencv_camera (x right, y down, z forward).
distortion	optional	Must be zero.

The 21-point order is the wrist, then the thumb, index, middle, ring, and little fingers, each with four points from base to tip.

import numpy as np

np.savez_compressed(
    "landmarks.npz",
    points3d=points,  # (T, 2, 21, 3)
    confidence=confidence,  # (T, 2, 21)
    K=K,
    timestamps=np.arange(len(points)) / fps,
    units=np.array("m"),
    coordinate_system=np.array("opencv_camera"),
    distortion=np.zeros(5, np.float32),
)

Fit and compare

python -m soma_sequence_fit fit \
  --video /path/to/undistorted_video.mp4 \
  --points /path/to/landmarks.npz \
  --assets assets \
  --out outputs/sample \
  --overlay

python -m soma_sequence_fit compare \
  --video /path/to/undistorted_video.mp4 \
  --points /path/to/landmarks.npz \
  --fit outputs/sample/soma_parameters.npz \
  --out outputs/sample/comparison.mp4

fit will not overwrite a non-empty output directory, so choose a new --out when rerunning. Omit --overlay if you only need the parameters and reports. compare writes a side-by-side video plus a last-frame comparison.jpg; it needs no GPU.

Masks come from GrabCut by default. To segment with Transformers SAM3, obtain access to facebook/sam3, run hf auth login, and add --mask-backend sam3 --sam3-checkpoint facebook/sam3 (or a local model directory). Supplied binary masks can be used with --mask-backend files --mask-dir DIR (DIR/left/000000.png and DIR/right/000000.png at full resolution). Use 8-bit grayscale PNGs with 0 for background and 255 for foreground; the loader thresholds at >127, so masks stored as 0/1 are read as empty. --ignore-dir DIR uses the same layout, resolution and encoding; white pixels exclude occluder regions from image fitting.

Identity, global scale, and bone scale are shared across all frames of each hand within a clip, while pose and translation vary per frame. Temporal penalties on rotation, translation, and mesh motion reduce jitter, but do not guarantee zero jitter.

Defaults can be overridden per invocation, for example --device cuda:1 --batch-size 16. --no-optimize-bones disables bone-scale optimization, and CPU fitting needs --device cpu --renderer soft and is much slower. Run python -m soma_sequence_fit fit --help for all options.

Output	Contents
soma_parameters.npz	Shared identity and scale, per-frame native pose, translation, 25 joints (joints25, in meters), and reconstruction metadata.
report.json	Configuration, input and asset hashes, and fitting diagnostics.
timing_breakdown.json	Preprocessing, fitting, and export timings.
metric_preservation.json	Input-to-fit dimension diagnostics.
overlay.mp4	Fitted 25-joint skeleton, with --overlay.
comparison.mp4 / .jpg	Side-by-side video and last-frame screenshot from compare.

Docker

Two images are provided: a combined detection and reconstruction image, and a detector-only image whose box output feeds a later reconstruction run. See inference/docker/README.md.

The detector wrapper always uses pixel-aspect rectification and has no switch to disable it. For a perspective-cropping second pass, run run_hand_detector.py directly with --no-rectify_pixel_aspect_ratio (see Run detection separately).

Performance

Each video’s perf.json records per-stage timings, averaged per source frame. The stage names below are the ones recorded there; see inference/perf/README.md for how each stage is measured. Two derived metrics combine them:

• Model inference latency = batch_assembly + model_forward + post_forward: preparing the input batch, the forward pass, and preparing the outputs.

• Full pipeline latency = preprocessing + model inference latency + adaptive_smoothing: the end-to-end pipeline time, including cropping and smoothing.

Reference per-stage timings (ms per source frame) on an NVIDIA L40 for the Example video episode_000045.mp4 (290 frames, 2028×1520). Results vary by environment and GPU.

Stage	Perspective cropping	Without perspective cropping
preprocessing	6.861	3.891
batch_assembly	0.287	0.279
model_forward	15.172	15.167
post_forward	2.887	2.880
adaptive_smoothing	2.898	2.744
Model inference latency	18.346	18.326
Full pipeline latency	28.376	25.465

The same measurement on an NVIDIA RTX PRO 6000 Blackwell:

Stage	Perspective cropping	Without perspective cropping
preprocessing	6.971	2.721
batch_assembly	0.365	0.364
model_forward	6.870	6.894
post_forward	1.777	1.802
adaptive_smoothing	1.856	1.776
Model inference latency	9.012	9.060
Full pipeline latency	18.006	13.876

Limitations

• Reconstructions are camera-relative; world placement needs an external camera trajectory.

• Reconstruction quality depends directly on the capture quality of the egocentric video and on an accurate camera calibration.

• The optional detector and tracker assume both hands stay in frame. When a hand leaves and re-enters, the tracker can misassign or duplicate boxes, and neither the results nor --postprocessing_qc flag it. For such footage, check bbox_viz.mp4 or supply your own boxes (see 2D Hand Boxes).

License

EgoHand is licensed under OpenMDW-1.1. See THIRD_PARTY_LICENSES.md for third-party licenses.

NOTICE AND DISCLAIMER: This software automatically retrieves, accesses, or interacts with external materials. These materials are not distributed with the software and are governed by their own terms, conditions, and licenses. You are solely responsible for identifying, reviewing, and complying with those requirements, and for verifying the security, integrity, and suitability of the materials for your use case.

This software is provided “AS IS”, without warranty of any kind. The author makes no representations or warranties regarding external materials and assumes no liability for any losses, damages, liabilities, or legal consequences arising from your use of, or inability to use, the software or those materials. Use the software and external materials at your own risk.
