Traits#

NPPDx fused kernels are built by composing operators at compile time. Each step is a composed operator expression such as IngestOperation. Traits are constexpr accessors that inform the compiler how to build the code – format, tile size, halo, and launch geometry – from those composed types. The library uses the same information internally to pick backend implementations, cell layouts, and shared-memory footprints when generating specialized device code. Terminology (operator, compose, steps, fused kernel) is defined in Terminology.

Most traits are evaluated entirely at compile time. Invalid or incomplete steps fail with static_assert during instantiation rather than at runtime.

Architecture – halos at compile time#

NPPDx is a Dx-style library for image processing: operators compose at compile time, and the library counts halos while compiling so ingest loads the right border, neighborhood steps know their valid tile bounds, and fused kernels stay consistent without runtime halo bookkeeping.

New functionality extends the same model:

Ingest/exgest formats: add a packing_format and specialize the format backend (packing_format_traits and I/O implementations).
Operators: add a function tag, parameter operators, and an operation_operator_traits specialization.
Backend algorithms: plug implementations into the operator database (operation_database.hpp) without changing user kernel structure.

Architecture overview#

The diagram below shows how user code connects to traits, operator selection, and device execution. The left panel is the library-level view; the right panel zooms into Operator implementation (the dashed region on the left).

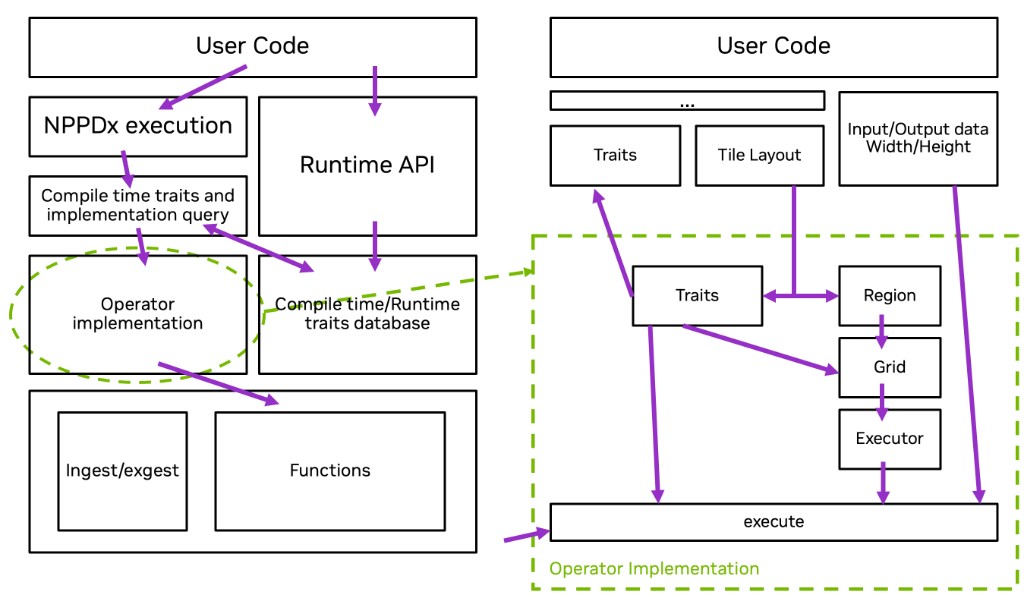

NPPDx traits and operator implementation architecture — Figure 4 NPPDx architecture: traits database, operator implementation, and execute.#

Left panel – from user code to operator implementation#

User code: composes processing steps with operators, launches CUDA kernels, and passes image width and height at runtime.
NPPDx execution: the compile-time type formed when a processing step is complete (SM, Block(), and a Function or InputOutput with format) – for example IngestOperation.
Runtime API: the execute() overloads on that type, called from device code inside the kernel.
Compile-time traits and implementation query: constexpr accessors such as tile_size_of_v, local_halo_of_v, and is_supported_v that read the composed expression before launch.
Compile-time / runtime traits database: per-operator and per-format trait specializations (operation_operator_traits, packing_format_traits) plus the operator database (operation_database.hpp) that maps a trait query to a concrete backend implementation.
Operator implementation: the selected ingest/exgest or function backend for the configured processing step (expanded on the right).
Ingest/exgest and Functions: the two families of operators the database chooses from.

Right panel – inside operator implementation#

The zoomed view shows what happens for a single operator once the composed expression (...) and runtime image size are known:

Composed operators (...): the +-assembled operators (TileSize, Function, BoxBlur, formats, and so on). These feed traits and tile layout at compile time.
Input/Output data width/height: runtime image dimensions passed into execute(); used with tile size to determine how many tiles cover the image.
Traits: compile-time values extracted from the processing step (format, halo, SM, block geometry, parameter operators).
Tile layout: nominal tile size plus memory and cumulative halos; defines the extended region each block must load or process.
Region: the valid tile interior and halo bounds derived from layout (see detail/database/region.hpp).
Grid: launch grid dimensions from tile layout and image width/height (calculate_grid_dim).
Executor: the normalized execution operator and backend impl type chosen from the traits database (cell configuration, block threads, specialized device code).
execute: the device entry point that combines the executor, compile-time traits, runtime width/height, and buffers. The arrow from the left panel is the call from user kernel code into the library execute() method.

In short: operators and tile layout determine traits at compile time; traits and image size determine region, grid, and executor; execute runs the constructed fused kernel.

How traits connect operators to device code#

The list below maps the right-hand panel to headers in the repository:

Operators: user-facing knobs (TileSize, BoxBlur<3, 3>, InputFormat, …).
Trait queries: extract configured values from the composed type (tile_size_of_v, local_halo_of_v, …) in traits/nppdx_traits.hpp.
Operator traits: per-operator metadata in operation_operator_traits used to derive halos, shared-memory storage slots, and parameter-operator wiring to backends.
Launch traits: a complete processing step (for example IngestOperation) exposes block_dim, calculate_grid_dim, elements_per_thread, and an execute() implementation selected from the operator database.

The operator database (operation_database.hpp) uses SM architecture, packing format, tile geometry, and halo requirements to choose a cell configuration (how threads map pixels inside a tile) and block size. That selection is not a separate user API; it is driven by the traits computed from the processing step.

Query traits#

Trait naming#

NPPDx follows the usual C++ trait suffix convention (as in std::is_same_v / std::is_same_t):

foo_of<Description> – the trait struct.
foo_of_v<Description> – the trait’s compile-time value (foo_of<Description>::value). Use for scalars, enums, and value types such as Halo4, uint2, and dim3.
foo_of_t<Description> – the trait’s type (typename foo_of<Description>::type). Use when declaring variables, template parameters, or storage typedefs.

Header traits/nppdx_traits.hpp (included from nppdx/traits.hpp) provides constexpr queries on any composed operator expression. Common accessors:

Trait	Meaning
`type_of_v<Description>`	commonDx data-type enum from the `Type<...>` operator (or its library default).
`processing_type_of_t<Description>`	C++ type used for on-tile processing; currently `float`.
`sm_of_v<Description>`	Target SM architecture from `SM<...>`.
`block_dim_of_v<Description>`	Thread-block dimensions from `BlockDim<...>`.
`tile_size_of_v<Description>`	Nominal tile size as `uint2` from `TileSize<W, H>`.
`packing_format_of_v<Description>`	Packed I/O format (ingest uses `input_format_of_v`, exgest uses `output_format_of_v`).
`input_output_direction_of_v<Description>`	`ingest` or `exgest` from `InputOutput<...>`.
`function_of_v<Description>`	Image-processing function tag from `Function<function:: ...>`.
`operation_operator_of_t<Description>`	The parameter operator paired with the function or I/O tag (for example `BoxBlur<3, 3>`).
`local_halo_of_v<Description>`	Per-operator neighborhood support (see Halos and step order).
`memory_halo_of_v<Description>` / `cumulative_halo_of_v<Description>`	Values from `MemoryHalo` / `CumulativeHalo` on the step when set; otherwise the empty halo defaults. See Halos and step order.
`elements_per_thread_of_v<Description>`	Register footprint per thread (derived from cell configuration; see internal cells below).
`inputs_of_t<Description>` / `outputs_of_t<Description>` / `temp_of_t<Description>`	Tuple typedefs (`Description::inputs`, `::outputs`, `::temp`).
`input_storage_of_t<Description>` / `output_storage_of_t<Description>` / `temp_storage_of_t<Description>`	Convenience aliases for element `0` of the corresponding storage tuple.

These traits are the low-level building blocks. Host code can query them directly; the Image Processing Using NPPDx walkthrough also shows the same values as static members on types such as IngestOperation (block_dim, input_storage, and so on).

Operator traits#

Each concrete operator kind specializes an operator traits class template – operation_operator_traits<TagType> in operators/operation_operator_traits.hpp. That template is declared once per operator and currently dictates how subsequent traits for each processing step are derived (halo, storage layout, parameter-operator type, database lookup).

An operator in this model has three layers:

The operator itself: the Function<function:: ...> tag (or ingest/exgest direction tag) paired with execution; oversees traits and parameters in the composed processing step.
Operator parameters: expression-level parameter operators (BoxBlur<3, 3>, GaussianBlur<20>, Resize<J, K, Method>, …) that supply compile-time values such as kernel size or Gaussian radius.
Operator traits: low-level properties derived from those parameters (local halo, tap count, validity), exposed through operation_operator_traits and trait queries such as local_halo_of_v.

Each operation_operator_traits specialization provides:

op_type_val: which operator_type enumerator corresponds to the parameter operator.
default_op: placeholder parameter operator used when a processing step omits explicit values.
get_local_halo(value): neighborhood radius required for the configured parameters.
get_storage_config(value, layout): shared-memory slot sizes for input, output, and temp buffers (see Shared-memory storage traits).
get_output_nominal_tile(value, input_nominal): nominal tile size after this processing step (resize changes geometry; other steps typically return the input nominal unchanged).

For example, operation_operator_traits<function_tag<function::box_blur>> maps BoxBlur<W, H> to a uniform halo of (W - 1) / 2 and (H - 1) / 2. operation_operator_traits<function_tag<function::gaussian_blur>> derives halo from the discrete FIR tap count for GaussianBlur<RadiusTenths, TailWidth>. Pointwise steps such as color_convert and gamma report an empty local halo.

local_halo_of<Description> dispatches through these specializations using the function or I/O tag and the parameter operator found in the processing step. Adding a new operator requires a new function tag, parameter operators, a backend implementation, and a matching operation_operator_traits specialization so halos and database lookup stay consistent.

Packing format traits#

Ingest and exgest backends need format-specific facts: channel count, bits per channel, subsampling, planar vs packed layout, and storage type. packing_format_traits<Format> in operators/formats.hpp centralizes those properties. Most enumerators use the general template; packed exceptions (for example rgb10, y210, uyvp, v210) specialize where stride or storage differs from the default.

Format traits feed tile validity checks (is_valid_tile_v) and I/O cell configuration. They are rarely queried directly from application code, but they explain why some format and tile-size combinations are rejected at compile time.

Launch and execution traits#

When a processing step is complete, the type behind execute() (see Execution Methods (Device API) – Device API) exposes host-side launch metadata as static members:

Member	Role
`block_dim`	CUDA thread-block size for the kernel launch.
`suggested_tile_size`	Nominal tile width and height (matches `TileSize`).
`calculate_grid_dim(width, height)`	Grid dimensions from image size and tile size.
`shared_memory_size`	Dynamic shared memory bytes for this processing step’s `inputs`, `outputs`, and `temp` layout if the Shared-memory API is used (same value as `shared_memory::compute_operation_storage<Description>()`). Composition does not encode Register-only vs Shared-memory; Register-only launches pass `0` instead of this value.
`elements_per_thread`	Intermediate values per thread on Register-only APIs.
`local_halo`	Neighborhood support for this processing step.
`effective_tile_x` / `effective_tile_y`	Tile extent including halo for shared-memory allocation.
`input_storage` / `output_storage` / `temp_storage`	`constexpr` slot shapes (`uint2` size and channel count) from `storage_config`.
`inputs` / `outputs` / `temp`	Tuple typedefs of `shared_memory::TileStorage<...>` (or `tuple<>` when a slot is unused).

Prefer calculate_grid_dim over hand-rolled grid arithmetic. For a kernel that uses one processing step’s shared-memory layout, Op::shared_memory_size is sufficient for the launch’s third <<<...>>> argument. For fused kernels that carve out multiple tile buffers from several processing steps in one extern __shared__ allocation, use shared_memory::compute_total_tile_storage (see TileStorage utilities). See Image Processing Using NPPDx for launch examples.

Shared-memory storage traits#

Each complete processing step exposes what shared-memory tile buffers the step needs. The library derives slot geometry from operation_operator_traits::get_storage_config and lifts the result into constexpr members on types such as IngestOperation:

Member / trait	Role
`input_storage` / `input_storage_of_t<Description>`	Input tile buffer shape and `TileStorage` type.
`output_storage` / `output_storage_of_t<Description>`	Output tile buffer (empty for in-place steps).
`temp_storage` / `temp_storage_of_t<Description>`	Intermediate buffer (resize and similar multi-buffer steps).

Storage patterns by category of step:

Category	Slots used
Ingest / exgest	Input slot only (memory tile including halo); output and temp slots empty.
Pointwise (color_convert, gamma, affine_channel_map)	In-place input slot only.
Area (box blur, gaussian, median, sharpen)	Separate input and output buffers, same memory-tile size.
Resize	Input (source memory tile), output (resized nominal tile), temp (intermediate strip).

Slot names above refer to storage_config members (input_storage, output_storage, temp_storage). The corresponding TileStorage tuple typedefs are inputs, outputs, and temp.

In a fused kernel, query storage types per processing step – for example input_storage_of_t<Ingest> for the ingest buffer and output_storage_of_t<BoxBlur> for the blur output – then pass those types to TileStorage utilities helpers to partition one extern __shared__ allocation.

TileStorage utilities#

Header tile_storage.hpp defines the leaf shared-memory types; shared_memory.hpp adds helpers such as compute_total_tile_storage and compute_operation_storage to size dynamic shared memory. Typical workflow:

Include nppdx/shared_memory.hpp.
Alias storage types from traits (input_storage_of_t, output_storage_of_t, …).
In the kernel, call shared_memory::slice_into_tile_storage<Types...>(smem) to bind typed TileStorage views to offsets inside dynamic shared memory.
On the host, size the launch with Op::shared_memory_size when one step’s layout covers the allocation, or shared_memory::compute_total_tile_storage<Types...>() when several processing steps share one extern __shared__ block (and cudaFuncAttributeMaxDynamicSharedMemorySize when required).

Core types:

shared_memory::ChannelSlice<T, Width, Height> – one channel plane in shared memory.
shared_memory::TileStorage<ChannelSliceType, NumChannels> – multi-channel tile; from_memory(unsigned char*) placement-news channel data into a sub-range of smem.
shared_memory::copy_tile_storage(src, dst) – block-wide copy between two TileStorage objects (ends with __syncthreads()).

shared_memory::compute_operation_storage<Description>() returns the aligned byte count for one processing step’s inputs, outputs, and temp slots combined – the same value as Description::shared_memory_size. Use compute_total_tile_storage when several processing steps share one allocation in a fused kernel.

See 03_area_operation/box_filter.cu and 04_resize/fused_resize.cu for fused-kernel patterns, and 00_introduction/introduction_example_shared_memory.cu for ingest/exgest only.

Halos and step order#

Halo and storage traits mix configured operators (MemoryHalo, CumulativeHalo, TileSize) with derived values computed from operator parameters and layout:

Trait	What it means	Who sets it
`local_halo_of_v<Description>`	Neighborhood support for one step (blur radius, median window, resize filter reach, …).	Derived from the function tag and parameter operator via `operation_operator_traits::get_local_halo`.
`memory_halo_of_v<Description>`	In-tile buffer border – shared-memory tile capacity for this processing step.	Configured with `MemoryHalo<...>` on the step. Omit only when an empty border is correct.
`cumulative_halo_of_v<Description>`	Full cumulative halo – overlap between tiles and extended ingest region for tiled processing – or the remaining halo on later steps.	Configured with `CumulativeHalo<...>` on each processing step for Shared-memory fused kernels. See the area and resize examples.
`input_storage_of_t<Description>` (``_t`` example)	`shared_memory::TileStorage` type for the processing step’s input slot.	Derived from `operation_operator_traits::get_storage_config` (see Shared-memory storage traits).

For fused kernels, compose local halos from each neighborhood step into the cumulative halo – overlap between tiles and extended ingest region for tiled processing (the total does not change when neighborhood steps are reordered). Set MemoryHalo and CumulativeHalo on each step as needed; see 03_area_operation/box_filter.cu and 04_resize/fused_resize.cu. Use scale_halo(halo, num, den) when resize scale factors affect halo geometry.

Reordering image processing steps changes numerics, valid tile bounds, and shared-memory layout. See Achieving High Performance for tuning guidance.

Completeness and support checks#

Traits also gate whether a processing step can be instantiated:

is_complete_npp_v<Description>: mandatory operators are present (SM, Block(), and either a Function or InputOutput with the matching format operator).
is_supported_v<Description, Architecture>: tile size, format, and architecture pass internal validity checks (shared-memory limits, cell alignment, minimum SM).

Unsupported combinations fail at compile time when the step’s type is being composed. Use is_supported_v or the shipped examples to probe a configuration before building a kernel.

User-facing vs derived traits#

Not every trait corresponds to an operator in the public API:

Configured by operators	Derived by the library
`TileSize`, `BlockDim` / `Block`, `SM`	Tile size, recommended block thread count, `elements_per_thread`
`Function` + parameter operators	Backend implementation type, `inputs` / `outputs` / `temp` storage typedefs
`InputFormat` / `OutputFormat`	Ingest/exgest load and store paths from `packing_format_traits`
Optional `MemoryHalo` / `CumulativeHalo`	`MemoryHalo` – in-tile buffer border; `CumulativeHalo` – full cumulative halo (overlap between tiles, extended ingest region).

TileSize and block geometry are the primary tuning knobs exposed to applications. Cell mapping and halo propagation are internal but surface through the launch traits above.

Example: querying traits before launch#

using Ingest = decltype(
    InputOutput<input_output_direction::ingest>() +
    InputFormat<packing_format::rgb24>() +
    TileSize<48, 48>() +
    Block() +
    SM<900>());

static_assert(is_complete_npp_v<Ingest>);
static_assert(is_supported_v<Ingest, 900>);

constexpr auto tile   = tile_size_of_v<Ingest>;
constexpr auto format = packing_format_of_v<Ingest>;

const dim3 grid  = Ingest::calculate_grid_dim(width, height);
const dim3 block = Ingest::block_dim;

image_processing_kernel<Ingest, Exgest>
    <<<grid, block>>>(d_in, d_out, width, height);

Shared-memory API fused kernel (ingest \(\rightarrow\) box blur \(\rightarrow\) exgest):

using InputTileStorage  = input_storage_of_t<Ingest>;
using BlurTileStorage   = output_storage_of_t<BoxBlur>;

constexpr size_t smem_size =
    shared_memory::compute_total_tile_storage<InputTileStorage, BlurTileStorage>();

box_blur_kernel<Ingest, BoxBlur, Exgest, InputTileStorage, BlurTileStorage>
    <<<grid, block, smem_size>>>(d_in, d_out, width, height);

Inside box_blur_kernel, slice_into_tile_storage<InputTileStorage, BlurTileStorage>(smem) returns typed TileStorage views passed to each processing step’s execute() overload.
