Annotation Attributes

• Message

  • Associate an annotation with a message, e.g., the function name when decorating a function.

• Color

  • The color attribute can be used to guide the tool’s visualization of annotations.

• Domain

  • Domains enable scoping of annotations. Each domain maintains its own categories, range stacks and registered strings.

  • By default, all annotations are in the default domain. Additional domains with distinct names can be registered by using nvtx.get_domain().

  • It is recommended to use a single (non-default) domain per library.

• Category

  • Categories can be used to group annotations within a domain.

• Payload

  • Additional data associated with the annotation.

  • Parmeters or metadata are recommended to be added as payloads, rather than embedding them into the message string.

  • Payloads provide a separation between the message and the data of the event, which is often useful for analysis.

  • In the Nsight Systems GUI, payloads are displayed in the tooltip of the event and in the event view.

  • Supported Types:

    • int: 64-bit signed integer

    • float: 64-bit floating point

    • numpy.ndarray: NumPy arrays (requires NumPy)

      • Including Structured arrays.

    • list, tuple, range: Converted to NumPy arrays (requires NumPy)

    • bytes: Byte sequences (requires NumPy)

Example:

import time
import nvtx


@nvtx.annotate(color="blue", domain="Domain 1", category="Cat 1")
def func_1():
    time.sleep(1)


@nvtx.annotate(color="green", domain="Domain 1", category="Cat 2")
def func_2():
    time.sleep(1)


@nvtx.annotate(color="red", domain="Domain 2", category="Cat 1")
def func_3():
    time.sleep(1)

func_1()
func_2()
func_3()

Profiling the above code with Nsight Systems will produce the following timeline:

Extended Payload Example:

import nvtx
import numpy as np

# Examples with builtin Python iterable objects.
nvtx.push_range(message='my float list', payload=[1, 2.5, 3.5, 4.5])
nvtx.push_range(message='my range', payload=range(10))
nvtx.push_range(message='my bytes', payload=b'\xde\xad\xbe\xef')


# Example with structured datatype.
# Payload is passed as a NumPy array.
my_dtype = np.dtype([
    ('my int8', np.int8),
    ('my float32', np.float32),
    ('my uint32 list', np.uint32, 4)
])

nvtx.push_range(message='my dtype', payload=np.array((10, 20.5, [1,2,3,4]), dtype=my_dtype))
nvtx.push_range(message='my dtype array',
                payload=np.array([(10, 20.5, [1,2,3,4]),(30, 40.5, [1,2,3,4])], dtype=my_dtype))

# Pop all pushed ranges.
for _ in range(5):
    nvtx.pop_range()

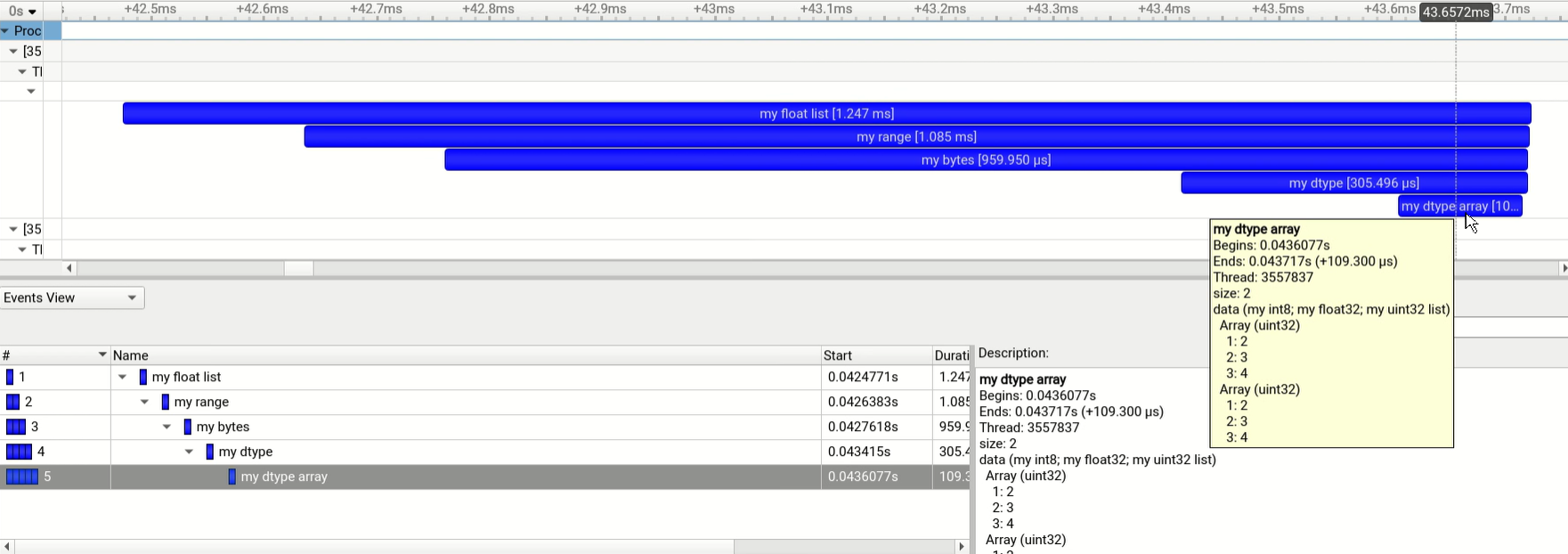

Profiling the above code with Nsight Systems will produce the following timeline:
