Deployment Guide for GLM-5 on TensorRT LLM - Blackwell Hardware#

Introduction#

This deployment guide provides step-by-step instructions for running the GLM-5 model using TensorRT LLM with FP8 and NVFP4 quantization, optimized for NVIDIA Blackwell GPUs. It covers the complete setup required; from accessing model weights and preparing the software environment to configuring TensorRT LLM parameters, launching the server, and validating inference output.

GLM-5 uses Multi-Latent Attention (MLA) with DeepSeek Sparse Attention (DSA). It shares the same architecture as DeepSeek V3.2 (with minor changes) and is served through the GlmMoeDsaForCausalLM model, which reuses the DeepSeek V3.2 code path in TensorRT LLM. GLM-5 natively supports Multi-Token Prediction (MTP) for speculative decoding.

This guide applies to the GLM-5 family, including GLM-5.2 and GLM-5.3. GLM-5.3 is a weight update over GLM-5.2 with the same architecture and code path, so the server configurations and deployment steps below are identical across versions. Note that GLM-5.3 ships a revised chat template with different reasoning controls. Unlike GLM-5.2, there is no enable_thinking kwarg and thinking cannot be turned off; generation always begins with <think>. Reasoning depth is set with reasoning_effort, which accepts low, high, or max (default max). The separate clear_thinking kwarg controls whether reasoning from earlier turns is retained in multi-turn conversations; it does not disable thinking. Clients that controlled reasoning behavior via chat_template_kwargs on GLM-5.2 should update accordingly.

The guide is intended for developers and practitioners seeking high-throughput or low-latency inference using NVIDIA’s accelerated stack.

Validated Features#

The following features have been tested with GLM-5 on TensorRT LLM:

  • CUDA Graph

  • Multi-Token Prediction (MTP)

  • Disaggregated serving

  • Disaggregated serving with MTP

Because GLM-5 reuses the DeepSeek V3.2 code path, other features supported by DeepseekV32ForCausalLM are expected to work but have not been separately validated. See the Model-Feature Support Matrix for the current per-feature status.

Prerequisites#

  • GPU: 8x NVIDIA B200 (SM100)

  • OS: Linux

  • Drivers: CUDA Driver 575 or later

  • Docker with NVIDIA Container Toolkit installed

  • Minimum TensorRT LLM version: 1.3.0rc25

Models#

The following checkpoints are available:

Note on checkpoint naming: For GLM-5.3 the base repository (zai-org/GLM-5.3) contains the FP8 weights and the BF16 weights live in the -BF16 repository. This is the reverse of GLM-5 and GLM-5.2, where the base repositories (zai-org/GLM-5, zai-org/GLM-5.2) are BF16 and the FP8 weights live in the -FP8 repositories (zai-org/GLM-5-FP8, zai-org/GLM-5.2-FP8). Check the quantization_config in the checkpoint’s config.json if in doubt.

git lfs install
git clone https://huggingface.co/zai-org/GLM-5.3 /models/GLM-5.3

MoE Backend Support Matrix#

There are multiple MoE backends inside TensorRT LLM. Here is the support matrix for GLM-5:

Device

Checkpoint

Supported moe_backend

B200/GB200

FP8

DEEPGEMM

B200/GB200

NVFP4

TRTLLM

The default MoE backend is CUTLASS. For GLM-5, you must set moe_config.backend explicitly as shown in the configurations below.

Deployment Steps#

Run Docker Container#

Run the Docker container using the TensorRT LLM NVIDIA NGC image.

docker run --rm -it \
    --ipc=host \
    --gpus all \
    -p 8000:8000 \
    -v /path/to/your/models:/models \
    --name tensorrt_llm \
    nvcr.io/nvidia/tensorrt-llm/release:1.3.0rc25 \
    /bin/bash

Note:

  • You can mount additional directories using the -v <host_path>:<container_path> flag, such as mounting the downloaded weight paths.

  • The command maps port 8000 from the container to your host so you can access the LLM API endpoint from your host.

  • See https://catalog.ngc.nvidia.com/orgs/nvidia/teams/tensorrt-llm/containers/release/tags for all available containers. Containers published in the main branch weekly have an rcN suffix, while the monthly release with QA tests has no rcN suffix. Use the rc release to get the latest model and feature support.

If you want to use the latest main branch, you can build from source: https://nvidia.github.io/TensorRT-LLM/latest/installation/build-from-source.html

All commands below should be run inside the Docker container.

Launch the TensorRT LLM Server#

Below is an example command to launch the TensorRT LLM server with GLM-5 from within the container.

trtllm-serve \
  /models/GLM-5.3 \
  --served_model_name zai-org/GLM-5.3 \
  --host 0.0.0.0 \
  --port 8000 \
  --max_batch_size 128 \
  --max_num_tokens 8192 \
  --tp_size 8 \
  --ep_size 8 \
  --pp_size 1 \
  --config /tmp/config.yml

[!WARNING] If you encounter OOM errors, try one or more of the following:

  • Lower kv_cache_config.free_gpu_memory_fraction (e.g., 0.6).

  • Reduce --max_num_tokens to 3072 for max-throughput configs.

  • Reduce --max_batch_size and cuda_graph_config.max_batch_size to 32 or 16 for min-latency configs.

Disaggregated Serving#

GLM-5 supports disaggregated serving, which separates the prefill (context) and decode (generation) phases onto different workers so each can be scaled and tuned independently. This can be combined with MTP.

Launch one or more context (prefill) servers and one or more generation (decode) servers with trtllm-serve, then start a trtllm-serve disaggregated orchestrator that routes client requests between them. Both context and generation workers must carry the same cache_transceiver_config to exchange the KV cache. Add the following to the config file used by each worker:

cache_transceiver_config:
  backend: NIXL

Reuse the FP8 config (or the FP8-with-MTP config for Disagg + MTP) from Recommended Performance Settings for the workers, adding the cache_transceiver_config block above. The context workers should also set disable_overlap_scheduler: true.

The orchestrator is launched with a disaggregated config that lists the context and generation worker URLs:

trtllm-serve disaggregated -c disagg_config.yaml

hostname: localhost
port: 8000
context_servers:
  num_instances: 1
  urls:
    - "localhost:8001"
generation_servers:
  num_instances: 1
  urls:
    - "localhost:8002"

Clients then send OpenAI-compatible requests to the orchestrator (localhost:8000). For the full walkthrough, per-worker GPU placement, and multi-node/SLURM launch, see the Disaggregated Serving guide.

LLM API Options (YAML Configuration)#

These options provide control over TensorRT LLM’s behavior and are set within the YAML file passed to the trtllm-serve command via the --config argument.

kv_cache_config#

  • Description: Configuration for the Key-Value (KV) cache.

  • Options:

    • enable_block_reuse: Enables KV cache block reuse across requests with shared prefixes.

    • free_gpu_memory_fraction: A value between 0.0 and 1.0 that specifies the fraction of free GPU memory to reserve for the KV cache after the model is loaded. Recommendation: If you experience OOM errors, try reducing this value to 0.7 or lower.

    • dtype: Sets the data type for the KV cache. Default: "auto".

cuda_graph_config#

  • Description: Configuration for CUDA graphs to optimize performance.

  • Options:

    • enable_padding: If true, input batches are padded to the nearest CUDA graph batch size. This can significantly improve performance. Default: false

    • max_batch_size: Sets the maximum batch size for which a CUDA graph will be created. Recommendation: Set this to match the --max_batch_size command-line option.

moe_config#

  • Description: Configuration for Mixture-of-Experts (MoE).

  • Options:

    • backend: The backend to use for MoE operations. Must be DEEPGEMM for FP8 on B200 or TRTLLM for NVFP4 on B200. Default: CUTLASS

speculative_config#

  • Description: Configuration for speculative decoding with MTP.

  • Options:

    • decoding_type: Set to MTP to enable Multi-Token Prediction.

    • num_nextn_predict_layers: Number of MTP prediction layers to use (GLM-5 supports 1).

enable_chunked_prefill#

  • Description: Enables chunked prefill to overlap prefill and generation, improving throughput for mixed batches. Default: false

See the TorchLlmArgs class for the full list of options which can be used in the YAML configuration file.

Testing API Endpoint#

Health Check#

Start a new terminal on the host to test the TensorRT LLM server you just launched. You can query the health/readiness of the server using:

curl -s -o /dev/null -w "Status: %{http_code}\n" "http://localhost:8000/health"

When Status: 200 is returned, the server is ready for queries. Note that the very first query may take longer due to initialization and compilation.

Basic Test#

After the TensorRT LLM server is set up and shows Application startup complete, you can send requests to the server.

curl http://localhost:8000/v1/completions \
  -H "Content-Type: application/json" \
  -d '{
      "model": "zai-org/GLM-5.3",
      "prompt": "What is the capital of France?",
      "max_tokens": 16,
      "temperature": 0
  }'

Example response:

{
  "id": "cmpl-...",
  "object": "text_completion",
  "model": "zai-org/GLM-5.3",
  "choices": [
    {
      "index": 0,
      "text": "The capital of France is Paris. Paris is the largest city",
      "finish_reason": "length"
    }
  ],
  "usage": {
    "prompt_tokens": 8,
    "total_tokens": 24,
    "completion_tokens": 16
  }
}

Troubleshooting Tips#

  • CUDA OOM errors: Try reducing --max_batch_size, --max_num_tokens, or kv_cache_config.free_gpu_memory_fraction.

  • Checkpoint compatibility: Ensure your model checkpoints are compatible with the expected format.

  • GPU utilization: For performance issues, check GPU utilization with nvidia-smi while the server is running.

  • Container startup: If the container fails to start, verify that the NVIDIA Container Toolkit is properly installed.

  • Port conflicts: Make sure the server port (8000 in this guide) is not being used by another application.

  • Configuration files: Ensure that YAML config files are correctly formatted to avoid runtime errors.

  • Architecture: GLM-5 reuses the DeepSeek V3.2 attention implementation (DeepseekV32Attention), which includes a built-in DSA indexer that routes context attention through absorption mode. The DSA parameters (index_n_heads, index_head_dim, index_topk) are read automatically from the model config.

Benchmarking Performance#

To benchmark the performance of your TensorRT LLM server, you can use the built-in benchmark_serving.py script. First, create a wrapper bench.sh script:

cat << 'EOF' > bench.sh
concurrency_list="32 64 128 256 512 1024 2048 4096"
multi_round=5
isl=1024
osl=1024
result_dir=/tmp/glm5_output

for concurrency in ${concurrency_list}; do
    num_prompts=$((concurrency * multi_round))
    python -m tensorrt_llm.serve.scripts.benchmark_serving \
        --model zai-org/GLM-5.3 \
        --backend openai \
        --dataset-name "random" \
        --random-input-len ${isl} \
        --random-output-len ${osl} \
        --random-prefix-len 0 \
        --random-ids \
        --num-prompts ${num_prompts} \
        --max-concurrency ${concurrency} \
        --ignore-eos \
        --tokenize-on-client \
        --percentile-metrics "ttft,tpot,itl,e2el"
done
EOF
chmod +x bench.sh

To save results to files, add these options to each benchmark command:

--save-result \
--result-dir "${result_dir}" \
--result-filename "concurrency_${concurrency}.json"

For more benchmarking options see benchmark_serving.py.

Run bench.sh to begin a serving benchmark. This will take a long time if you run all the concurrencies.

./bench.sh

Sample TensorRT LLM serving benchmark output. Your results may vary due to ongoing software optimizations.

============ Serving Benchmark Result ============
Successful requests:                      16
Benchmark duration (s):                   17.66
Total input tokens:                       16384
Total generated tokens:                   16384
Request throughput (req/s):               [result]
Output token throughput (tok/s):          [result]
Total Token throughput (tok/s):           [result]
User throughput (tok/s):                  [result]
---------------Time to First Token----------------
Mean TTFT (ms):                           [result]
Median TTFT (ms):                         [result]
P99 TTFT (ms):                            [result]
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                           [result]
Median TPOT (ms):                         [result]
P99 TPOT (ms):                            [result]
---------------Inter-token Latency----------------
Mean ITL (ms):                            [result]
Median ITL (ms):                          [result]
P99 ITL (ms):                             [result]
----------------End-to-end Latency----------------
Mean E2EL (ms):                           [result]
Median E2EL (ms):                         [result]
P99 E2EL (ms):                            [result]
==================================================

Key Metrics#

Time to First Token (TTFT)#

The typical time elapsed from when a request is sent until the first output token is generated.

Time Per Output Token (TPOT) and Inter-Token Latency (ITL)#

  • TPOT is the typical time required to generate each token after the first one.

  • ITL is the typical time delay between the completion of one token and the completion of the next.

  • Both TPOT and ITL ignore TTFT.

For a single request, ITLs are the time intervals between tokens, while TPOT is the average of those intervals:

\[ \text{TPOT (1 request)} = \text{Avg(ITL)} = \frac{\text{E2E latency} - \text{TTFT}}{\text{Num Output Tokens} - 1} \]

Across different requests, average TPOT is the mean of each request’s TPOT (all requests weighted equally), while average ITL is token-weighted (all tokens weighted equally):

\[ \text{Avg TPOT (N requests)} = \frac{\text{TPOT}_1 + \text{TPOT}_2 + \cdots + \text{TPOT}_N}{N} \]
\[ \text{Avg ITL (N requests)} = \frac{\text{Sum of all ITLs across requests}}{\text{Num Output Tokens across requests}} \]

End-to-End (E2E) Latency#

The typical total time from when a request is submitted until the final token of the response is received.

Total Token Throughput#

The combined rate at which the system processes both input (prompt) tokens and output (generated) tokens.

\[ \text{Total TPS} = \frac{\text{Num Input Tokens}+\text{Num Output Tokens}}{T_{last} - T_{first}} \]

Tokens Per Second (TPS) or Output Token Throughput#

How many output tokens the system generates each second.

\[ \text{TPS} = \frac{\text{Num Output Tokens}}{T_{last} - T_{first}} \]

Performance#

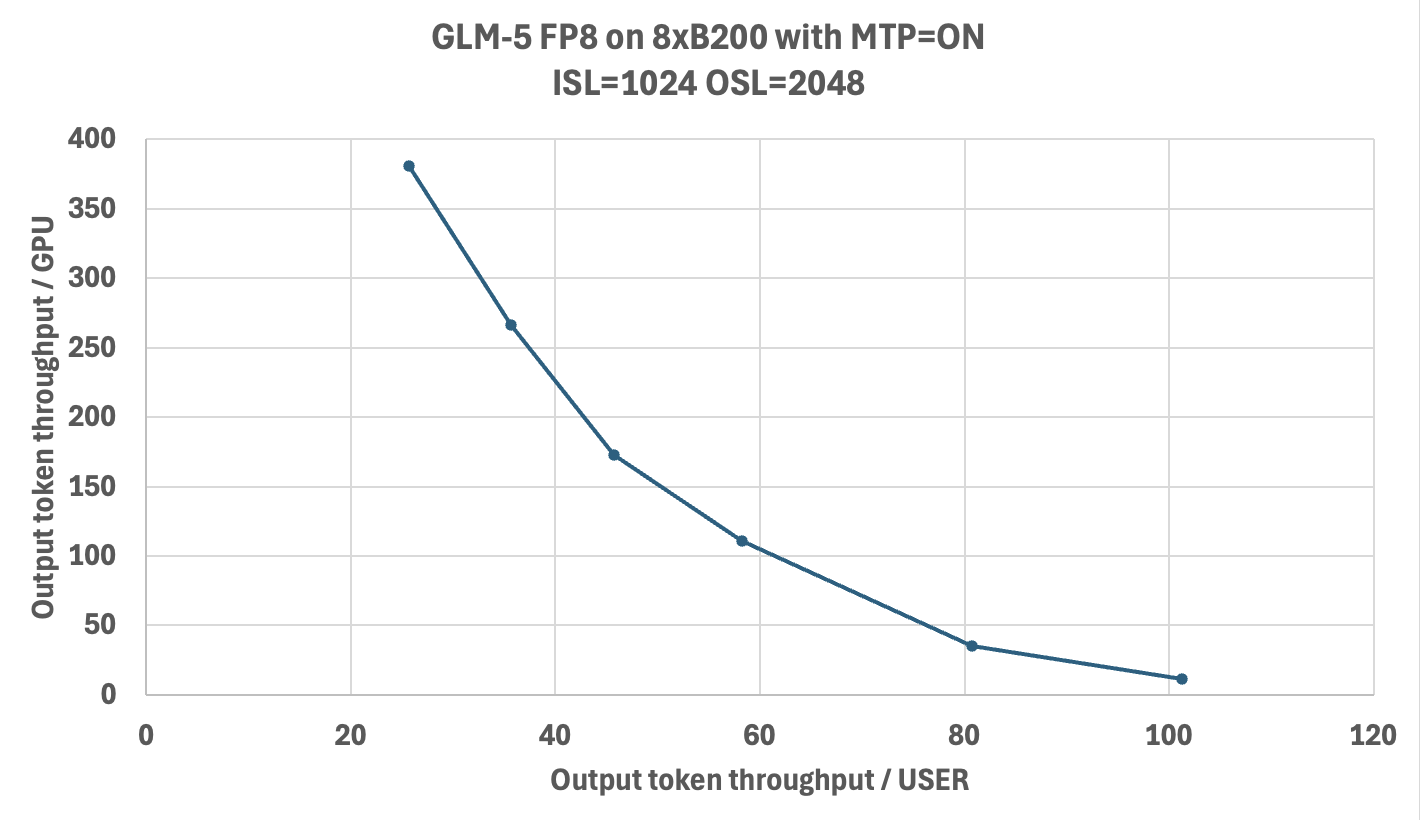

The chart below shows the Pareto frontier of output-token throughput per GPU versus per-user latency on 8x B200 with GLM-5-FP8 and MTP enabled. Benchmarks were run using AI-Perf as the client against TRT-LLM v1.2.0rc4 (cc45119).

GLM-5 FP8 Performance on 8x B200 with MTP
