CAE FreeCAD Agent Harness Optimization

A worked, end-to-end loop for improving an AI agent that drives an engineering tool. The agent here turns a 3D scan-like mesh of a part into an editable CAD model in FreeCAD. Each round, the agent runs on a set of training parts, its runs are analysed for recurring problems, a coding agent changes the agent, and the change is kept only if it does better on parts the coding agent never saw. At the end, the final agent is measured once on a test set.

The agent runs on Nemotron 3.5 Super VL, a model that reads images, so it can render its own model beside the mesh and look at the difference. From a two-sentence prompt that saved no model on train or val, nine rounds built an agent that passes all nine checks on 11 of 14 validation runs, and 7 of 35 test runs against 0 for the base agent (Results). The test set also shows where it stops: it builds valid, editable models of new sizes of the parts it was improved on, but not yet of a new family of parts or of the two hand-made parts.

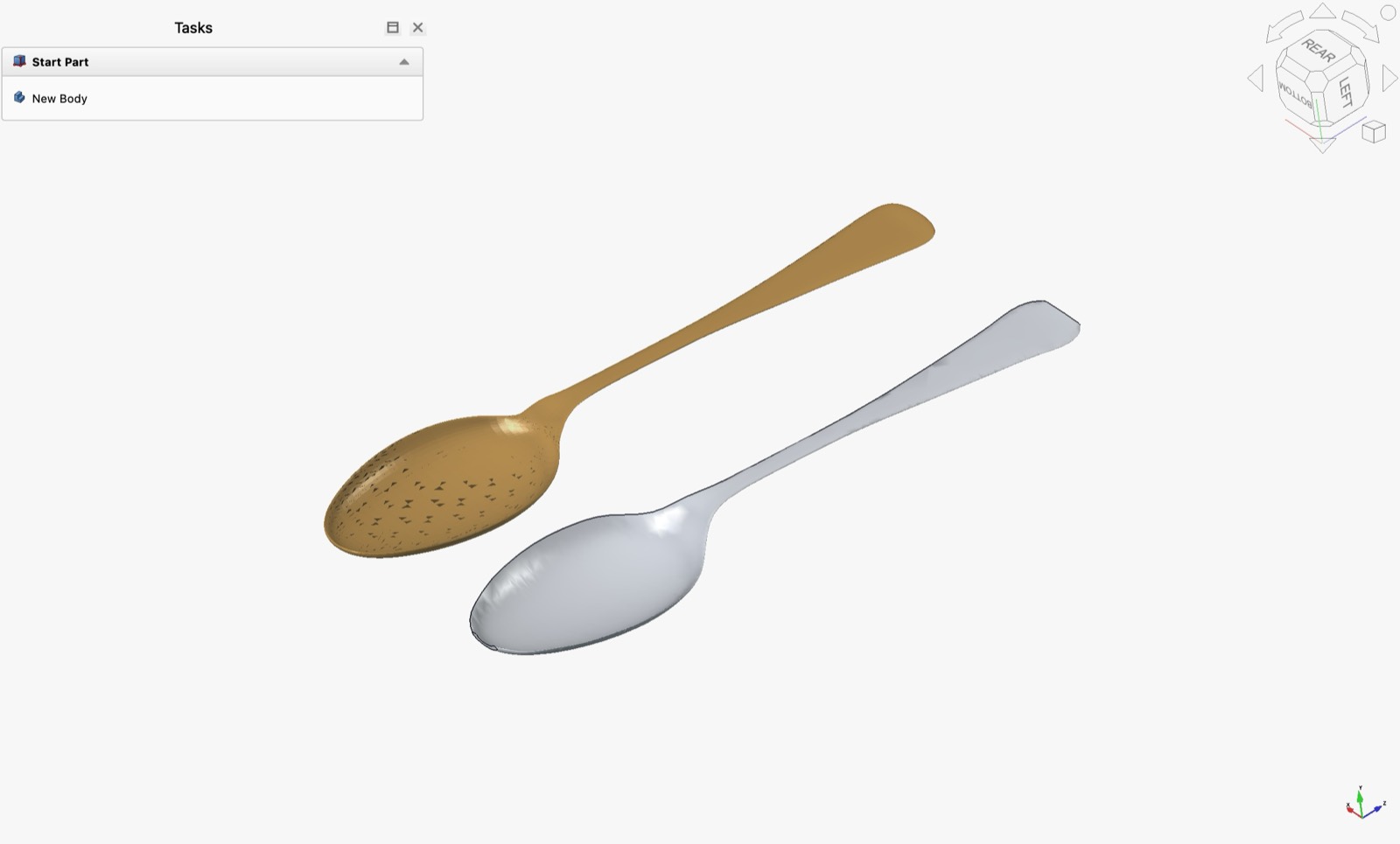

Screenshot

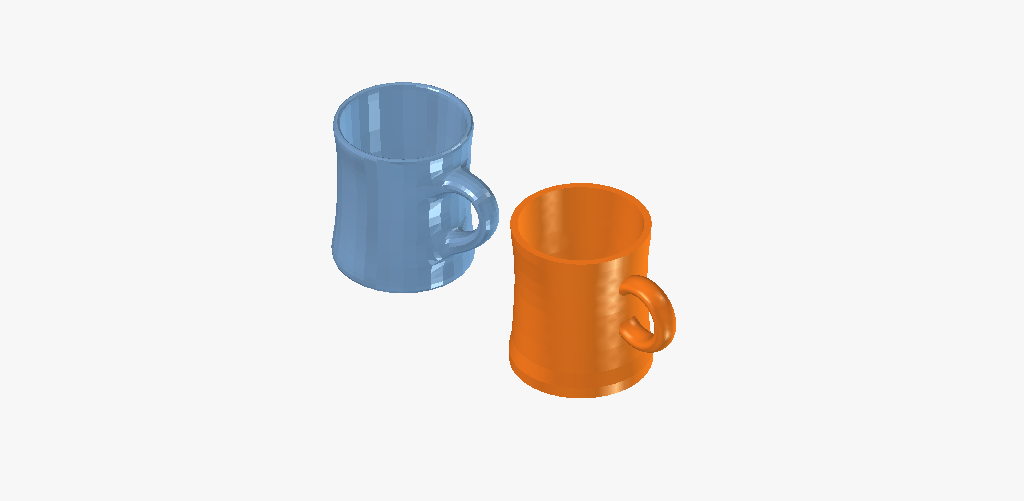

The task: rebuild each blue mesh as an editable FreeCAD model. Orange is the final agent's best run on each validation part, which no experimenter saw: turned parts, lofted tubs, cups with handles and a ribbed bracket, each in a random pose, built from sketches and PartDesign features driven by named dimensions. The agent measured the mesh, chose the features and wrote the code itself; every model here passes all nine checks. Rendered headless with skills/cad-experimenter/render.

At A Glance

Included artefacts

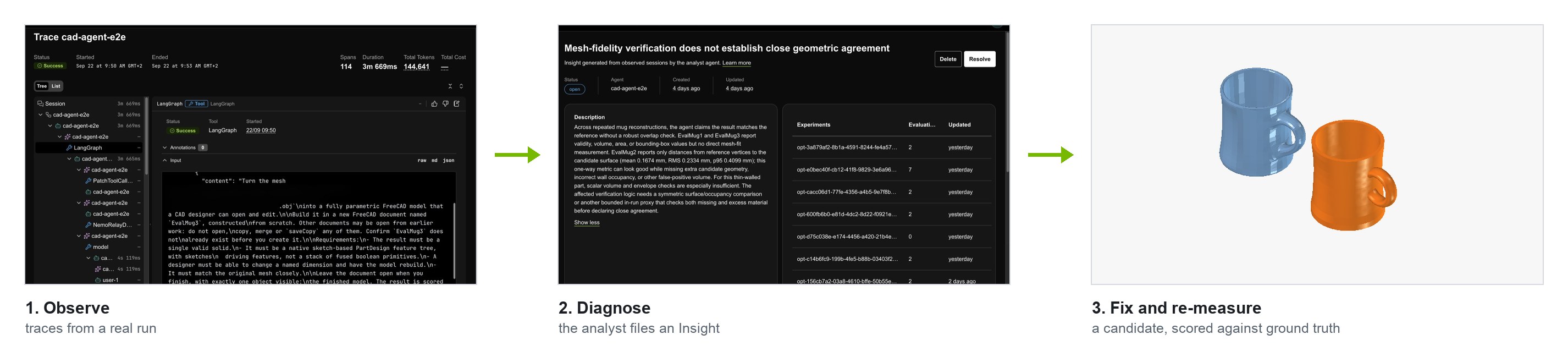

What each step of the loop does, and what it left in this folder. Run folders, traces and renders of every run stay in the git-ignored experiments/.

Why this exists

General-purpose agent harnesses are strong at orchestration, but they do not carry your domain. Turning a mesh into a parametric CAD model is a good example: the result has to be a real feature tree of sketches and features, with dimensions a designer can change. A model that looks right but cannot be edited is worthless, and an agent that reports success is not evidence that it succeeded.

Closing that gap is harness engineering: changing the agent's system prompt, skills, subagents and middleware until a general harness behaves like a specialist. Done by hand, it is guesswork. This example makes every change answer to measurement, and measures it on parts the change was not made for.

The pieces

IoU (intersection over union), used throughout, is how much the model's volume and the mesh's volume overlap: 0 is none, 1 is identical. One check requires IoU ≥ 0.9.

How the pieces connect, for one trial and the analysis after it (grey runs on your machine, blue in the trial's containers, green in NeMo Helix):

flowchart LR
  H["<b>Harbor</b><br/>runs trials in parallel"]
  C["<b>CAD agent</b><br/>Deep Agents · FreeCAD<br/>NeMo Relay traces it"]
  V["<b>Verifier</b><br/>no network<br/>9 checks"]
  P["<b>publish.py</b><br/>grade onto the trace"]
  I["<b>Helix Intake</b><br/>traces + grades"]
  CO["<b>NeMo Compass</b><br/>traces → Insights"]
  CA["<b>Coding agent</b><br/>Eval Author · experimenter"]
  G["<b>Helix inference<br/>gateway</b>"]
  M(["<b>Nemotron 3.5 Super VL</b><br/>inference provider"])
  S["<b>Helix Studio</b><br/>Insights"]
  H -- "① start" --> C
  C -- "② model.FCStd" --> V
  V -- "③ checks" --> P
  P -- "④ grade" --> I
  C -- "trace" --> I
  I -- "⑤ traces" --> CO
  CO -- "⑥ Insights" --> CA
  CA -. "⑦ new candidate agent" .-> H
  C <-- "model calls" --> G
  G <--> M
  CO -- "Insights" --> S
  classDef host fill:#f4f3ef,stroke:#52514e,stroke-width:1.5px,color:#1b1b1a
  classDef box fill:#eef4fc,stroke:#2a78d6,stroke-width:2px,color:#1b1b1a
  classDef helix fill:#f1f6e9,stroke:#76b900,stroke-width:2px,color:#1b1b1a
  classDef model fill:#fdf0e8,stroke:#eb6834,stroke-width:2px,color:#1b1b1a
  class H,P,CO,CA host
  class C,V box
  class G,I,S helix
  class M model

One round of the loop:

flowchart TB
  E[["<b>ETHOS.md</b><br/>intent · success criteria · do · don't<br/>read by every step · updated when ③ finds a gap"]]
  subgraph R["One round"]
    direction LR
    S1["<b>① Run</b><br/>agent on <b>train</b><br/>20 parts × 1 run"]
    S2["<b>② Find problems</b><br/>NeMo Compass<br/>traces → Insights"]
    S3["<b>③ Check the eval</b><br/>NeMo Eval Author<br/>Insights caught?<br/>passing models fit<br/>the intent?"]
    S4["<b>④ Experiment</b><br/>coding agent<br/>reads train only<br/>2 candidates"]
    S5{"<b>⑤ Keep?</b><br/>on <b>val</b><br/>7 parts × 2 runs"}
    S1 --> S2 --> S3 --> S4 --> S5
    S5 -- "better: next round<br/>starts from it" --> S1
  end
  T(["<b>⑥ Test, once</b> · 7 parts × 5 runs<br/>new sizes · a new family · hand-made parts"])
  E <-.-> R
  R -- "budget reached" --> T
  classDef step fill:#eef4fc,stroke:#2a78d6,stroke-width:2px,color:#1b1b1a
  classDef keep fill:#fdf0e8,stroke:#eb6834,stroke-width:2px,color:#1b1b1a
  classDef ethos fill:#f1f6e9,stroke:#76b900,stroke-width:2px,color:#1b1b1a
  classDef test fill:#f4f3ef,stroke:#52514e,stroke-width:2px,color:#1b1b1a
  class S1,S2,S3,S4 step
  class S5 keep
  class E ethos
  class T test
  style R fill:#fbfbf9,stroke:#c9c7bd

The experimenter is yours to design. Steps 1 to 4 and the keep rule are general; the experiment step is not. Here it is cad-experimenter, a skill written for this task: how to read CAD traces, render a model beside its mesh, and test a candidate in the agent's image. For your agent, write the equivalent: what an experimenter reads, may change, must test, and hands over.

Why train, val and test. An optimization loop finds whatever passes the tasks it is measured on. If the experimenter can see the tasks a change is judged on, a change that only fits those parts looks like progress. So the experimenters see only the train parts and their traces; a change is kept on val, parts they never see; and test, which includes a family of parts never trained on and the two hand-made parts, is read once, at the end, to say how far the agent generalizes.

Why the Ethos and the checks matter most. The loop optimizes what it can measure, and it measures what the Ethos asks for. A vague Ethos lets the agent pass while missing the point; a precise one, with clear intent, success criteria and things not to do, gives Compass something to judge traces against and gives Eval Author something to turn into checks. Each check closes one way to pass while getting worse (How the eval was built).

Not tied to any infrastructure. Compass is an agent that reads traces, and Eval Author is a set of skills for a coding agent; neither prescribes how your agent is built, which framework it uses or where it is deployed. The experiment step is delegated to your coding agent. So the same loop fits whatever framework and infrastructure your agent already uses. Here the agent is LangChain Deep Agents in a container per run, and nothing is CAD-specific: swap FreeCAD for your solver, mesher or CAD kernel.

How it runs

Each eval run (a trial) gets its own container, built from the task's environment (the same for every task): headless FreeCAD 1.1.3 with a virtual display, the Deep Agents runtime, NeMo Relay for tracing, and the part's mesh. A separate container with no network grades the saved model.

Bring your own tool. To run the loop on your agent and tool, replace the CAD-specific pieces and keep the loop:

The agent sees real paths: the mesh at /app/reference.obj, its skills under /agent/skills/, and any file it writes, so a skill can ship code the agent runs with freecadcmd, and read_file on an image it renders returns the image to the model. The container's network reaches only Helix, so a run cannot see other runs, other tasks, the eval's solution, or the rest of your machine.

Results

These are the end results of the whole optimization: the final agent first, then the rounds that led to it. Start Here walks through running each step yourself; results/ has every agent the loop measured.

Final agent (results/final-agent): a seven-line prompt, one skill (cad-toolkit: tools to find the part's frame, fit its sections, measure its profile and side features, build, verify and render) and a middleware that checks every save. On Nemotron 3.5 Super VL:

A run passes only when all nine checks pass:

The tasks

Parametric FreeCAD parts from six families (turned parts, lofted tubs, cups with handles, scoops, ribbed brackets, tee fittings), each in a random pose and mesh resolution, each proved like the hand-made tasks (evals/).

• Train, 20 parts, 4 per family except tees: everything the experimenters see.
• Val, 7 parts from the same families, two runs each: the keep decision.
• Test, read once at the end: 3 parts at sizes outside the training range, 2 tee fittings (a family never trained on), and the two hand-made parts.

Val, round by round

The base agent and the agent each round kept, on val:

Tokens per run fell to about half of the base agent's: the tools print the numbers the model used to work out in its own reasoning. They do not fall round by round, as richer toolkits add some back.

Test: what transfers and what does not

Test is how far the agent generalizes, so it was read once, after the last round, on the final agent and the base agent, five runs per task:

Every test run of the final agent delivers a native feature tree that recomputes after reopening; what fails is fidelity and missing features. Its knowledge transfers to new sizes and poses of the families it was improved on, but a new arrangement of features, or a hand-made shape whose surfaces are not the generator's, defeats its reading of the part.

How the agent got there

The base agent and every change the loop kept, with the Compass Insights it targeted (in parentheses, the round whose Insights it answers) and where in the agent folder it changed: the system prompt, the middleware, or a skill and its files. Every candidate, kept or dropped, is in results/.

The keep rule. A candidate is kept when, on val, it passes more runs than the agent under study, or as many runs and more checks, with no check passing fewer times. One exception: in round 6 a candidate lost only because one of its 14 runs saved no valid model; measured again, it still passed more runs (9 against 7) and was kept by judgement.

Each round's Insights, whether the eval caught each, and what resolved it are in results/insights.

How the eval was built

The nine checks were built with Eval Author from Compass Insights in earlier runs of this loop on the two hand-made parts, and each closes a way to pass while missing what the Ethos asks for. Each is proven: it fails an empty model (NOP), passes the reference solution (Oracle), and fails a realistic model that games the gap (evals/).

• Slice stacks. Stacks of thin flat slices, about 1,700 faces, passed IoU. Eval Author added compact-model.
• One stretch instead of design intent. One traced shape whose only real dimension made the part taller met the Ethos as first written. The owner revised the Ethos (the agent writes its own model; dimensions carry design intent; the method generalizes), and Eval Author added independent-dimensions.
• A missing feature. Models that left out a branch still passed. Eval Author added no-missing-feature.
• Holes in the verifier itself. Its review found that a tree broken on reopen passed single-valid-solid, and that a scripted base shape passed native-feature-tree. Both holes were closed in the verifier.

Each of these was found by looking at what passed, not at what failed: a model met every check, and the Ethos as written, while missing what the designer wanted. That is the loop's main risk. An optimization finds the cheapest way to pass, so the eval and the Ethos have to be watched as closely as the agent:

• Run Eval Author every round, on the new Insights and on samples of passing models: is each problem caught by a check, and could a model pass every check and still be wrong?
• Look at the passing solutions against the designer's intent (renders, the feature tree, the named dimensions), not only at the failing ones.
• Update the Ethos when it is missing something, then have Eval Author turn the change into a proven check, and regrade the stored runs.

What the loop built

The loop only ever changed the agent folder: system prompt, skills, subagents and middleware. From the base agent (two sentences, nothing else) to the final agent:

The agent still decides which features describe the part and writes the code; the tools take the measuring and the FreeCAD plumbing away.

Taking this further

The test set says what to do next. To take an agent like this to production:

• A broader train set. More families, and hand-made parts in train (Test).
• A balanced, larger val set, with every family in it and enough runs that one bad run does not decide a keep.
• More checks from the Ethos. Every principle the eval cannot check (here: whether a missing small feature is caught, whether the model's surfaces are clean) is a way to pass while getting worse; Eval Author can turn each into a proven check.
• Your organisation's design knowledge. The agent here learned from generated parts. In practice, give it what your engineers already have: design guidelines and modelling standards as skills (how features are ordered, which dimensions are named and how, tolerances and conventions), and reference models of previous designs as examples it can study for how a feature tree is structured. The same material belongs in the Ethos where it states intent, so Compass and Eval Author hold the agent to it.
• Post-train the model. Harness engineering changes what surrounds the model: tools, knowledge and checks. It cannot make the model reason better over what it sees: the tools measure the part, but the model still has to turn numbers and renders into the right FreeCAD features, which is where the failed test runs went wrong. Post-training puts that skill in the weights, and the loop leaves what it needs: a proven eval, the harness, and traces graded check by check (for fine-tuning on passing runs, and as a reward for RL).

Adapt it to your own task

Start from your tool and what your agent is for. Write your ETHOS.md, then have a frontier model solve a few of your tasks (Step 0). Build a small eval with Eval Author: tasks from your tool's real inputs, split into train, val and test, each check proven. Replace the CAD-specific pieces (Bring your own tool) and keep loop/. Measure the base agent (Step 1), then run the loop with loop/START.md, one round at a time.

Prerequisites

• uv 0.10.10 or later and Python 3.12+.
• Docker that can enforce per-container network rules. On macOS, Docker Desktop cannot; use Colima, and keep the example under your home folder (Colima mounts only that).
• A coding agent for Eval Author's skills and the experiment step. Eval Author supports Claude Code, Codex, Cursor and others.
• An inference provider with a tool-calling model for the agent (this example uses Nemotron 3.5 Super VL; a model that reads images lets the agent look at its renders) and one with structured output for Compass.

Install NeMo Helix, Harbor and Compass, then start Helix and Colima:

uv tool install "nemo-helix[all]==0.8.1"
uv tool install harbor==0.24.0
uv tool install --with mcp 'nemo-compass @ git+https://github.com/NVIDIA-NeMo/nemo-compass.git@v0.1.0'  # mcp: missing from its dependencies
nemo setup
colima start --cpu 4 --memory 16
export DOCKER_HOST="unix://$HOME/.colima/default/docker.sock"

nemo setup starts the services, registers your inference provider and discovers its models; Studio opens at http://localhost:8080/studio/. See the Helix setup guide. Then tell the tools where Helix is:

export NHX_BASE_URL=http://localhost:8080                 # from this host
export CAD_HELIX_URL=http://host.docker.internal:8080     # from the containers

Start Here

cd examples/tools/cae-freecad-agent-harness-optimization
cp .env.example .env          # fill in Compass's model

Step 0: Show the task can be done

Before optimizing a small model for a task, have a frontier model do it. Ask your coding agent (Claude Code, Codex or another) to solve a few train parts itself in the agent's container, from the Ethos, the instruction and the mesh alone, with no checks yet. Have it verify the result with its own measurements and renders. This tells you three things before you spend any time on the loop:

• The task is possible. If a frontier model cannot meet the Ethos, no harness will make a smaller one meet it.
• The eval has examples. Its final models are positives every check must pass, and its failed attempts are realistic negatives (Step 3).
• The experimenter has a teacher. A summary of how it worked, with no numbers specific to these parts, shows what knowledge and tools the small model lacks (Step 4).

Step 1: Run the agent and score every run

agent/agent.yaml is the base agent: a two-sentence prompt and no skills. Run it on train, one run per task, for the evidence, and on val, two runs per task, as the baseline every candidate is compared with (loop/eval.sh runs Harbor four trials at a time, attaches each run's grade to its trace and prints a summary; MODEL picks another model from nemo models list --all-pages):

loop/eval.sh agent experiments/<run>/round-0/runs train 1
loop/eval.sh agent experiments/<run>/round-0/runs val 2

The first build of the task image takes a few minutes. Each trial's verifier/results lists the nine checks; agent/run.log starts with the run's trace ID, and publish.py scores has attached the reward, IoU, failed checks and complexity to that trace, so Compass can see how each run was graded.

The scores measure what the Ethos asks for: an IoU of 0.9 or more from a native, editable, compact feature tree, never one without the other (Ethos guide).

Step 2: Find the problems with NeMo Compass

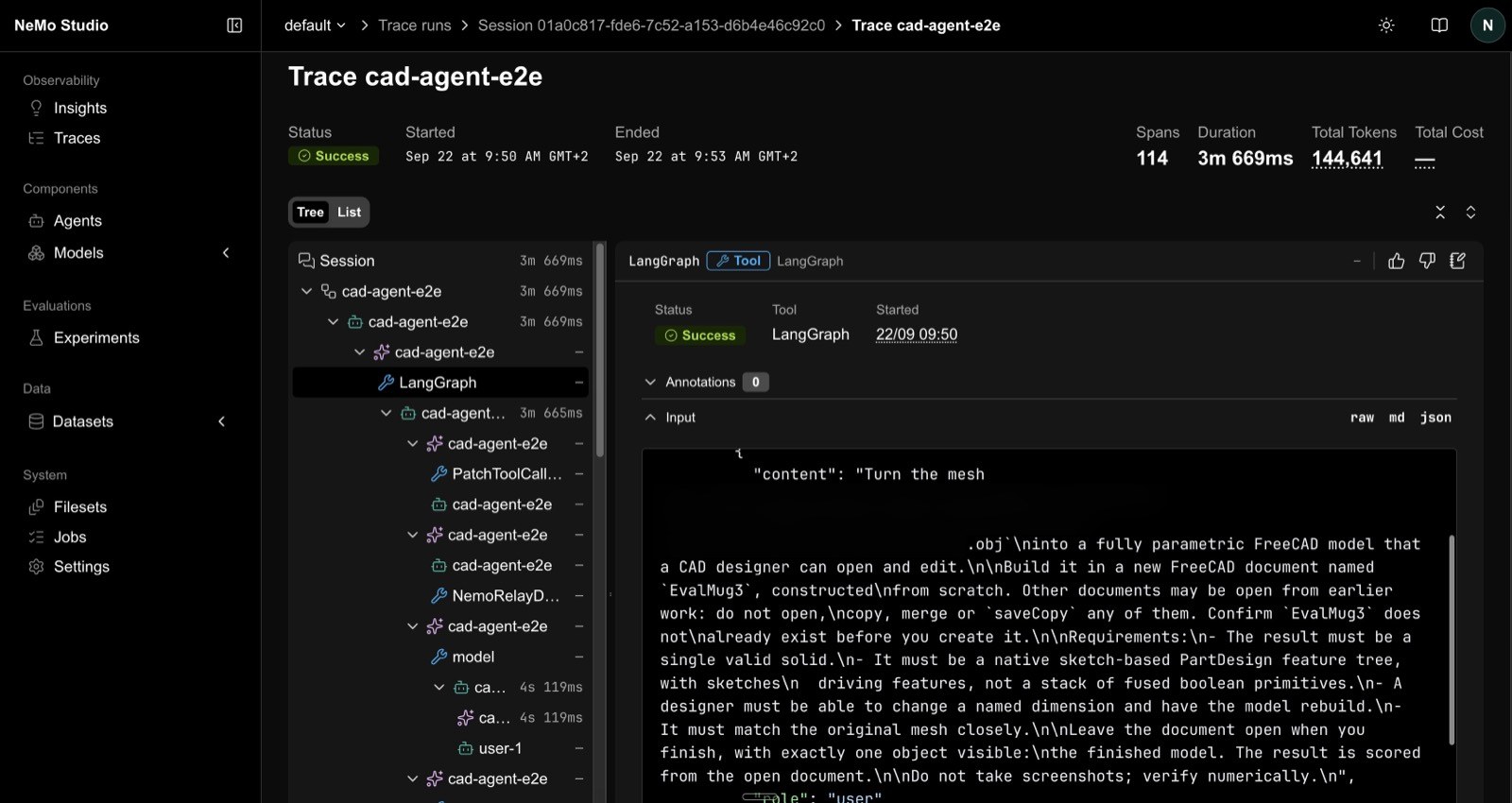

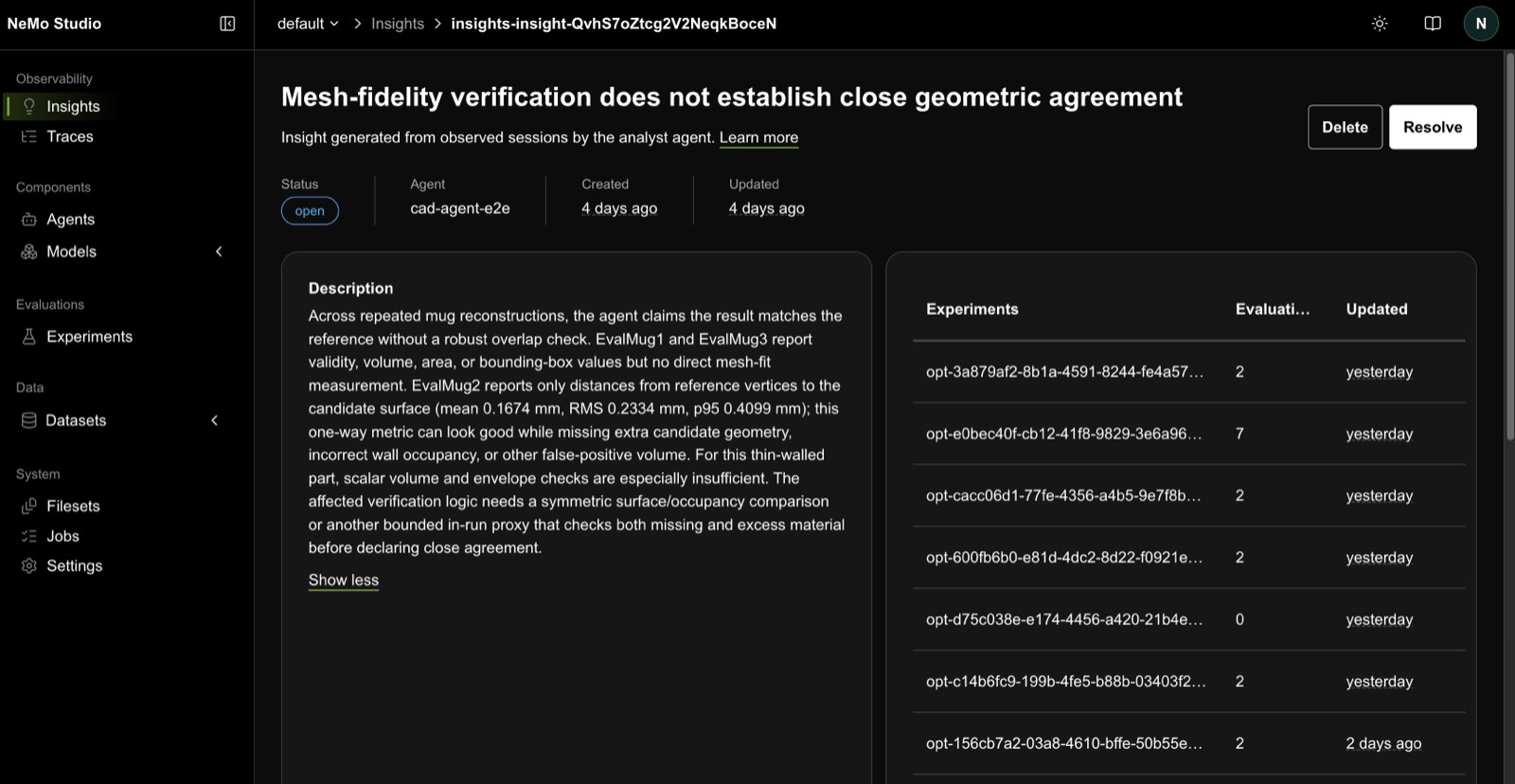

NeMo Compass reads a set of traces and reports recurring problems as Insights, each backed by at least two traces. It finds them with Compass signals, each of which runs only when the traces carry what it needs:

Run it over the round's train runs, then publish its Insights to Studio:

cp -R agent experiments/<run>/round-0/agent   # the agent under study, for Compass to read
loop/compass.sh experiments/<run>/round-0

Under the hood, compass.sh fills in analyst.yaml with the round's time window and agent name (Compass reads Intake, ETHOS.md and the agent folder), runs Compass's analyst agent (compass --config <round>/analyst.yaml --output-path <round>/insights.yml), and publishes the Insights to Studio (publish.py insights).

Step 3: Check the Insights against the eval with NeMo Eval Author

An Insight says what went wrong. To know whether a change fixes it without breaking something else, you need an eval: tasks with checks that grade any version of the agent the same way. NeMo Eval Author is a set of skills that guides a coding agent to build those evals from your agent's code, its Ethos and its traces:

npx skills add NVIDIA-NeMo/eval-author --skill '*' --agent <your-coding-agent> --yes

The eval here is already built (How the eval was built). Each round, paste loop/EVAL-AUTHOR.md into your coding agent: Eval Author (eval-author-task-create, proposal mode) decides whether a check catches each new Insight and reviews a few passing models against the Ethos, since a model that passes every check can still miss the intent. It writes its decisions to the round's folder and stops for you. If a gap shows, update the Ethos and have Eval Author propose and prove a new check (evals/ has the checks, the controls and how to rerun them).

Step 4: Change the agent and measure it

Neither Compass nor Eval Author changes the agent. This example does that with a skill written for it, cad-experimenter: read the Insights and their train traces, diagnose, build a candidate agent folder, test it in the agent's own image, and report. Install it for your coding agent and ask it to run a round:

npx skills add ./skills --skill cad-experimenter --agent <your-coding-agent> --yes

A candidate is a copy of the agent folder: system prompt, skills (with helper scripts), subagents or middleware; the Ethos's Change Scope says what may change. Measure it on val, two runs per task, and compare it with the agent under study on val:

loop/eval.sh experiments/<run>/round-0/candidates/<name>/agent experiments/<run>/round-0/candidates/<name>/runs val 2
python3 loop/summary.py experiments/<run>/round-0/candidates/<name>/runs/val experiments/<run>/round-0/runs/val

summary.py prints KEEP or DROP by the keep rule, or stops with INCOMPLETE or NO DECISION while VOID or missing runs leave a job short (re-run them first). Copy the winner over the round's agent, mark the Insights it fixed as resolved in Studio, and start the next round at Step 1.

Run the loop yourself

Steps 1 to 4 are one round. To run the loop, have your coding agent repeat them, one round at a time:

1. Fix the rules before the first round: the Ethos, the number of rounds, the runs per task on train and val, the run limit and the keep rule. Changed mid-run, they make rounds impossible to compare.
2. Each round: run the agent under study on train (Step 1), wait for Compass (Step 2) before building candidates, have Eval Author check every Insight against the eval (Step 3), then build the candidates from train alone and measure them on val (Step 4).
3. When Eval Author adds or fixes a check, prove it as above and regrade the stored runs instead of running them again, then decide on the new grades: PYTHONPATH=harness harbor jobs regrade <round>/runs/<split> -p evals/<split> --jobs-dir <round>/runs --job-name <split>-regraded, then compare and diagnose from <split>-regraded.
4. Stop at the round budget, or after two rounds in a row with no kept candidate. Then read test once: the final agent and the base agent, five runs per task.

To have your coding agent run all of it, from Step 0 to the test and a report, paste loop/START.md into a fresh session in this folder. It stops for your "go" once, before the first round.

Try the final agent

chat/ runs any agent folder in the browser, built exactly as the eval builds it: upload a mesh, ask the agent to rebuild it, watch its steps and the renders it reads, compare its model with the mesh in 3D, and download model.FCStd.

docker build -t cad-env "$(ls -d evals/train/*/environment | head -1)"   # once: the agent's image
chat/chat.sh          # the final agent; open http://localhost:8765

Environment variables

Compass reads its model from .env (.env.example). Everything else is read from your shell:

The default run limit and the memory cap live in each task's task.toml. Keep credentials in Helix (nemo setup) or .env, never in agent.yaml.

Troubleshooting

Known limitations

• It generalizes within its training families, not beyond (Test).
• Val overstates the agent. The split was drawn at random without balancing families: val has no scoop, the family the agent always fails, and more turned parts, which it always passes. With 14 runs per decision, keeping the best candidate also flatters it (the one re-measured agent went from 11 to 9 of 14). Test, read once, is the number to quote.
• The tools were shaped on the training families. cad-toolkit grew round by round on turned parts, tubs, cups, scoops and brackets, and most of each model comes from what it measures. A different kind of part may need new tools.
• The measurement tools suggest feature calls. The agent decides the features and writes the model, and Compass found no Ethos divergence, but the hints sit close to the Ethos's "no reconstruction routine" line.
• independent-dimensions can be met by two stretches along different axes. It is a starting point for design intent; Compass reads the Ethos for the rest.
• The agent's report can overstate. The saved file is what is graded.
• single-visible-object reads saved visibility. A file whose Body is hidden but whose tip is visible passes; whether FreeCAD's GUI then shows the part is unconfirmed.
• The eval's network rule is per host. The agent's container can reach any port on the Helix host, not only Helix.
• Span status is always "success". Intake shows every span of these traces as successful, even a failed tool call; Compass reads the tool output instead. Fixed in NeMo-Relay#1416 (in the 0.11.0 pre-releases, not in 0.10.4); Intake also needs nemo-helix#1265.
• Helix deployments cannot run this agent. Helix's Deep Agents adapter gives the agent a virtual file system and no shell, so the agent runs in the task container and Helix provides the model, traces and analysis. Platform feedback: a real-path workspace and a shell backend would let the same agent deploy on Helix.

Verification

Evidence level: local/static for the tests below; the results above are from live runs.

uv run --python 3.13 --with-requirements requirements.txt python -m unittest discover -s tests

Expected result:

Ran 52 tests

OK

This verifies: the verifier's IoU arithmetic, how publish.py reads trace IDs and grades, that the verifier's check list is complete, and that each task's reference face count matches the one recorded from its reference solution in evals/manifest.json, without credentials, services or Docker.

This does not verify: the live path. For that, run the controls in evals/ (NOP 0 and Oracle 1 on every task, every negative 0), then Step 1: trials that each report nine checks, and their traces in Intake with reward and iou attached.

Teardown

colima stop

runs/ and experiments/ are git-ignored; delete them freely. Harbor removes each trial's containers; docker image prune removes the task images.

Provenance and license

Contributed by NVIDIA under the repository's Apache-2.0 license. The eval's checks and hand-made tasks were authored with NeMo Eval Author; the generated tasks were made from parametric FreeCAD models and proved with the same controls; the cad-experimenter skill was written for this example. NeMo Helix, NeMo Relay, NeMo Compass, NeMo Eval Author, Harbor, Deep Agents and FreeCAD are installed by the reader (FreeCAD from conda-forge inside the task images) and not vendored here.
