Dynamics: Optimization and Molecular Dynamics

The dynamics module provides a unified framework for running geometry optimizations and molecular dynamics simulations on GPU. All simulation types share a common execution loop — hooks, model evaluation, convergence checking — so you learn the pattern once and apply it to any integrator.

Tip

It is important to keep in mind that nvalchemi follows a batch-first principle: users should think and reason about dynamics workflows with multiple structures simultaneously, as opposed to individual structures being processed sequentially.

The execution loop

Every simulation is driven by BaseDynamics, which defines a single step() that all integrators and optimizers follow. The loop is broken into discrete stages, enumerated by HookStageEnum:

Stage	When it fires
BEFORE_STEP	At the very beginning of a step, before any operations
BEFORE_PRE_UPDATE	Just before the integrator’s first half-step
AFTER_PRE_UPDATE	After the first half-step completes
BEFORE_COMPUTE	Just before the model forward pass
AFTER_COMPUTE	After the model forward pass completes
BEFORE_POST_UPDATE	Just before the integrator’s second half-step
AFTER_POST_UPDATE	After the second half-step completes
AFTER_STEP	At the very end of a step, after all operations
ON_CONVERGE	When a convergence criterion is met

A single call to step() proceeds through these stages in order:

1. BEFORE_STEP hooks fire.

2. pre_update(batch) — the integrator’s first half-step (e.g. update velocities by half a timestep), bracketed by BEFORE/AFTER_PRE_UPDATE hooks.

3. compute(batch) — the wrapped ML model evaluates forces (and stresses, if needed), bracketed by BEFORE/AFTER_COMPUTE hooks.

4. post_update(batch) — the integrator’s second half-step (e.g. complete the velocity update with the new forces), bracketed by BEFORE/AFTER_POST_UPDATE hooks.

5. AFTER_STEP hooks fire (convergence checks, logging, …).

6. Convergence is evaluated: converged systems fire ON_CONVERGE hooks and (in multi-stage pipelines) migrate to the next stage.

run(batch, n_steps) calls step() in a loop until all systems converge or n_steps is reached. Every hook declares which HookStageEnum stage it should fire at and at what frequency, so you have fine-grained control over when callbacks execute.

Using dynamics as a context manager

All dynamics objects (optimizers, integrators, fused stages) support Python’s context manager protocol. The with block manages a dedicated torch.cuda.Stream for the simulation and ensures hooks are properly opened and closed:

from nvalchemi.dynamics import FIRE, ConvergenceHook

with FIRE(model=model, dt=0.1, n_steps=500, hooks=[ConvergenceHook(fmax=0.05)]) as opt:
    relaxed = opt.run(batch)

When you call run() without a with block, hook setup and teardown happen automatically inside run(). The context manager form is useful when you need to call step() manually or interleave dynamics with other operations while keeping hook state (e.g. open log files) alive.

Multi-stage pipelines with FusedStage

Real workflows often chain multiple simulation phases: relax a structure, then run MD at increasing temperatures, then relax again. The FusedStage abstraction lets you compose stages with the + operator:

from nvalchemi.dynamics import FIRE, NVTLangevin, ConvergenceHook

relax = FIRE(model=model, dt=0.1, n_steps=200, hooks=[ConvergenceHook(fmax=0.05)])
md = NVTLangevin(model=model, dt=1.0, temperature=300.0, n_steps=5000)

pipeline = relax + md
with pipeline:
  pipeline.run(batch)

Systems start in the first stage (relaxation). As each system converges, it automatically migrates to the next stage (MD). Different systems can be in different stages simultaneously — the batch is partitioned internally, and a single model forward pass is shared across all active systems regardless of which stage they belong to.

Compiling with torch.compile

FusedStage can compile its entire step function with torch.compile to reduce Python overhead and enable kernel fusion. Call compile() after composing stages:

fused = (relax + md).compile(fullgraph=True)
with fused:
    fused.run(batch)

compile() wraps the internal _step_impl method — which includes hook dispatch, masked sub-stage updates, and the shared model forward pass — in a single compiled graph. It returns the same instance, so you can chain it fluently.

You can also defer compilation by passing compile_step=True at construction time. In that case, torch.compile is invoked lazily when the context manager is entered:

fused = relax + md  # compile_step inherited from sub-stages or set explicitly
with fused:         # compilation happens here
    fused.run(batch)

Any keyword arguments accepted by torch.compile (e.g. fullgraph, mode, backend) can be passed to .compile() or stored via compile_kwargs at construction.

Note

Not all hooks are graph-break-free under fullgraph=True. Hooks that perform Python-side control flow (e.g. logging, I/O) will introduce graph breaks. If you need an unbroken graph, ensure your hooks are written with torch-compatible operations only.

Distributed pipelines

When a workflow needs more than one GPU — for example, relaxing structures on one device and running MD on another — the DistributedPipeline distributes stages across ranks. Where + fuses stages onto a single GPU, the | operator (or a stages dictionary) assigns one stage per rank and wires up inter-rank communication automatically.

Configuring a pipeline

Each rank owns a BaseDynamics (or FusedStage) instance. Stages are collected in a dictionary keyed by global rank and handed to DistributedPipeline:

from nvalchemi.dynamics import FIRE, NVTLangevin, DistributedPipeline
from nvalchemi.dynamics.base import BufferConfig

buffer_cfg = BufferConfig(num_systems=4, num_nodes=50, num_edges=0)

stages = {
    0: FIRE(model=model, buffer_config=buffer_cfg, ...),        # upstream — relaxation
    1: NVTLangevin(model=model, buffer_config=buffer_cfg, ...),  # downstream — MD
}

pipeline = DistributedPipeline(stages=stages, backend="nccl")
with pipeline:
    pipeline.run()

By default, setup() (called automatically by the context manager) sorts stages by rank and wires prior_rank / next_rank between adjacent stages as a simple linear chain. For more sophisticated topologies — such as multiple independent sub-pipelines running in the same job — set prior_rank and next_rank explicitly on each stage:

stages = {
    # Sub-pipeline A: rank 0 → rank 1
    0: FIRE(model=model, buffer_config=buffer_cfg, prior_rank=None, next_rank=1, ...),
    1: NVTLangevin(model=model, buffer_config=buffer_cfg, prior_rank=0, next_rank=None, ...),
    # Sub-pipeline B: rank 2 → rank 3
    2: FIRE(model=model, buffer_config=buffer_cfg, prior_rank=None, next_rank=3, ...),
    3: NVTLangevin(model=model, buffer_config=buffer_cfg, prior_rank=2, next_rank=None, ...),
}

The first stage in each sub-pipeline typically owns a sampler that feeds new structures into the chain; the last stage owns one or more data sinks that collect converged results.

Note

Each rank currently communicates with at most one upstream and one downstream neighbour (one-to-one topology). Fan-out (one-to-many) and fan-in (many-to-one) patterns are planned for a future release.

Sizing the buffer

NCCL point-to-point transfers require fixed-size tensors, so each communicating stage pre-allocates a send buffer and a receive buffer whose dimensions are set by BufferConfig. The three fields control how much data a single transfer can carry:

Field	What it controls
num_systems	Maximum number of graphs (structures) per transfer. Determines throughput per step — higher values move more data but consume more GPU memory.
num_nodes	Total atom capacity across all graphs in the buffer. Must be large enough for the worst-case combination of systems. For example, transferring up to 4 structures of at most 50 atoms each requires num_nodes=200.
num_edges	Total edge capacity. Set to 0 when the downstream model recomputes edges via its neighbor list (the common case). Only set a non-zero value if pre-computed edge attributes must be transferred.

from nvalchemi.dynamics.base import BufferConfig

# 4 structures, up to 200 atoms total, edges recomputed downstream
buffer_cfg = BufferConfig(num_systems=4, num_nodes=200, num_edges=0)

When the upstream stage has more converged samples than num_systems allows in a single transfer, the excess stays in the active batch as a no-op until the next step — this is the back-pressure mechanism described below.

Important

Every pair of communicating stages must share an identical BufferConfig. DistributedPipeline.setup() validates this and raises an error on mismatch.

Buffer synchronization

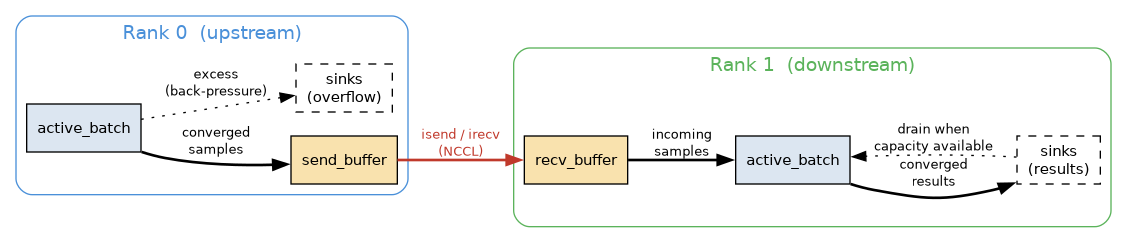

The diagram below shows how two adjacent ranks exchange data through pre-allocated send and receive buffers during a single step. The upstream rank pushes converged samples; the downstream rank pulls them into its active batch.

Buffer synchronization between two adjacent ranks in a DistributedPipeline.

A step proceeds as follows:

1. Pre-step — The downstream rank zeros its receive buffer and posts an asynchronous irecv from its prior_rank. In async_recv mode (the default), the wait is deferred until later in the step; in sync mode it blocks immediately.

2. Complete receive — The downstream rank waits on the pending receive, then routes incoming samples into its active batch (or overflow sinks if the batch is full).

3. Step — Both ranks execute their respective integrator or optimizer on their active batches.

4. Post-step — The upstream rank identifies converged samples, copies them into its send buffer (up to BufferConfig capacity), and issues an isend. An empty buffer is always sent to prevent deadlocks. The final stage routes converged samples to its sinks instead.

Tip

Back-pressure: when the send buffer is full, excess converged samples remain in the upstream active batch as no-ops until buffer capacity opens up. This naturally throttles fast producers without dropping data.

Communication modes

The comm_mode parameter controls how aggressively communication overlaps with computation:

Mode	Behavior
sync	Blocks on irecv immediately in the pre-step. Simplest to debug.
async_recv (default)	Posts irecv early, waits only when the data is needed. Overlaps receive with computation.
fully_async	Also defers isend completion to the next step’s pre-step. Maximum overlap, highest throughput.

Launching

Distributed pipelines are launched with torchrun (or any torch.distributed launcher):

torchrun --nproc_per_node=2 my_pipeline.py

DistributedPipeline calls init_distributed() on entry and coordinates termination across ranks via an all_reduce on per-rank done flags.

See also

The Distributed Pipeline Examples gallery contains end-to-end examples, including multi-pipeline topologies and monitoring with persistent storage.

What’s next

• Optimization and Integrators
• Hooks
• Data Sinks

• Optimization and Integrators — FIRE, NVE, NVT, NPT and their configuration.

• Hooks — the hook protocol, built-in hooks, and writing custom hooks.

• Data Sinks — recording trajectories and simulation results.

See also

• Examples: 02_dynamics_example.py demonstrates a complete relaxation and MD workflow.

• API: See the nvalchemi.dynamics module for the full reference, including the hook protocol and distributed pipeline documentation.

• Data guide: The AtomicData and Batch guide covers the input data structures consumed by dynamics.
