6.2. Unit Requirements in ADS Files¶

This section defines process steps for specifying a subset of software unit requirements via software interfaces specified in ADS files.

This process does not require any given software interfaces to be expressed in the form of ADS files, nor does this process require all unit requirements to be allocated to software units via software interface specifications. Each software unit typically must provide at least one software interface, and may use zero or more software interfaces provided by other units, but each of those software interfaces can be expressed either in the form of ADS files in accordance with this process, or by other means. And even where a software interface is expressed in the form of ADS files, not all unit requirements related to that software interface need to be specified in those ADS files; some unit requirements may be allocated to the software unit from other sources, such as a requirements management tool.

This section constrains the specification of software unit requirements as part of software interfaces in ADS files. Ultimately, all software unit requirements, regardless of how they are specified, will be satisfied by the software unit design and implementation.

6.2.1. Identify External Interface Packages¶

For each software interface specification to be expressed in the form of ADS files, design one or more package hierarchies that will specify the software interface. In this step, only packages with software interfaces are designed. Packages internal to specific units will be created in the design phase.

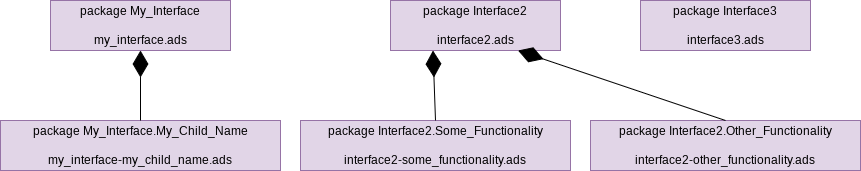

The following diagram illustrates six packages organized in three package hierarchies that could collectively form a software interface specification. Some of the packages are children of other packages. (This diagram also illustrates the naming convention for the external ADS files created in the Create External ADS step.)

../../_images/identify-external-packages.png

Each package hierarchy has a root named e.g. My_Interface, and can have 0 or more child packages named e.g. My_Interface.My_Child_Name.

In doing this, determine which packages:

Are to be implemented by the provider of the software interface and, if so, whether their package specifications will have private parts.
Are to be implemented by the user of the software interface (this is not common) and, if so, whether their package specifications will be allowed to have private parts.
Consist of public specification (possibly including data types and expression functions) only and are not implemented by any unit. This is the case for a package specification that (1) does not require a private part, (2) does not require a package body, and (3) does not defer any bodies to subunits.

In designing package hierarchies, do not make a package a child (or indirect descendant) of another package if this would result in the descendant package and the ancestor package both being implemented but by separate software units, unless the ancestor package’s specification is not allowed to have a private part. This process forbids this practice because a package can reach into the private part of the specification of an ancestor package, and this process treats the private part of a package specification as being strictly part of software unit design and implementation (not software unit requirements). During this step, it is only possible to check that each software interface lacks this property, but in a later step, each software unit will be checked for potential violations of this rule.

The choice of the number and organization of the packages in each of the hierarchies is left to the engineer(s) specifying the software interface.

Step ID: Identify_External_Packages

6.2.1.1. Nested packages allowed¶

So as to facilitate the modular specification and implementation of software interfaces without requiring a one-to-one correspondence between packages and ADS/ADB source file pairs, each of the aforementioned packages may also contain nested packages, and may also leverage Ada subunits (via the Ada is separate syntax). However, nested packages and subunits are not specified in this step because they do not have dedicated ADS files.

6.2.1.2. Note on packages hierarchies implemented by multiple distinct software units¶

This step still allows for some situations where the same package hierarchy can include both packages implemented by the provider of the software interface unit and packages implemented by the user of the software interface. For example, the packages could share a common ancestor package that consists of specification only: In the above diagram, it could be the case that package Interface2 merely defines data types and is not implemented by any unit, while Interface2.Some_Functionality is implemented by one unit and Interface2.Other_Functionality is implemented by another unit.

6.2.1.3. Situations where a package is spread among multiple object files¶

Typically, the Ada language and the GNAT tools collectively ensure that a single package in the package hierarchy will not be partially compiled into one object file and partially compiled into another object file. However, there are some exceptions to this:

If a package specification defines a tagged type with one or more dispatching operations, other package specifications and bodies can declare type extensions with dispatching operations that override the former dispatching operations.
If a package specification defines an access-to-subprogram type, other package specifications and bodies can declare matching subprograms, accesses to which can then be written to values of that access-to-subprogram type.
Subprogram bodies provided in a package specification, and inline subprogram bodies provided in a package body, are compiled into the caller’s object file.
Generic packages and subprograms can be instantiated by other compilation units and incorporated into other object files.

6.2.2. Create External ADS¶

For each (non-nested) package in each of the package hierarchies designed in the Identify External Interface Packages step, per the GNAT default file naming convention, create an ADS file with name ${PACKAGE_FILE_NAME}.ads, where PACKAGE_FILE_NAME is a file name derived from the package name using the following conversion convention: the name is formed by taking the full expanded name of the package and replacing the separating dots with hyphens and using lowercase for all letters.

For example, the full name of the child package My_Child_Name of the package My_Interface would be My_Interface.My_Child_Name. The specification filename would be my_interface-my_child_name.ads.

Note: This is consistent with the default naming convention supported by the GNAT tools. The GNAT tools enable this convention to be overridden, but for clarity, this process does not permit the default naming convention to be overridden. In particular, the Create Project File step forbids the project file from including a Naming package.

Step ID: Create_External_ADS

6.2.3. Declare SPARK Package¶

For each external ADS file created in the Create External ADS step, declare the single corresponding library level package whose name was chosen in the Identify External Interface Packages step.

These packages should be declared with SPARK_Mode => On, e.g.:

package My_Interface
with SPARK_Mode => On
is

--  ...

end My_Interface;

Or:

package My_Interface.My_Package
with SPARK_Mode => On
is

...

end My_Interface.My_Package;

Note: The packages above must be declared public (without the private keyword), because they are intended to be used from other packages in unrelated parts of the hierarchy.

Note: The compiler will verify that the correct package is specified in each ADS file, per the GNAT naming convention enforced by this process.

Note: This process permits packages to be declared with SPARK_Mode => Off (or with no SPARK_Mode aspect at all). However, doing so will increase the cost of verification in later steps.

Step ID: Declare_SPARK_Package

6.2.4. Identify Dependencies¶

For each external ADS file created in the Create External ADS step, identify other external ADS files on which this ADS file depends (e.g., for data type definitions or C/C++ bindings), and add them to the list of with clauses (optionally adding use clauses as well, subject to any restrictions on use clauses in the Ada/SPARK Guidelines) at the beginning of the ADS file.

Only dependencies needed by the package specification should be added during this step. (This process mandates the enabling of the compiler warnings controlled by -gnatwu, which will detect unnecessary with clauses.) Dependencies needed only by the corresponding package body should directly be added in the ADB file in a later step.

Step ID: Identify_Dependencies

6.2.5. Declare Types, States, and Subprograms¶

For each external ADS file created in the Create External ADS step, declare each type and subtype that is expected to be needed by the subprogram declarations to be declared in this package and is not already declared in imported packages. In the unit requirement phase, only software interfaces are declared, hence only those types and subtypes used by the software interfaces shall be added here.

For each external ADS file created in the Create External ADS step, declare global constants and global variables that are part of the software interface in the public part of the package specification, and use the Abstract_State aspect to declare any abstract states that will be necessary in the Capture Requirements step in order to specify Global aspects for subprograms that are part of the software interface. Note: A subprogram body whose subprogram declaration has a Global aspect may only access a private global variable if that private global variable is part of the refinement of an abstract state and that abstract state is included in the Global aspect.

For each external ADS file created in the Create External ADS step, for each desired entry point into the associated library-level package, declare a function or procedure, or define an expression function, in the public part of the appropriate package specification.

Note: The choice of formal parameter types and subtypes may be influenced by the Capture Requirements step below. Types and subtypes can have type contracts (such as ranges, null exclusions, and type predicates) that effectively act as requirements.

Note: When a function can be expressed as a single, public expression, it can require less development effort to declare the function as an expression function, instead of having a separate body and then a postcondition that effectively duplicates the body. For example, expression functions can be used in the internal contracts, which can help to automate proofs. However, other contracts (such as preconditions) can still be necessary for expression functions.

Step ID: Declare_Types_States_And_Subprograms

6.2.6. Capture Requirements¶

For each software requirement related to the software interface, add the software requirement to one of the external ADS files created in the Create External ADS step.

Include all such requirements, even if they might be difficult to formalize, such as the following categories:

Memory usage constraints;
Timing constraints;
Requirements derived from refined hardware software interfaces (HSIs);
Safety measures resulting from safety-oriented analyses;

Include requirements that are to be allocated to any software unit that provides the software interface, and include requirements that are to be allocated to any software unit that uses the software interface.

Note:

In the simple case, if a software unit supplies the ADB file corresponding to an external ADS file, and that external ADS file declares a subprogram, then the subprogram body is part of the unit. In this case, subprogram contracts and other requirements restricting the callee are requirements imposed on the unit, whereas subprogram contracts and other requirements restricting the caller are requirements imposed on other units. (There may also be calls to the subprogram from within the callee’s unit, in which case requirements restricting the caller are also unit design constraints for the callee’s unit).
However, access-to-subprogram types and tagged types with primitive operations are notable exceptions to this rule. If the public part of an external ADS file declares an access-to-subprogram type, then other units (units other than the unit that supplies the ADB file corresponding to the external ADS file) may assign subprograms to values of that type. And if the public part of an external ADS file declares a tagged type with primitive operations, then other units (again, units other than the unit that provides the ADB file corresponding to the external ADS file) may derive new types from that tagged type and provide their own implementations of the primitive operations. In these cases, subprogram contracts restricting the caller and callee are effectively requirements imposed on all the aforementioned units.

6.2.6.1. Capture Formal Requirements¶

Formally specify software requirements using appropriate type, subprogram, and package SPARK annotations, such as:

Selection of subprogram formal parameter types that indirectly restrict the set of possible parameter values, e.g., through ranges, null exclusions, type predicates, or type invariants.
- Note: This applies to in, in out, and out parameters. For in and in out parameters, the selection of a formal parameter type represents a requirement on the caller. For in out and out parameters, the selection of a formal parameter type represents a requirement on the callee.
Preconditions, e.g., through the Pre or Pre'Class aspects.
- Note: A precondition represents a requirement on the caller.
Postconditions, e.g., through the Post, Post'Class, Refined_Post, Contract_Cases, or Exceptional_Cases aspects.
- Note: A postcondition represents a requirement on the callee.
Restrictions on callee accesses to global state, e.g., through the Global aspect. The Global aspect must be specified for all procedures (whether SPARK or not; enforced by GNATcheck rule Procedures_Without_Globals) and for all non-SPARK Ada functions (not automatically enforced). This is necessary for verifying the absence of unintended functionality because it ensures reviewers see the specific global variables being accessed by the unit-internal subprograms. This aspect does not need to be specified for SPARK functions, unless a specific requirement maps to it, because SPARK functions have no side effects. If omitted and GNATprove has visibility into the body of the function, GNATprove will generate a correct overapproximation of the contract for its analysis. If omitted and GNATprove does not have visibility into the body of the function, GNATprove will issue a warning if the function is called. These contracts list all the global variables:
- written (mode Output),
- read (mode Input),
- both read and written, or partially written (mode In_Out), and
- used only in contracts and assertion pragmas (mode Proof_In)
Restrictions on callee data flow, e.g., through the Depends aspect
- Note: Most software requirements cannot be expressed through Depends aspects. Notable exceptions include security requirements related to information disclosure.
A forward progress user aspect (with User_Aspect => (Forward_Progress)), callee return constraint (with Always_Terminates), or callee no-return constraint (with No_Return)
- Note: If a subprogram is recursive and annotated as having forward progress or always-returning, then a Subprogram_Variant must also be provided.
- Note: Absent the No_Heap_Allocations and No_Secondary_Stack local restrictions (which are for convenience wrapped into the Forward_Progress user aspect), a subprogram might terminate the partition with a storage error instead of returning, even if an Always_Terminates aspect is specified.
- Note: The meaning of a Forward_Progress user aspect on a package or subprogram can be limited by an Exceptional_Cases contract on a subprogram. Combining an Exceptional_Cases aspect with Forward_Progress allows contracts to define circumstances under which the subprogram might raise an exception instead of returning.
Aspects for interfacing with C/C++ code (Import => True or Export => True combined with Convention => C and External_Name => symbol_name).

Attempt to decompose HSI requirements (intended hardware behavior and assumptions made by the hardware) so that SPARK contracts can specify some or all of the HSI. This can typically be done by creating a SPARK model of the hardware:

Wrap access to hardware functionality into appropriate procedures, typically in dedicated software units that abstract the hardware.
- Note: To the extent these procedures are also implemented in SPARK (as opposed to being merely specified in SPARK), it will typically be necessary to use pragma Assume in order for GNATprove to accept that the postconditions are met, because GNATprove has only limited ability to reason about the values of volatile data such as hardware state. See the Implement SPARK Package step for more information about the use of pragma Assume in this process.
Use Ada language features to precisely specify data types corresponding to the data exchanged between hardware and software as described in the HSI.
Use preconditions to state assumptions made by the hardware about software.
Use postconditions and type invariants to specify intended hardware behavior.
Introduce Ghost subprograms as needed to support the specification of the preconditions and postconditions.

To reduce the possibility of unintended functionality, all the potential effects apart from output parameters and return values must be explicitly covered through Global aspects (except for SPARK functions because they are formally defined to have no side effects), so we know exactly which variables and abstract states are read and written; contracts must express fully the requirements over changes to data (see [TFV13] for additional details).

Ensure that all required preconditions are captured using the precondition aspects or through type contracts on input data, and ensure that all required effects (side effects, return values, etc.) are captured using the postcondition aspects or type contracts on output data. These contracts may be used on expression functions that will be effectively defined in the design phase.

Ensure that the comments at each type declaration and subprogram declaration collectively explain, in English, the meaning of each of the SPARK annotations. Note: These comments aim to aid in comprehensibility, but are not the authoritative specification of the formal requirements. The SPARK contracts themselves are the authoritative specification of the formal requirements.

This specification work may involve additional functions, types or global variables. Ensure that all of these are marked Ghost.

Note: Ghost code is defined in [SUG], section Ghost code, and in [SRM], section Ghost entities. Ghost code does not affect the functionality of the program and is not part of the final object code of software developed according to this process (because this process prohibits the use of the -gnata compiler switch or the use of the pragma Assertion_Policy with the Check parameter when building production binaries).

Note: The verification done in step Implement SPARK Package will ensure that each subprogram implemented in SPARK complies with the associated contracts.

Note: It is beneficial to capture requirements formally even if it is known that the requirements will be non-formally-verified, because it is less expensive to develop test cases for formal unit specification fragments than for non-formal unit specification fragments (see the Write Tests step).

6.2.6.2. Capture Non-Formal Requirements¶

Each requirement that is not fully expressed in a SPARK annotation must be specified non-formally via natural language and/or semi-formal notation, and later verified through the usual non-formal activities (inspection, testing, etc.) as described in subsequent steps. Note: This process does not permit a requirement to be partially expressed in a SPARK annotation and partially expressed non-formally. Such a requirement should be split into a formal requirement and a non-formal requirement so as to maximize the use of SPARK.

For each software requirement that was not captured as a formal requirement, document the requirement using a comment. (A requirement ID will be assigned to each such non-formal requirement in the subsequent Assign Requirement Unique IDs step.)

For each non-formal requirement identified as being either ASIL C or ASIL D, the normative part of the requirement must be specified in semi-formal notation, such as with natural language in EARS syntax. (It is recommended to use semi-formal notation for all non-formal requirements.)

Non-formal requirements must be implementation free.

Each non-formal safety requirement must be atomic (i.e., it must not be possible to split it into two or more independent requirements), with one exception: If making a non-formal requirement atomic would interfere with the achievement of other objectives identified in this step for the specification of requirements, like comprehensibility, then the non-formal requirement need not be fully atomic. In this latter case, the non-formal requirement should instead be made only as atomic as possible without compromising the other objectives.

Step ID: Capture_Requirements

6.2.6.3. Public Expression Functions¶

A public expression function specifies its return value precisely in the form of an expression that is part of the public part of the ADS file, lessening the need for requirements. Typically, the only requirements that are captured for public expression functions are formal/informal preconditions. All other requirements are inherently redundant with the expression that specifies the return value. However, it may be useful to specify non-precondition requirements of certain public expression functions to clarify their properties, so this process does not forbid non-precondition requirements on public expression functions.

For a public expression function that is not intended to be called directly by the user but rather is intended to be used only to specify requirements, the public expression function’s contracts are not themselves requirements. In particular, it is not necessary to use natural language to explain each precondition of a public expression function that is only used to specify requirements.

6.2.7. Assign Requirement Unique IDs¶

For each software interface specified with external ADS files, use structured comments with the syntax defined in the Traceability Model section to assign a unique ID to each atomic requirement in the public parts of the software interface’s external ADS files.

Each non-formal type contract and each formal type contract is given a unique ID. In SPARK, formal type contracts that can be used in public parts of package specifications include Ada scalar constraints (range, digits, and delta), Ada composite constraints (index constraints and discriminant constraints), Ada null exclusions (not null), type predicates (specified through Predicate, Static_Predicate, and Dynamic_Predicate aspects), and default initial conditions (Default_Initial_Condition aspects). (Type invariants, specified through Invariant and Type_Invariant aspects, are not permitted in public parts of package specifications.)
Example¶
```
-- @type_contract_informal (My_Index_Not_5)
-- A value of type My_Index_Type shall not be 5.
-- @type_contract (In_Range)
type My_Index_Type is range 1 .. 10;

subtype My_Formal_Not_5_Index_Type is My_Index_Type
with
   -- @type_contract (Not_5)
   Predicate => (My_Formal_Not_5_Index_Type /= 5);
```

A subprogram Pre, Pre'Class, Post, Post'Class, or Refined_Post contract or case of a Contract_Cases contract is often expressed as a conjunction of atomic requirements. Each atomic requirement is given a unique ID.

Example¶

with Pre =>
   -- @pre (Ready) Must only be called while in the
   -- Ready state, and specifically in the Fully_Ready
   -- sub-state.
   (Ready and then Fully_Ready) and then
   -- The following is not actually a requirement (and is
   -- not considered part of the Ready structured comment)
   -- because debugging is disabled in the product.
   (not Debug) and then
   -- @pre (Inputs_Acceptable) If the inputs are not
   -- valid, then it must be possible to report errors.
   (Inputs_Valid or else Errors_Allowed),

A subprogram Global contract is given a single unique ID because it is expressed as a disjunction of allowed global variable accesses.
Example¶
```
-- @outcome (Global) Reads State and writes Data.
Global => (Input => State, Output => Data),
```
A subprogram Depends contract can be given a single unique ID, or each dependency_clause of a Depends contract is given a single unique ID because it is expressed as a disjunction of allowed data flows.
Example¶
```
-- @outcome (Depends) The final value of X depends
-- only on the initial value of Y, and vice versa.
Depends => (X => Y, Y => X),
```
Each subprogram or package Forward_Progress user aspect, Always_Terminates aspect, or No_Return aspect callee return constraint is given a single unique ID.
Example¶
```
-- @outcome (Forward_Progress) This procedure must
-- eventually return.
User_Aspect => Forward_Progress;
```
Each subprogram or package non-formal requirement is given a single unique ID.
Example¶
```
-- @outcome (Overhead) This procedure must complete
-- within 10ms.
-- @end
```

Where a subprogram has requirements and the subprogram’s name is overloaded (i.e., there are other subprograms in the same scope with the same name), assign a local ID to the subprogram so that each of the subprogram’s requirements can have a unique ID.

Example¶

-- @func Get_Value
function Get (My_Object : Object) return Value
with
   -- @pre (Init) My_Object shall already be initialized.
   Pre => Is_Initialized (My_Object);

-- @func Get_Status
function Get (My_Object : Object) return Status
with
   -- @pre (Init) My_Object shall already be initialized.
   Pre => Is_Initialized (My_Object);

-- @proc Set_Value
procedure Set (My_Object : Object; New_Value : Value)
with
   -- @pre (Init) My_Object shall already be initialized.
   Pre => Is_Initialized (My_Object),
   ...

-- @proc Set_Status
procedure Set (My_Object : Object; New_Status : Status)
with
   -- @pre (Init) My_Object shall already be initialized.
   Pre => Is_Initialized (My_Object),
   ...

For each requirement that is assigned a unique ID, create a trace link (in the manner specified in the Ada/SPARK Process Binding) from the requirement to the non-unit-level work product fragments (if any) that directly motivate the requirement.

Note: Typically some of the requirements are motivated only by software unit design decisions in other software units. For such requirements, no trace links are created to the requirement in this process step.

Step ID: Assign_Requirement_Unique_IDs

6.2.7.1. Language bindings not considered requirements¶

For each C/C++ software interface specification that is converted to Ada/SPARK as part of specifying requirements in ADS files, the Convention => C and Import / Export aspects are considered formal interface details, but not requirements. It is not necessary to assign a requirement ID to these aspects.

6.2.7.2. Rationale for not making exceptions for formal requirements¶

The purpose of assigning unique IDs to requirements (as is required for safety requirements by ISO 26262-8:2018, 6.4.2.5a) is to support traceability. It is in theory not necessary to assign a unique ID to a requirement if the requirement is always formally-verified and the requirement is only ever needed for formal verification, because then the purposes of traceability defined in ISO 26262-8:2018, 6.4.3.2 are adequately achieved through formal verification alone. However, it is very difficult to show definitively that a requirement is only ever needed for formal verification. In particular, all of the following conditions are necessary for a requirement not to need a unique ID, and this process holds that it is too expensive to verify all these conditions individually:

The requirement is a formal requirement.
The requirement does not trace to any non-unit-level work products.
If the formal requirement is a type contract, then both of the following conditions hold:
- Only SPARK Platinum code reads objects of that type. (This ensures that the type contract is not utilized as part of any non-formal verification.)
- Only SPARK code writes objects of that type. (This ensures that SPARK will formally verify that only values complying with the type contracts are written to objects of that type.)
If the formal requirement is a subprogram contract, then both of the following conditions hold:
- Only SPARK Platinum code depends on the subprogram contract. (This ensures that the subprogram contract is not utilized as part of any non-formal verification.) In particular:
  - If the subprogram contract is a precondition (e.g., a Pre or Pre'Class aspect), then only SPARK Platinum code embodies the declaration containing the subprogram contract. For purposes of this process step, to embody a declaration containing a subprogram contract means specifically to do any of the following:
    - To define a subprogram body that completes the original declaration (if the original declaration declares a subprogram).
    - To declare a primitive operation of a type extension such that the primitive operation overrides the original declaration (if the original declaration declares a primitive operation of a tagged type).
    - To assign a value to an object of the type declared by the original declaration (if the original declaration declares an access-to-subprogram type).
  - If the subprogram contract is not a precondition, then only SPARK Platinum code applies the declaration containing the subprogram contract. For purposes of this process step, to apply a declaration containing a subprogram contract means specifically to do any of the following:
    - To directly call the declared subprogram (if the declaration declares a subprogram).
    - To perform a dispatching call to the declared subprogram or an overriding subprogram (if the declaration declares a primitive operation of a tagged type).
    - To call through an object of the declared type (if the declaration declares an access-to-subprogram type).
- Only SPARK code is responsible for complying with the subprogram contract. (This ensures that SPARK formally verifies compliance.) In particular:
  - If the subprogram contract is a precondition, then only SPARK code applies the declaration containing the subprogram contract.
  - If the subprogram contract is not a precondition, then only SPARK code refines the declaration containing the subprogram contract.
If the formal requirement is a package contract, then the above conditions for individual subprograms apply to all the subprograms declared within the scope of that package contract.

6.2.7.3. Requirement status¶

ISO 26262 also requires that each safety requirement have a status (ISO 26262-8:2018, 6.4.2.5b). This process assigns a status to each requirement, whether a formal requirement or a non-formal requirement, and whether safety or non-safety, based on change management:

A requirement is in the proposed state if a change request has been submitted and the change request would add the requirement (or substitute the requirement for an existing approved requirement), but the change request has not yet been inspected and approved by an appropriate developer (a developer who is involved in the development of the containing work product but is not the author of the change request).
A requirement transitions from the proposed state to the reviewed state when an appropriate developer inspects the associated change request, identifies no issues with the change request, and approves the change request.
A requirement transitions from the reviewed state to the approved state when the project manager or safety manager for each work product affected by the change request approves the change request.
A requirement transitions from the approved state to the confirmed state when the change request is completed.
A requirement transitions from the confirmed state to the canceled state upon the completion of an appropriately-approved change request that removes the requirement.

6.2.8. Verify Formal Requirement Consistency¶

In this step, the consistency of the formally-specified fragments of the software interface with one another is verified.

Launch the compiler on the specification. Fix any errors or warnings in the external ADS files. (For this process step, disregard any errors or warnings related to the absence of corresponding ADB files. If work has already begun on future process steps, also disregard any errors or warnings pertaining to files added in later process steps.)

To launch just the compiler, run the command:

gprbuild -c -P my_interface_project

where my_interface_project is the name of a project file that complies with the requirements stated in the Create Project File step and which includes the external ADS files of the software interface.

Launch the verification tool in order to check consistency between the declared types, data, and subprograms and the contracts.

To run the verification tool, you can simply run the command:

gnatprove -P my_interface_project -U

During this step, most of the contracts are unprovable (except for example contracts specified for expression functions defined in the ADS file), however the tool verifies the consistency of the contracts with the declared data.

Optional Pass Criteria: GNATprove reports no warnings and no errors, except for warnings and errors disregarded for this process step as described above.

Note about the pass criteria: As indicated in the Software Unit Verification Checklist, the verification of this step is redundant with the verification of the Compile Project and Verify Project steps. If an external ADS file is used by at least one software unit that follows this process, and if there are any inconsistencies within the formally-specified fragments of that external ADS file, then errors and/or warnings will occur during execution of the Compile Project and/or Verify Project steps on each of those software units. Therefore the pass criteria for this step are optional. This implies for example that if GNATprove reports a large number of warnings and/or errors concerning a partial implementation of the software interface, it is not necessary to conduct a thorough review of the output in search of warnings and/or errors related to the external ADS files.

Step ID: Verify_Formal_Requirement_Consistency

6.2.9. Verify Non-Formal Requirement Consistency¶

For each software interface, manually verify with a local peer review that each of the non-formal requirements in the public parts of the external ADS files is unambiguous, free from internal contradictions and consistent with all the other requirements (formal and non-formal) in the public parts of the external ADS files of the software interface: There must be no contradictions among the requirements, but this step does not require verification of the absence of contradictions of the formal requirements with one another because that is automatically verified in Verify Formal Requirement Consistency.

Note: This step requires an evaluation of the internal consistency of the requirements within each software interface. This step does not require an evaluation of the consistency between distinct software interfaces, or between software interfaces and other sources of software requirements. That latter evaluation of consistency is performed in later phases.

There must be no duplication of information within the set of non-formal requirements and between the non-formal and formal requirements.

The non-formal requirements must be atomic, to the extent that this does not impede any of the other required characteristics of requirements defined in this step or the Verify Requirement Correctness, Completeness and Adherence to Ada/SPARK Guidelines step.

The non-formal requirements must be implementation free (see the Terminology section).

Pass Criteria: All non-formal requirements are reviewed as part of a local peer review and no inconsistencies reported by the reviewer(s).

Step ID: Verify_Non_Formal_Requirement_Consistency

6.2.10. Verify Requirement Correctness, Completeness and Adherence to Ada/SPARK Guidelines¶

For each software interface, using the traceability established in the Assign Requirement Unique IDs step, manually verify with a local peer review that the public parts of the external ADS files are correct and complete with respect to the work products from which the software interface specification was derived (requirements, element architecture, higher-level interface specifications, etc.).

Also manually verify (with an independent reviewer) that:

the external ADS files are out-of-context-comprehensible to the independent reviewer, and
the external ADS files observe the Ada/SPARK Guidelines (except for guidelines automatically enforced via GNATcheck rules).

Pass Criteria: Local peer review confirmed that all requirements are fully described in the package specification and that these requirements are correctly represented, out-of-context-comprehensible, and compliant with guidelines.

Step ID: Verify_Requirement_Correctness_And_Completeness

6.2.11. Verify Requirement Necessity¶

For each software interface, manually verify with a local peer review that all the captured requirements are necessary, i.e. they are essential for correctness and completeness of the requirements specification, considering both:

the work products from which the software interface specification was derived, and
the work products that depend on the software interface specification (element architecture, unit design, etc.).

Pass Criteria: Local peer review confirmed that all requirements are necessary.

Step ID: Verify_Requirement_Necessity
