Developer’s Guide

This section will eventually contain a guide for those interested in developing their own asynchronous, sender-based algorithms and execution contexts.

Core Concepts for Developers

People wishing to extend the Sender model by writing their own sender algorithms or schedulers, or by adapting another asynchronous model to the Sender model, should be familiar with the core concepts of the Sender model. These concepts define how senders, receivers, and schedulers interact.

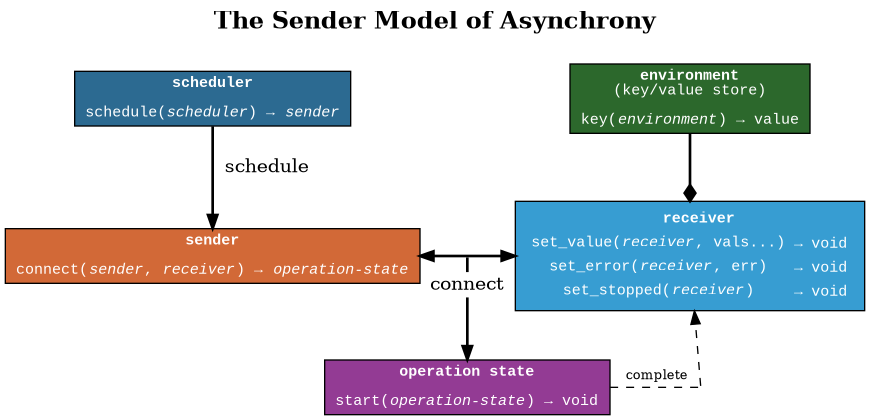

The Sender Model of Asynchrony

In addition to the 🧱 Core Concepts for Users, developers should also be familiar with the following concepts:

1. Receiver

A receiver is an object that consumes the result of a sender. It defines three member functions that handle completion:

• .set_value(args...): Called on success.

• .set_error(err): Called on error.

• .set_stopped(): Called if the operation is canceled.

struct MyReceiver {
  using receiver_concept = stdexec::receiver_t;

  void set_value(int v) noexcept                { /* success      */ }
  void set_error(std::exception_ptr e) noexcept { /* error        */ }
  void set_stopped() noexcept                   { /* cancellation */ }
};

Receivers are an implementation detail of sender algorithms.

2. Operation State

Connecting a sender to a receiver yields an operation state, which:

• Represents the in-progress computation.

• Is started explicitly via .start().

auto op = stdexec::connect(sndr, MyReceiver{}); // Connect sender to receiver
stdexec::start(op);                             // Start the operation

Operation states are immovable, and once started, they must be kept alive until the operation completes. Like receivers, operation states are typically an implementation detail of sender algorithms.

3. Environments

Environments are a key concept in the Sender model. An environment is an unordered collection of key/value pairs, queryable at runtime via tag types. Every receiver has a (possibly empty) environment that can be obtained by passing the receiver to stdexec::get_env.

Environments provide a way to pass contextual information like stop tokens, allocators, or schedulers to asynchronous operations. That information is then used by the operation to customize its behavior.

Core Customization Points

Sender algorithms are defined in terms of core customization points. Below are the core customization points that define how senders and receivers interact:

Core customization points

CPO	Description
stdexec::connect	Connects a sender to a receiver resulting in an operation state.
stdexec::start	Starts the operation.
stdexec::set_value	Called by the operation state to deliver a value to the receiver.
stdexec::set_error	Called by the operation state to deliver an error to the receiver.
stdexec::set_stopped	Called by the operation state to indicate that the operation was stopped.
stdexec::get_env	Retrieves the environment from a receiver.
