Understanding the Configuration File

Choosing an example config

Choosing the appropriate DAQIRI stream type for your setup

DAQIRI exposes a single API on top of multiple packet I/O stacks, selected at runtime with stream_type and endpoint URI schemes such as udp://, tcp://, and roce://. Pick the row that matches your hardware and the role of the other endpoint:

  • Raw Ethernet: stream_type: "raw". Kernel-bypass with GPUDirect zero-copy. Highest performance. Requires an NVIDIA ConnectX-class NIC. tx_port and rx_port can share one physical NIC for a single-host closed-loop bench, or be split across two hosts.
  • Socket (UDP / TCP): stream_type: "socket" with udp:// or tcp:// endpoints. Plain Linux kernel sockets. No NIC, no privileges, no special CMake flags. Useful as a comparison baseline and as a path to first results on a system without an NVIDIA NIC. Socket options are runtime API calls: resolve a connection ID, then pass native Linux constants to socket_setsockopt() rather than adding option names to YAML.
  • Socket (RoCE / RDMA): stream_type: "socket" and roce:// endpoints. RDMA verbs over Ethernet, with a server/client connection model and a NIC-level reliable transport. Primarily intended for setups where one endpoint is a third-party RoCE implementation (FPGA, instrument, customer black box). When both peers run DAQIRI, prefer an upper-layer library such as MPI / NCCL / UCX instead.

If you don't have any NIC at all, the *_sw_loopback* variants of the Raw Ethernet configs need no hardware, which is useful for first-time build verification.

(DAQIRI_ENGINE at the CMake layer selects which optional engine implementations to compile in. dpdk enables the default raw engine, while ibverbs enables both the pure-DevX raw engine and roce:// endpoints. Linux UDP/TCP sockets are always built in. The default build is dpdk ibverbs.)

For a shorter selection guide, start with the Benchmarking overview. With a stream type in mind, read down the questions below and stop at the first one that matches what you're trying to do. Each section names the YAML, the binary that consumes it, and any platform-specific notes.

1. I want to measure baseline throughput

Pick the stream type that matches your stack (see the overview above), then the hardware or transport variant.

Raw Ethernet (stream_type: "raw") runs on daqiri_bench_raw_gpudirect.

  • Generic discrete GPU (template, replace <placeholders>): daqiri_bench_raw_tx_rx.yaml. This is the file annotated line-by-line in the walkthrough below.
  • Four queue closed-loop TX+RX (template, replace <placeholders>): daqiri_bench_raw_tx_rx_4q.yaml. Uses one application worker per TX/RX queue, with each bench_tx entry sending a different UDP flow.
  • DGX Spark / GB10 (prefilled): daqiri_bench_raw_tx_rx_spark.yaml. kind: host_pinned for the integrated GPU, and cores, PCIe addresses, and IPs are prefilled. See the Spark profile callout for run details.
  • DGX Spark multi-queue core-scaling matrix (prefilled): one base config daqiri_bench_raw_tx_rx_spark_mq.yaml (the balanced TX=2/RX=2 superset, cores TX → 16,17, RX → 18,19) from which examples/run_spark_mq_bench.sh (via scripts/gen_spark_mq_config.py) derives the four (TX, RX) cells (1,1), (1,2) (RX scaling), (2,1) (TX scaling), and (2,2) (balanced) by pruning queues/flows. All run on daqiri_bench_raw_gpudirect at the native 8 KB shape.
  • DGX Spark cross-host (prefilled, runs on two Sparks): daqiri_bench_raw_tx_spark_xhost.yaml on the TX host and daqiri_bench_raw_rx_spark_xhost.yaml on the RX host. Each host runs daqiri_bench_raw_gpudirect against its own half, and cables connect p0↔p0 between the two boxes. Apply the cross-host network setup before running. See the Cross-host two-DGX-Spark loopback section for run details.
  • ConnectX NIC, no cable (template, replace <placeholders>): daqiri_bench_raw_hw_loopback_ibverbs.yaml. Uses engine: "ibverbs" and loopback: "hw" to return TX through the same port's hardware RX steering path. The NIC must remain enumerated without a link and eth_dst_addr must be that port's own MAC.
  • No physical NIC available: daqiri_bench_raw_sw_loopback.yaml. loopback: "sw", no NIC required. Useful for first-time build verification, not representative of production performance.

Raw Ethernet hardware tunnel transforms run on daqiri_bench_raw_gpudirect. Replace placeholders and use a raw DPDK or raw ibverbs build.

To watch the same raw loopback benchmark with live Prometheus and Grafana counters, use the Grafana compose stack described in Watch live OpenTelemetry metrics in Grafana.

Socket (RoCE / RDMA) (stream_type: "socket", roce:// endpoints) runs on daqiri_bench_rdma (use --mode {tx,rx,both}). Configs use kind: host_pinned regardless of platform.

Socket (UDP / TCP) (stream_type: "socket" with udp:// or tcp:// endpoints) runs on daqiri_bench_socket. The shipped smoke-test configs bind to 127.0.0.1. See Socket and RDMA Benchmarking for namespace-based wire tests.

Replace <client-ip>, <server-ip>, <master-core>, and each role-specific <*-core> placeholder in both files before running. Keep the endpoint addresses and ports consistent across the client/server pair.

I want to measure direct-polling packet latency

Use daqiri_bench_raw_latency_ibverbs.yaml with daqiri_bench_raw_latency. It sweeps one outstanding packet at a time from 64 through 8192 L2 bytes, using powers of two, with both queues in caller-driven poll_mode: direct.

The benchmark reports direct send_tx_burst() call-to-return time, submit-to-hardware-RX time, hardware-RX-to-get_rx_burst() return time, and total submit-to-application time. It requires a physical loopback path, raw ibverbs, RX hardware timestamps, host-pinned buffers, and PTP synchronization between the NIC and CLOCK_REALTIME. See Direct-polling latency sweep for the measurement boundaries and run command.

2. I have out-of-order UDP packets that need to be reordered on the GPU

DAQIRI's reorder pipeline places packet payloads at the correct offset in a GPU buffer, so a downstream consumer sees a fully ordered stream. Software reorder uses a CUDA kernel and remains the default. On ConnectX-7 or newer hardware, the ibverbs engine can instead use the flex parser for first-DMA placement when the sequence value cycles over a finite ring (reorder_engine: hw, cyclic_sequence: true). Configs run on daqiri_bench_raw_reorder_seq unless 2.4 applies. Sub-questions:

2.1 Which algorithm matches how your packets encode batches?

  • "My wire format sends a fixed N packets per logical batch, and the seqno identifies position within the batch": seq_packets_per_batch.
  • "My wire format identifies the batch index in the seqno, and packets-per-batch is fixed for the stream": seq_batch_number.

2.2 Where should the reorder run?

  • GPU kernel (default, recommended): reorder_type: "gpu".
  • CPU (throughput-bounded, comparison/baseline path): reorder_type: "cpu".

2.3 Self-contained, or do you have a TX peer?

  • TX+RX: closed-loop in one process.
  • RX-only: you'll generate traffic separately. A standalone run of any raw_rx_* config exits cleanly with 0 packets if no traffic arrives, which is expected. You need a TX peer.

2.4 Do you also need an in-kernel payload type conversion?

  • No: pick a leaf from the table below.

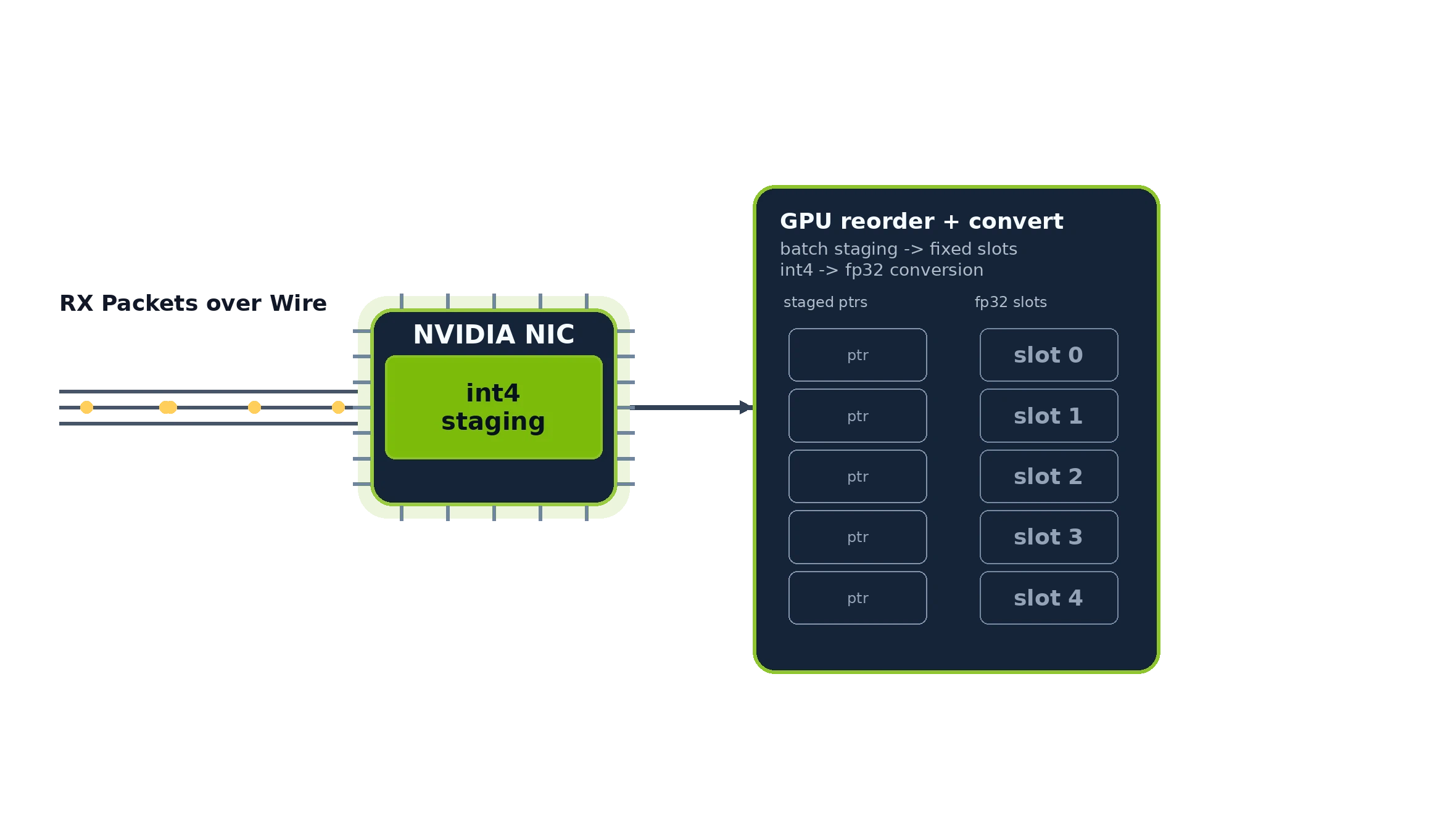

  • Yes: daqiri_bench_raw_tx_rx_reorder_quantize_seq_batch.yaml (runs on daqiri_bench_raw_reorder_quantize, not daqiri_bench_raw_reorder_seq). Combines seq_batch_number reorder with an in-kernel payload type conversion. The data_types block sets the input and output types (the example uses int4 → fp32). Pick this when wire format and compute format differ.

Concrete leaves (without conversion):

YAML Algorithm Kernel Direction
daqiri_bench_raw_tx_rx_reorder_seq_1024.yaml seq_packets_per_batch (1024) GPU TX+RX
daqiri_bench_raw_tx_rx_reorder_seq_1024_cpu.yaml seq_packets_per_batch (1024) CPU TX+RX
daqiri_bench_raw_rx_reorder_seq_ppb.yaml seq_packets_per_batch (128) GPU RX-only
daqiri_bench_raw_rx_reorder_seq_batch.yaml seq_batch_number GPU RX-only
daqiri_bench_raw_sw_loopback_reorder_seq_1024.yaml seq_packets_per_batch (1024) CPU TX+RX, no NIC

Requires: Raw Ethernet build (DAQIRI_ENGINE includes dpdk) + NVIDIA ConnectX-class NIC (or the SW-loopback variant for first-time validation).

A diff-style walkthrough of daqiri_bench_raw_tx_rx_reorder_seq_1024.yaml appears below.

3. I need to parse small per-packet metadata on the CPU while keeping payload on the GPU

Header-data split: segment 0 (CPU) holds the header, segment 1 (GPU) holds the payload via GPUDirect zero-copy. Pick this when the CPU needs to read small per-packet fields without ever touching the payload.

Requires: Raw Ethernet build (DAQIRI_ENGINE includes dpdk) + NVIDIA ConnectX-class NIC.

A diff-style walkthrough of this config appears below.

4. I need flow-based load balancing across multiple RX queues

The four-queue TX+RX config is self-contained and maps each bench_tx/bench_rx list entry to the matching DAQIRI queue. The RX-only config is for an external traffic source. The dynamic-flow example demonstrates queues-only startup and runtime flow insertion/deletion. All three demonstrate flow-rule-based routing across multiple RX queues, with explicit CPU cores for both DAQIRI queue workers and benchmark application workers.

Requires: Raw Ethernet build (DAQIRI_ENGINE includes dpdk) + NVIDIA ConnectX-class NIC. The RX-only config also requires a separate TX traffic source.

A diff-style walkthrough of multi-queue RX routing appears below.

4.1 I need to replace queues or memory without restarting

Run daqiri_example_dynamic_resource with an ibverbs raw config that has at least one RX queue and one single-region TX queue, such as daqiri_bench_raw_hw_loopback_ibverbs.yaml. The example starts the engine with no RX queues, creates owned memory regions and the first RX queue at runtime, installs a dynamic steering flow, submits through a runtime TX queue, then removes the flow, drains both queues, and removes both regions.

Requires: Raw Ethernet with engine: "ibverbs" and an NVIDIA ConnectX-class NIC.

5. I need to record packet data to disk

Sub-question: which output format?

5.1 Wireshark- / tcpdump-compatible PCAP runs on daqiri_example_pcap_writer. This is the default and works on any filesystem. Run shape: daqiri_example_pcap_writer <yaml> <output.pcap> [--tx] (omit --tx for an RX-only tcpdump-style capture).

Requires: Raw Ethernet build (DAQIRI_ENGINE includes dpdk). No special CMake flag.

5.2 Zero-copy GPU → NVMe writes (advanced) runs on daqiri_example_gds_write. Pick this only if the GPU-to-disk zero-copy path is the specific subject of investigation. Otherwise pick PCAP (5.1).

Requires: built with -DDAQIRI_ENABLE_GDS=ON, NVMe-backed storage, working cuFile / nvidia_fs stack, gdscheck.py -p reports NVMe : Supported.

6. I need to cap (pace) the transmit rate in hardware

This is the base TX+RX template with a per-queue pacing_mbps cap added to the TX queue. It uses the default ibverbs engine and its mlx5 QP packet-pacing rate table; add engine: "dpdk" beside stream_type: "raw" to exercise the DPDK path instead. The NIC meters the queue out so its average TX rate stays at or below the configured Mbps. Set pacing_mbps: 0 (or remove it) to send at line rate. Validate by computing the achieved rate from the benchmark's RX line (Gbps = bytes * 8 / seconds / 1e9) and confirming it tracks the configured cap. See the pacing_mbps key in the TX queue configuration.

Requires ConnectX-7 or later and the engine's pacing capability: DPDK uses native wait-on-time SEND_ON_TIMESTAMP and warns/runs at line rate when that offload is unavailable; ibverbs fails initialization unless the device advertises RAW_PACKET packet pacing and accepts the requested rate. If an older driver omits its supported range, the provider validates the rate when it is applied.

7. I want packet ingest into a TensorRT inference pipeline

Config-based GPU reorder (int8→fp16) reassembles packets into an NCHW batch, an SPSC ring decouples RX from TensorRT, and FeatureSink prints headless PC1/PC2 plus per-class mean-feature stats. Build with -DDAQIRI_BUILD_APPLICATIONS=ON inside the BASE_IMAGE=torch container.

See the DAQIRI → TensorRT ResNet Inference tutorial.

Annotated walkthrough

This section walks through four YAML topics: the base TX+RX template, flow steering, header-data split (HDS), and GPU packet reordering. Click on the icons to expand explanations for each annotated line.

Annotations are prefixed with a category icon when applicable:

  • System-specific: must be changed for your hardware
  • Payload-dependent: adjust based on your application's packet format and throughput needs

In each code block, the lines you're most likely to tune are highlighted: system-specific addresses, cores, and MAC/IPs in the base walkthrough, and feature-defining values (split boundaries, batch sizes, sequence-number positions) in the HDS and reorder diff snippets below.

Base TX+RX config

The annotated example below is daqiri_bench_raw_tx_rx.yaml.

daqiri: # (1)!
  cfg:
    version: 1
    stream_type: "raw" # (2)!
    master_core: 3 # (3)!
    debug: false
    log_level: "info"
    loopback: "" # (4)!

    memory_regions: # (5)!
    - name: "Data_TX_GPU"
      kind: "device" # (6)!
      affinity: 0 # (7)!
      num_bufs: 51200 # (8)!
      buf_size: 8064 # (9)!
    - name: "Data_RX_GPU"
      kind: "device"
      affinity: 0
      num_bufs: 51200
      buf_size: 8064

    interfaces: # (10)!
    - name: "tx_port"
      address: <0000:00:00.0> # (11)!
      tx: # (12)!
        queues: # (13)!
        - name: "tx_q_0"
          id: 0
          batch_size: 10240 # (14)!
          cpu_core: 11 # (15)!
          memory_regions: # (16)!
            - "Data_TX_GPU"
          offloads: # (17)!
            - "tx_eth_src"
    - name: "rx_port"
      address: <0000:00:00.0> # (18)!
      rx:
        flow_isolation: true # (19)!
        queues:
        - name: "rq_q_0"
          id: 0
          cpu_core: 9
          batch_size: 10240
          memory_regions:
            - "Data_RX_GPU"
        flows: # (20)!
        - name: "flow_0"
          id: 0 # (21)!
          action: # (22)!
            type: queue
            id: 0
          match: # (23)!
            udp_src: 4096
            udp_dst: 4096

bench_rx: # (24)!
- interface_name: "rx_port"
  cpu_core: 8

bench_tx: # (25)!
- interface_name: "tx_port"
  cpu_core: 10
  batch_size: 10240
  payload_size: 8000
  header_size: 64
  eth_dst_addr: <00:00:00:00:00:00>
  ip_src_addr: <1.2.3.4>
  ip_dst_addr: <5.6.7.8>
  udp_src_port: 4096
  udp_dst_port: 4096
  1. The daqiri section configures the DAQIRI library, which is responsible for setting up the NIC. It is passed to daqiri_init(...) during application startup. Within this section, name: fields on interfaces, queues, flows, and memory regions are used only for logging. Pick any descriptive string.
  2. stream_type · string · required: High-level transport family selected for this config. Supported: "raw" (Raw Ethernet via kernel bypass, used here), "socket" (kernel sockets and RDMA). Use endpoint URI schemes such as tcp://, udp://, and roce:// for socket-style transports.
  3. master_core · integer (CPU core ID) · required: Core used for DAQIRI setup. Does not need to be isolated, and it is recommended to differ from the cpu_core fields below that poll the NIC.
  4. loopback · string · default: "": Loopback mode. Supported: "" (disabled), "sw" (DPDK software loopback, no NIC), and "hw" (single-port mlx5 hardware loopback for the raw ibverbs engine). Hardware loopback requires one interface with both TX and RX queues and packets addressed to that port's own MAC.
  5. The memory_regions section lists where the NIC will write/read data from/to when bypassing the OS kernel. Tip: when using GPU buffer regions, keeping the sum of their buffer sizes below 80% of your BAR1 size is generally a good rule of thumb.
  6. kind · string · required: Type of memory backing the region. Supported: device (GPU VRAM via GPUDirect, preferred on discrete GPUs), host_pinned (CPU pinned memory, required on integrated GPUs like NVIDIA GB10/DGX Spark where peer-DMA isn't available), huge (hugepages, CPU), host (CPU unpinned). See the memory regions reference. Choose based on whether packets are processed on the GPU or CPU and on the GPU class.
  7. affinity · integer (GPU ID / NUMA node) · required: GPU device ID when kind: device or kind: host_pinned. NUMA node ID for CPU memory regions (huge, host).
  8. num_bufs · integer · required: Number of buffers in the region. Higher gives more time to process packets but uses more BAR1 space. Too low risks NIC drops (RX) or buffering latency (TX). A good starting point is 3×–5× the queue batch_size. For Raw Ethernet (stream_type: "raw"), num_bufs below 1.5× the NIC ring size deadlocks the worker, so daqiri_init auto-bumps such regions to 3× the ring (24576 with the default 8192) and logs a WARN.
  9. buf_size · integer (bytes) · required: Size of each buffer in the region. Should equal your maximum packet size, or smaller when chaining regions per packet (e.g. header-data split, see the HDS walkthrough below).
  10. The interfaces section lists the NIC interfaces that will be configured for the application.
  11. address · string (PCIe BDF) · required: PCIe bus address of this interface. Must be changed for your system. Both tx_port and rx_port may point to the same physical NIC for single-port closed-loop benches.
  12. Each interface declares a tx (transmitting) and/or rx (receiving) section. Include only the side you're using on that port, or both if a single port carries traffic in both directions.
  13. The queues section lists per-direction queues. Queues are a core NIC concept: they handle the actual reception or transmission of packets. RX queues buffer incoming packets until the application processes them, while TX queues hold outgoing packets waiting to be sent. The simplest setup uses one RX and one TX queue. Using more queues allows parallel streams (each queue can be pinned to its own CPU core and memory region).
  14. batch_size · integer (packets) · required: Packets per burst. The RX path delivers packets to the application in batches of this size. The TX path should not send more packets than this per call.
  15. cpu_core · integer (CPU core ID) · required: Core that this queue uses to poll the NIC. Ideally one isolated core per queue. Must match your system's available cores.
  16. The list of memory regions where this queue will write/read packets. Order matters: the first region is used until one buffer fills (buf_size), then the next region is used, and so on until the packet is fully written/read. The HDS walkthrough below shows a chained example.
  17. offloads · list of string · TX queues only: Optional tasks offloaded to the NIC. Supported: tx_eth_src (the NIC inserts the Ethernet source MAC into outgoing headers). daqiri_init() fails if the NIC cannot install the offload flow rule. Note: IP, UDP, and Ethernet checksums/CRC are always done by the NIC and are not optional.
  18. address · string (PCIe BDF) · required: PCIe bus address of the RX interface. May share the BDF with tx_port for single-port closed-loop benches, or be a different NIC for two-port setups. Must be changed for your system.
  19. flow_isolation · boolean · default: false: When true, static startup flows send unmatched traffic in their flow class back to the Linux kernel via fallback rules, while queues-only dynamic configs deliver no traffic to DAQIRI queues until dynamic rules are installed. Useful for letting the interface still handle ARP, ICMP, etc. while DAQIRI takes the application packets. When false, every packet hitting the interface must be processed (or dropped) by your application.
  20. The list of static startup flows. Flows route packets to a queue based on packet fields. Queues-only configs may omit this list and add dynamic RX flows after initialization. For Raw Ethernet, each configured rule is programmed into the NIC during daqiri_init(), and initialization fails if any rule or the send-to-kernel fallback (when flow_isolation: true) cannot be installed. Per interface, use only standard UDP/IP flows or only flex-item flows, not both.
  21. id · integer · required: Tag attached to packets that match this flow. Useful when multiple flows route to a single queue and the application needs to distinguish which rule matched.
  22. What to do with packets that match this flow. Existing configs can use the legacy single action: map with type: queue to send packets to the queue with the given id. Use ids: [0, 1] instead to enable flow-affine IPv4/UDP five-tuple RSS across a non-empty list of unique configured queues; do not specify both id and ids. New hardware transform flows use ordered actions:; RX transform flows can vlan_pop or tunnel_decap and must end with type: queue. An unchanged five tuple remains on one queue, so roughly even packet counts require many reasonably balanced flows rather than one high-rate flow.
  23. List of rules to match packets against. All rules must hold for a packet to match the flow. Currently supported keys: udp_src / udp_dst (UDP source/destination port numbers, integer), ipv4_len (full IPv4 packet length in bytes, integer). Adjust to match your incoming traffic.
  24. The bench_rx section is specific to the benchmark application. It is a list of application worker configs. List entries map to DAQIRI RX queues on the named interface, either by explicit queue_id or by queue-list order when queue_id is omitted. cpu_core pins the benchmark application's RX worker thread. It is separate from the DAQIRI queue cpu_core above, and can use the same core only when you intentionally want to share. In this base config there is one RX queue, so there is one entry. Other DAQIRI binaries (e.g. the reorder-quantize bench) may add fields here. See those configs for details.
  25. The bench_tx section configures the TX side of the benchmark: the benchmark application's TX worker core, packet sizes, and the Ethernet/IP/UDP header fields embedded in outgoing packets. It is a list for the same reason as bench_rx: each entry maps to a DAQIRI TX queue on the named interface, either by explicit queue_id or by queue-list order when queue_id is omitted. The cpu_core field pins the application TX thread. The eth_dst_addr is required when flow_isolation is enabled on the RX interface. The ip_src_addr / ip_dst_addr are only needed when traffic is routed across subnets. For a direct cable loopback, any value works. The payload_size, header_size, and UDP ports should match your application's packet format. Hardware TX VLAN push or tunnel encapsulation is configured under daqiri.cfg.interfaces[].tx.flows, not in bench_tx. Application buffers remain the pre-encap packet.

Flow steering

Raw Ethernet RX can steer packets into GPU queues, a flow-matched host queue, or a kernel fallback path for traffic that matches no rule. The animation below is a conceptual superset of the paths DAQIRI supports. The four-queue YAML example maps one UDP flow per GPU RX queue.

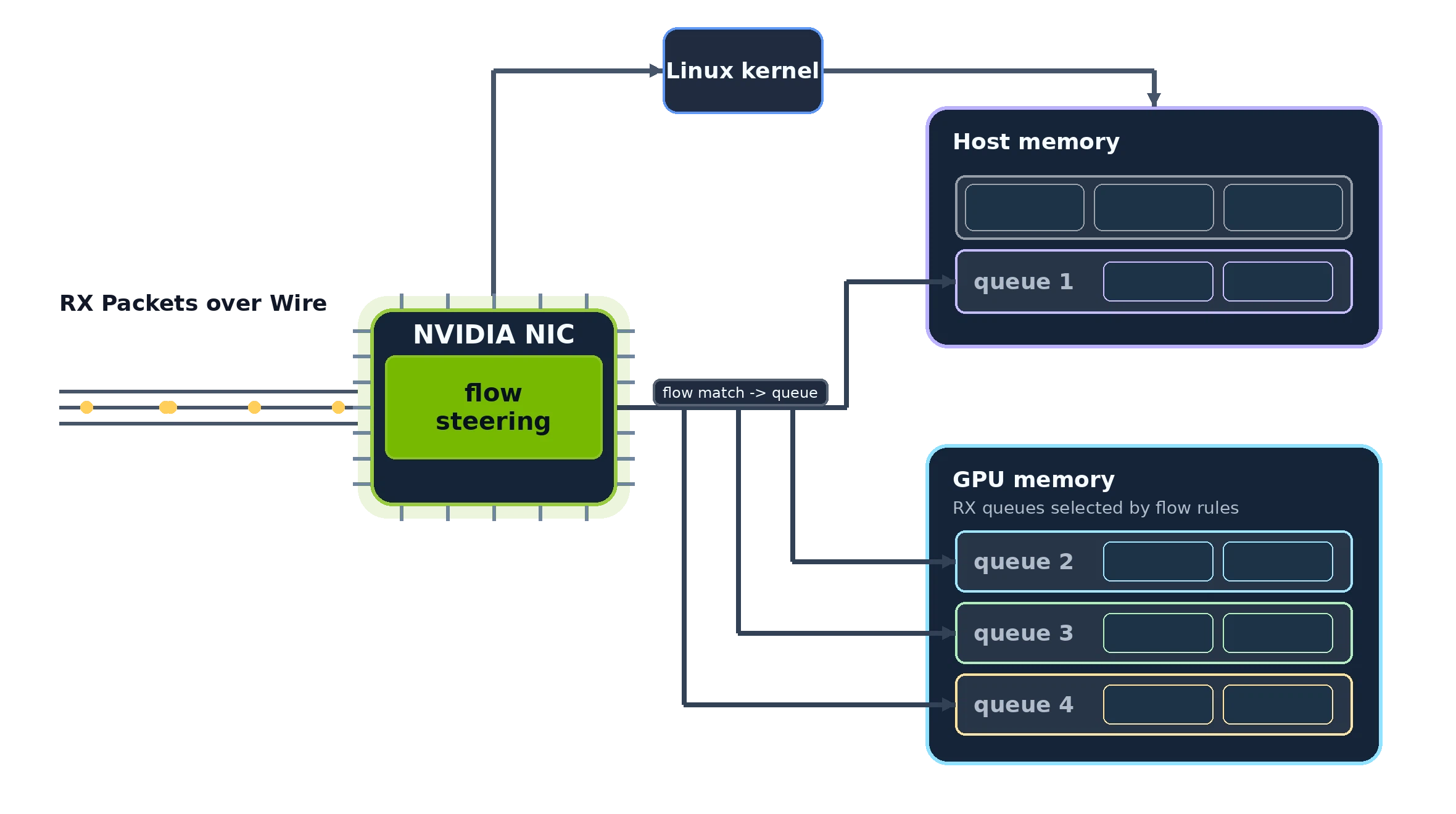

Flow steering

Matched packets land in queue 1 (host memory), queues 2–4 (GPU memory), or the unnamed top host row when no rule matches (grey packets through the Linux kernel).

The four-queue example daqiri_bench_raw_tx_rx_4q.yaml maps one UDP flow per GPU RX queue via rx.flows and matching bench_tx UDP ports.

Header-data split (HDS)

For applications that parse small per-packet fields on the CPU while keeping the payload on the GPU, DAQIRI supports header-data split (HDS): the NIC writes the header bytes to a CPU buffer (segment 0) and the payload to a GPU buffer (segment 1) using GPUDirect zero-copy. The packet is split at a fixed byte boundary defined by the buf_size of the first region in the queue's memory_regions: list.

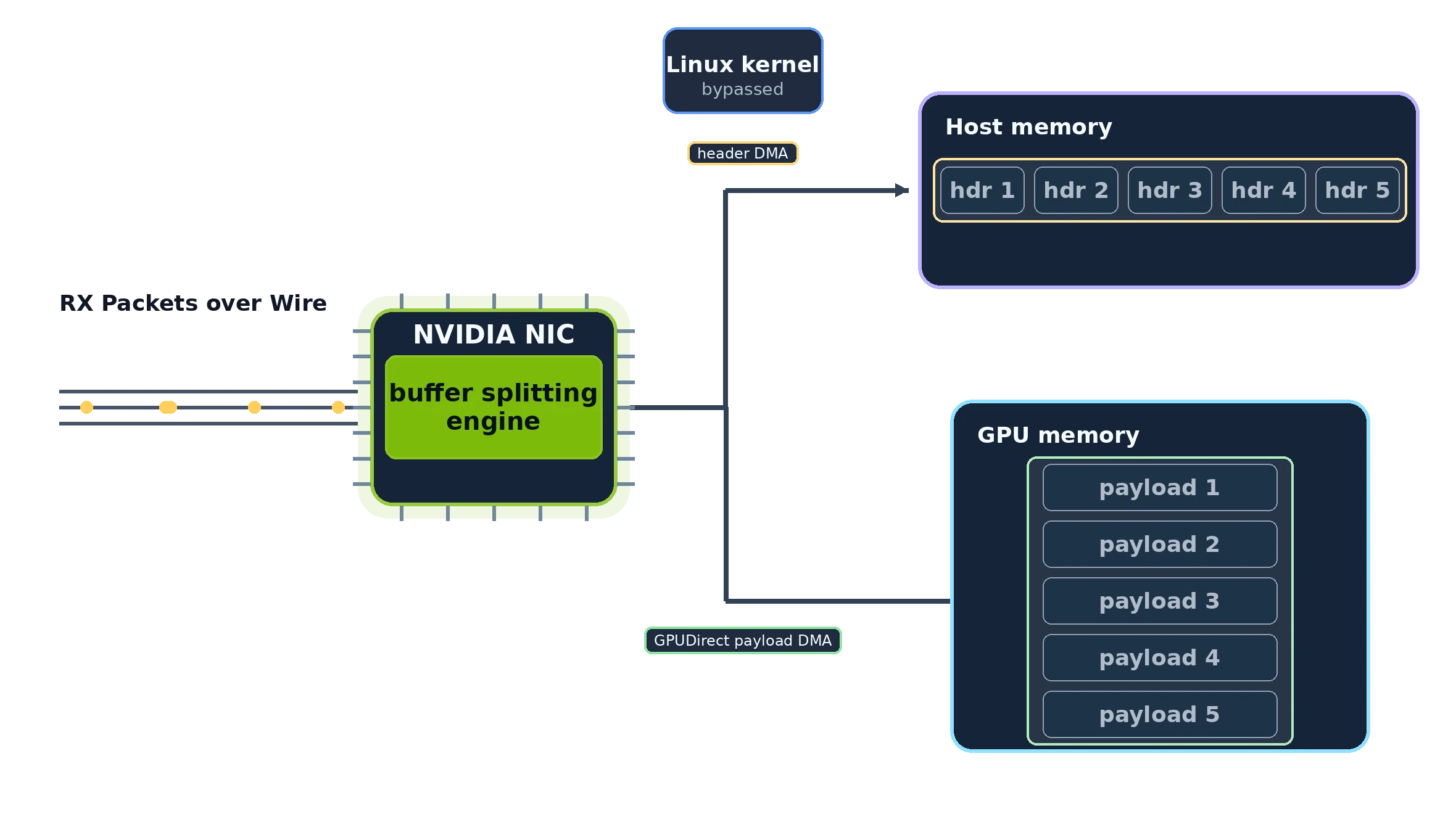

Header-data split

The canonical HDS config is daqiri_bench_raw_tx_rx_hds.yaml. It builds on the base TX+RX config above. Only the deltas are shown here.

New CPU memory regions, one per direction. Headers land here.

memory_regions:
- name: "Data_TX_CPU"   # (1)!
  kind: "huge"
  affinity: 0
  num_bufs: 51200
  buf_size: 64          # (2)!
- name: "Data_TX_GPU"
  kind: "device"
  affinity: 0
  num_bufs: 51200
  buf_size: 1064
- name: "Data_RX_CPU"
  kind: "huge"
  affinity: 0
  num_bufs: 51200
  buf_size: 64
- name: "Data_RX_GPU"
  kind: "device"
  affinity: 0
  num_bufs: 51200
  buf_size: 1000        # (3)!
  1. New region for headers. kind: "huge" puts buffers in CPU hugepages so the CPU can read them without touching GPU memory. Pair Data_TX_CPU and Data_RX_CPU with their GPU siblings to chain regions per packet.
  2. buf_size · integer (bytes) · required: In HDS, the first region's buf_size is the split boundary: bytes 0 to buf_size − 1 go to the CPU region, the remainder spills into the next region. Size this to match your header length exactly (64 bytes for a typical Eth+IPv4+UDP header).
  3. buf_size · integer (bytes) · required: Size of each GPU buffer in HDS mode: payload-only (no longer the full packet size). The packet first fills 64 bytes in Data_RX_CPU, then the remaining 1000 bytes spill into Data_RX_GPU.

Chained memory_regions: per queue. Order matters: header region first, payload region second. The NIC walks the list in order, filling each region's buf_size before moving on.

tx:
  queues:
  - memory_regions:    # (1)!
      - "Data_TX_CPU"
      - "Data_TX_GPU"
rx:
  queues:
  - memory_regions:
      - "Data_RX_CPU"
      - "Data_RX_GPU"
  1. Header region listed first. For each RX packet, 64 bytes land in Data_RX_CPU, then the next 1000 bytes land in Data_RX_GPU.

Pin the packet length in the flow rule. HDS triggers cleanly only when the full packet length is known up front, so the flow match adds ipv4_len:

flows:
- match:
    udp_src: 4096
    udp_dst: 4096
    ipv4_len: 1050     # (1)!
  1. ipv4_len · integer (bytes) · optional in the base config, recommended for HDS: Match on the full IPv4 packet length. Required for HDS so the NIC can split deterministically. Set to the fixed packet length you expect.

Match bench_tx.payload_size to the GPU region. The TX side generates 1000-byte payloads to match Data_RX_GPU.buf_size:

bench_tx:
  payload_size: 1000
  header_size: 64

The HDS bench runs on daqiri_bench_raw_hds:

./build/examples/daqiri_bench_raw_hds ./build/examples/daqiri_bench_raw_tx_rx_hds.yaml --seconds 10

Hardware packet reordering

For cyclic UDP sequence spaces on ConnectX-7 or newer NICs, DAQIRI can use the ibverbs engine's mlx5 flex parser to DMA each payload directly into its final aggregate slot. A host CPU polls CQEs and publishes the batch after every slot completes; no DPA or reorder-copy kernel is involved.

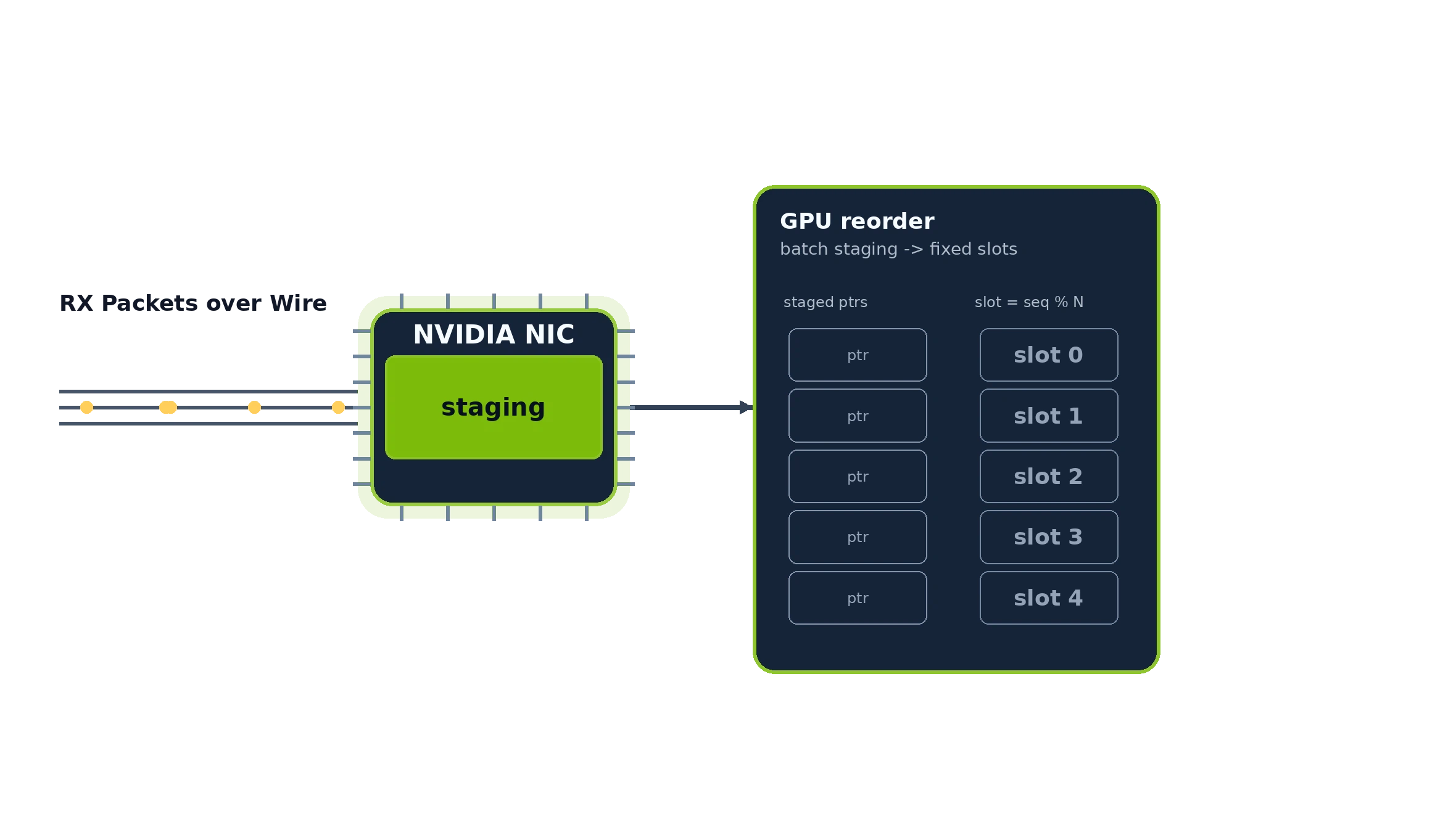

GPU packet reorder

The canonical hardware config is daqiri_bench_raw_tx_rx_reorder_seq_1024.yaml (seq_packets_per_batch, closed-loop TX+RX). It explicitly selects engine: "ibverbs". Only the relevant blocks are shown here.

Add cyclic aggregate slots. Each Reorder_RX_GPU buffer holds one complete batch of 1024 8192-byte payloads. The example uses host-pinned memory, which is accessible by both NIC and GPU; use kind: "device" for direct placement in GPU device memory.

memory_regions:
- name: "Data_RX_GPU"
  kind: "host_pinned"
  num_bufs: 16384
  buf_size: 8256
- name: "Reorder_RX_GPU"  # (2)!
  kind: "host_pinned"     # (1)!
  affinity: 0
  num_bufs: 2              # (2)!
  buf_size: 8388608        # (3)!
  1. kind: host_pinned permits NIC DMA and GPU access. device uses GPUDirect device memory.
  2. num_bufs: Two output buffers form a 2048-packet cyclic destination ring.
  3. buf_size: packet_size × packets_per_batch = 8192 × 1024 = 8,388,608 bytes.

Give the host poller a core. Hardware placement bypasses the normal source-buffer batch, but the queue still identifies the virtual queue and the CPU that polls its CQ.

rx:
  queues:
  - batch_size: 1024     # (1)!
    timeout_us: 0        # (2)!
    memory_regions:
      - "Data_RX_GPU"
  1. batch_size: Kept equal to packets_per_batch for the benchmark's aggregate accounting.
  2. timeout_us: Hardware reorder v1 emits complete batches only, so timeout flushing is disabled.

Flow id tags packets for the reorder config. The reorder block selects packets to reorder by flow ID.

flows:
- name: "flow_0"
  id: 201               # (1)!
  action:
    type: queue
    id: 0
  match:
    udp_dst: 5000
  1. id · integer · required: Flow tag attached to matching packets. Set to a non-zero value here so the reorder_configs: block below can reference it via flow_ids: to select which packets to reorder.

The reorder_configs: block. The core of the feature, it sits inside the rx: section alongside queues and flows.

reorder_configs:
- name: "rx_reorder_seq_1024"
  reorder_engine: "hw"          # (1)!
  cyclic_sequence: true         # (2)!
  reorder_type: "gpu"
  memory_region: "Reorder_RX_GPU"  # (3)!
  payload_byte_offset: 42       # (4)!
  packet_size: 8192             # (5)!
  flow_ids:
    - 201                       # (6)!
  method:
    seq_packets_per_batch:
      sequence_number:
        bit_offset: 336         # (7)!
        bit_width: 32
      packets_per_batch: 1024   # (8)!
  1. reorder_engine: Explicitly opts into ibverbs hardware direct placement; the default is sw.
  2. cyclic_sequence: Acknowledges that the sampled value cycles over the finite destination ring and other sampled bits stay zero. Use software reorder for wide monotonic values.
  3. memory_region: Names the fixed-slot output region.
  4. payload_byte_offset: Discards the 42-byte Ethernet/IPv4/UDP header before placement.
  5. packet_size: Places exactly 8192 payload bytes in each destination slot.
  6. flow_ids: Selects the single gate flow used by hardware reorder v1.
  7. bit_offset: The sequence begins at bit 336 (byte 42), the first UDP payload byte.
  8. packets_per_batch: Each 1024-packet range fills one output buffer.

TX-side cyclic sequence injection. The benchmark writes a big-endian uint32 at the start of the UDP payload and wraps it over the two-buffer destination ring.

bench_tx:
  batch_size: 1024
  payload_size: 8192
  header_size: 42
  udp_src_port: 5000
  udp_dst_port: 5000
  sequence_number_offset: 0   # (1)!
  sequence_number_start: 0
  sequence_number_modulus: 2048  # (2)!
  1. sequence_number_offset: Payload-relative byte offset; zero aligns with packet bit 336 after the 42-byte header.
  2. sequence_number_modulus: Wraps at 2048 = two output buffers × 1024 packets.

The application must free each direct-placed burst promptly. Its fixed receive slots are not rearmed until free_rx_burst() releases the aggregate, preventing DMA into caller-owned memory. For software reorder or payload conversion, use an example with reorder_engine: "sw", such as daqiri_bench_raw_tx_rx_reorder_quantize_seq_batch.yaml.

The reorder bench runs on daqiri_bench_raw_reorder_seq:

./build/examples/daqiri_bench_raw_reorder_seq ./build/examples/daqiri_bench_raw_tx_rx_reorder_seq_1024.yaml --seconds 10

When the wire format and compute format differ, the quantize variant adds an in-kernel int4 → fp32 conversion step:

GPU reorder and convert

Other reorder variants are listed under question 2 of the decision tree above: the CPU-kernel variant, the RX-only variants, and the seq_batch_number algorithm with in-kernel int4 → fp32 type conversion (runs on daqiri_bench_raw_reorder_quantize).
