DistributedPipeline — Multi-GPU Workflows

DistributedPipeline maps one dynamics stage per GPU rank and coordinates sample graduation between stages via Batch.isend / Batch.irecv. Where FusedStage shares a single forward pass on one GPU, DistributedPipeline lets each rank run its own model independently—ideal when stages have different computational profiles or when you need to scale beyond one GPU.

Every stage that participates in inter-rank communication must have a BufferConfig, as this will determine the on-GPU buffer used for point-to-point sample passing. See Buffers & Data Flow for the full buffer lifecycle.

The | operator

The primary way to build a DistributedPipeline is with the | operator with a series of dynamics:

from nvalchemi.dynamics import DemoDynamics, BufferConfig

buffer_config = BufferConfig(
    num_systems=64, num_nodes=2000, num_edges=10000,
)

optimizer = DemoDynamics(model=model, dt=0.5, buffer_config=buffer_config)
md = DemoDynamics(model=model, dt=1.0, buffer_config=buffer_config)

# Distribute across 2 GPU ranks
pipeline = optimizer | md

Chaining is fully supported:

# Three-stage pipeline across 3 ranks
pipeline = stage_a | stage_b | stage_c

# Left-associative:
#   stage_a | stage_b  → DistributedPipeline(stages={0: a, 1: b})
#   pipeline | stage_c → DistributedPipeline(stages={0: a, 1: b, 2: c})

This creates a pipeline where each successive rank is a consumer of data from its predecessor.

You can also chain entire pipelines:

pipe1 = stage_a | stage_b     # ranks 0, 1
pipe2 = stage_c | stage_d     # ranks 0, 1 (renumbered)

full = pipe1 | pipe2          # ranks 0, 1, 2, 3 (renumbered)

Finally, and perhaps the most powerful aspect of this abstraction is the ability to combine with FusedStage, i.e. run multiple stages on a single GPU within a global context:

full = (fire2 + annealer) + langevin

This emits a distributed pipeline where the first rank will combine FIRE2 optimization with an annealing process, and pipe the state to run Langevin dynamics.

Running a pipeline

Context manager (recommended)

pipeline = optimizer | md

with pipeline:
    pipeline.run()

The context manager handles:

1. init_distributed() — initializes torch.distributed if not already done.

2. setup() — validates that every communicating stage has a BufferConfig, wires prior_rank / next_rank between adjacent stages, moves the model to the correct device, computes recv templates via _share_templates(), and initializes the distributed done tensor.

3. cleanup() — destroys the process group if the pipeline initialized it.

Manual lifecycle

pipeline = optimizer | md

pipeline.init_distributed()
pipeline.setup()
pipeline.run()      # loop until all stages report done
pipeline.cleanup()

Launching with torchrun

# 2-stage pipeline → launch with 2 ranks
torchrun --nproc_per_node=2 my_pipeline_script.py

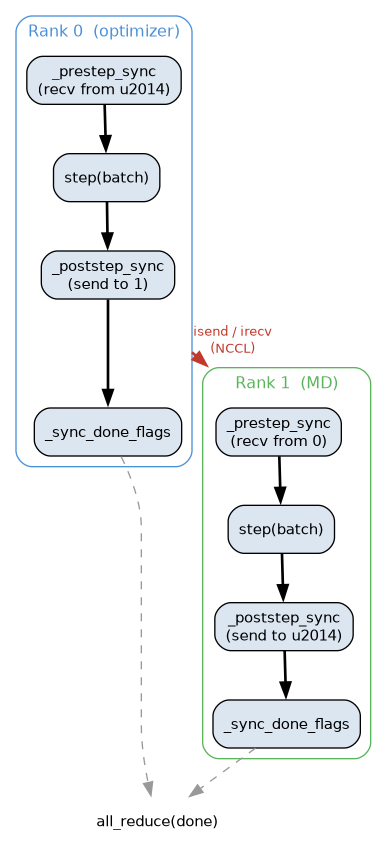

How it works

Rank 0 (optimizer)              Rank 1 (MD)
┌──────────────────┐            ┌──────────────────┐
│ _prestep_sync     │           │ _prestep_sync     │
│   (recv from —)   │           │   (recv from 0)   │
│                   │           │                   │
│ step(batch)       │           │ step(batch)       │
│                   │           │                   │
│ _poststep_sync    │           │ _poststep_sync    │
│   (send to 1)     │──────────→│   (send to —)     │
│                   │  isend/   │                   │
│ _sync_done_flags  │  irecv   │ _sync_done_flags  │
└──────────────────┘            └──────────────────┘
      ↕ all_reduce(done)               ↕

Each step:

1. Pre-step sync (_prestep_sync_buffers): Zeros the send buffer and posts an irecv from the prior rank. In sync mode the receive completes inline; in async modes a handle is stored for later completion.

2. Complete pending recv (_complete_pending_recv): Waits on the deferred receive, routes data through the recv buffer into the active batch via _buffer_to_batch, and drains overflow sinks to backfill any available capacity.

3. Dynamics step: Each rank runs step(active_batch) on its local stage.

4. Post-step sync (_poststep_sync_buffers): Converged samples are copied into the send buffer via _populate_send_buffer. The send buffer is then unconditionally sent to the next rank — even when empty — so the downstream irecv always completes (deadlock prevention). On the final rank, converged samples are extracted via index_select and written to sinks.

5. Termination check: All ranks synchronize done flags via dist.all_reduce(MAX); the loop terminates when every rank reports done.

Communication modes

The comm_mode parameter on each stage controls the blocking behavior of inter-rank communication:

Mode	Behavior
"sync"	Blocking receive in _prestep_sync_buffers. Simplest and most debuggable. Good for small pipelines.
"async_recv"	Deferred receive: irecv is posted in _prestep_sync_buffers but wait() is called later in _complete_pending_recv. Allows compute to overlap with communication. Default mode.
"fully_async"	Both send and receive are deferred. Sends from the previous step are drained at the start of the next _prestep_sync_buffers. Maximum overlap, highest throughput.

buffer_config = BufferConfig(
    num_systems=64, num_nodes=2000, num_edges=10000,
)
optimizer = DemoDynamics(
    model=model, dt=0.5,
    comm_mode="fully_async",
    buffer_config=buffer_config,
)
md = DemoDynamics(
    model=model, dt=1.0,
    comm_mode="async_recv",
    buffer_config=buffer_config,
)
pipeline = optimizer | md

Debug mode

debug_mode=True on DistributedPipeline propagates to every stage and enables per-step loguru logging of buffer populations, send/recv completions, and convergence events:

pipeline = DistributedPipeline(
    stages={0: optimizer, 1: md},
    debug_mode=True,
)

Synchronized mode (debugging)

For debugging ordering or deadlock issues:

pipeline = DistributedPipeline(
    stages={0: optimizer, 1: md},
    synchronized=True,    # global barrier after every step
)

Warning

synchronized=True inserts a dist.barrier() after every step(), which eliminates all inter-rank pipelining and significantly reduces throughput. Use only for debugging.

Inflight batching on the first stage

When the first stage has a SizeAwareSampler, it builds the initial batch from the sampler and replaces graduated samples automatically:

from nvalchemi.dynamics import SizeAwareSampler, BufferConfig

buffer_config = BufferConfig(
    num_systems=64, num_nodes=2000, num_edges=10000,
)
sampler = SizeAwareSampler(
    dataset=my_dataset,
    max_atoms=200,
    max_edges=1000,
    max_batch_size=64,
)

optimizer = DemoDynamics(
    model=model, dt=0.5,
    sampler=sampler,
    refill_frequency=1,
    max_batch_size=64,
    buffer_config=buffer_config,
)
md = DemoDynamics(model=model, dt=1.0, buffer_config=buffer_config)

pipeline = optimizer | md
with pipeline:
    pipeline.run()

The second rank receives graduated samples via irecv and accumulates them in its active_batch.

Data sinks for the final stage

On the final rank, converged samples are written to DataSink instances:

from nvalchemi.dynamics import HostMemory, ZarrData

md = DemoDynamics(
    model=model,
    dt=1.0,
    sinks=[
        HostMemory(capacity=10_000),          # primary: CPU memory
        ZarrData(store="results.zarr"),        # overflow: disk
    ],
)

Sinks are tried in priority order; the first non-full sink receives the data.

Combining FusedStage and DistributedPipeline

The + and | operators compose freely. You can fuse stages on a single GPU and then distribute fused stages across GPUs:

buffer_config = BufferConfig(
    num_systems=64, num_nodes=2000, num_edges=10000,
)

# Rank 0: fused relax → anneal (one GPU, shared forward pass)
rank0_stage = relax + anneal

# Rank 1: production MD
rank1_stage = DemoDynamics(model=model, dt=1.0, buffer_config=buffer_config)

# Distribute across 2 GPUs
pipeline = rank0_stage | rank1_stage

with pipeline:
    pipeline.run()

This gives you the best of both worlds:

• Rank 0 runs a FusedStage with two sub-stages, one forward pass per step, masked updates for each sub-stage.

• Rank 1 runs standalone MD, receiving graduated samples from rank 0.

You can also compose multiple FusedStage instances:

rank0 = stage_a + stage_b     # fused on GPU 0
rank1 = stage_c + stage_d     # fused on GPU 1
rank2 = production_md         # standalone on GPU 2

pipeline = rank0 | rank1 | rank2
with pipeline:
    pipeline.run()

Summary of syntactic sugars

Expression	Result
dyn_a | dyn_b	DistributedPipeline(stages={0: dyn_a, 1: dyn_b})
pipe | dyn_c	Appended pipeline with dyn_c at next rank
pipe1 | pipe2	Merged pipeline (stages renumbered contiguously)
dyn_a | dyn_b | dyn_c	Left-associative chaining
(a + b) | (c + d)	Fused on rank 0, fused on rank 1
with pipeline:	Auto init_distributed → setup → cleanup
pipeline.run()	Loop until all ranks report done

Full end-to-end example

#!/usr/bin/env python
"""Three-stage distributed pipeline: relax → anneal → production MD.

Launch with:
    torchrun --nproc_per_node=3 pipeline_example.py
"""
from nvalchemi.dynamics import (
    BufferConfig,
    DemoDynamics,
    ConvergenceHook,
    HostMemory,
    SizeAwareSampler,
)
from nvalchemi.dynamics.hooks import (
    LoggingHook,
    NaNDetectorHook,
    SnapshotHook,
)

buffer_config = BufferConfig(
    num_systems=64, num_nodes=2000, num_edges=10000,
)

# ── Stage 0: Geometry optimization with inflight batching ──
sampler = SizeAwareSampler(
    dataset=my_dataset,
    max_atoms=200,
    max_edges=1000,
    max_batch_size=64,
)
optimizer = DemoDynamics(
    model=model,
    dt=0.5,
    convergence_hook=ConvergenceHook.from_fmax(0.05),
    hooks=[NaNDetectorHook()],
    sampler=sampler,
    comm_mode="fully_async",
    buffer_config=buffer_config,
)

# ── Stage 1: Annealing MD ──
anneal = DemoDynamics(
    model=model,
    dt=1.0,
    hooks=[LoggingHook(frequency=100)],
    comm_mode="async_recv",
    buffer_config=buffer_config,
)

# ── Stage 2: Production MD with trajectory recording ──
sink = HostMemory(capacity=100_000)
production = DemoDynamics(
    model=model,
    dt=2.0,
    hooks=[
        SnapshotHook(sink=sink, frequency=10),
        LoggingHook(frequency=100),
    ],
    sinks=[sink],
    comm_mode="async_recv",
    buffer_config=buffer_config,
)

# ── Compose and run ──
pipeline = optimizer | anneal | production

with pipeline:
    pipeline.run()

# On rank 2: trajectory = sink.read()
