FusedStage — Single-GPU Orchestration

FusedStage composes multiple dynamics sub-stages on a single GPU, sharing one Batch and one model forward pass per step. This eliminates redundant forward passes when multiple simulation phases (e.g. relaxation → MD) operate on the same hardware. Within the DistributedPipeline paradigm, FusedStage is the mechanism used to allow for more than one dynamics process to run on a single rank.

The + operator

The primary way to build a FusedStage is with the + operator:

from nvalchemi.dynamics import DemoDynamics

optimizer = DemoDynamics(model=model, dt=0.5)
md = DemoDynamics(model=model, dt=1.0)

# Fuse two dynamics → one forward pass per step
fused = optimizer + md

Chaining is supported for three or more stages:

stage_a = DemoDynamics(model=model, dt=0.5)
stage_b = DemoDynamics(model=model, dt=1.0)
stage_c = DemoDynamics(model=model, dt=2.0)

# (stage_a + stage_b) returns a FusedStage
# FusedStage + stage_c appends via FusedStage.__add__
fused = stage_a + stage_b + stage_c

print(fused)
# FusedStage(sub_stages=[0:DemoDynamics, 1:DemoDynamics, 2:DemoDynamics],
#            entry_status=0, exit_status=3, compiled=False, step_count=0)

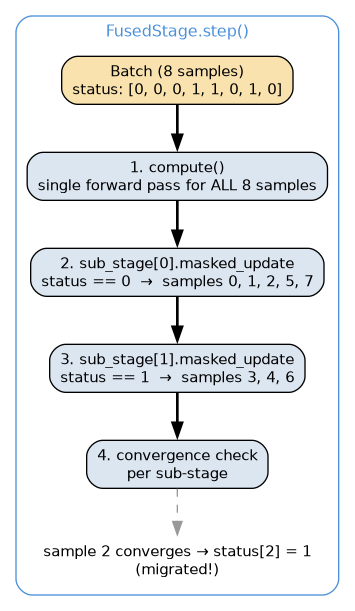

How it works: status codes and masked updates

Each sub-stage is assigned a status code (auto-assigned starting from 0 when using +). Every sample in the batch carries a batch.status tensor that determines which sub-stage processes it:

┌────────────────────────────────────────────────────────────┐
│  Batch with 8 samples                                      │
│  status: [0, 0, 0, 1, 1, 0, 1, 0]                        │
│                                                            │
│  Step:                                                     │
│  1. compute()  — single forward pass for ALL 8 samples     │
│  2. sub_stage[0].masked_update(batch, status == 0)         │
│     → updates samples 0, 1, 2, 5, 7                       │
│  3. sub_stage[1].masked_update(batch, status == 1)         │
│     → updates samples 3, 4, 6                             │
│  4. convergence check per sub-stage                        │
│     → if sample 2 converges: status[2] = 1 (migrated!)    │
└────────────────────────────────────────────────────────────┘

The key insight is that only one forward pass happens regardless of how many sub-stages exist. The expensive model evaluation is amortized across all stages.

Convergence-driven stage migration

FusedStage.__init__ automatically registers ConvergenceHook instances between adjacent sub-stages:

fused = optimizer + md

# Equivalent to manually doing:
# optimizer gets: ConvergenceHook(source_status=0, target_status=1)
# exit_status = 2  (one past the last sub-stage code)

When a sample in sub-stage 0 (optimizer) converges:

1. Its batch.status is updated from 0 → 1

2. On the next step, it is processed by sub-stage 1 (MD)

3. When it converges in sub-stage 1, its status becomes 2 (= exit_status)

4. It is graduated (either written to sinks or replaced via inflight batching)

Running a FusedStage

FusedStage.run() loops until all samples reach exit_status. Unlike BaseDynamics.run(), the n_steps attribute (inherited from BaseDynamics) and any n_steps argument to run() are unused — termination is purely convergence-driven.

Mode 1: external batch (the common case)

fused = optimizer + md
result = fused.run(batch)
# Returns when all samples have status == exit_status

Mode 2: inflight batching with a sampler

from nvalchemi.dynamics import SizeAwareSampler

sampler = SizeAwareSampler(
    dataset=my_dataset,
    max_atoms=200,
    max_edges=1000,
    max_batch_size=64,
)

fused = optimizer + md
# Configure the sampler on the fused stage
fused.sampler = sampler
fused.refill_frequency = 1

result = fused.run()  # batch built from sampler automatically

# result is None when sampler is exhausted and all samples graduated

In inflight mode, graduated samples are replaced in-place using dummy-graph pointer manipulation—no batch reconstruction overhead.

Using a CUDA stream

Use the context manager to run all computation on a dedicated CUDA stream:

fused = optimizer + md

with fused:
    fused.run(batch)
    # All GPU ops run on a dedicated stream

The stream is automatically propagated to all sub-stages.

torch.compile support

fused = FusedStage(
    sub_stages=[(0, optimizer), (1, md)],
    compile_step=True,
    compile_kwargs={"mode": "reduce-overhead", "fullgraph": True},
)

When compile_step=True, the internal _step_impl method is wrapped with torch.compile. This can significantly improve throughput by fusing GPU kernels across the entire fused step.

Combining with hooks and sinks

Hooks registered on individual sub-stages are respected inside the fused step:

from nvalchemi.dynamics.hooks import LoggingHook, SnapshotHook
from nvalchemi.dynamics import HostMemory

sink = HostMemory(capacity=10_000)

optimizer = DemoDynamics(
    model=model,
    dt=0.5,
    hooks=[LoggingHook(frequency=100)],
)
md = DemoDynamics(
    model=model,
    dt=1.0,
    hooks=[SnapshotHook(sink=sink, frequency=10)],
)

fused = optimizer + md
fused.run(batch)

# LoggingHook fires every 100 steps for all samples
# SnapshotHook fires every 10 steps and captures the full batch state

Explicit construction

For advanced control, construct FusedStage directly:

from nvalchemi.dynamics import FusedStage, ConvergenceHook

optimizer = DemoDynamics(
    model=model,
    dt=0.5,
    convergence_hook=ConvergenceHook(
        criteria=[
            {"key": "fmax", "threshold": 0.05},
            {"key": "energy_change", "threshold": 1e-6},
        ],
        source_status=0,
        target_status=1,
    ),
)
md = DemoDynamics(model=model, dt=1.0)

fused = FusedStage(
    sub_stages=[(0, optimizer), (1, md)],
    entry_status=0,
    exit_status=2,
    compile_step=True,
)

Summary of syntactic sugars

Expression	Result
dyn_a + dyn_b	FusedStage with sub-stages [0: dyn_a, 1: dyn_b]
fused + dyn_c	New FusedStage with dyn_c appended at next status code
dyn_a + dyn_b + dyn_c	Left-associative: (dyn_a + dyn_b) + dyn_c
with fused:	Dedicated CUDA stream for all sub-stages
fused.run(batch)	Loop until all samples reach exit_status
fused.run()	Inflight mode (requires sampler)
