Electrostatics Benchmarks#

Performance benchmarks for electrostatic interaction methods in ALCHEMI Toolkit-Ops — Ewald summation and Particle Mesh Ewald (PME). Results show scaling behaviour across system sizes for both single-system and batched computations.

Warning

These results are intended to be indicative only: your actual performance may vary depending on the atomic system topology, software and hardware configuration and we encourage users to benchmark on their own systems of interest.

Note

Every measured PME and Ewald row uses the same complete differentiable workload: evaluate energy, then derive forces (-dE/dR) and charge gradients (dE/dq) through framework autodiff. The reportable default times this full workload once; real/reciprocal component profiling is opt-in. Failed points are retained as success=False CSV rows with their failure status. The JAX tab below describes the completed Ewald collection and its capacity limits.

How to Read These Charts#

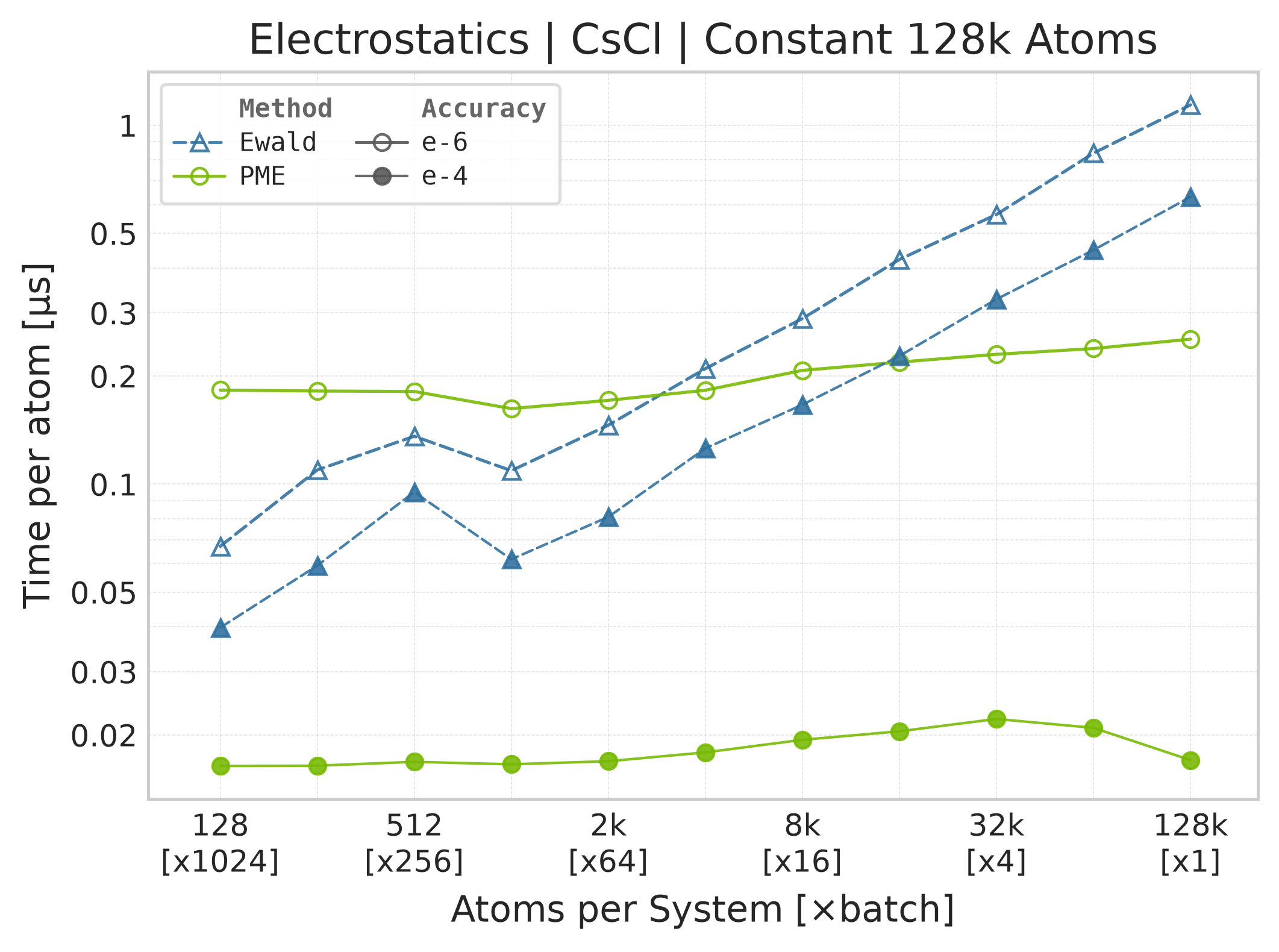

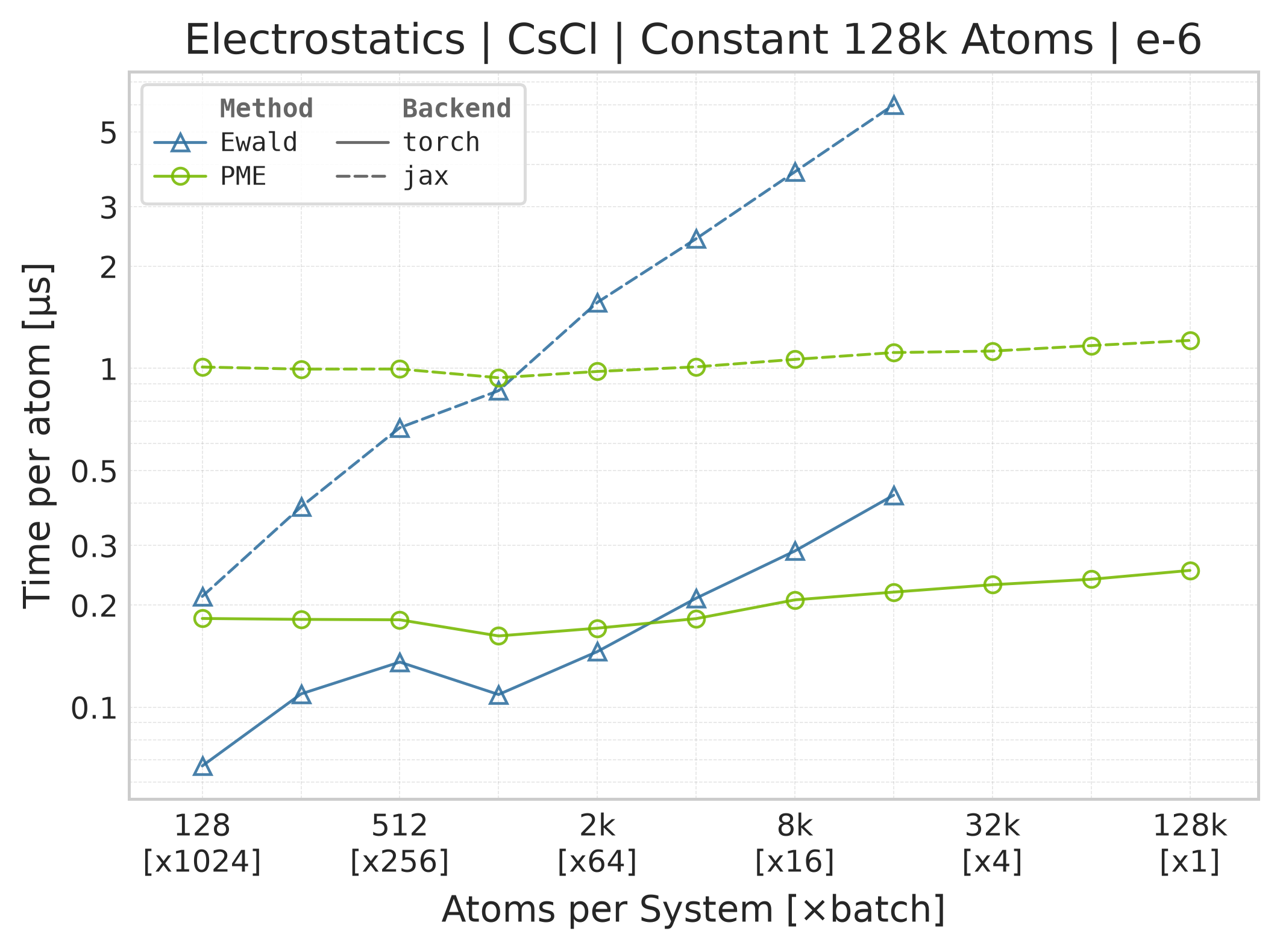

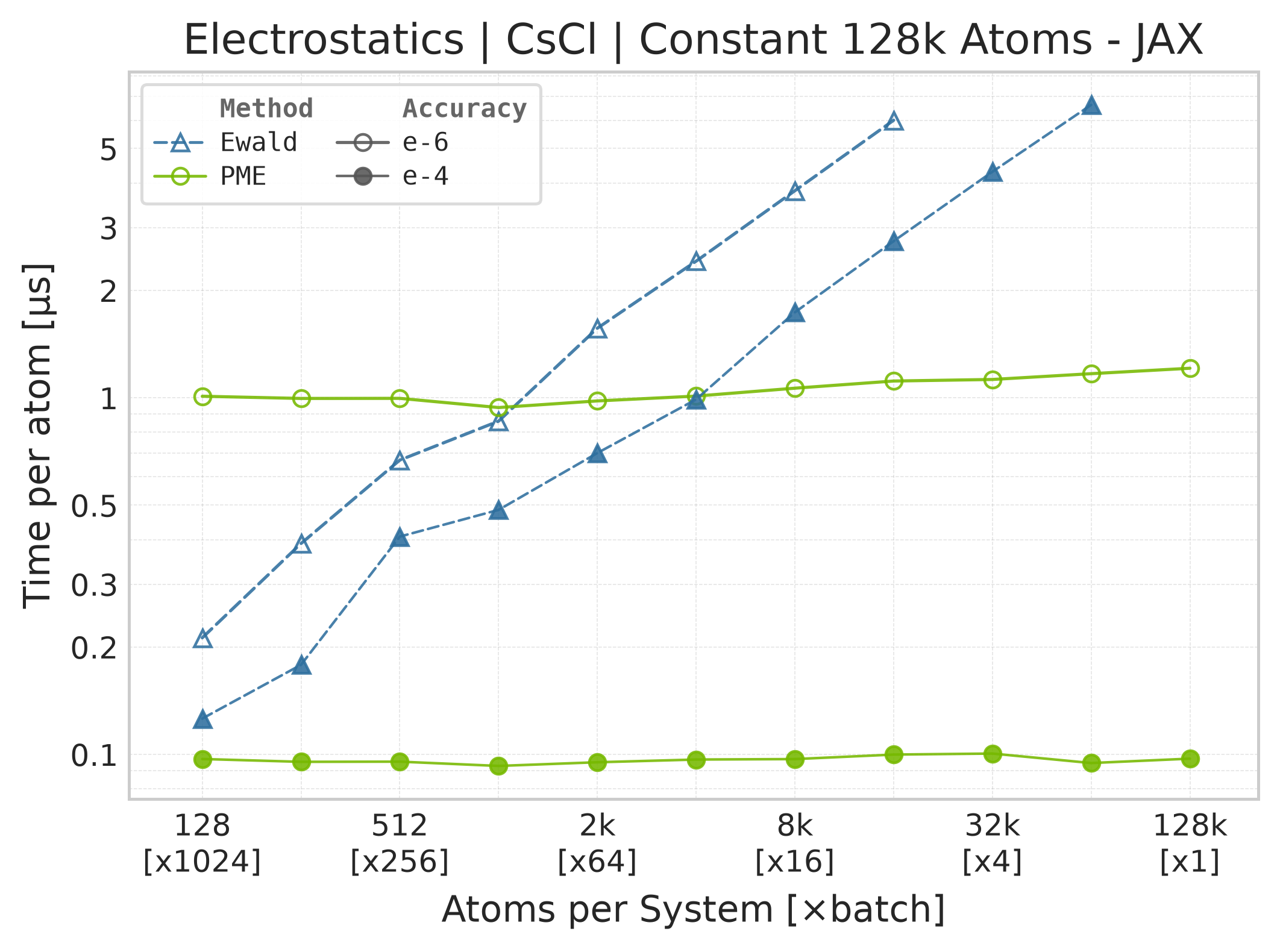

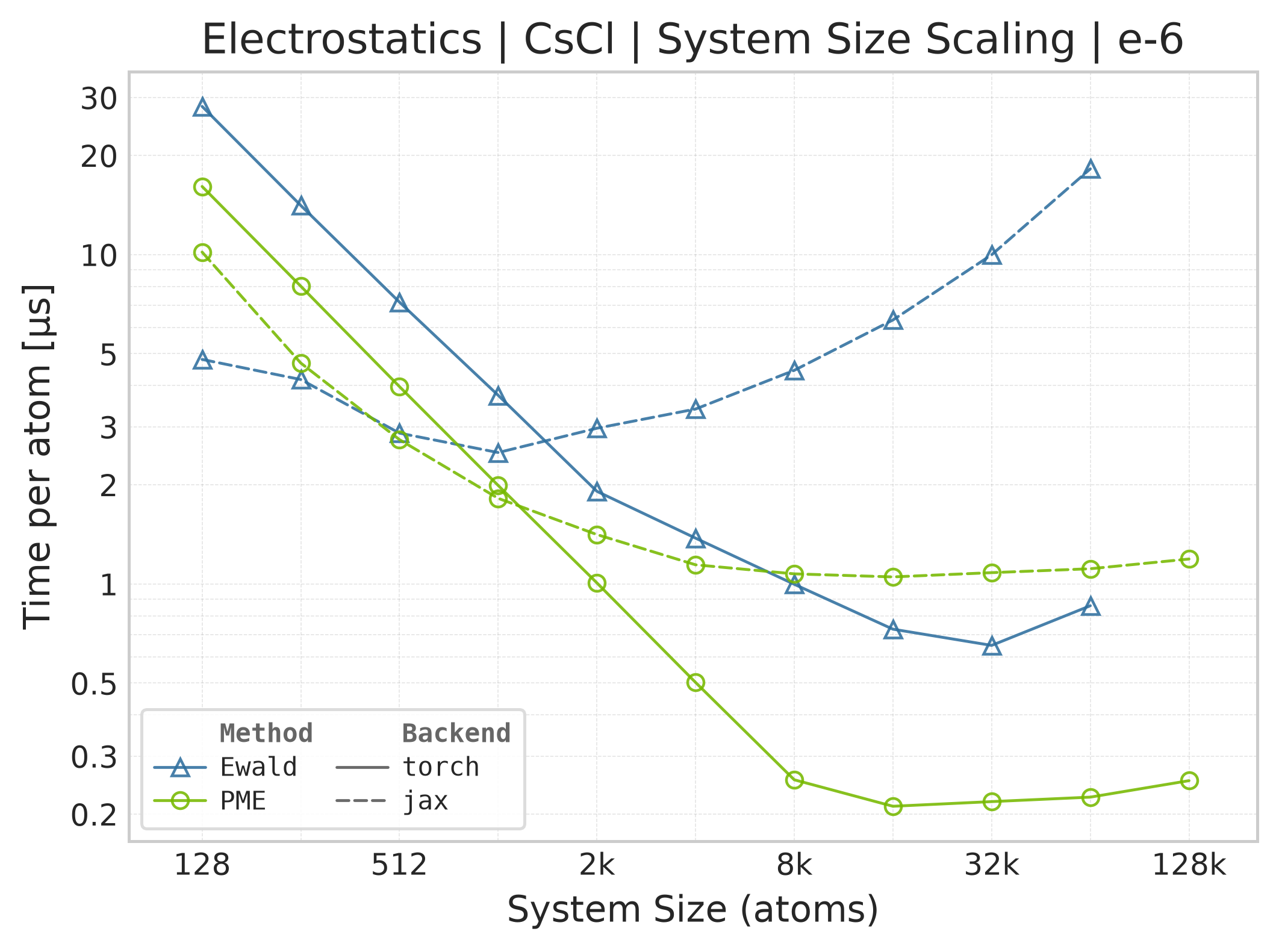

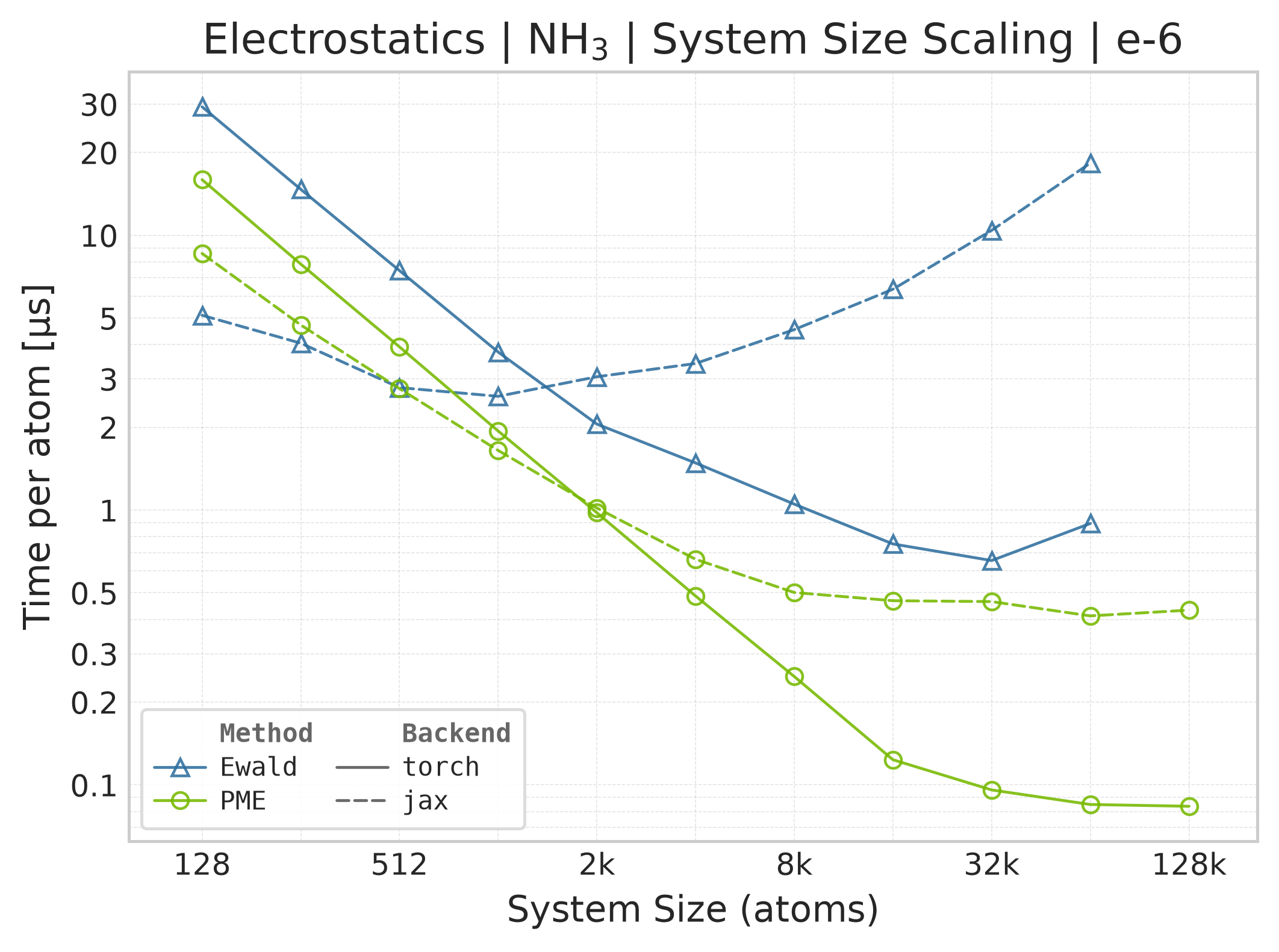

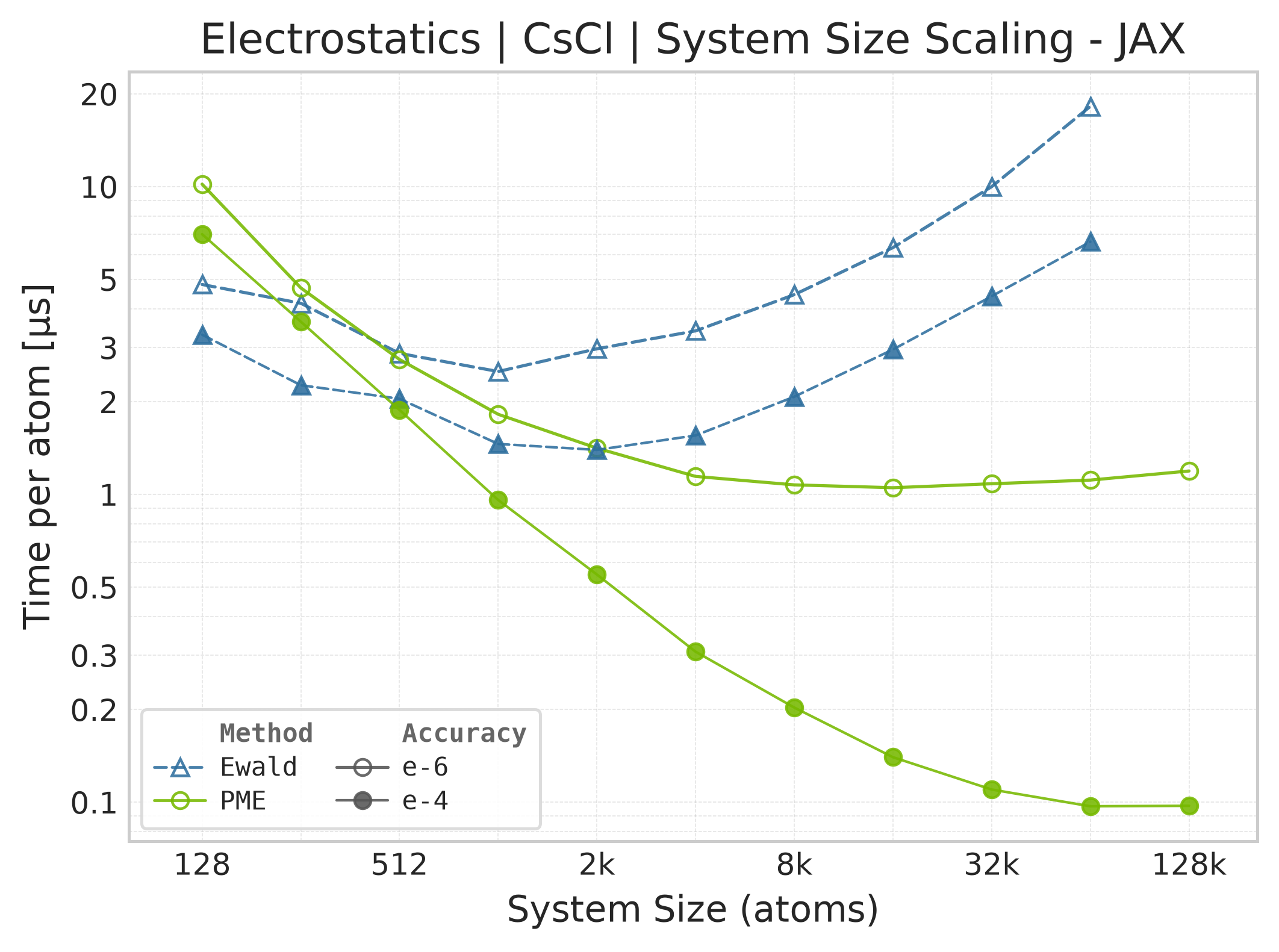

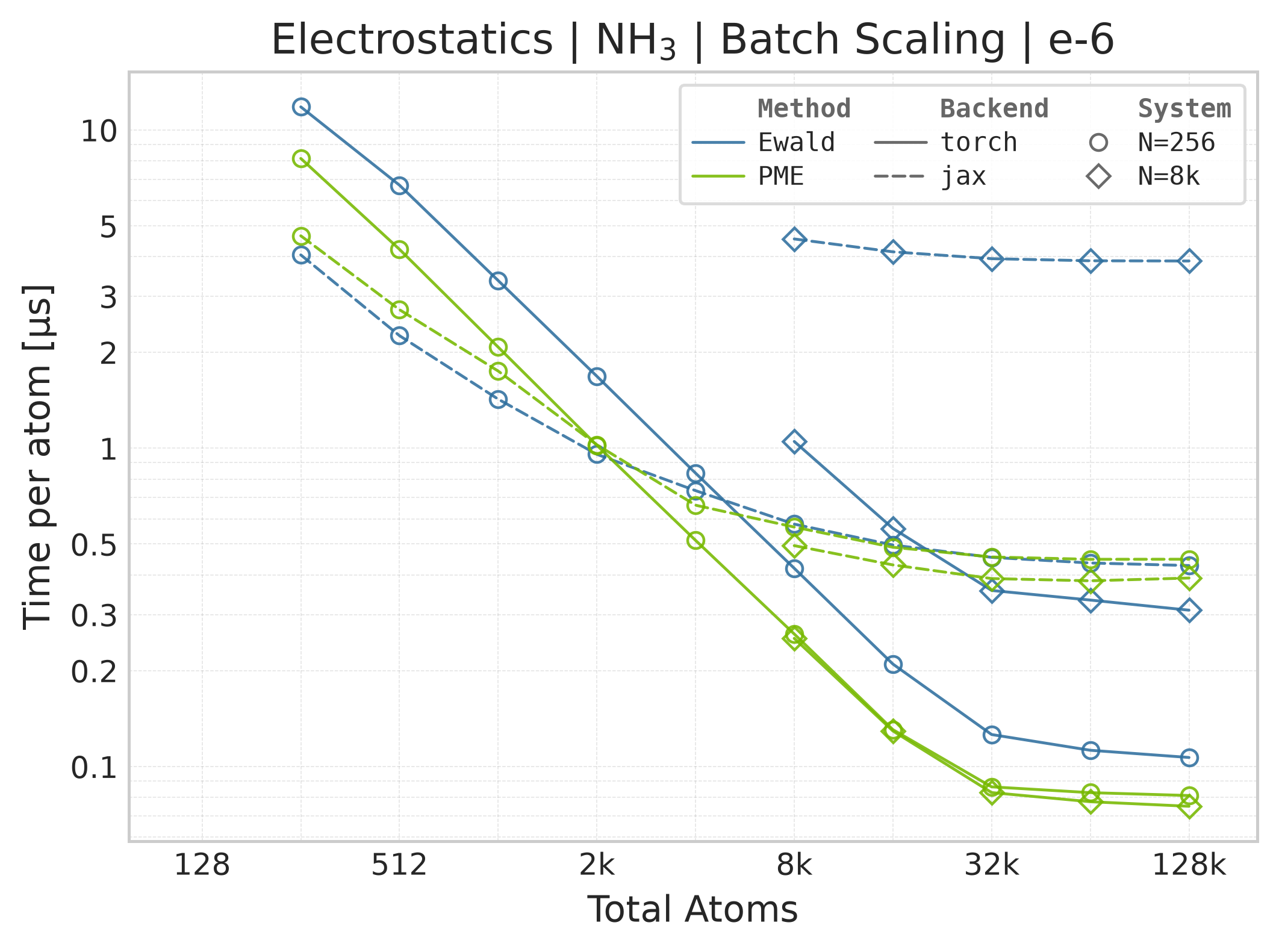

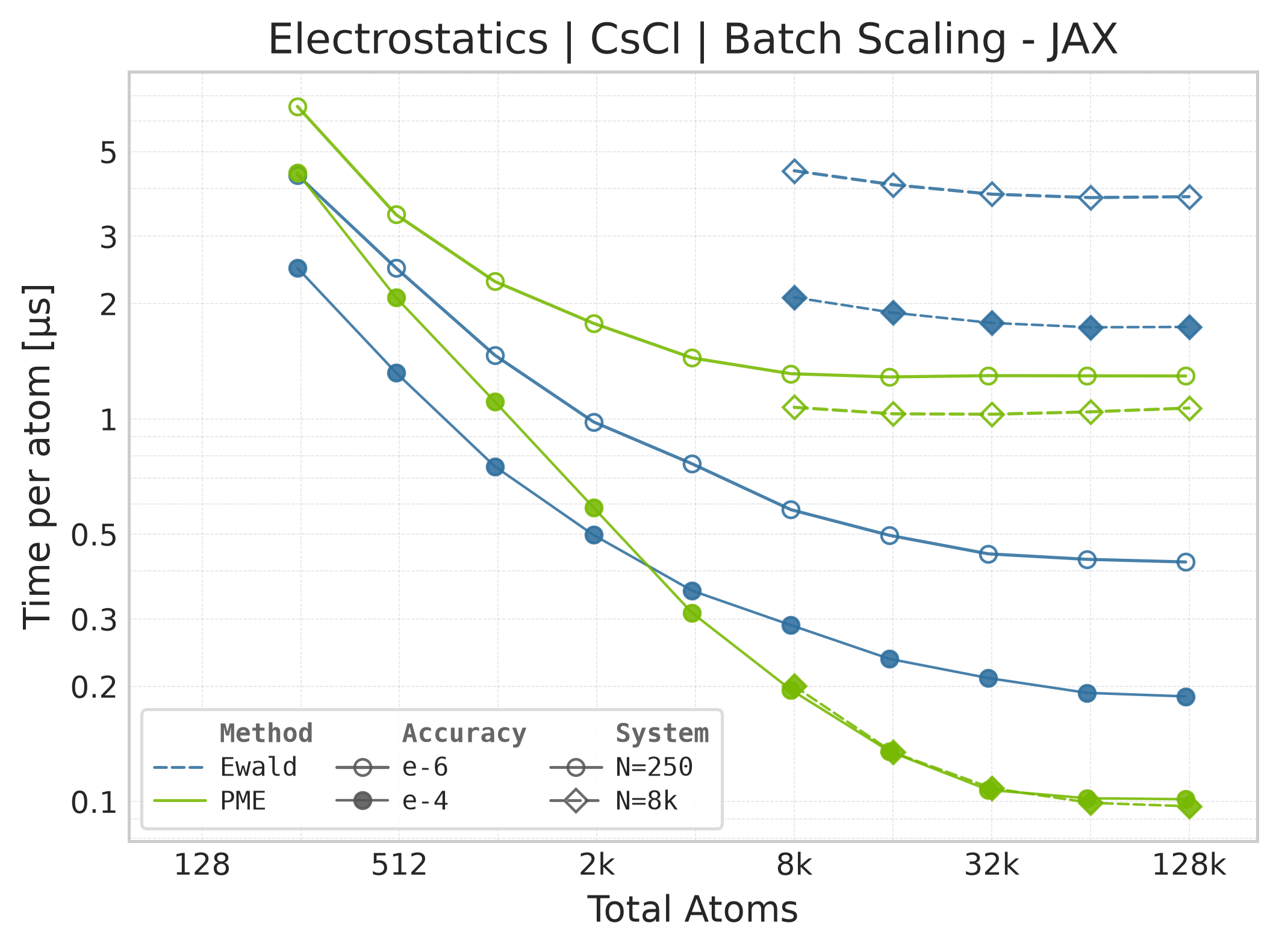

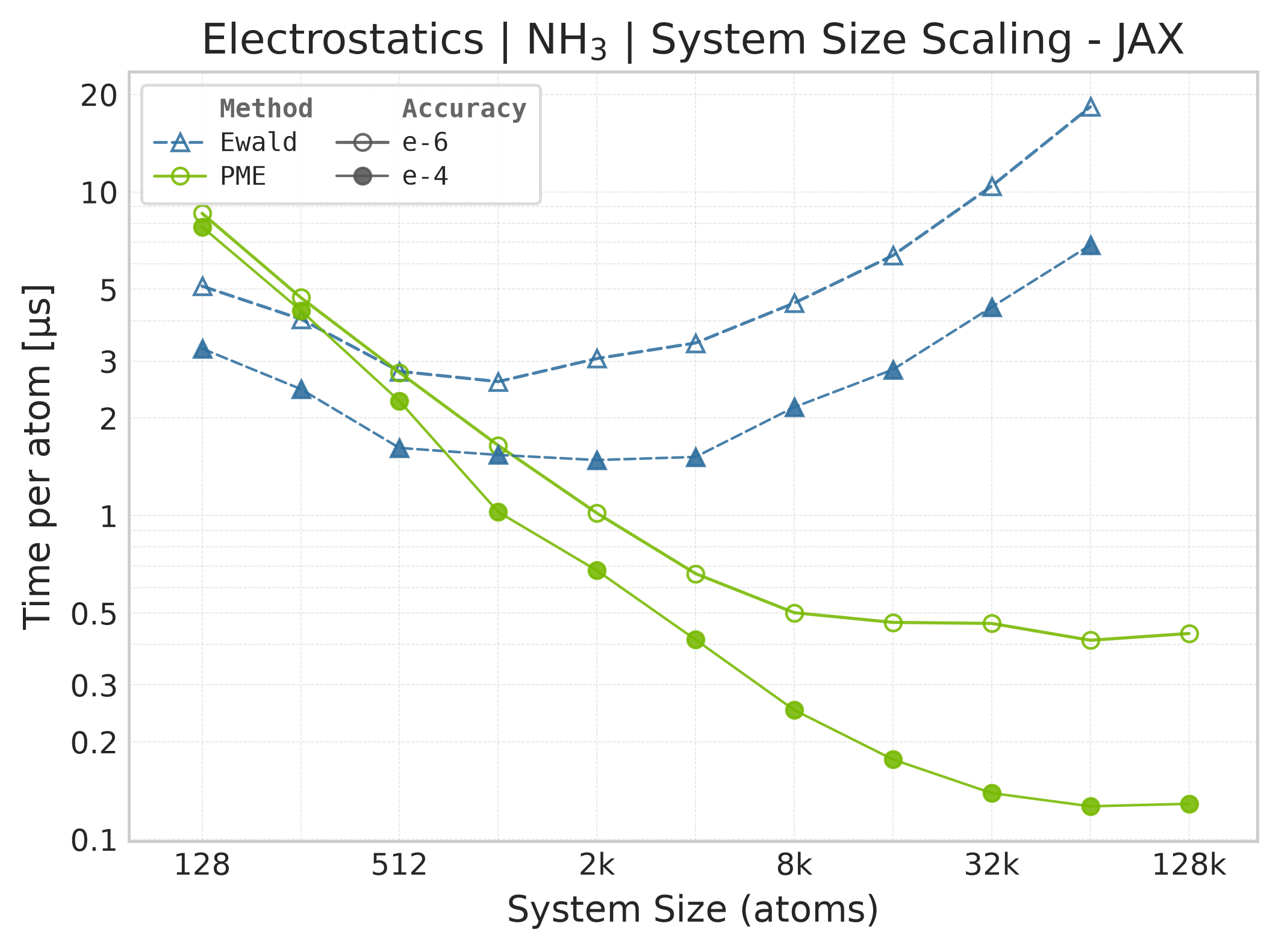

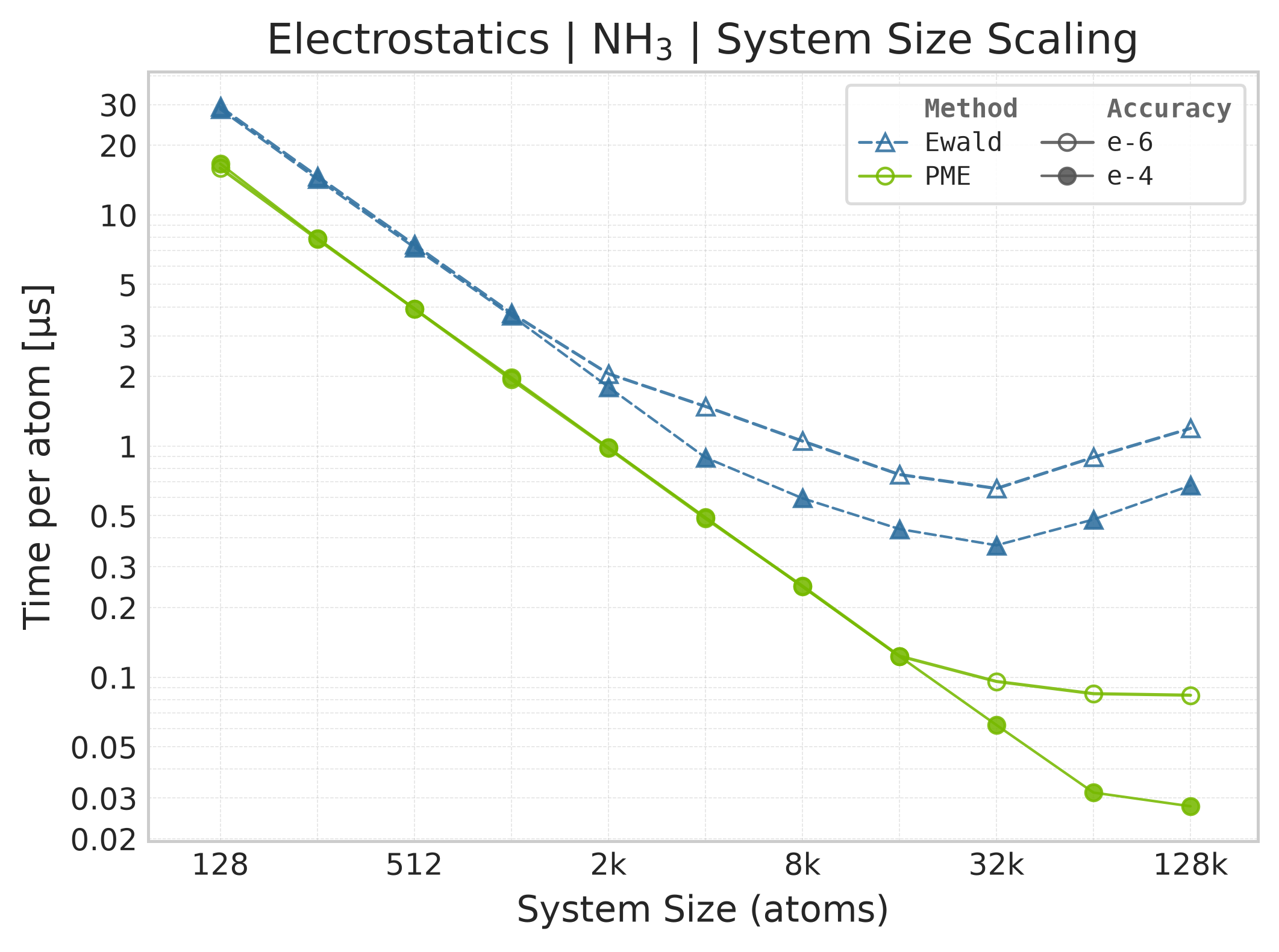

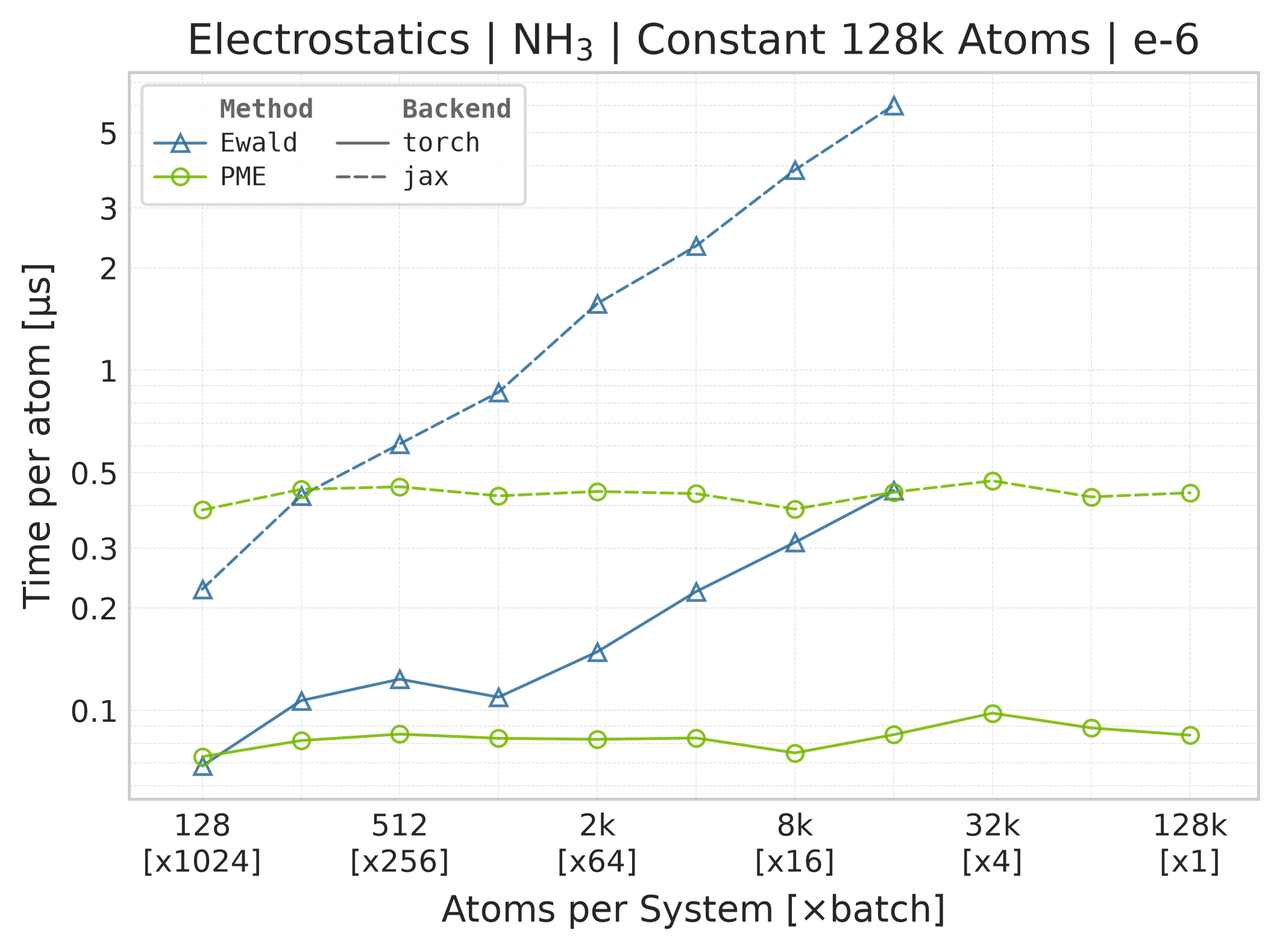

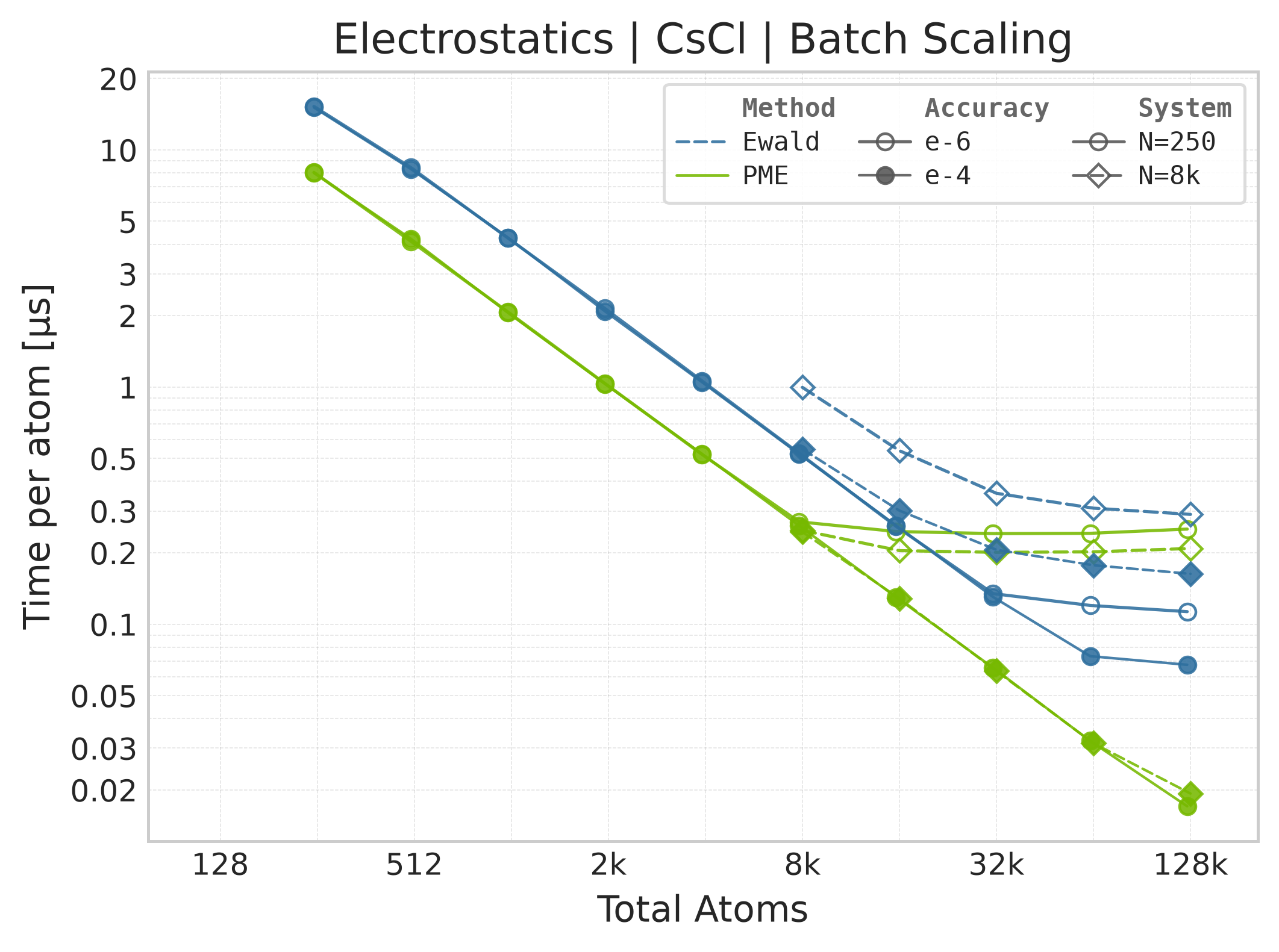

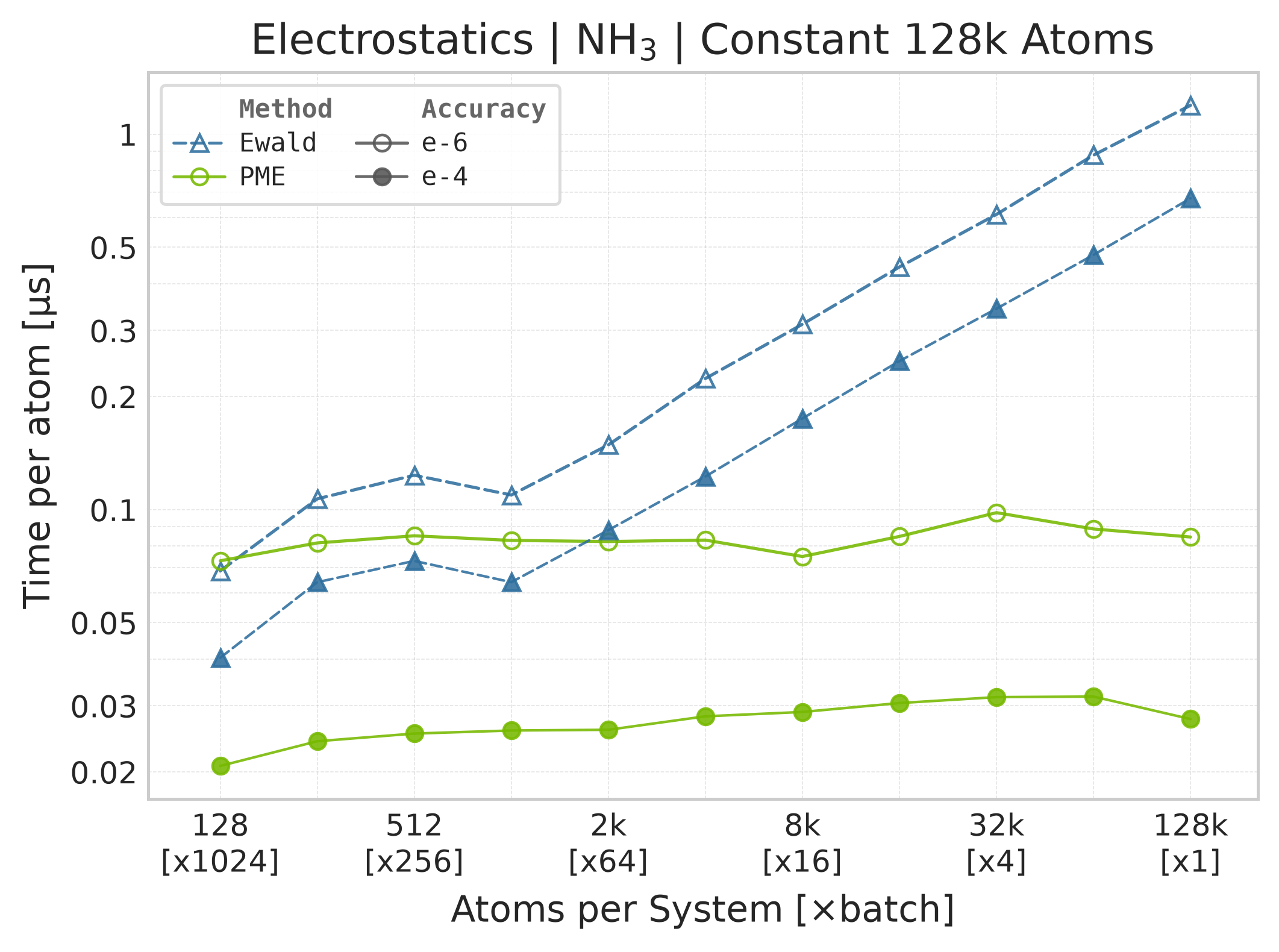

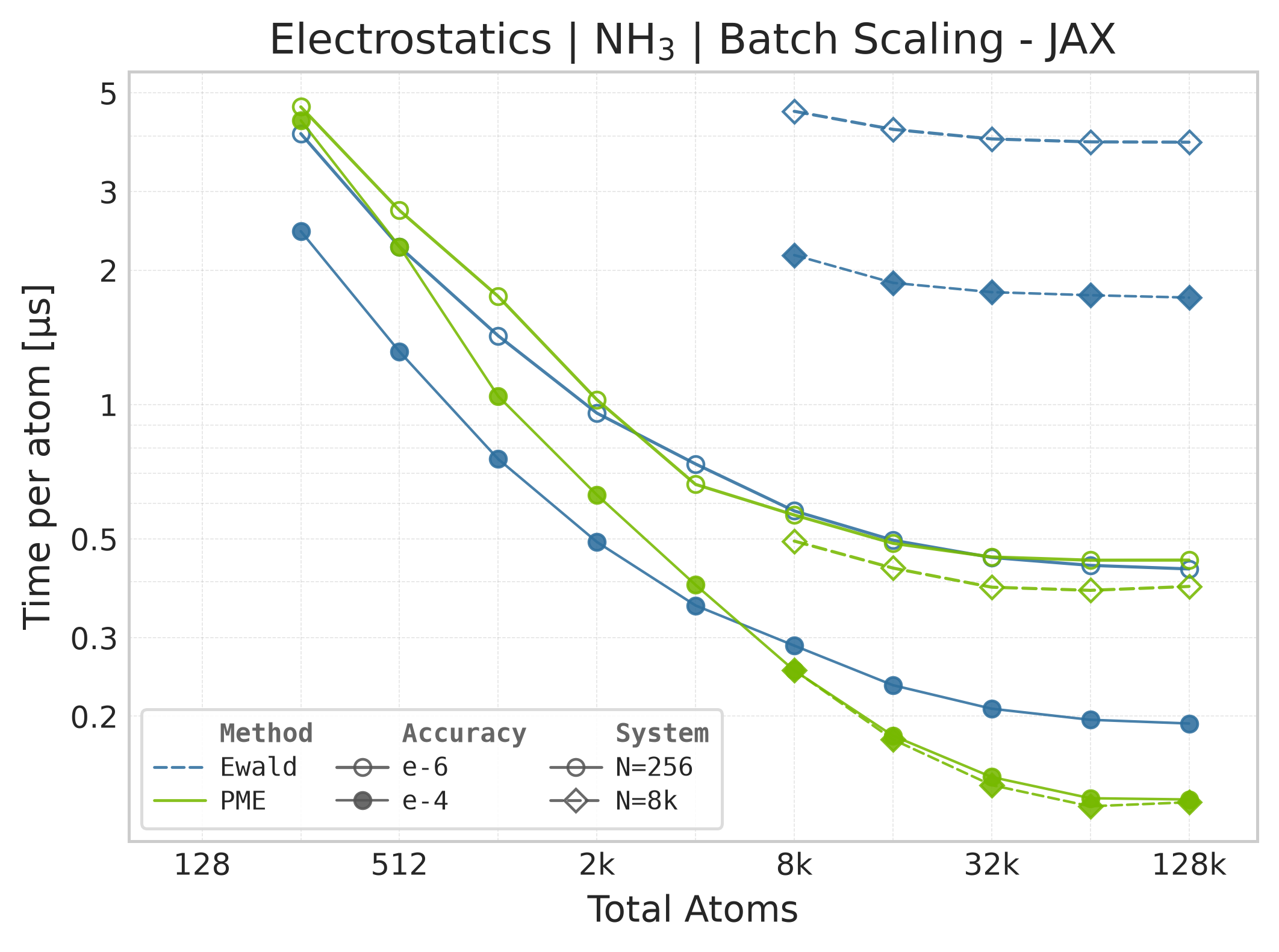

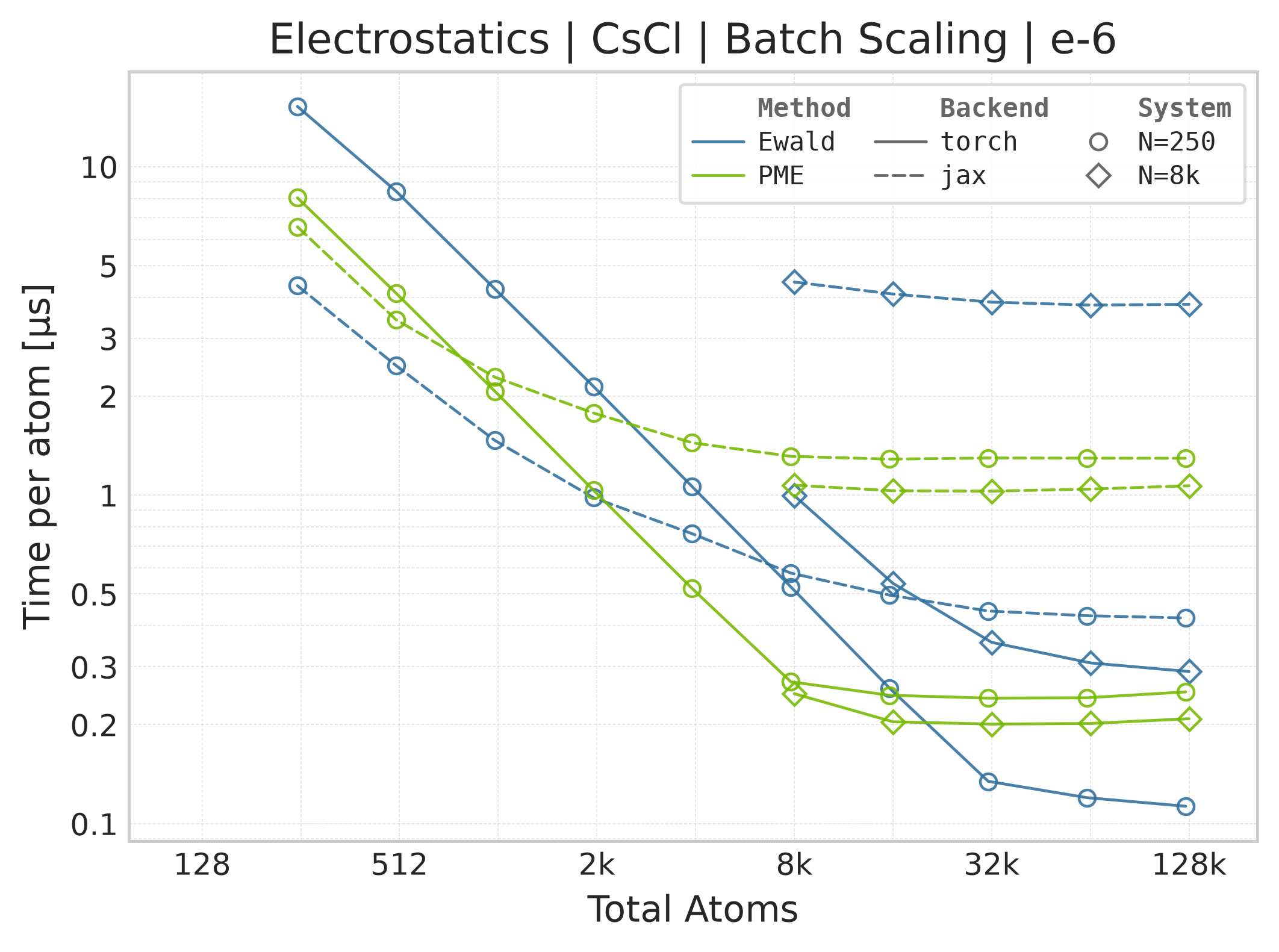

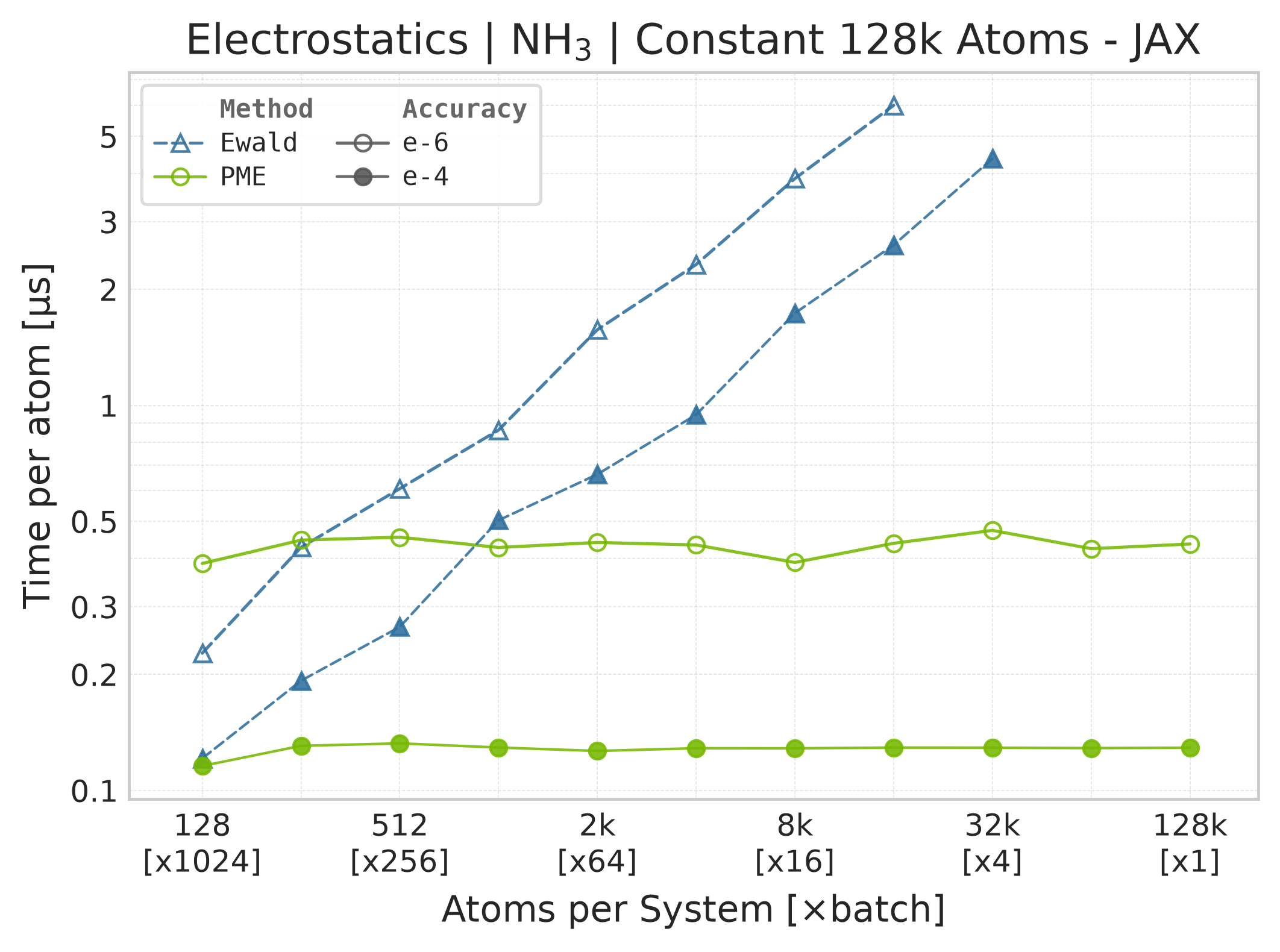

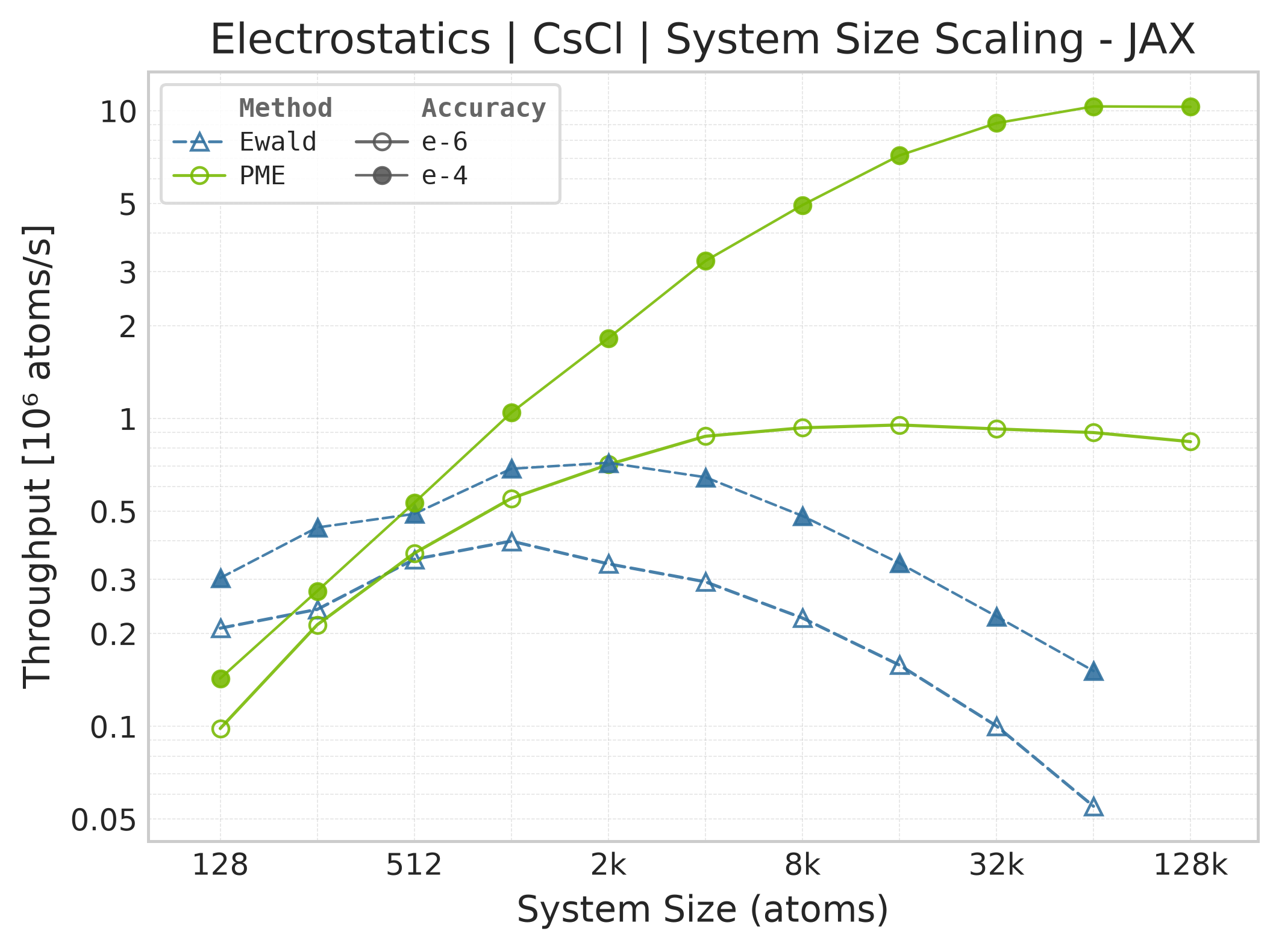

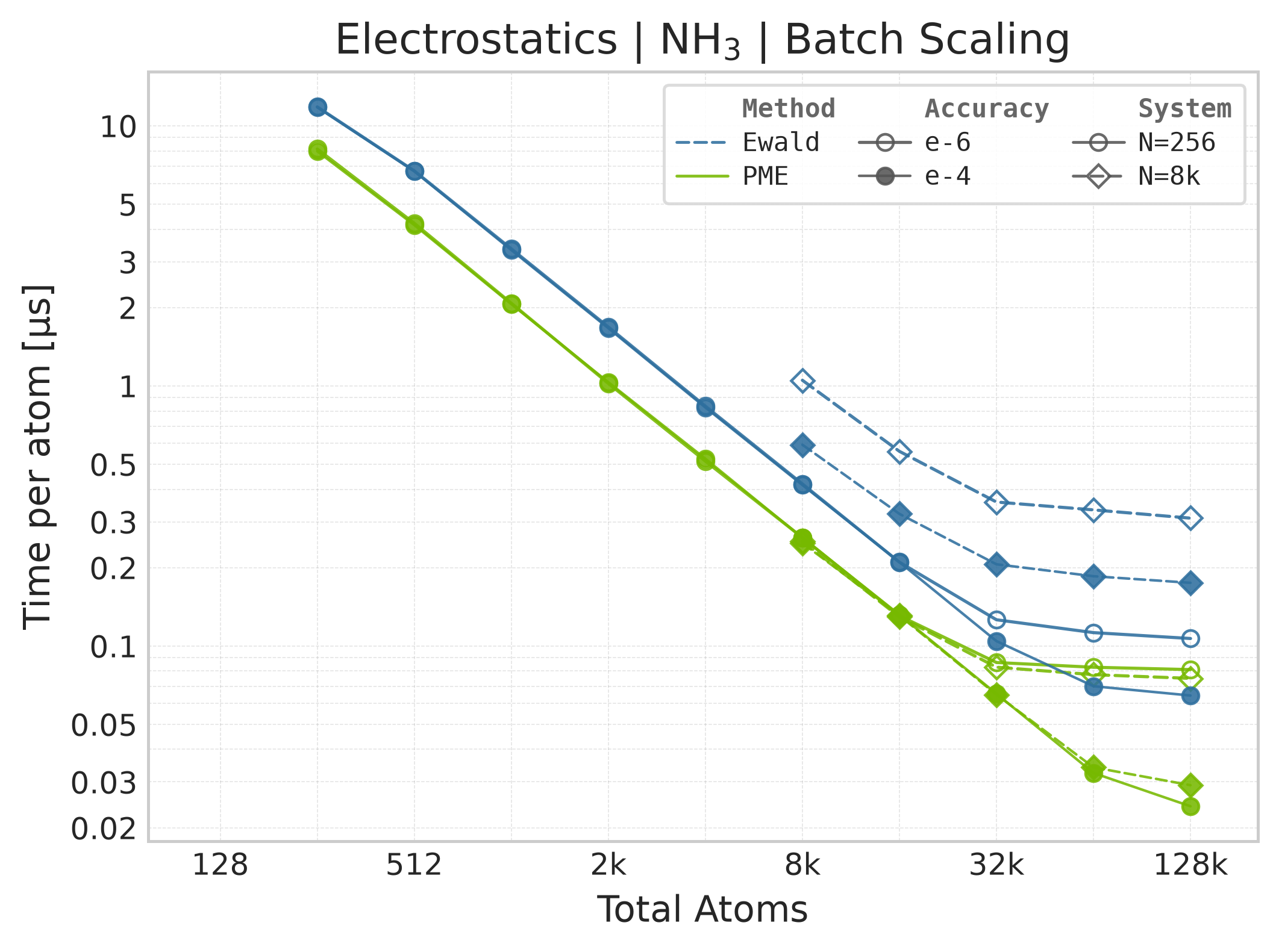

Time Scaling : Mean execution time (µs/atom) vs. system size. Lower is better. Timings include both real-space and reciprocal-space contributions when running “full” mode.

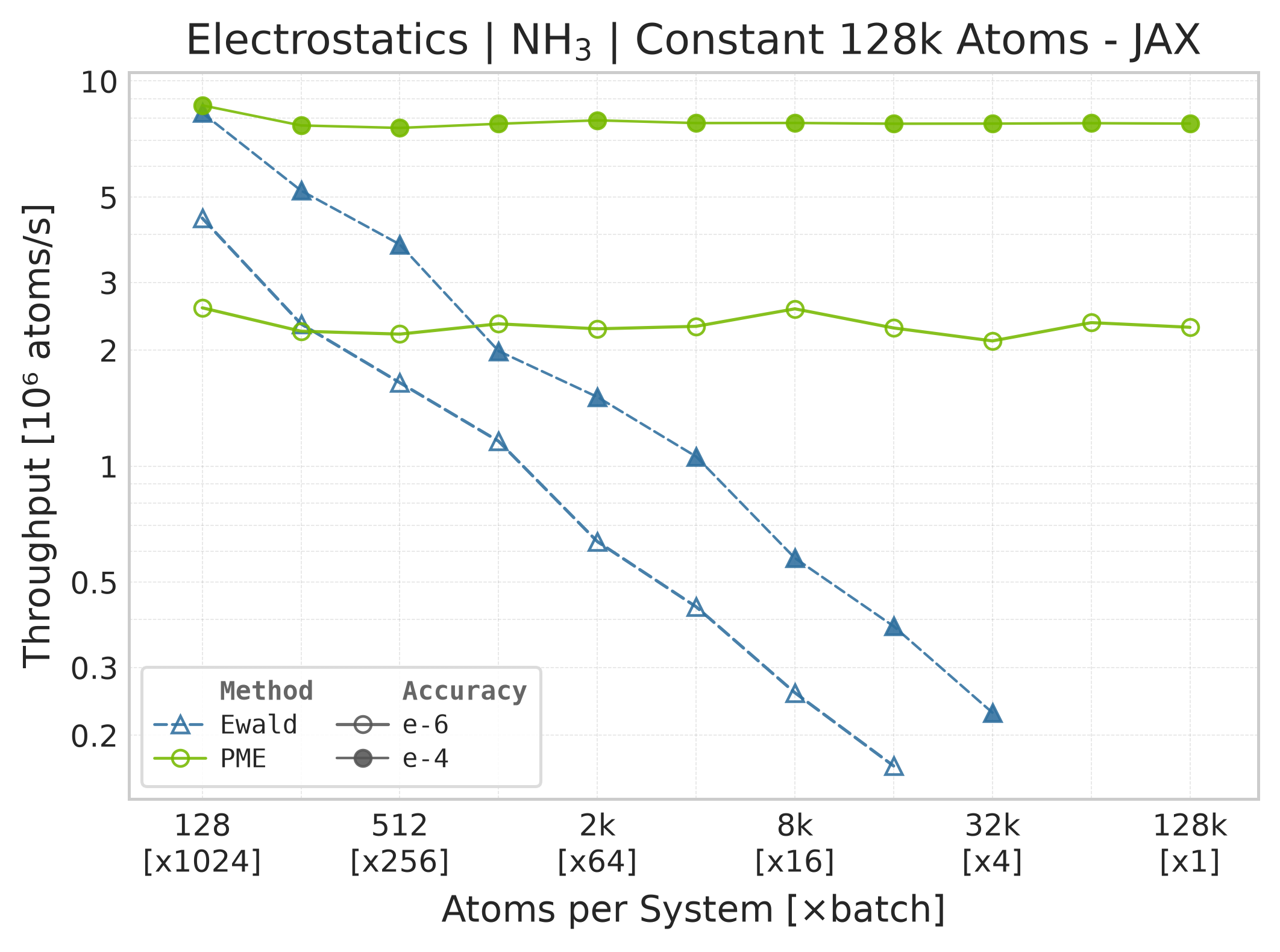

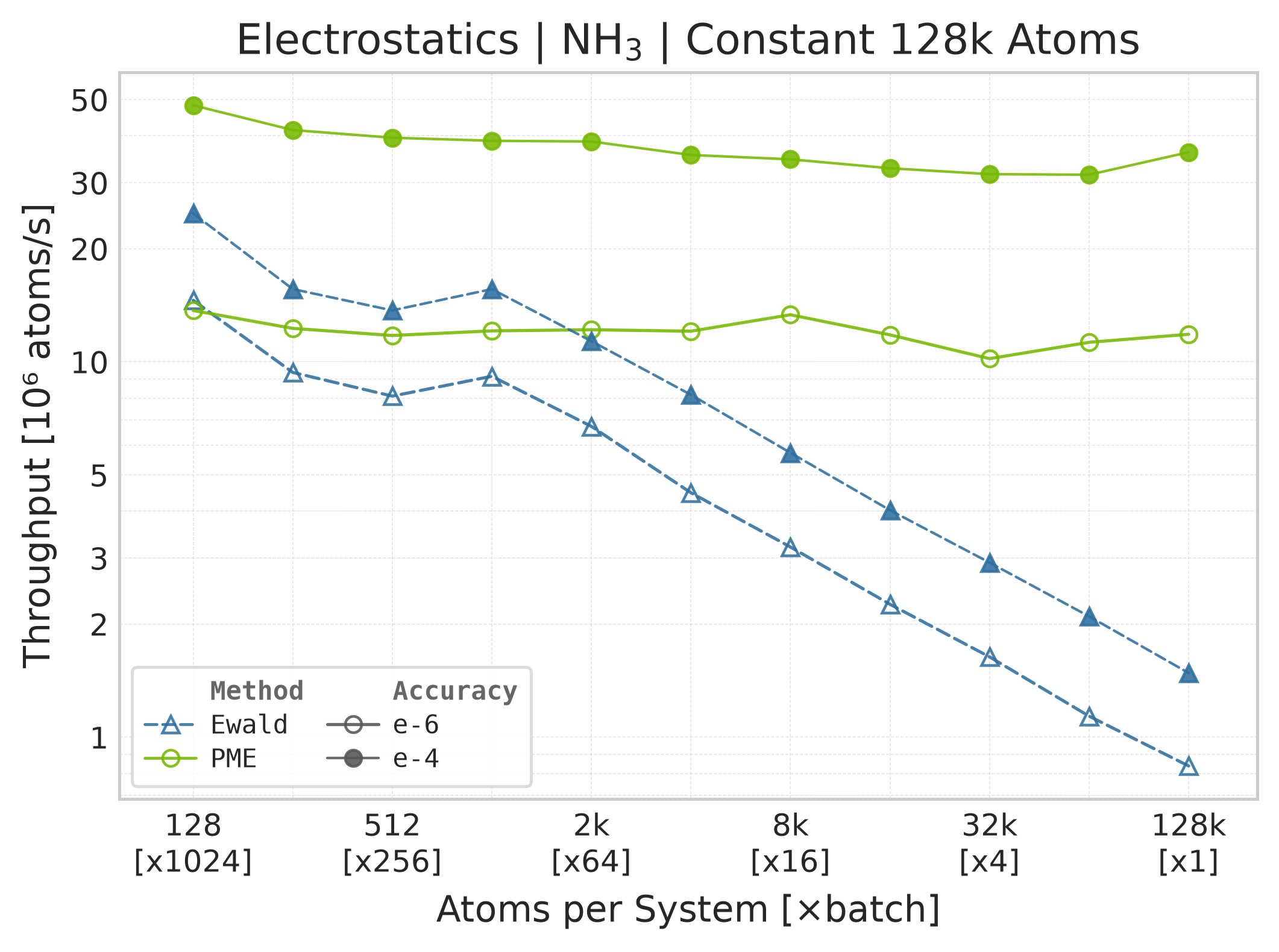

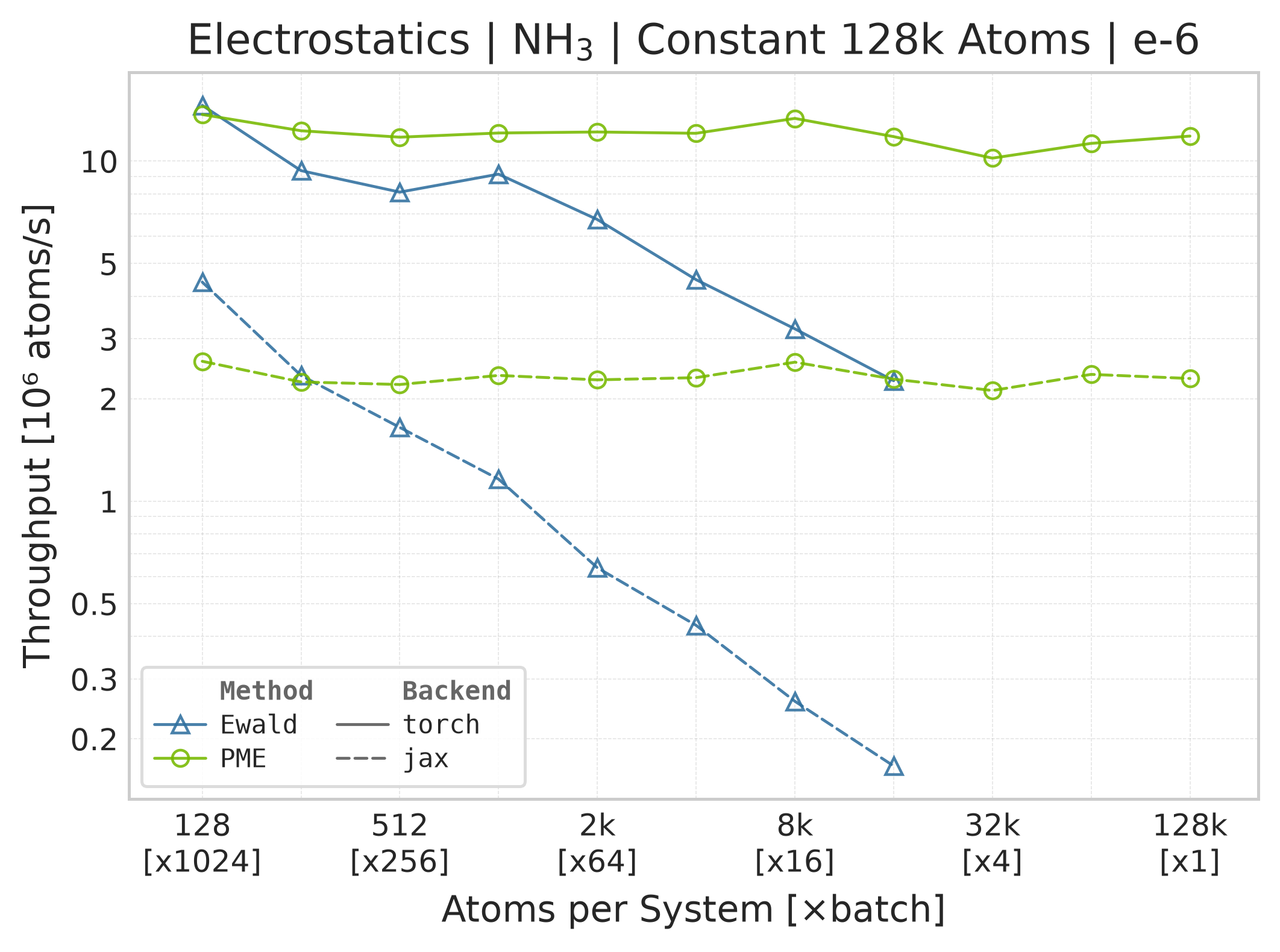

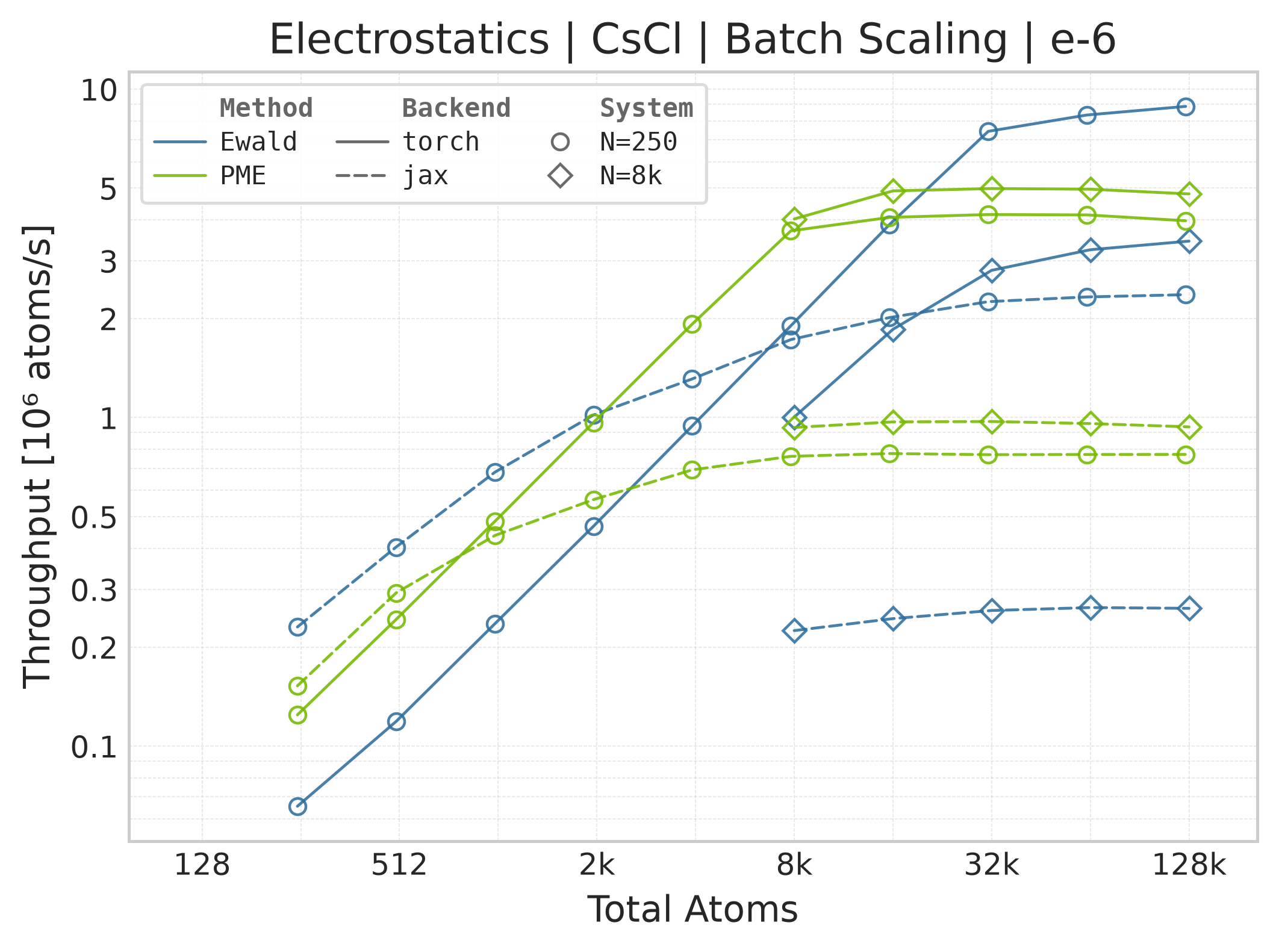

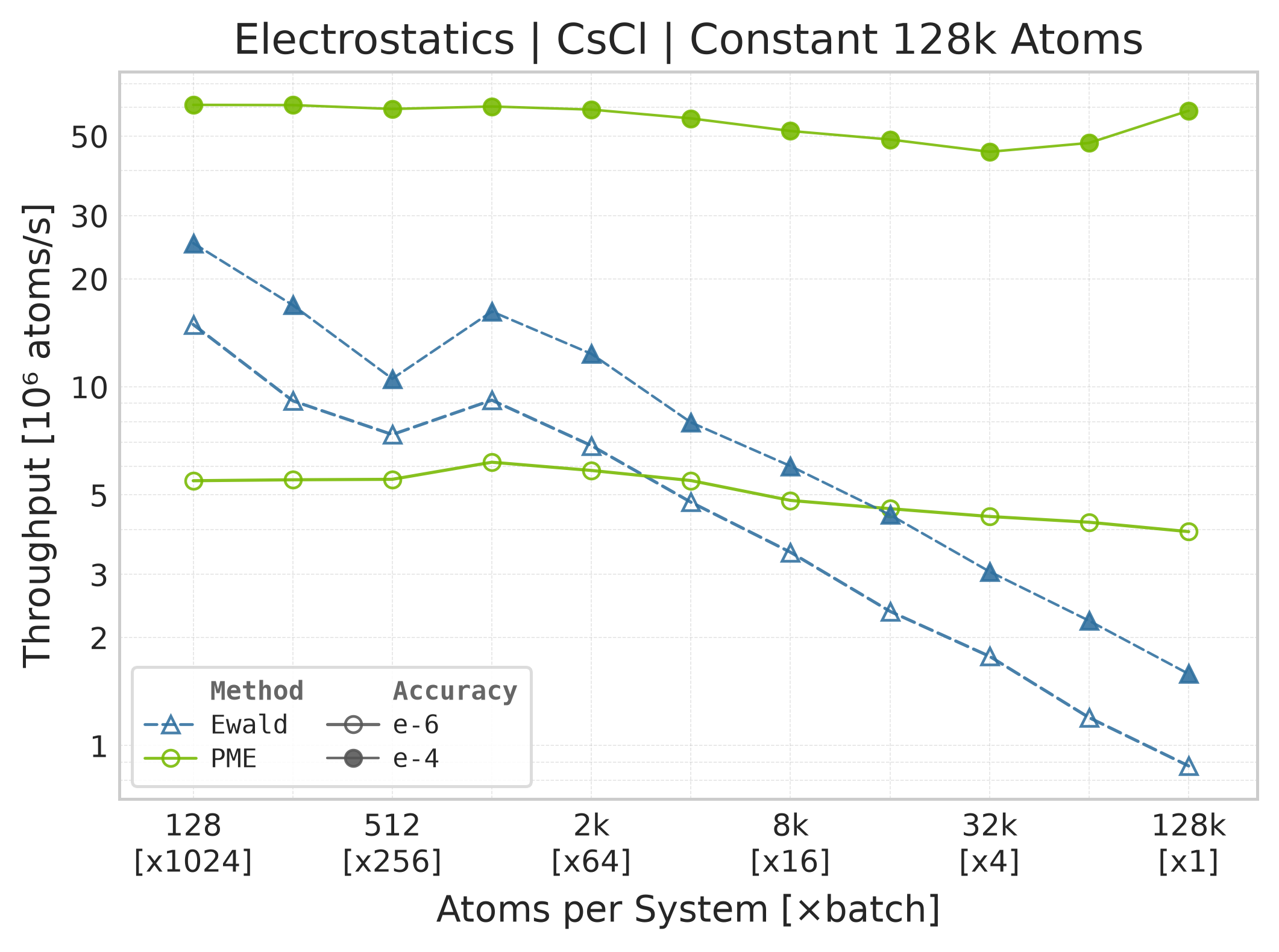

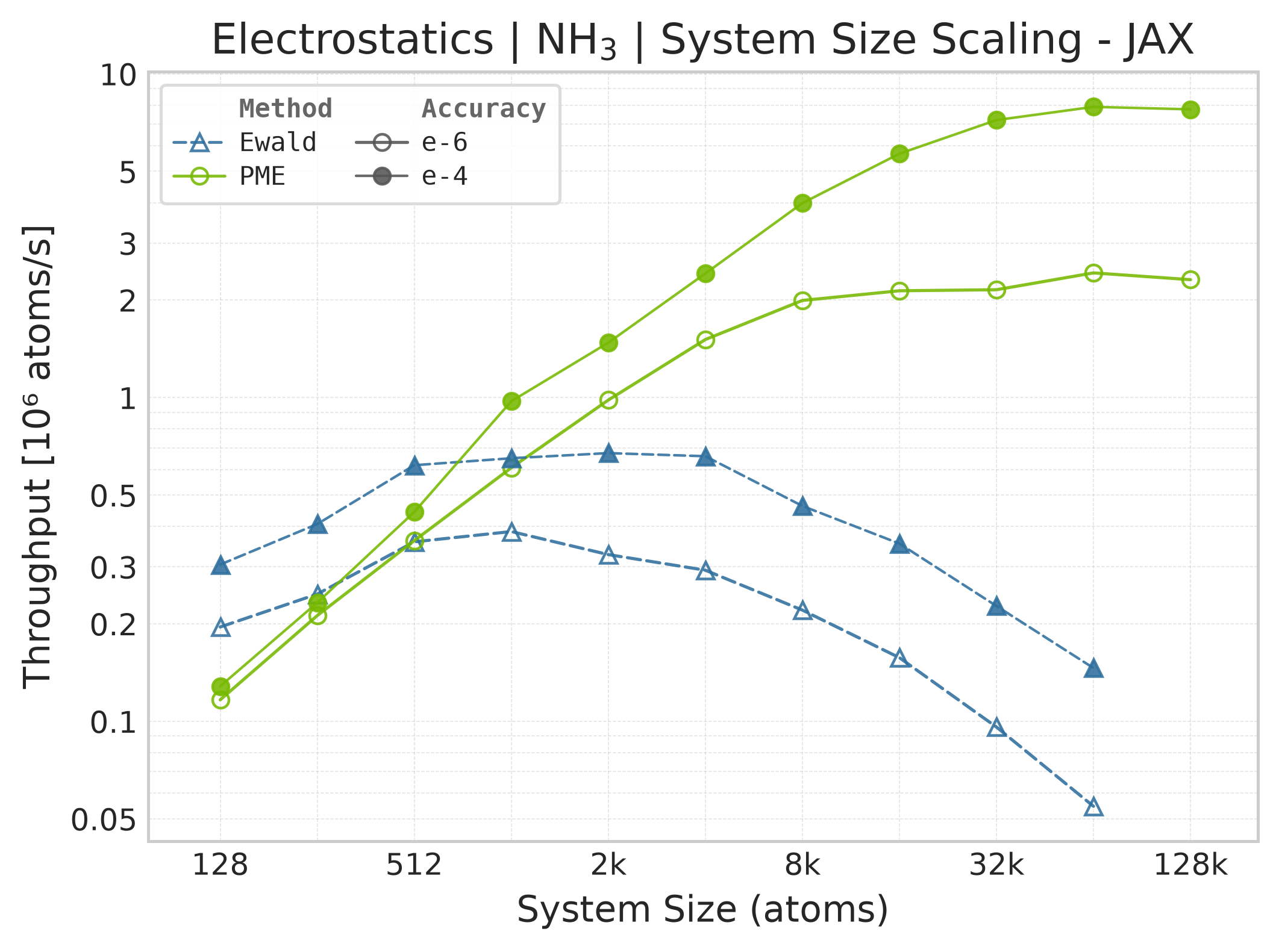

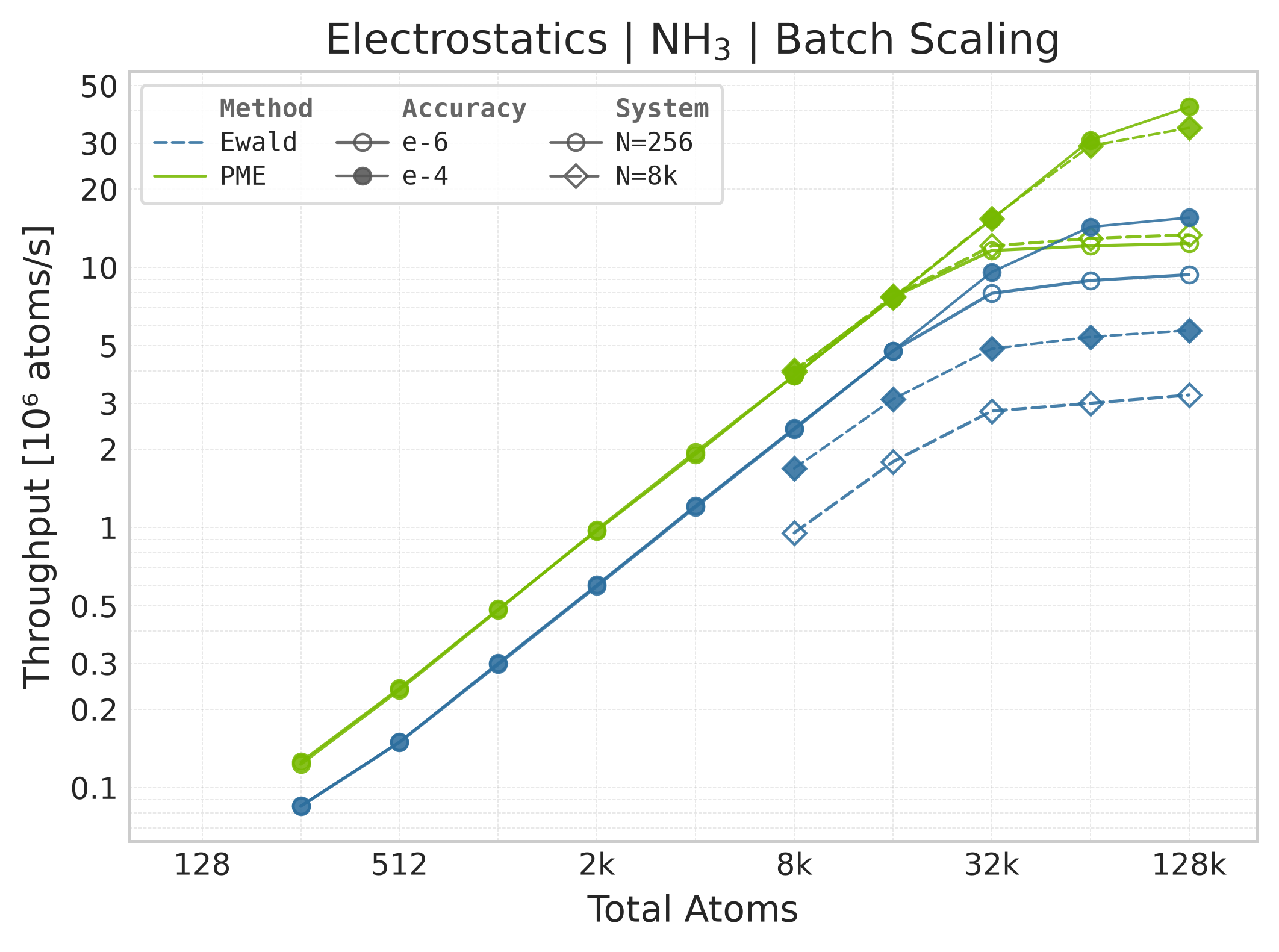

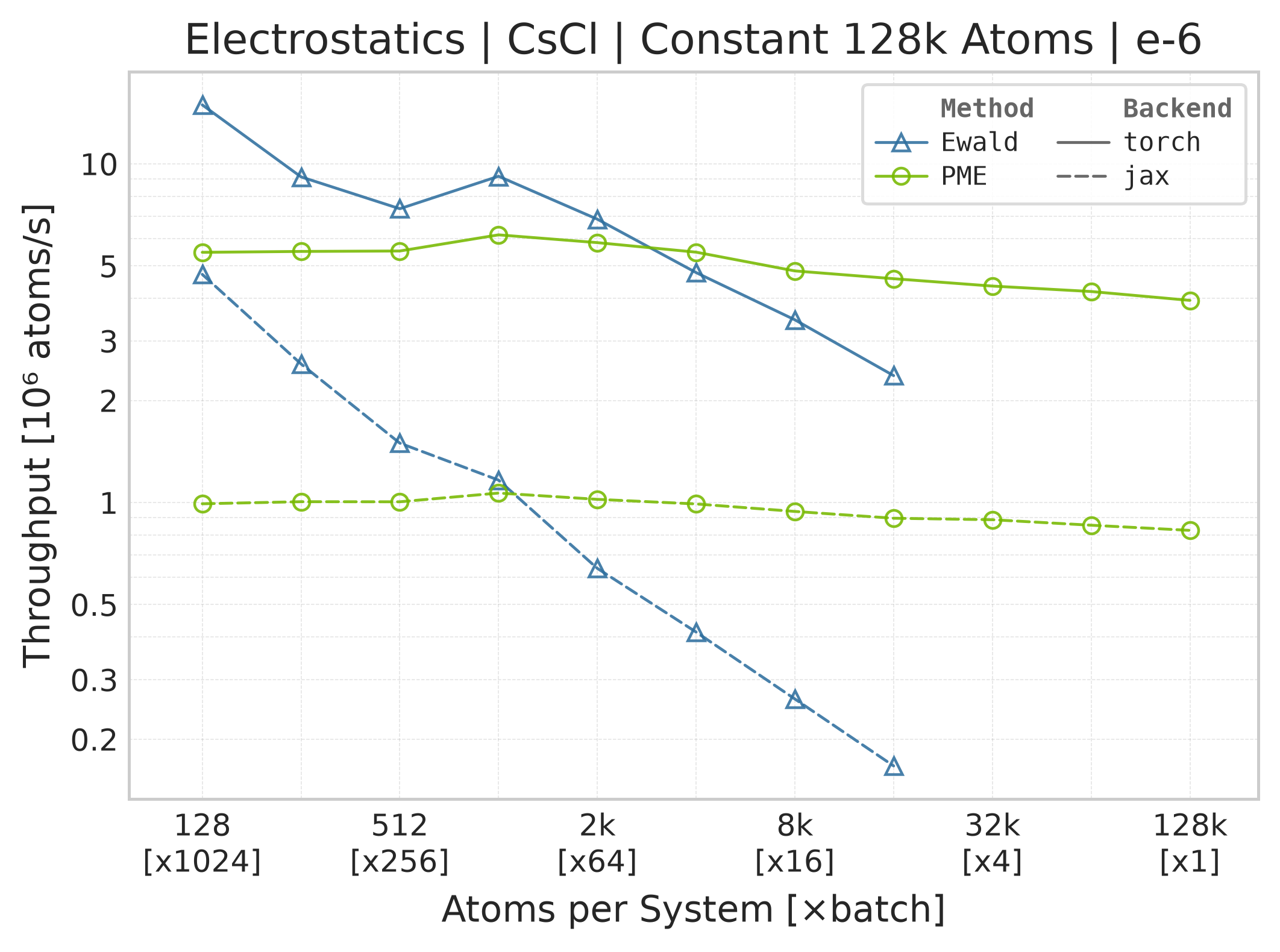

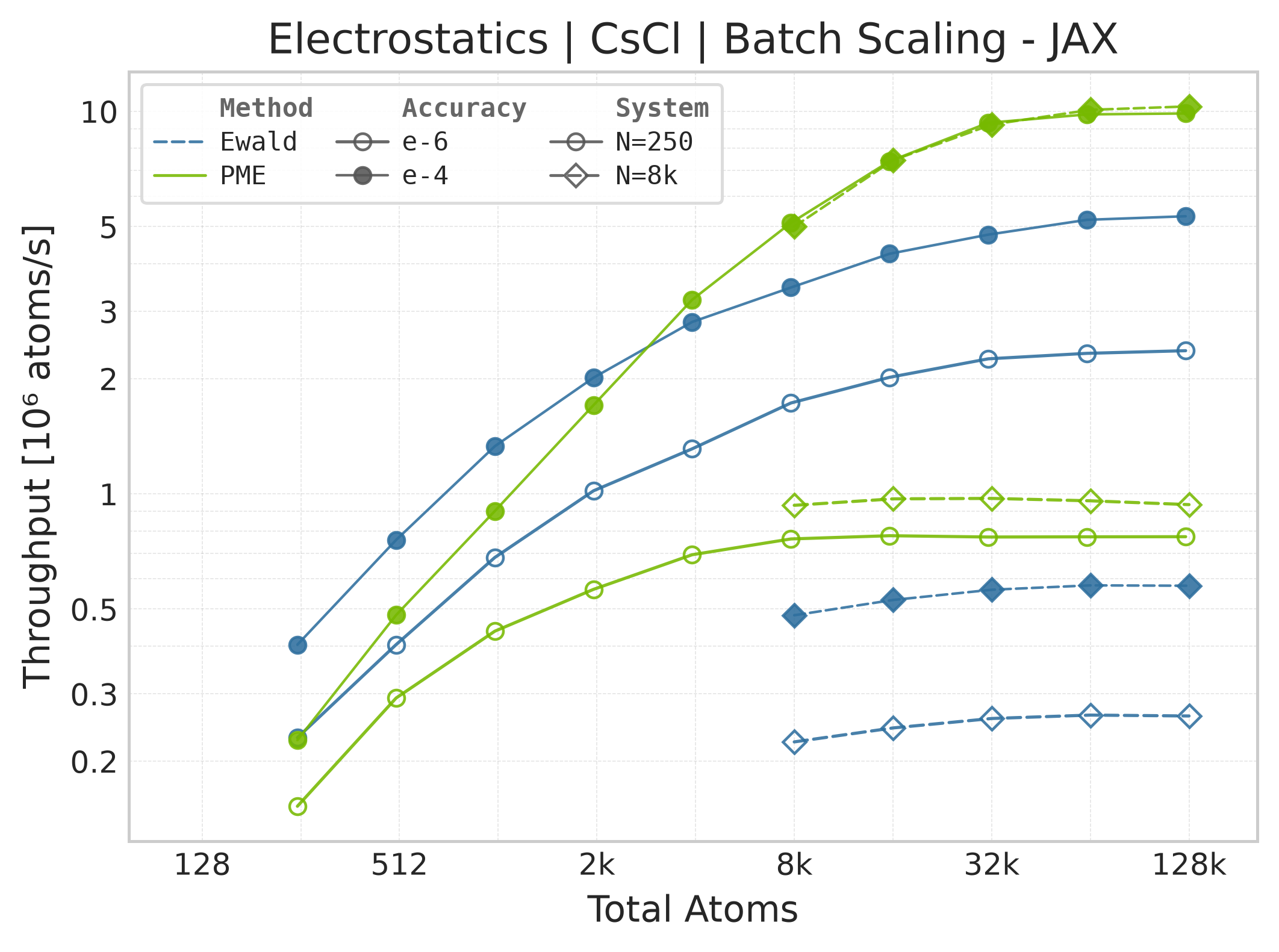

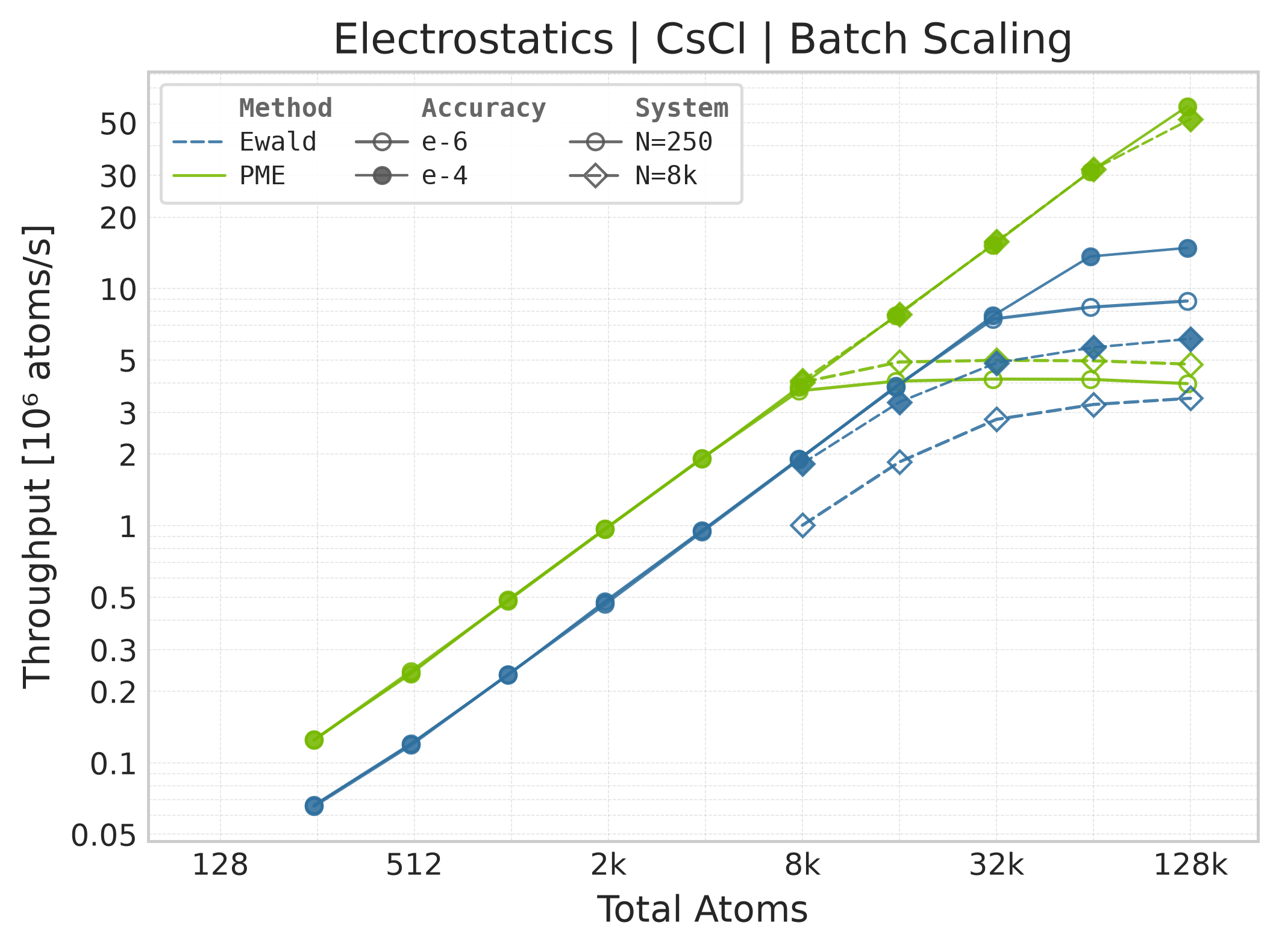

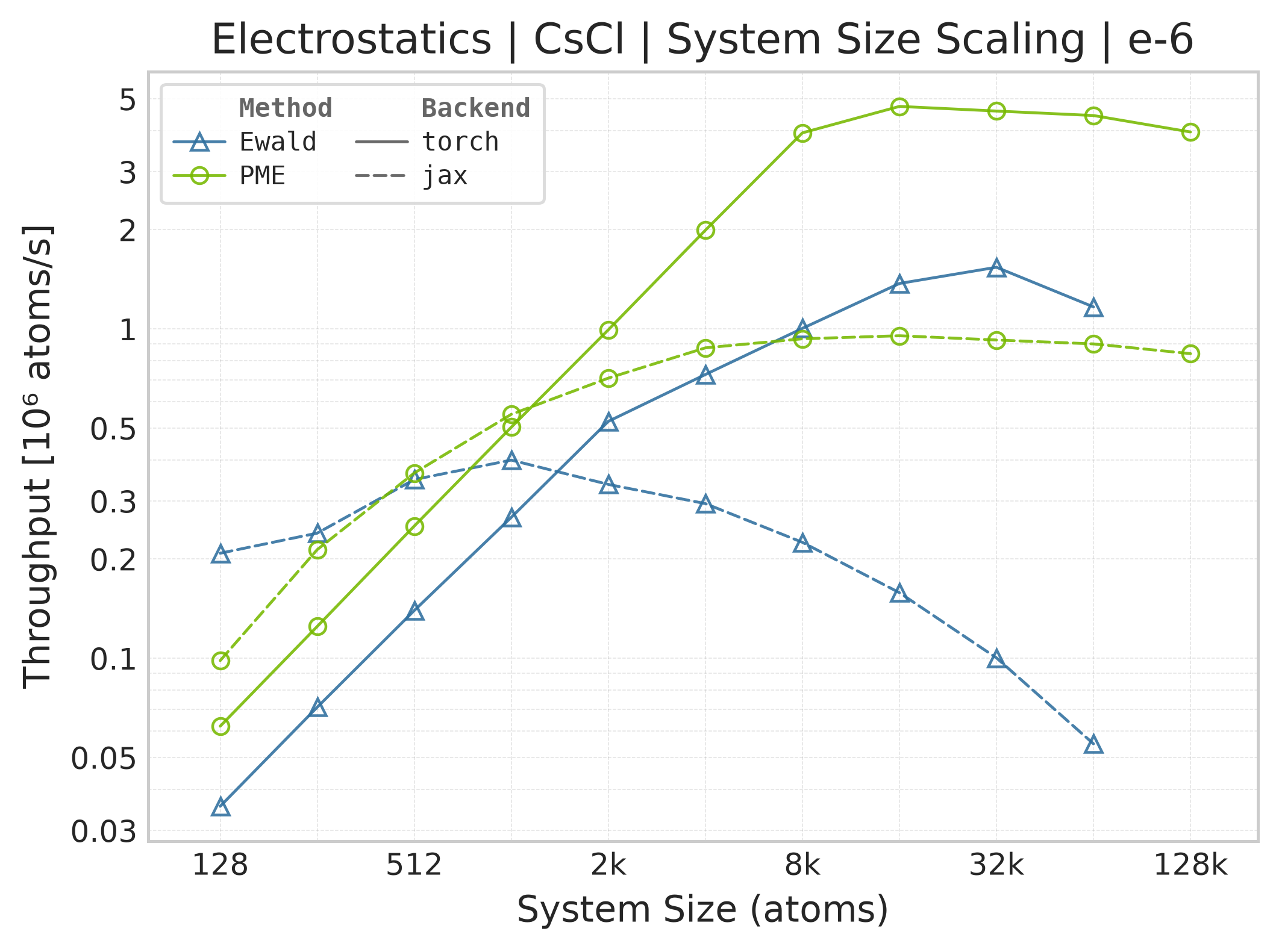

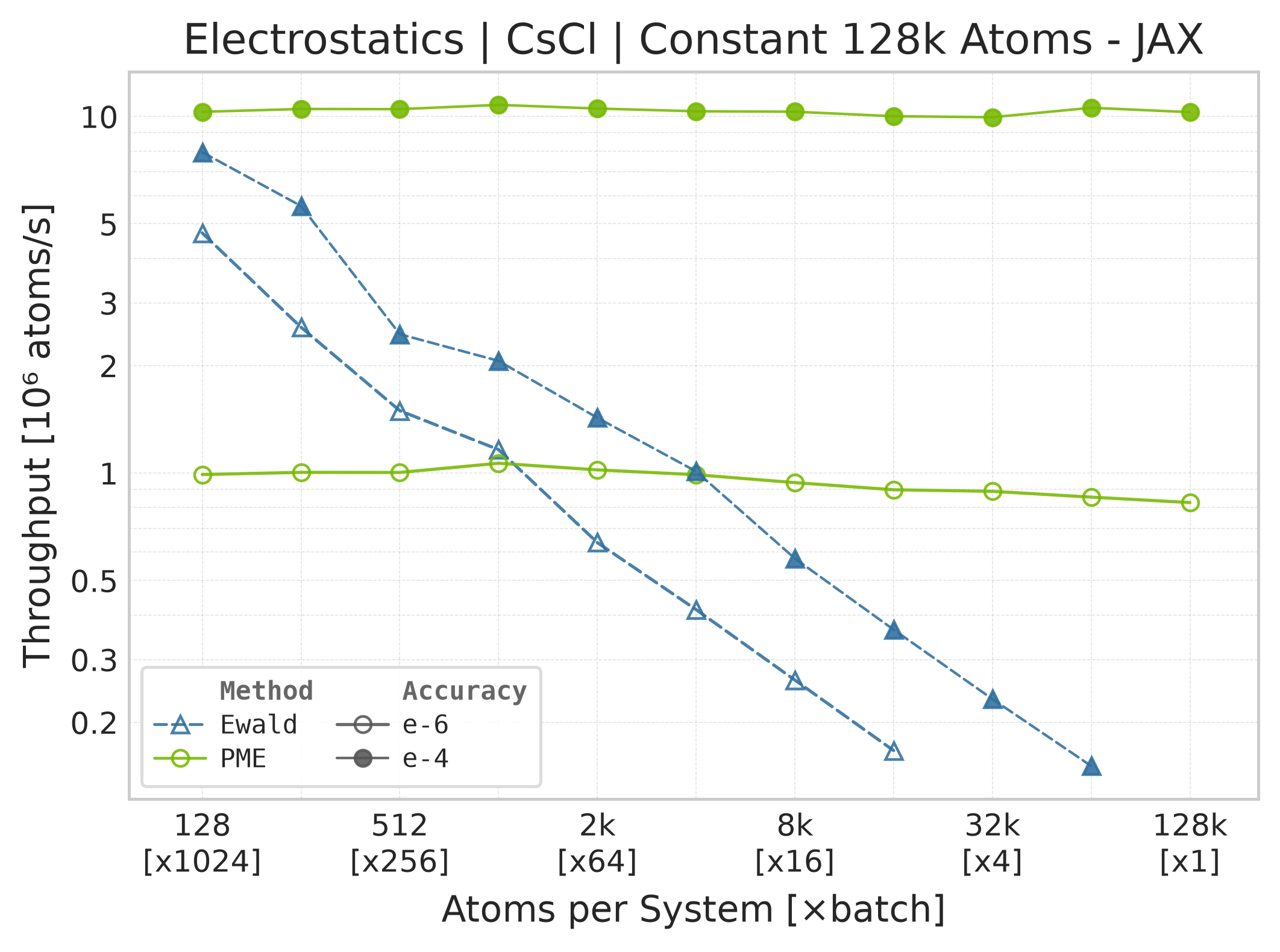

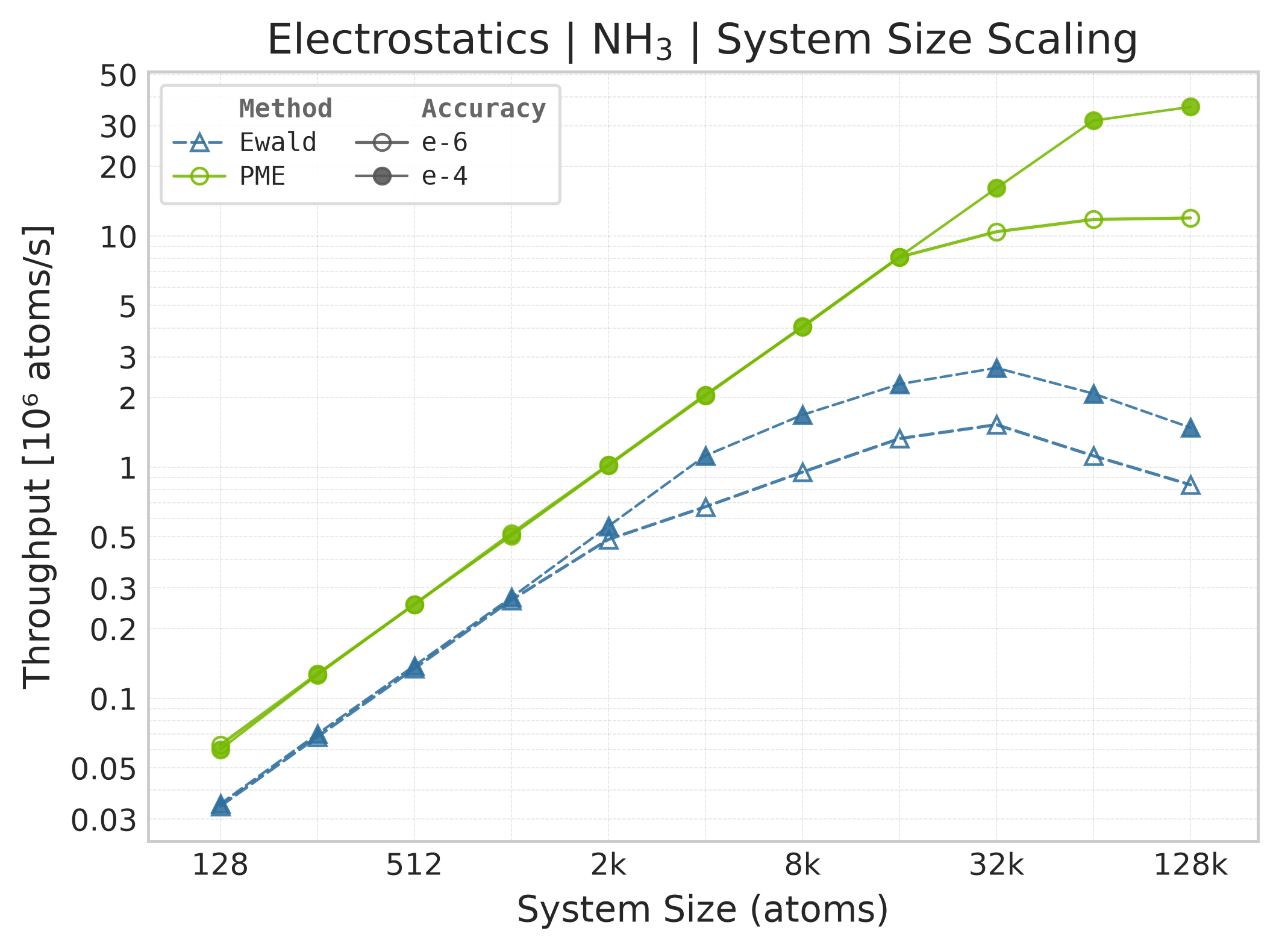

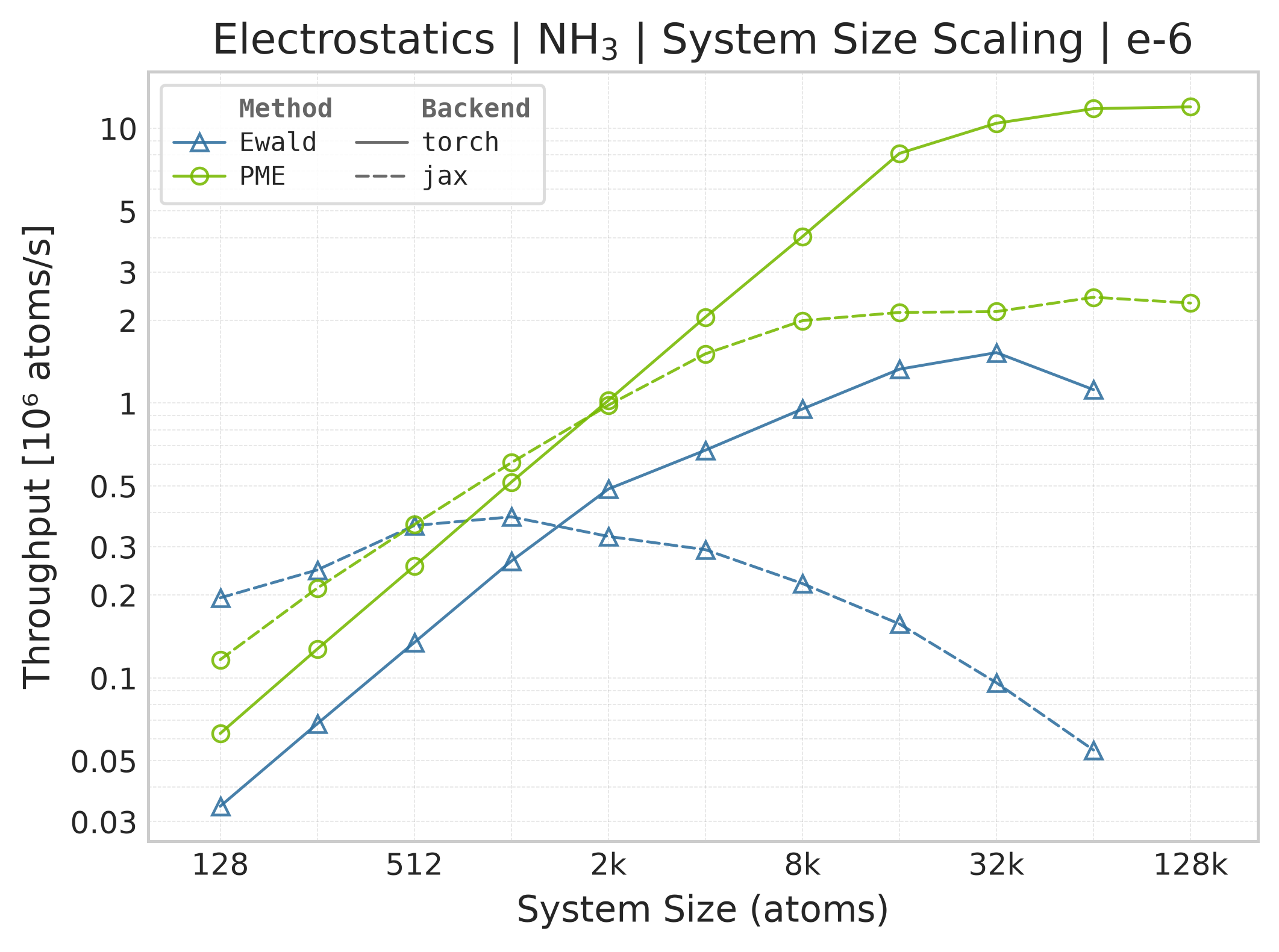

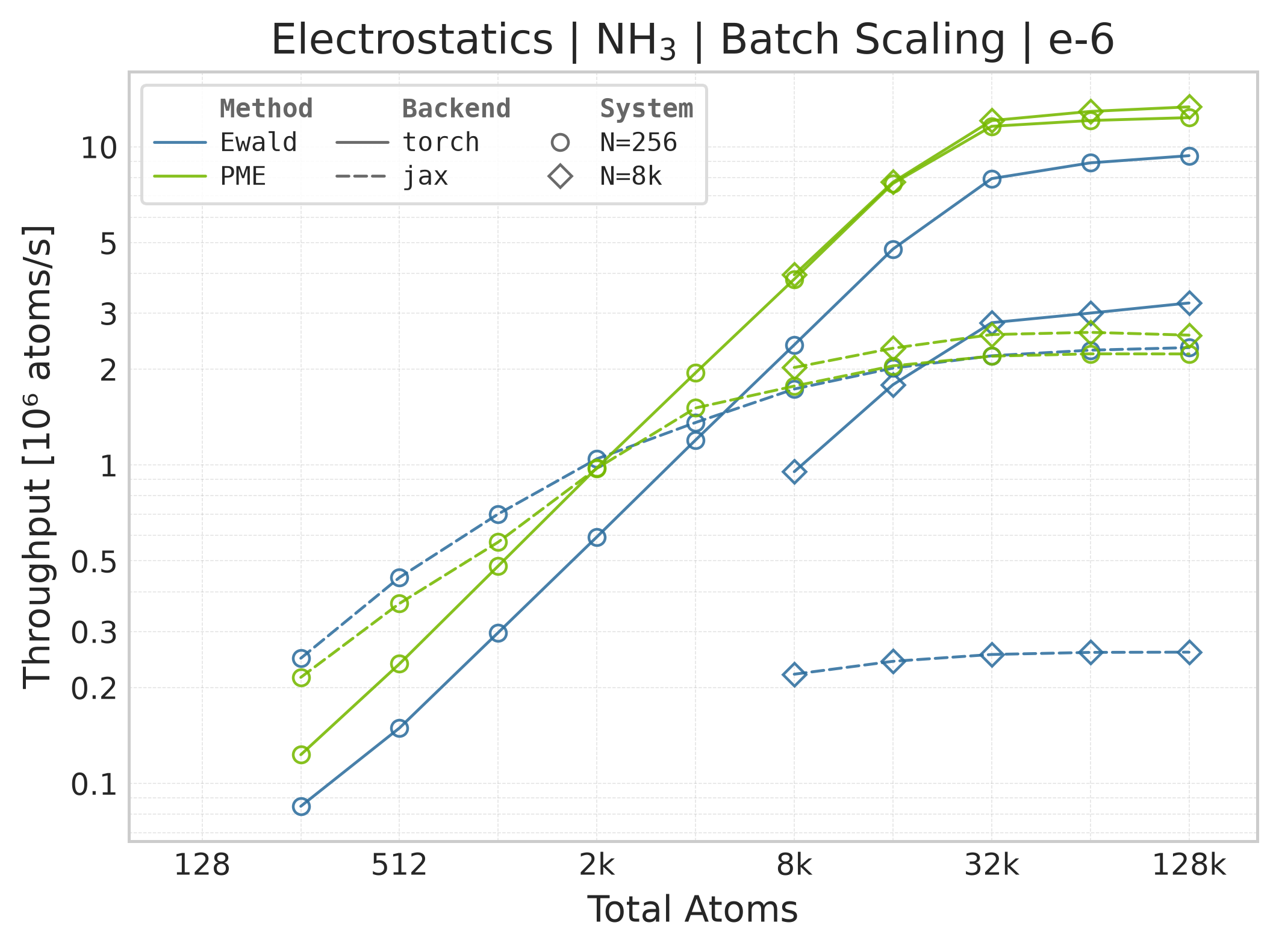

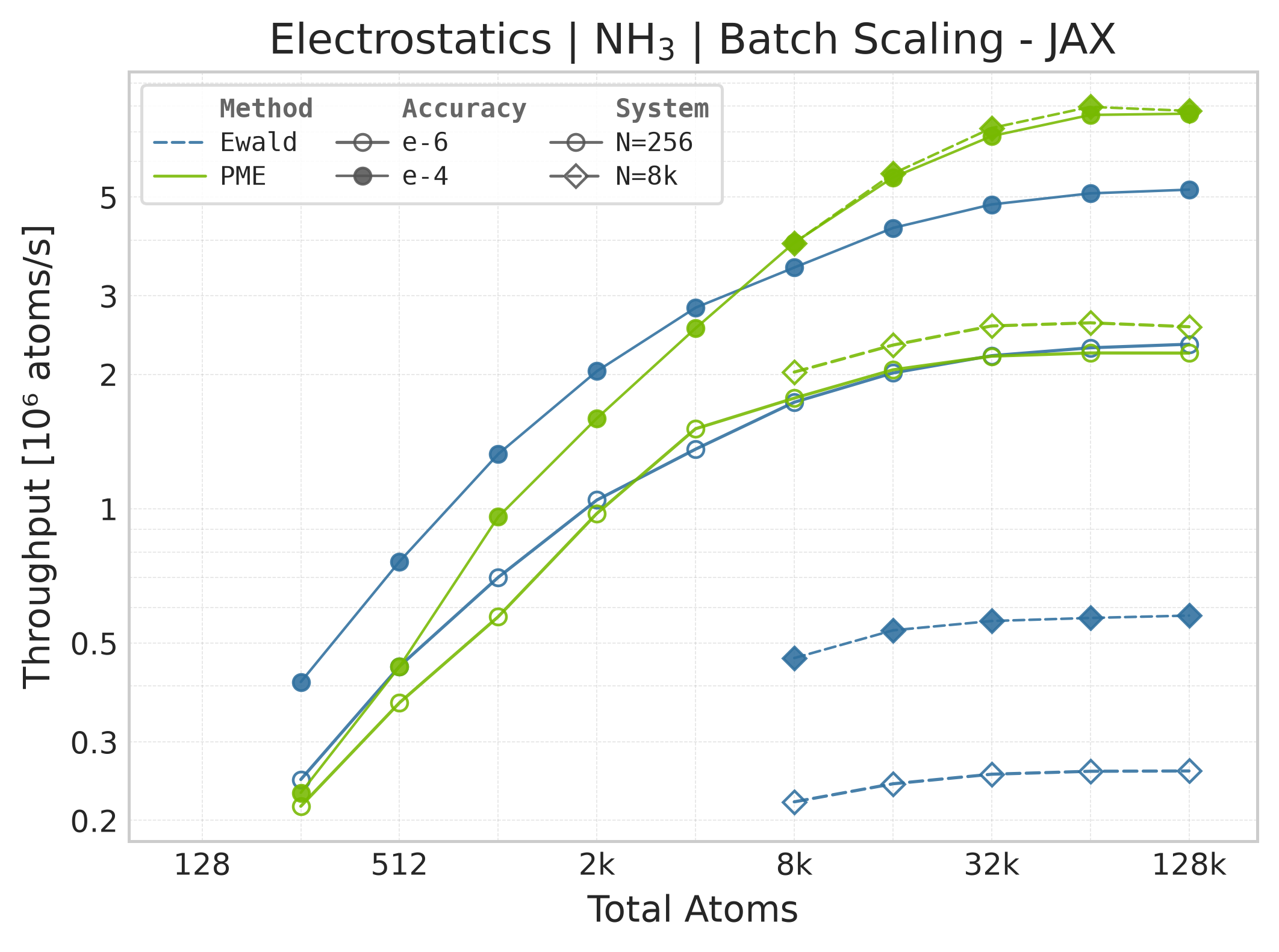

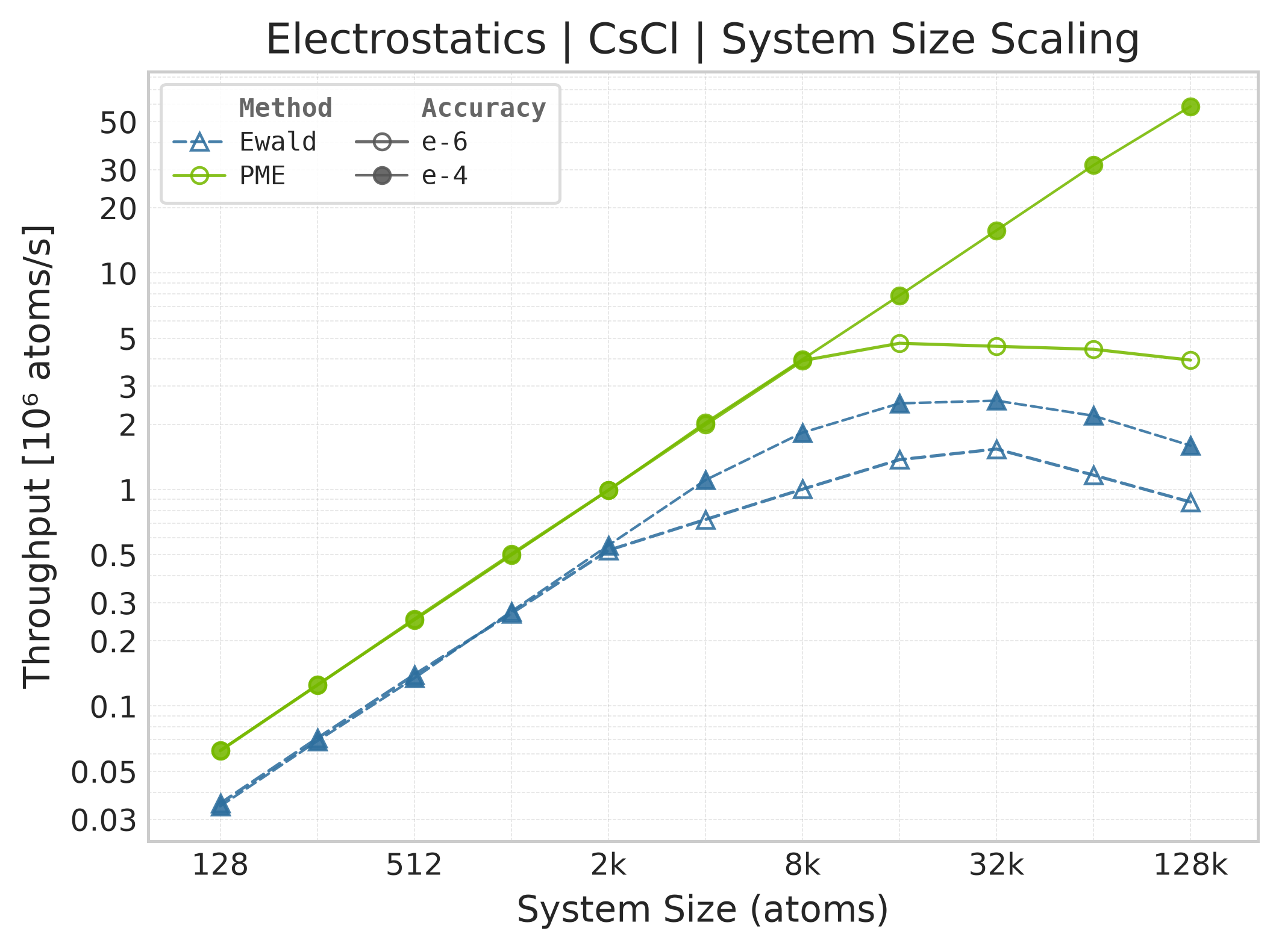

Throughput : Atoms processed per second (plotted as \(10^6\) atoms/s). Higher is better. This indicates the scaling point where the GPU saturates.

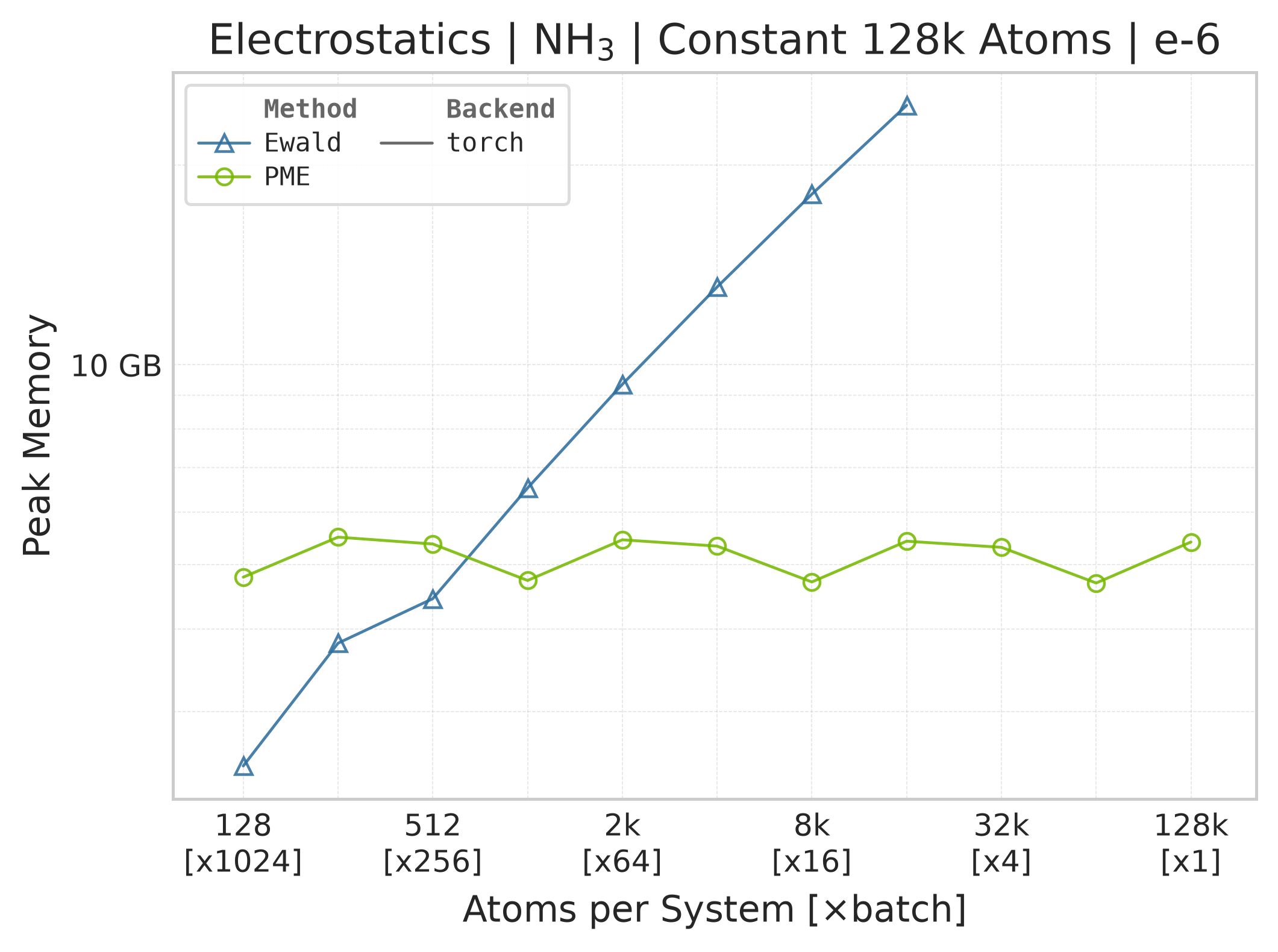

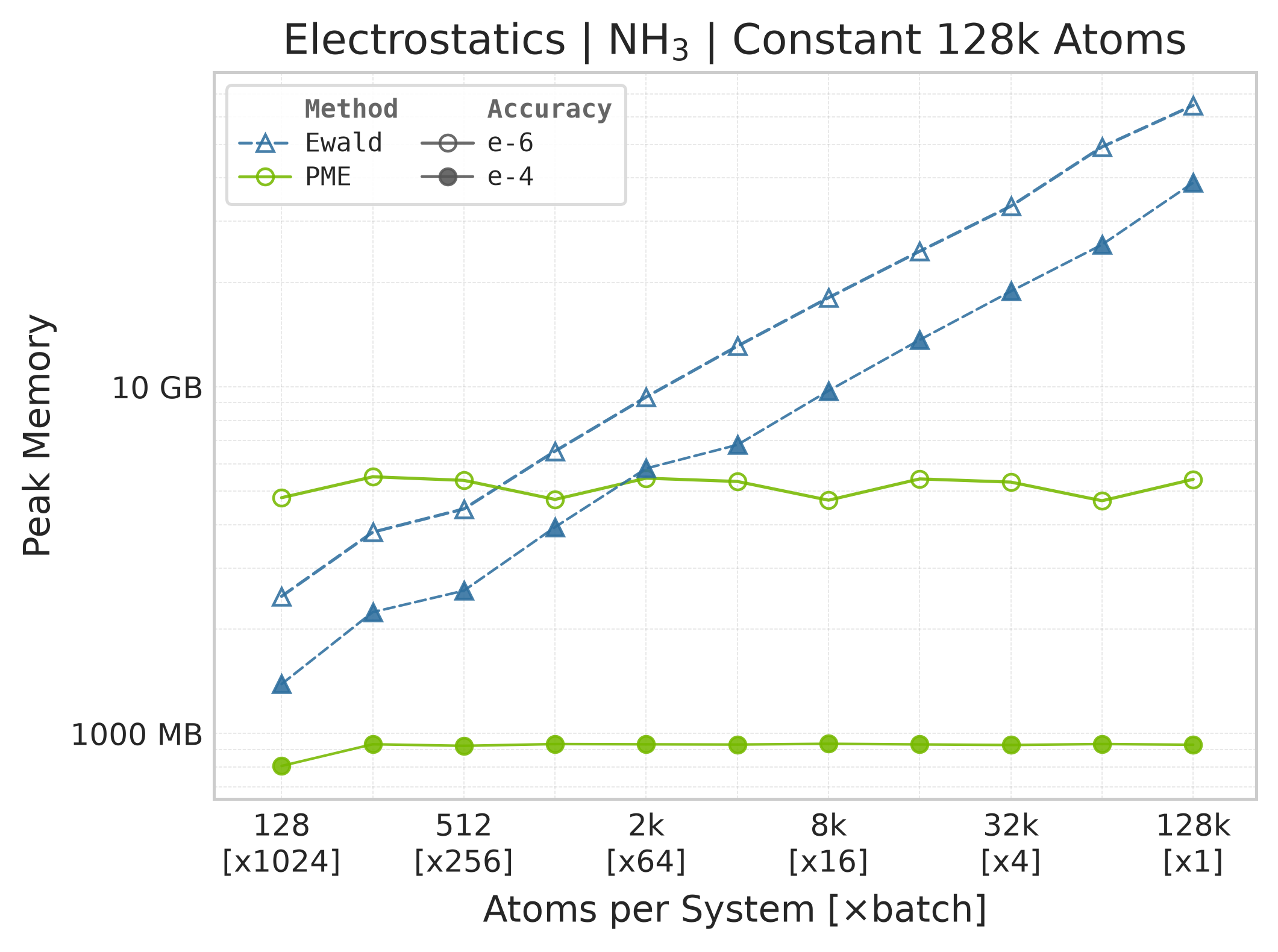

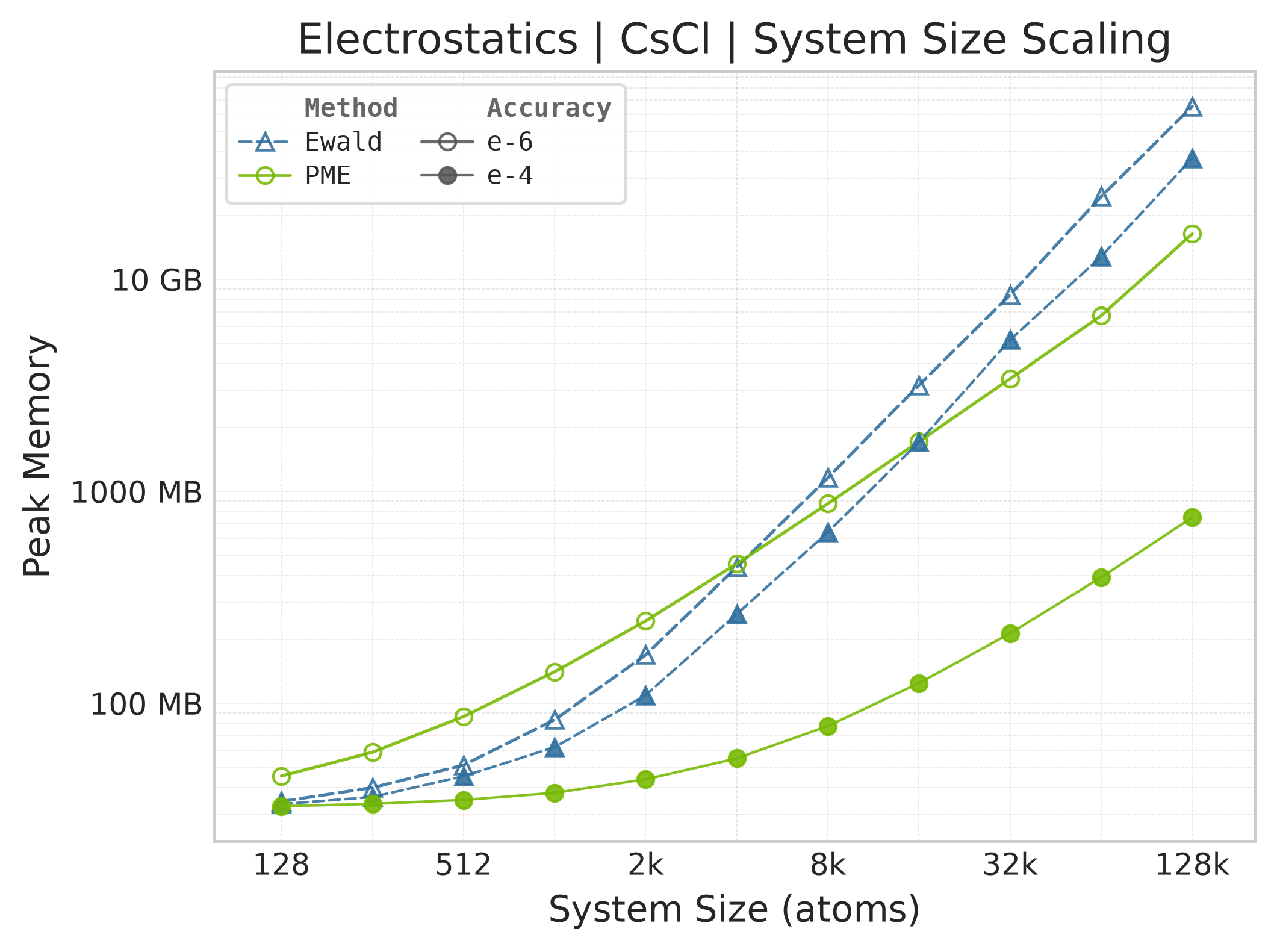

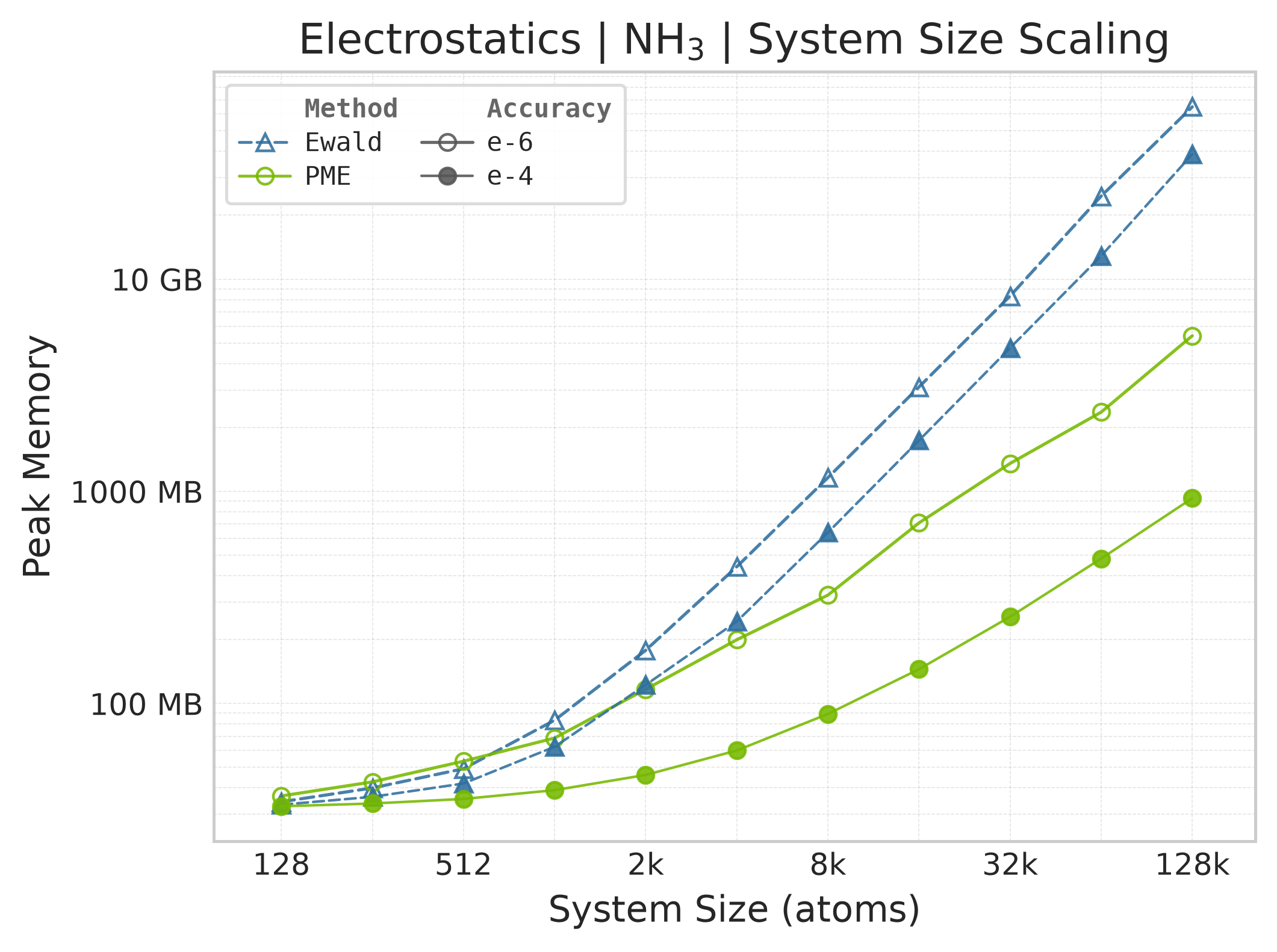

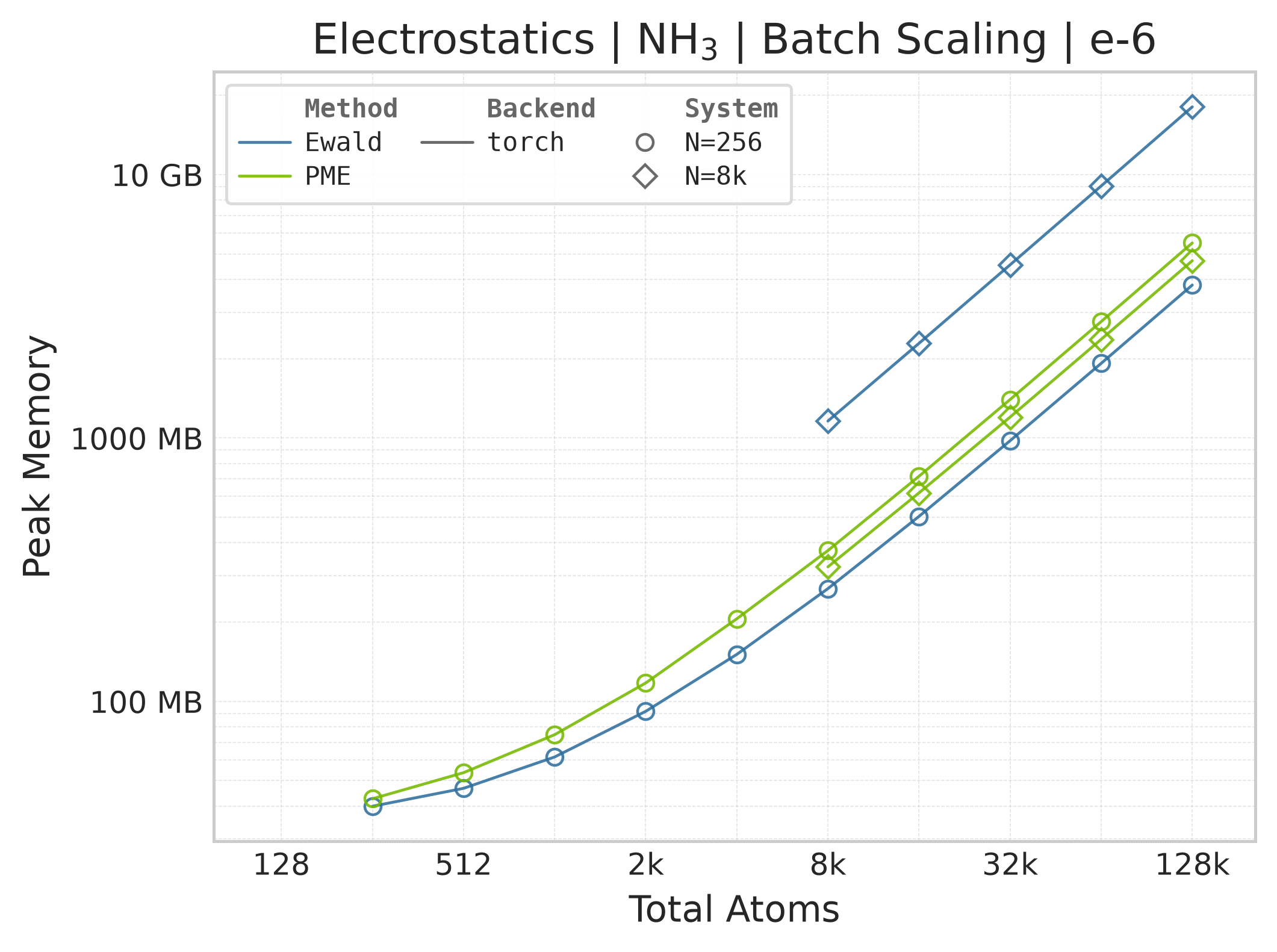

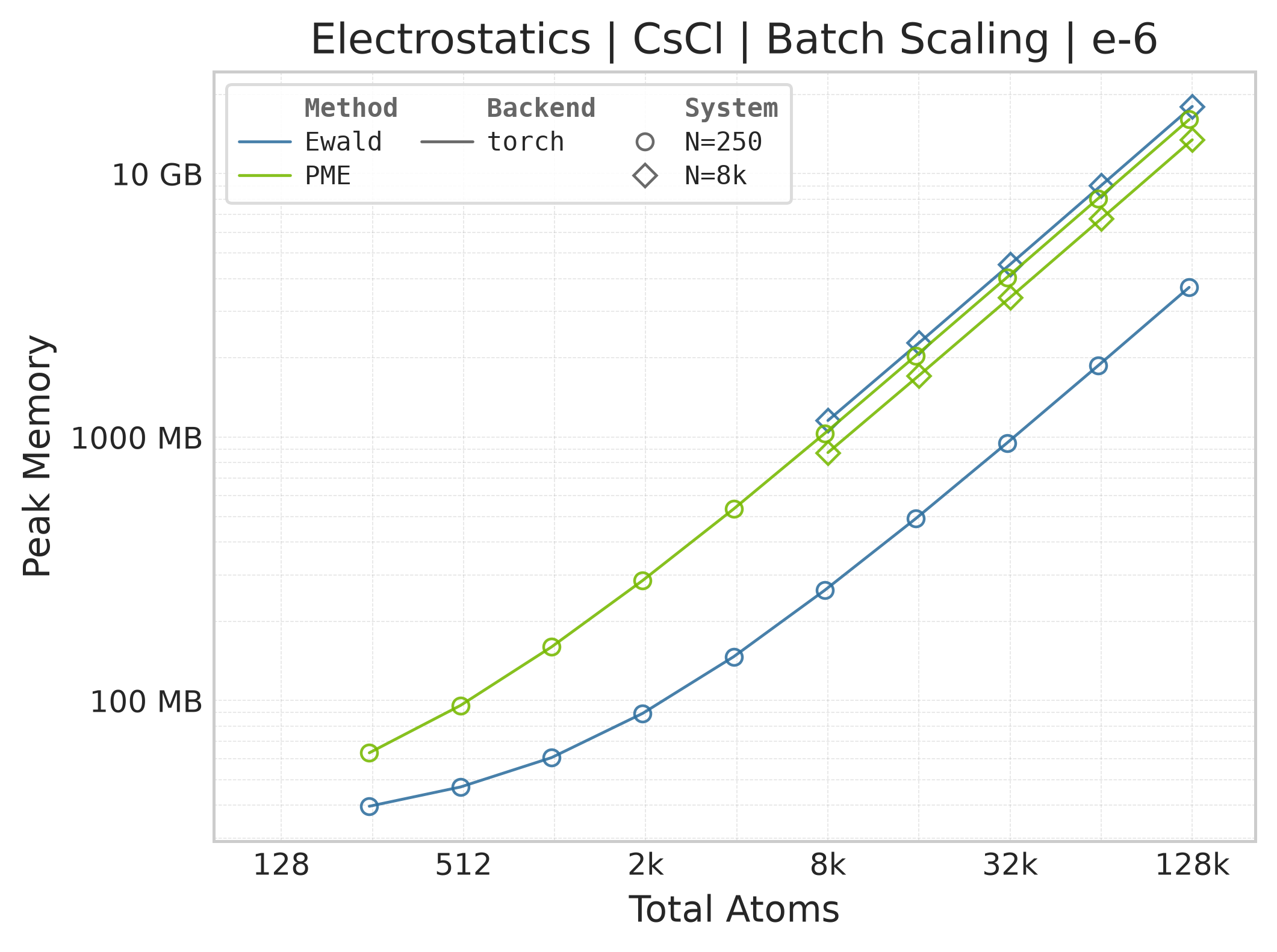

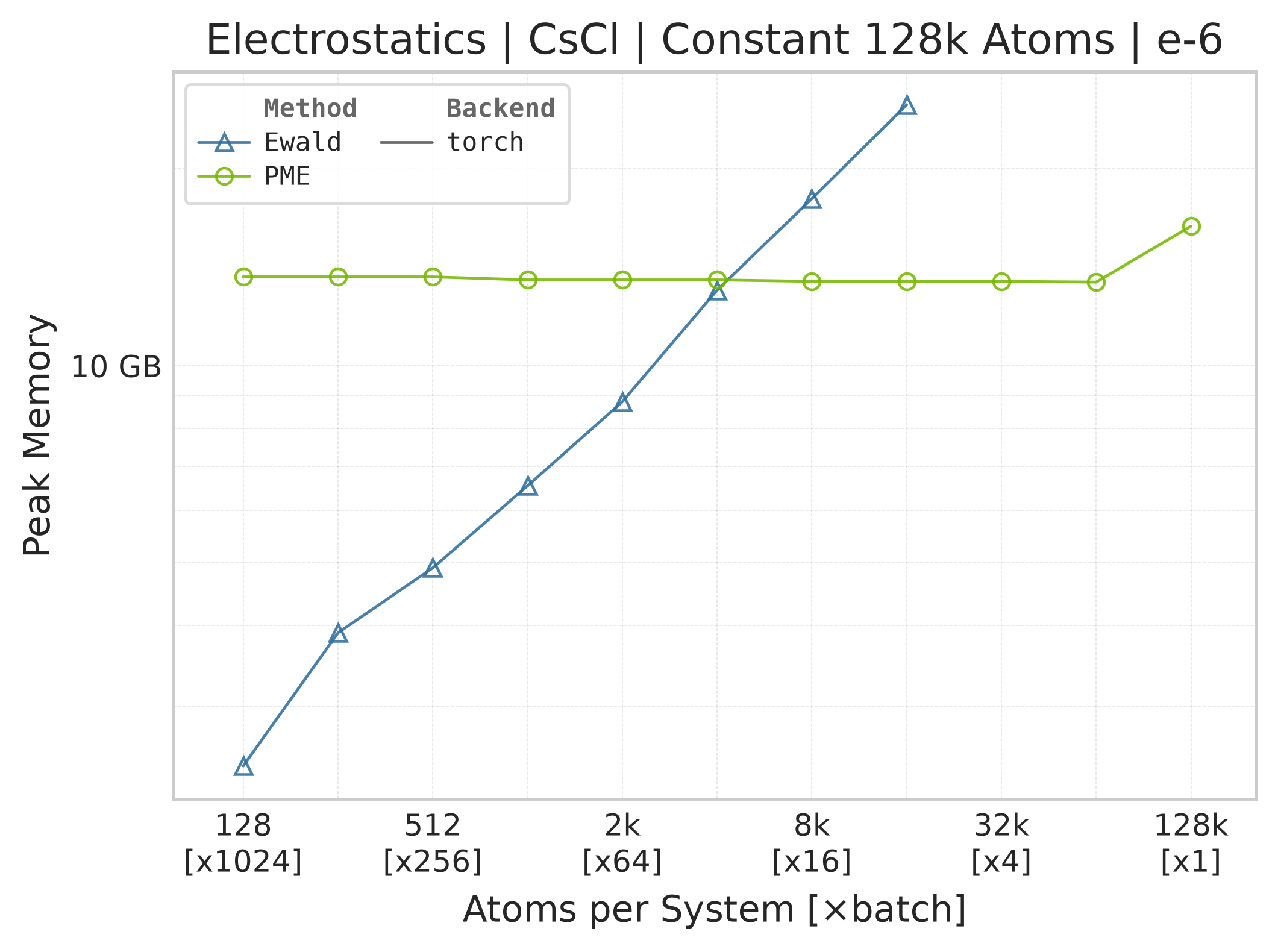

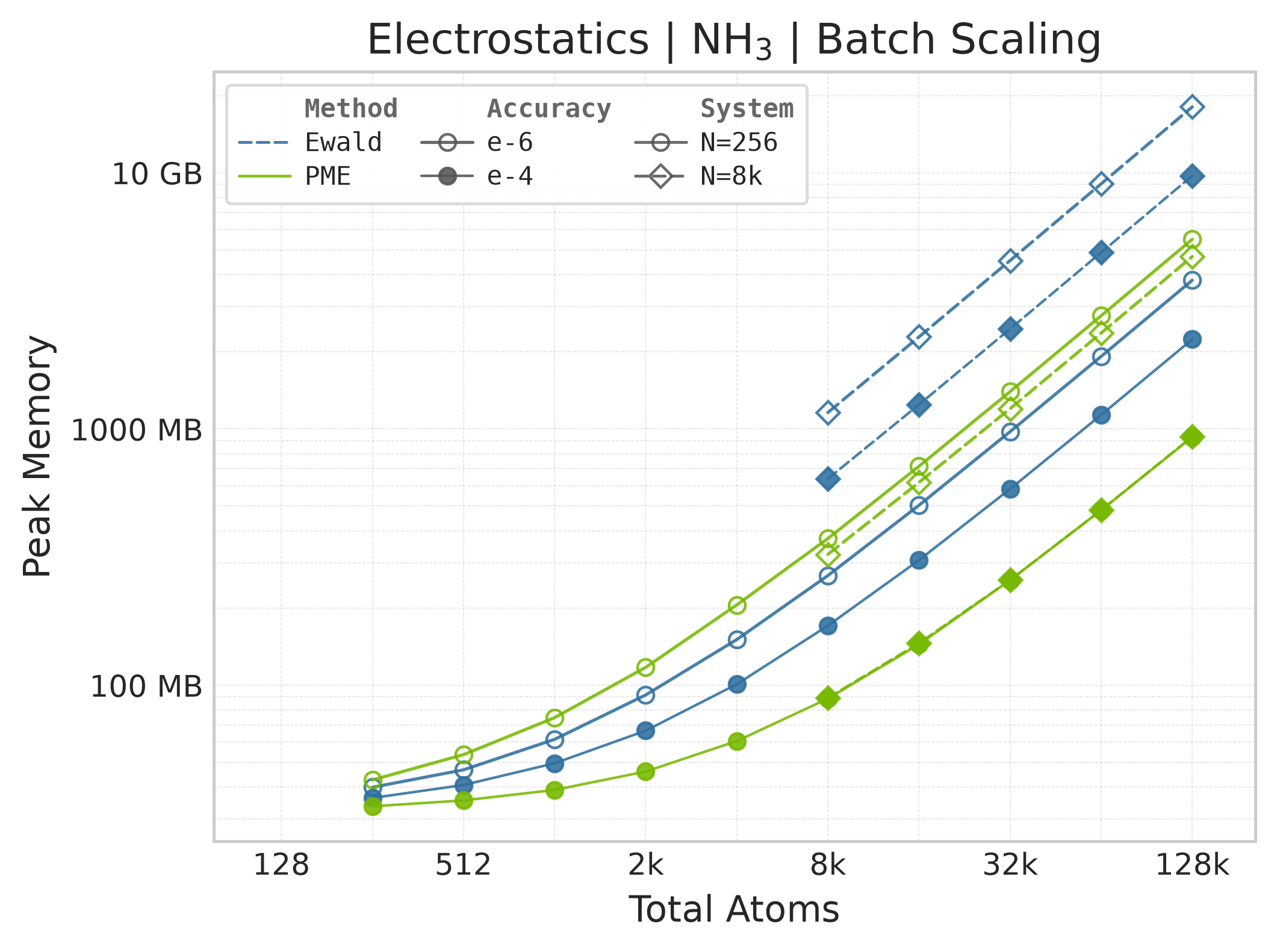

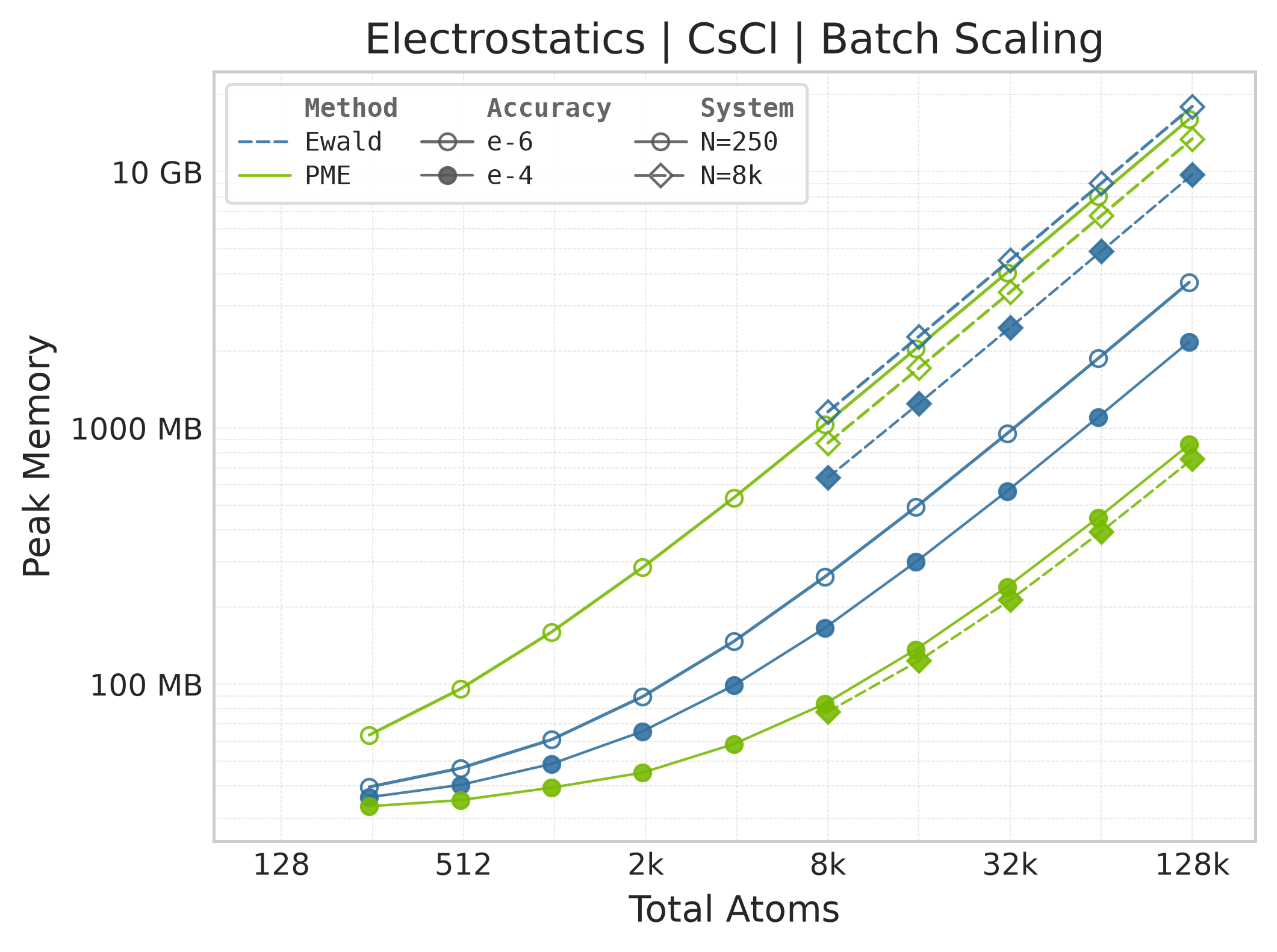

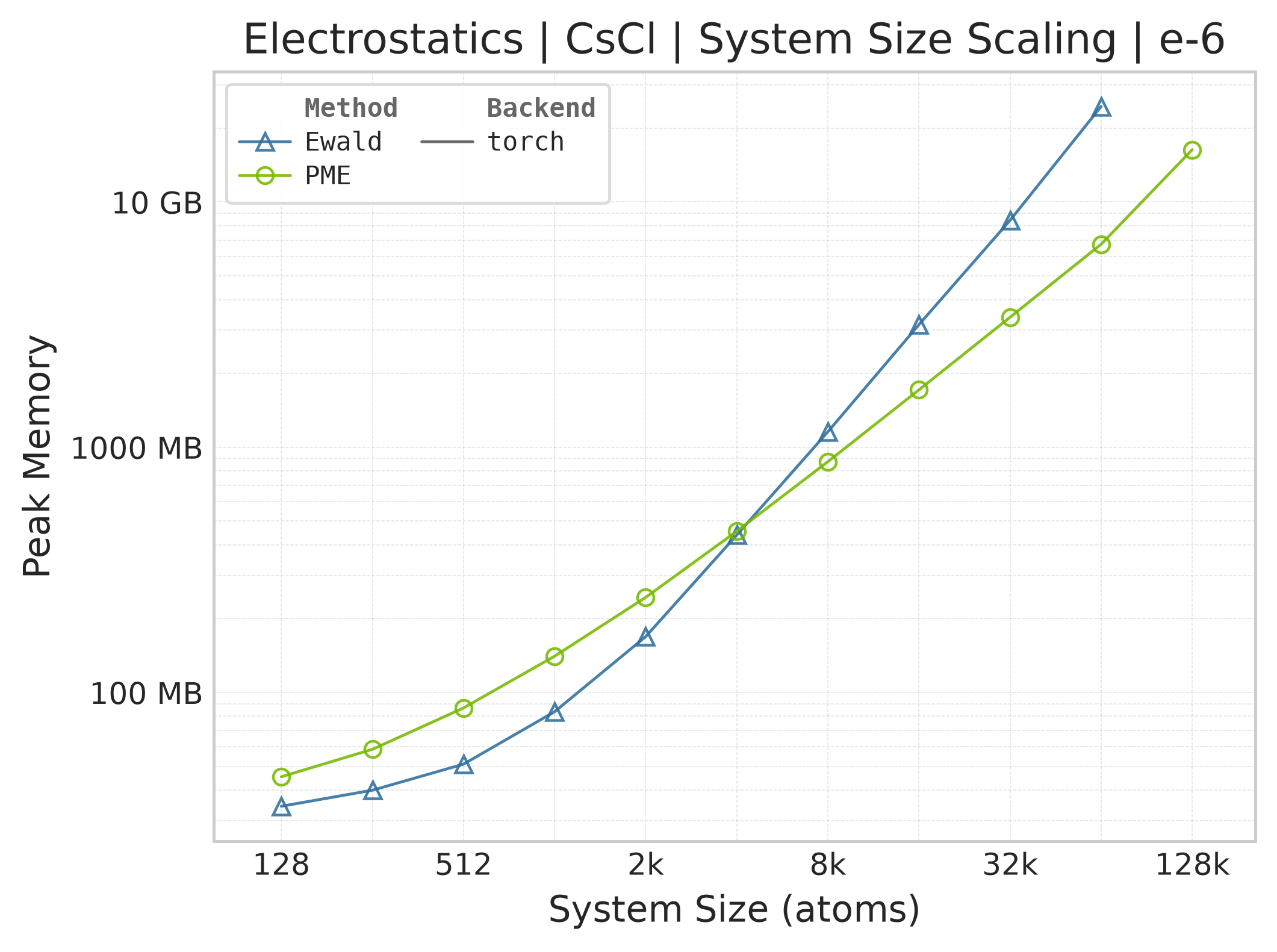

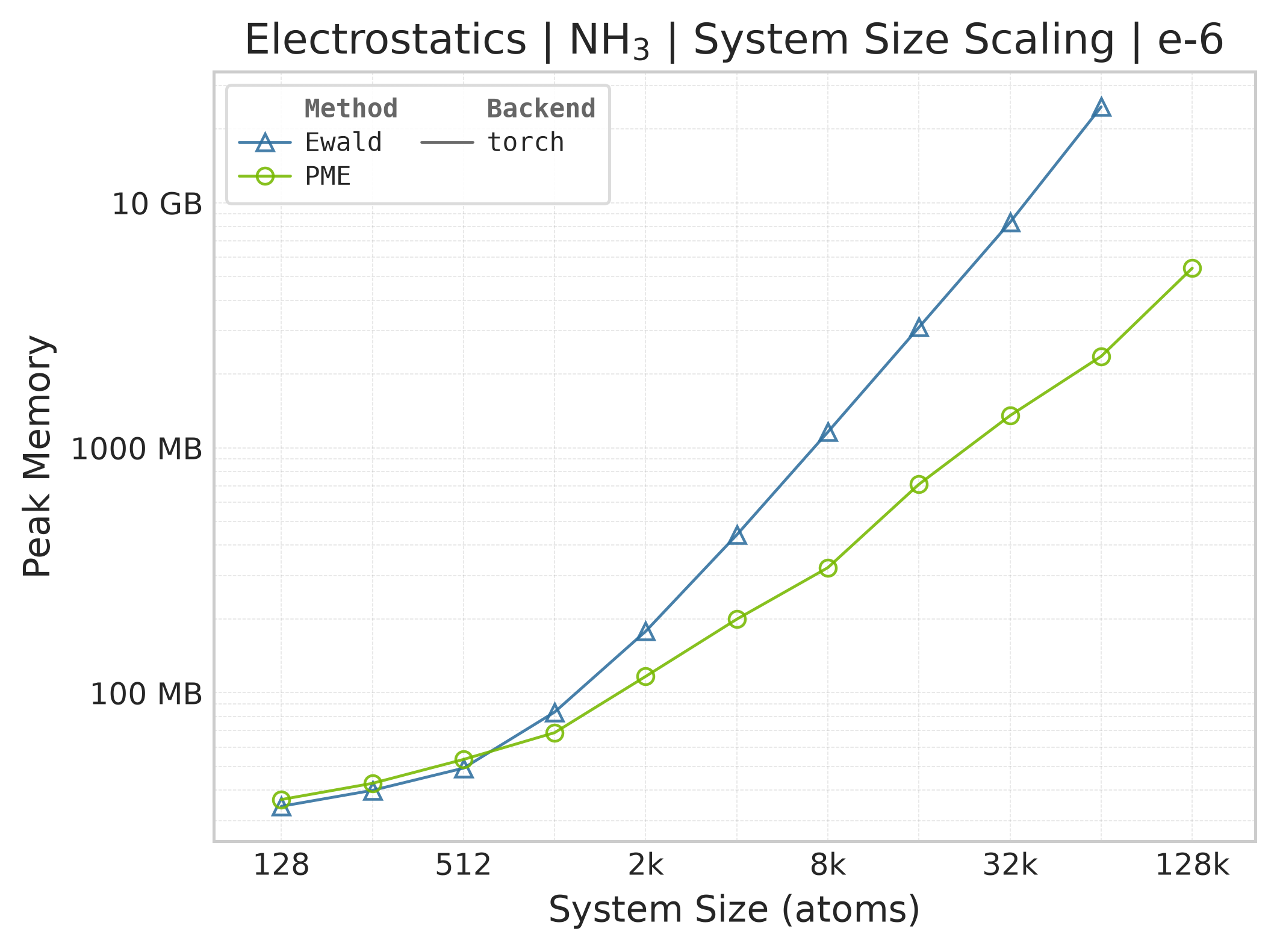

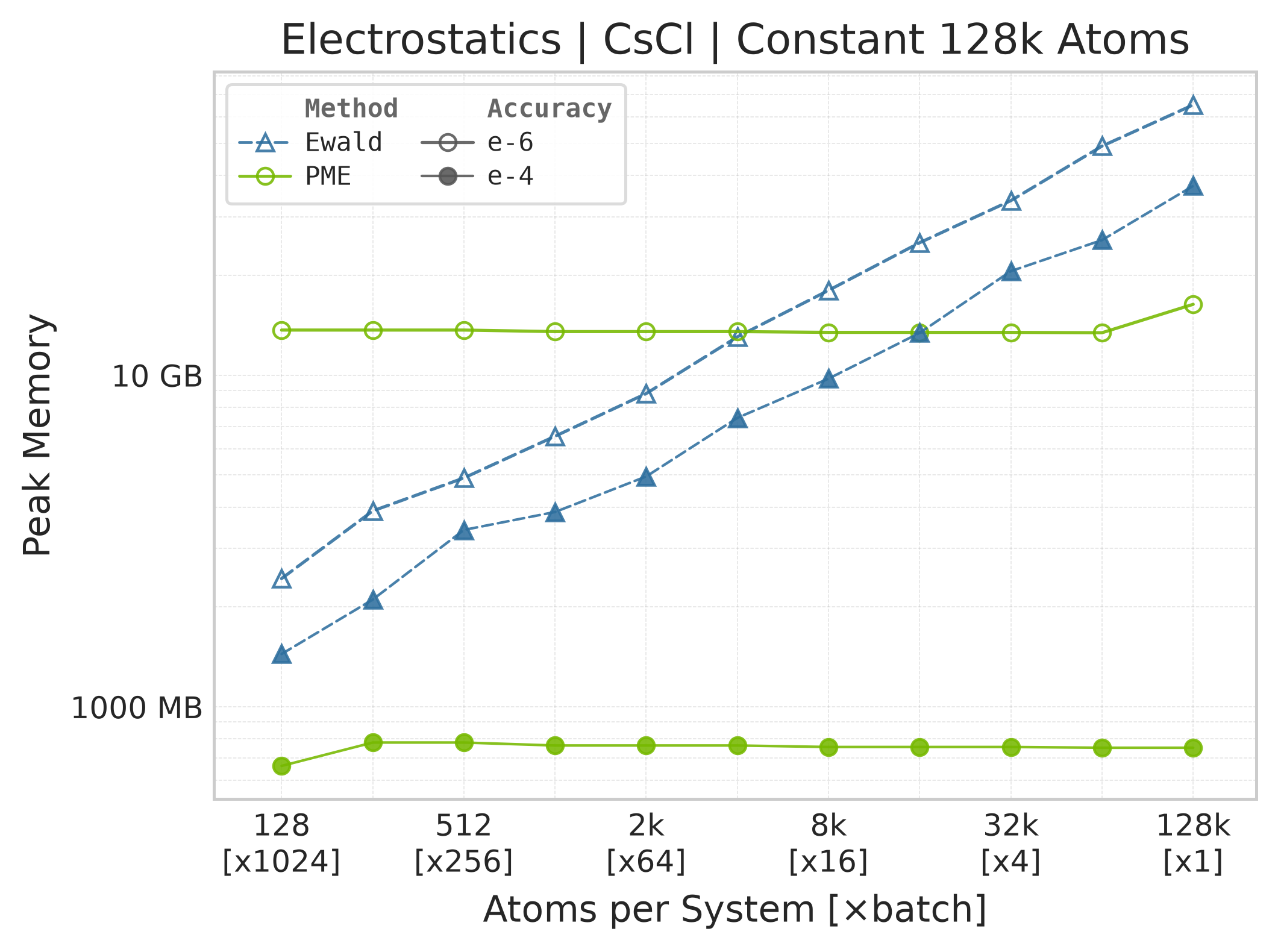

Memory : Peak memory reported by the Torch CUDA allocator vs. system size. Units switch between MB and GB automatically on the y-axis. JAX memory is not measured by this suite.

Benchmark Configuration#

Parameter	Value
Accuracies	\(10^{-4}\) / \(10^{-6}\)
Methods	PME, Ewald summation
System Type	CsCl supercells (programmatic), NH₃ (PDB)
Neighbor List	`batch_cell_list` with direct atom-centric construction, built outside the timed electrostatics region
Warmup Iterations	3
Timing Iterations	Five groups of 10 calls; arithmetic mean across groups
Component Profiling	Disabled for reportable runs
Precision	`float64`

CSV rows always report the independently measured full workload in time_us_per_atom. With --profile-components, the runner additionally fills time_real_us_per_atom and time_reciprocal_us_per_atom; otherwise those diagnostic fields are NaN and their timing methods are not_measured.

Ewald/PME Parameters#

PME uses the public parameter estimator before constructing the neighbor list. The benchmark configuration caps the real-space cutoff at 9 Å and fixes the B-spline order at 5. Each case resolves its alpha and mesh from the cell and requested accuracy. Torch and JAX share the accuracy-based mesh rounding rule: each axis first rounds upward to the least 2/3/5/7-smooth dimension that covers the spline support. The selector then tries to snap to the grid: it prefers power-of-two dimensions when the complete mesh adds at most 25% more points, otherwise tries smooth dimensions divisible by four within the same budget, then keeps the smallest smooth mesh. Public sizing APIs expose fft_padding_fraction=0.25; 0 keeps the smallest smooth mesh. This setup uses integer arithmetic and requires no runtime calibration or FFT planning.

CSV rows record the resolved parameters, input content hashes, source, and timing settings. Torch allocator peaks are measured separately. Direct Ewald retains its independent accuracy-based estimator.

Parameter	Description
`alpha`	Ewald splitting parameter
`k_cutoff`	Reciprocal-space cutoff for Ewald (auto-estimated)
`real_space_cutoff`	Estimated PME cutoff capped by configuration, or estimated direct-Ewald cutoff
`mesh_dimensions`	PME mesh dimensions selected from the accuracy-based sizing formula and FFT snap preferences
`spline_order`	Configured PME B-spline order (5 in the reportable suite)

Running Your Own Benchmarks#

Run from the repository root. The reportable benchmark runner is benchmark_electrostatics_suite.py with benchmark_config.yaml. The YAML already enables PME and Ewald; pass --methods pme or --methods ewald to benchmark only one.

Torch Backend (default)#

RESULT_DIR="$BENCHMARK_SCRATCH/results/manual-el-run"
python -m benchmarks.interactions.electrostatics.benchmark_electrostatics_suite \
    --config benchmarks/interactions/electrostatics/benchmark_config.yaml \
    --backend torch \
    --output-dir "$RESULT_DIR"

JAX Backend#

RESULT_DIR="$BENCHMARK_SCRATCH/results/manual-el-run"
python -m benchmarks.interactions.electrostatics.benchmark_electrostatics_suite \
    --config benchmarks/interactions/electrostatics/benchmark_config.yaml \
    --backend jax \
    --output-dir "$RESULT_DIR"

Extended / Optional Runner#

The benchmark_electrostatics.py extended runner is separate from the reportable suite. It covers slab-corrected Ewald/PME, DSF, optional reference backends, and multipoles, and writes a different GPU/dtype-specific CSV schema. It is not invoked by benchmarks.benchmark_suite or by the reportable runner, and its outputs are not inputs to the el-*.csv plots on this page.

This runner uses optional helpers imported through benchmarks.utils and benchmarks.systems. Install its additional dependencies, including pymatgen, rdkit, and loguru, with make docs-install-benchmarks or directly from benchmarks/benchmark-requires.txt.

The shipped optional configurations are distinct protocols (the shared benchmark_config_ prefix is omitted in the table):

Configuration	Backends and methods	Warmups / timings	Precision	Default work
`extended.yaml`	Toolkit-Ops Torch/JAX and optional `torchpme` for Ewald/PME; Toolkit-Ops Torch and `torch_dsf` for DSF	5 / 10	`float32`	Full, real, and reciprocal components; forces and virial; 12 Å real-space cutoff
`multipole.yaml`	Torch multipole Ewald and PME, `l_max=1`	3 / 10	`float64`	Compiled reciprocal component; forces only

These settings describe the optional CSVs only. They must not be compared as if they were rows from the reportable energy/forces/charge-gradient protocol.

Use benchmark_config_extended.yaml for point-charge, slab, and DSF runs:

# Slab-corrected Ewald and PME (Torch + JAX when both are available)
python -m benchmarks.interactions.electrostatics.benchmark_electrostatics \
    --config benchmarks/interactions/electrostatics/benchmark_config_extended.yaml \
    --backend both --method ewald_slab
python -m benchmarks.interactions.electrostatics.benchmark_electrostatics \
    --config benchmarks/interactions/electrostatics/benchmark_config_extended.yaml \
    --backend both --method pme_slab

# DSF (nvalchemiops Torch + the pure-Torch reference)
python -m benchmarks.interactions.electrostatics.benchmark_electrostatics \
    --config benchmarks/interactions/electrostatics/benchmark_config_extended.yaml \
    --backend both --method dsf --neighbor-format both

Use the dedicated config for the Torch-only multipole sweep:

python -m benchmarks.interactions.electrostatics.benchmark_electrostatics \
    --config benchmarks/interactions/electrostatics/benchmark_config_multipole.yaml \
    --backend torch --l-max 1

Reportable Options#

See --help for the full list; the flags relevant to electrostatics runs are:

--backend {torch,jax} : Computational backend (default: whatever config['runtime']['backend'] is set to, else torch).

--methods {pme,ewald} [{pme,ewald} ...] : Restrict to a subset of methods. Default: run every method marked enabled: true in the YAML (PME + Ewald ship enabled).

--accuracies ACC [ACC ...] : Override the list of relative error tolerances to sweep. Default: values from config['accuracies'] (ships as [1e-4, 1e-6]).

--profile-components : Also time real- and reciprocal-space differentiated components. This is a diagnostic mode; it is disabled in the reportable configuration.

--system, --mode, --timing-runs, --warmup-runs, --output-dir : Shared flags defined in benchmarks/config.py; see --help for details.
