Bounding Real-Time Decode Latency With NV-Fusion

The NVIDIA Fusion decoder (nv-fusion-decoder) is a multi-threaded minimum-weight perfect matching (MWPM) decoder designed for long-running, real-time quantum error correction. It divides the detector matching graph into temporal leaf blocks, solves independent leaves as syndrome data arrives, and fuses their matchings through a dependency graph. This moves most decoding work ahead of the final syndrome round and limits how much work remains before the observable correction is available. Its implementation combines the Sparse Blossom and Fusion Blossom algorithms. The algorithm is motivated by the experimental description in Quantum error correction below the surface code threshold (Google Quantum AI).

This study measures that final response time, called the streaming tail latency, on rotated surface-code Z-memory circuits. For 10,000-round experiments at code distances 5, 7, and 13, NV-Fusion lowered median streaming tail latency by 27–41x and p99 latency by 22–32x relative to monolithic PyMatching.

What Is Streaming Tail Latency?

Streaming tail latency starts immediately before the final enqueue_syndrome() call and ends after get_obs_corrections() returns. It therefore measures the time from receiving the final detector round to obtaining the correction needed by a real-time controller.

The benchmark also records the sum of time spent in every streaming enqueue call. That sum excludes the configured wait between rounds and is useful for measuring decoder work, but it is not the final-round response time reported on this page.

For long shots, the default NV-Fusion schedule uses leaves of 2 * d rounds, where d is the measured code distance. Leaves are solved while later syndrome rounds are still arriving, so only the last leaf and the remaining fusions lie on the final-round critical path. PyMatching instead solves the complete matching graph after the final round, causing its tail latency to grow with the full experiment length.

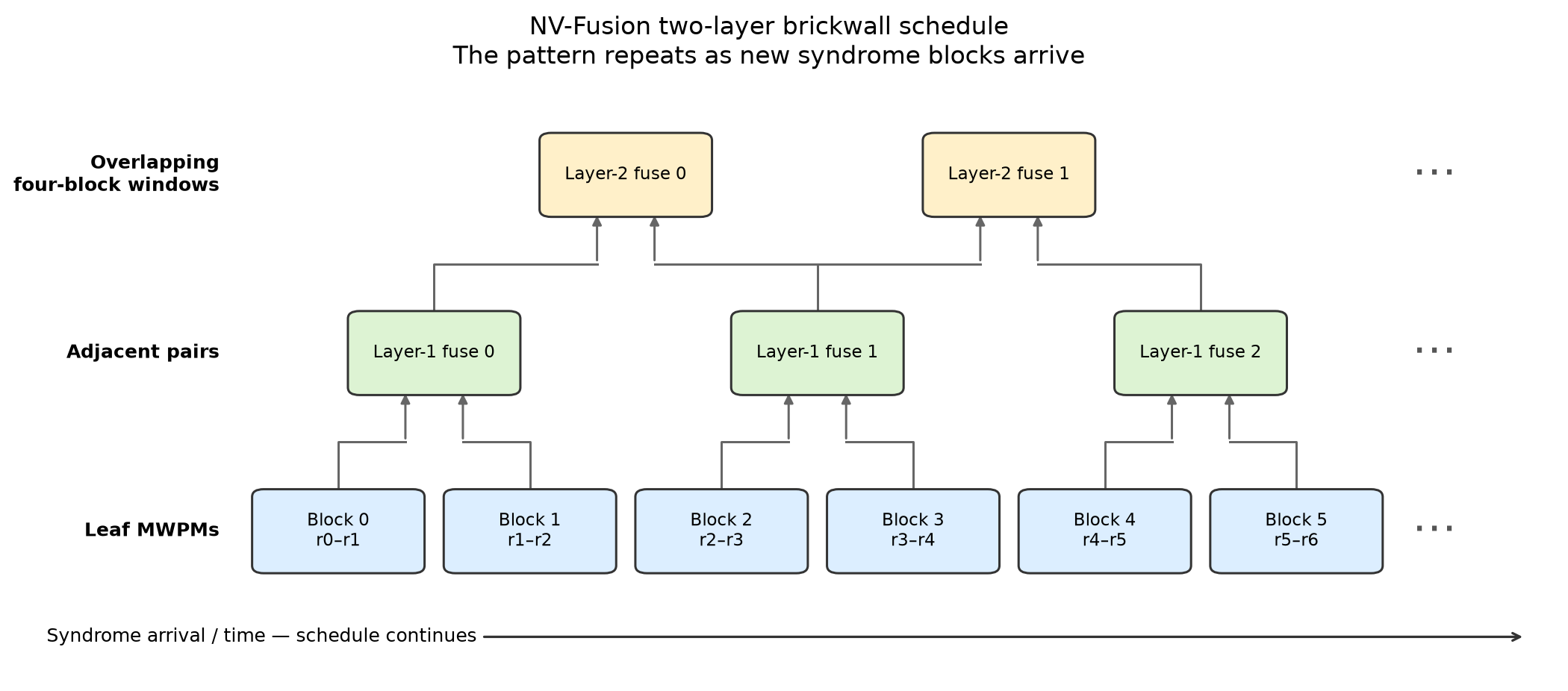

A repeating schedule of temporal leaf blocks feeding adjacent-pair fuses and overlapping four-block fuses

Each layer-1 fuse waits for two adjacent leaf solutions. The staggered layer-2 fuses then combine neighboring layer-1 results, creating overlapping four-block windows while keeping each fusion local.

Experiment Configuration

All measurements were collected on one NVIDIA Vera CPU system. NV-Fusion and PyMatching are CPU decoders; the benchmark was bound to a single NUMA node. Each point contains 1,000 timed shots after 20 warm-up shots. The physical noise model applies the same probability to Clifford depolarization, reset flips, measurement flips, and inter-round data depolarization.

The result logs record the CPU allocation, but do not capture the exact CPU SKU, OS, compiler, CUDA-Q version, container digest, or decoder dependency revisions. The source revision above identifies the benchmark implementation used to interpret the data, not a complete reproducibility manifest.

Decoder and experiment parameters

Parameter

Value

Platform

NVIDIA Vera CPU, one NUMA node

Available CPUs

88 CPUs (CPUs 0–87); 352 reported by hardware_concurrency

Circuit

Stim rotated surface-code Z memory

Code distances

5, 7, 13

Stabilizer rounds

10, 100, 500, 1,000, 2,000, 5,000, 10,000

Physical noise probability

p = 0.001

Timed and warm-up shots

1,000 timed shots and 20 warm-up shots per instance

Streaming round interval

1 microsecond

Decoder threads

num_threads=0; resolved to 84 threads for one instance and reduced when instances share the CPU

CPU placement

Instances pinned to disjoint CPU sets with --pin-instances

NV-Fusion schedule

Automatic

Comparison decoder

PyMatching, using the same decomposed detector error model and sampled syndromes

Streaming Tail Latency

The following figure shows median and p99 streaming tail latency for one decoder instance. Up to 100 rounds, the automatic schedule uses one exact leaf, and NV-Fusion broadly follows PyMatching. Above the 192-round automatic schedule threshold, NV-Fusion switches to fused leaves and its tail latency becomes only weakly dependent on the total number of rounds.

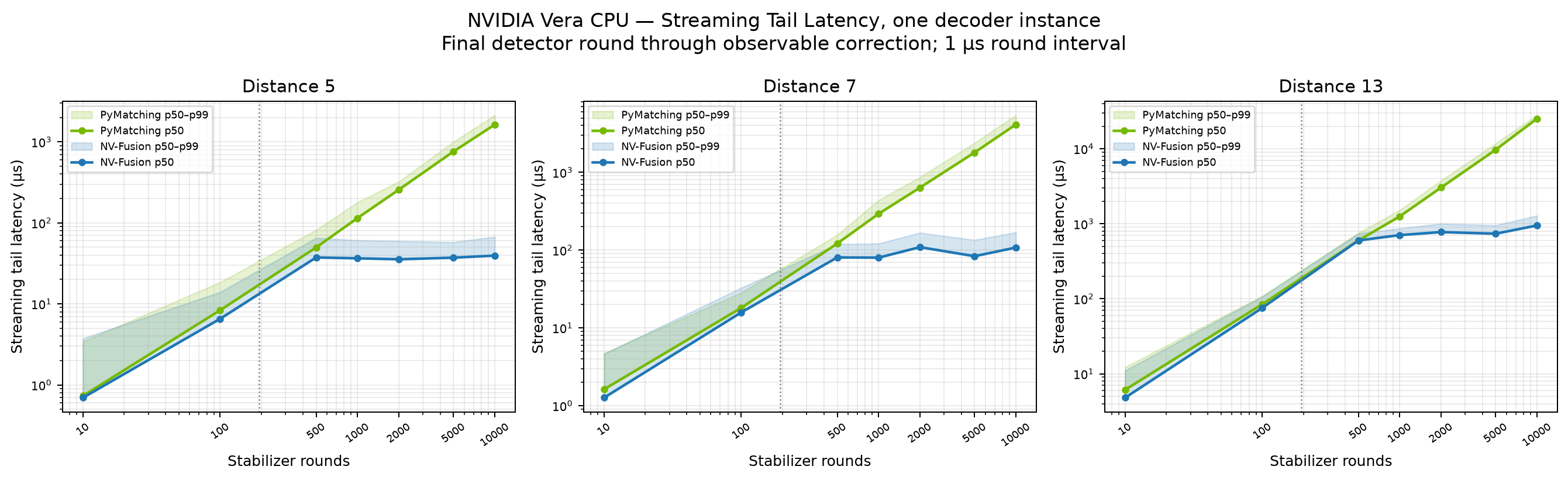

Streaming tail p50 and p99 latency versus rounds for NV-Fusion and PyMatching at code distances 5, 7, and 13

Between 500 and 10,000 rounds, a 20x increase in experiment length, NV-Fusion p99 tail latency increased by only 1.0–1.7x across the three distances, while PyMatching p99 latency increased by 26–37x. At 10,000 rounds, NV-Fusion p99 tail latency ranged from 67 microseconds to 1.28 milliseconds; the corresponding PyMatching values were 2.13 and 28.00 milliseconds.

Median speedup increased from 1.00–1.51x at 500 rounds to 26.6–41.4x at 10,000 rounds. At 10,000 rounds, p99 speedup was 21.8–32.0x.

Lower latency is useful only when decoding quality is preserved. Across these 1,000-shot measurements, the observed logical error rates for NV-Fusion and PyMatching differed by no more than 0.001 in absolute terms. This sample is not sufficient to establish equivalent logical error rates, particularly for points with no observed failures; a production schedule must also be validated with enough shots to resolve its target logical error rate.

These percentiles describe the measured distribution of 1,000 shots. In particular, p99 is determined by roughly the ten slowest samples and should not be interpreted as a worst-case latency guarantee.

Latency With Concurrent Decoders

A real-time system may decode several logical qubits concurrently. The benchmark therefore runs independent decoder instances in parallel, pins each instance to a disjoint share of the NUMA node, and pools their latency samples. The automatic thread allocation decreases from 84 threads for one instance to 40, 19, and 10 threads per instance for two, four, and eight instances, respectively.

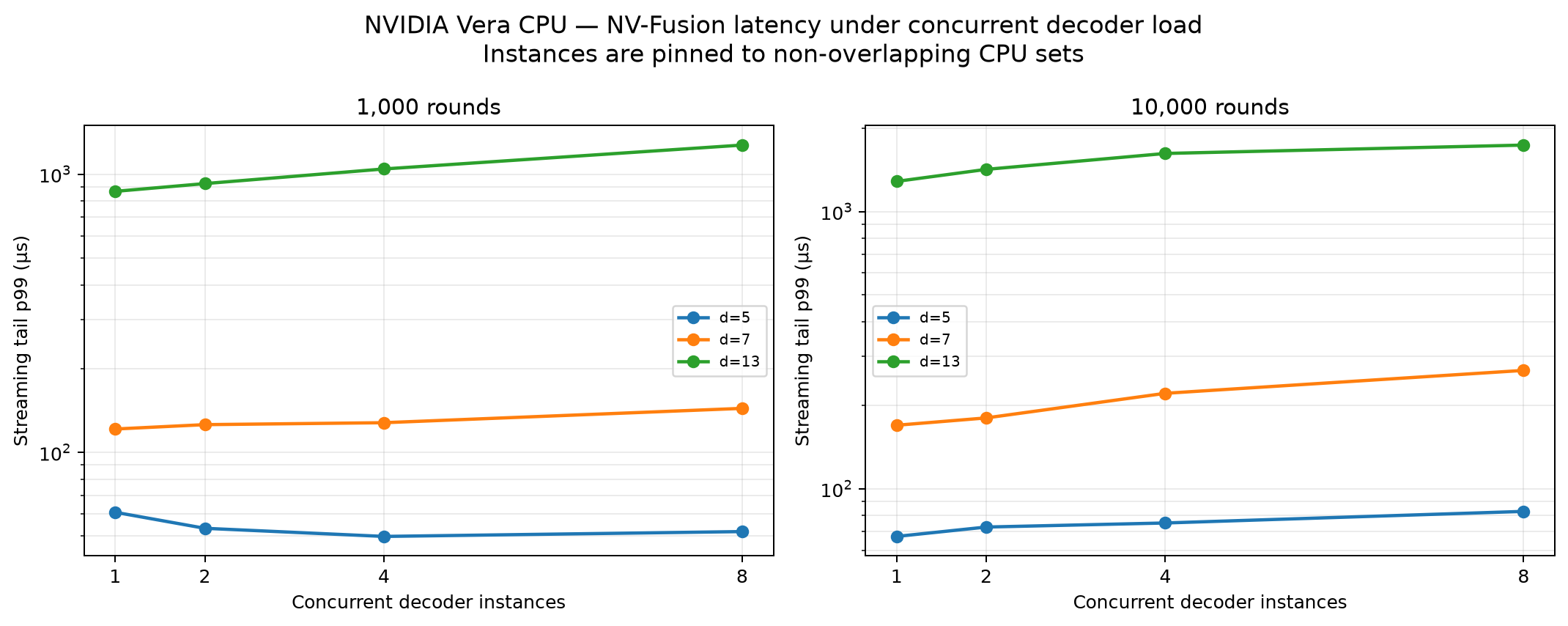

NV-Fusion streaming tail p99 latency versus concurrent decoder instances at distances 5, 7, and 13

At 10,000 rounds, increasing from one to eight instances raised p99 tail latency by 1.23x at distance 5, 1.58x at distance 7, and 1.35x at distance 13. These results include both reduced per-instance thread pools and contention for the shared CPU memory system.
