MoE Performance Guide

MoE Architecture

An MoE module contains num_experts experts and a router that selects top_k of them for each token. To accelerate LLM execution, a multi-GPU deployment usually partitions these experts across ranks, which makes each rank hold only part of them. The module therefore additionally pays for a dispatch (send each token to the rank that owns its target expert) and a combine (bring the results back).

The consequence is that MoE execution time is usually not decided by the expert GEMM alone, but by the combination of how the experts are partitioned, how the tokens are exchanged, and which kernel implementation runs the GEMM:

                    hidden states
                          |
                +-------------------+
                |   Router (top_k)  |
                +-------------------+
                          |
                +-------------------+
                |     Dispatch      | <--- Communication
                +-------------------+
                          |
                +-------------------+
                |    Expert GEMM    | <--- Backend
                +-------------------+
                          |
                +-------------------+
                |      Combine      | <--- Communication
                +-------------------+
                          |
                        output

     Parallelism decides which experts each rank owns,
     and therefore how much there is to dispatch and to compute.

Option	What it controls
Parallelism	How experts are sharded across GPUs: EP (expert parallelism, split by expert) vs TP (tensor parallelism, split inside every expert).
Communication	Which path implements dispatch / combine.
Backend	Which kernel implementation runs the expert GEMM. Each one supports a different set of quantization formats and GPU architectures.

The three can be combined in many ways, and no single combination is always the best one. The right choice changes with the world size and with the number of tokens in flight, which is why prefill and decode of the same deployment often need different answers. It also changes with the quantization format, with the GPU architecture, and with whether expert parallelism stays inside one NVLink domain. The large number of options, together with the many factors they depend on, makes it difficult to find the best MoE configuration for a given deployment.

This guide aims to help you reach a high level of MoE performance in practice. It first gives a recommended configuration for a given platform, model, quantization, world size and workload. If you want to push the performance of a specific workload further, it then shows how to benchmark it yourself. Finally, it introduces the advanced techniques that are available when the recommended configuration is not enough.

Configuration Options

Parallelism

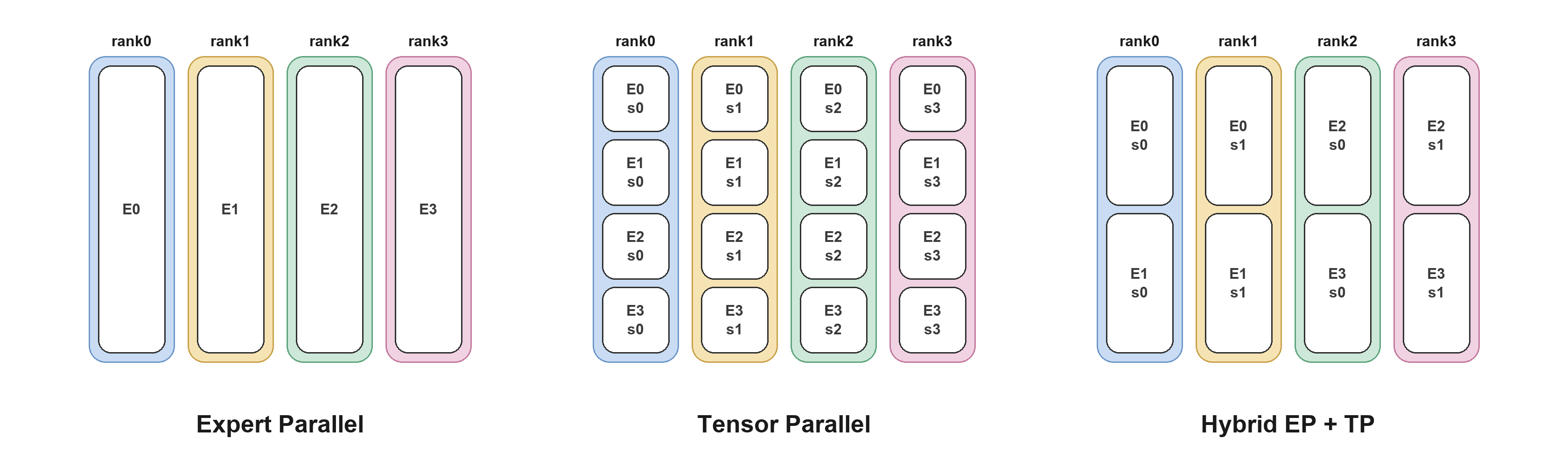

The parallelism scheme determines the communication volume and the computation each GPU performs, and therefore the execution efficiency of the MoE module. It also depends on how the attention module is parallelized, and that in turn is decided by whether the deployment targets low latency or high throughput.

The parallelism scheme of MoE is expressed as a combination of moe_ep_size (experts partitioned across ranks) and moe_tp_size (every rank holds a shard of every expert), with moe_ep_size * moe_tp_size = world_size.

The equations and recommendations in this guide assume pp_size = 1 and cp_size = 1. Pipeline-parallel deployments are not covered; they must use the stage-local MoE group size instead of deployment-wide world_size.

Scheme	Token-expert assignments per rank (balanced routing)	Per-rank GEMM N	Communication
Expert Parallelism (EP)	num_tokens * top_k / ep_size	full intermediate_size	dispatch + combine of activations
Tensor Parallelism (TP)	num_tokens * top_k	intermediate_size / tp_size	AllReduce of outputs, no cross-rank dispatch
hybrid (EP+TP)	num_tokens * top_k / ep_size	intermediate_size / tp_size	both, at reduced scale each

Here, num_tokens counts unique input tokens globally across the MoE parallel group, without counting TP replicas. Each token contributes top_k token-expert assignments. The table sums these assignments over all experts on a rank, and an individual expert’s average GEMM M is num_tokens * top_k / num_experts under balanced routing.

EP keeps each rank’s GEMM full-width and does redundant work on no token, but pays the routing exchange and becomes load-sensitive when the router is skewed. TP still performs router/top-k selection, but needs no cross-rank token dispatch. It stays efficient when there are too few tokens to fill an EP dispatch, although every rank redundantly reads every token and each expert’s GEMM gets narrower as tp_size grows.

The scheme is notated together with the attention parallelism:

Notation	Attention	MoE
DEP	DP	expert parallelism
TEP	TP	expert parallelism
DTP	DP	tensor parallelism
TTP<k>EP<m>	TP	moe_tp_size=k, moe_ep_size=m

Communication

Under expert parallel every rank holds only part of the experts, so a token whose target expert lives elsewhere has to be dispatched there. Each MoE forward therefore sends every token to the ranks owning its top_k experts and brings the partial results back. These are the Dispatch and Combine in the diagram above.

TensorRT-LLM provides several implementations of this exchange. They differ in the physical link (NVLink inside a domain, or the network across it), how the data is moved (one-sided writes into the peer’s memory, or a two-sided handshake), and whether tokens are routed at all. The best communication choice varies with specific workload and deployment environment.

Strategy	Mechanism
NVLINK_ONE_SIDED	One-sided writes into a symmetric MNNVL workspace
NVLINK_TWO_SIDED	Two-sided alltoall over MNNVL
DEEPEP	DeepEP normal-mode kernels over the network
DEEPEPLOWLATENCY	DeepEP low-latency kernels over the network
NCCL_EP	NCCL-EP 0.2 low-latency rank-major exchange, BF16, FP8 QDQ, or NVFP4 dispatch
ALLGATHER	AllGather the tokens, ReduceScatter the outputs

The MEGAMOE backends fuse dispatch and combine into the expert GEMM kernel over a symmetric memory heap, writing straight into a peer’s buffer with no host-side exchange, which forces the communication to NONE.

How to assign a communication strategy?

By default TensorRT-LLM picks the strategy itself (AUTO). The choice is made from the maximum shapes rather than the live token count.

Default selection (`AUTO`)
│
├─ backend == MEGAMOE_*, or DWDP enabled     → NONE
│     (the fused path owns the exchange)
├─ attention TP, or dp_size == 1             → NONE
│     (nothing to dispatch)
├─ moe_tp_size != 1                          → ALLGATHER
│     (an alltoall cannot serve MoE TP)
├─ TRTLLM_FORCE_COMM_METHOD set              → that method
│     (forced: no fallback if it fails to initialize)
│
└─ else, try in order — keep the first that initializes on this platform
       │
       ├─ NVLINK_ONE_SIDED     needs MNNVL, and moe_ep_size == world_size
       │
       ├─ num_experts % moe_ep_size != 0     → ALLGATHER
       │     (candidates below are skipped when not divisible)
       │
       ├─ NVLINK_TWO_SIDED     needs MNNVL
       ├─ NCCL_EP              needs NCCL-EP 0.2+, BF16 activations
       ├─ DEEPEP               needs BF16 activations
       ├─ DEEPEPLOWLATENCY     needs BF16 activations, top_k <= 16
       │
       └─ ALLGATHER            final fallback

To override the default, set TRTLLM_FORCE_COMM_METHOD on every rank:

TRTLLM_FORCE_COMM_METHOD=DEEPEPLOWLATENCY \
  trtllm-serve <model> --tp_size 16 --ep_size 16 --enable_attention_dp \
    --extra_llm_api_options config.yaml

The value must be one of the strategy names in the table above.

Implementation Notes: MOE_DEVELOPER_GUIDE.md.

Backend

TensorRT-LLM provides many MoE implementations, differing in supported quantization formats, target GPU architecture, and expert-GEMM scheduling. This is the Expert GEMM box in the diagram above.

Backend	GPU arch	Quantization
CUTLASS	SM80+	unquantized, FP8 QDQ, FP8 block-scale, NVFP4, W4A16_NVFP4, W4A8_AWQ, W8A16, MXFP4, MXFP8
TRTLLM	SM100 / SM103	NVFP4, FP8 block-scale, W4A8_NVFP4_FP8, W4A16_MXFP4, W4A8_MXFP4_FP8, W4A8_MXFP4_MXFP8, BF16 (a separate FlashInfer path)
CUTEDSL	SM100 / SM103 / SM107, SM120 / SM121 (CUTLASS prefill / FlashInfer decode)	NVFP4, BF16 (SM107), W4A16_NVFP4 (SM120 / SM121)
CUTEDSL_FC12	SM107	NVFP4
DEEPGEMM	SM100 / SM103 / SM107	FP8 block-scale
DENSEGEMM	SM100 / SM103	NVFP4
MEGAMOE_CUTEDSL	SM100 / SM103 / SM107	NVFP4
MEGAMOE_DEEPGEMM	SM100 / SM103	W4A8_MXFP4_MXFP8
MARLIN	SM89 – SM99	NVFP4, W4A16_NVFP4 (BF16 activations)
TRITON (Deprecated)	SM90 (GPT-OSS)	BF16, FP8 QDQ, W4A16_MXFP4, W4A8_MXFP4_FP8

How to assign a backend?

Set moe_config.backend in the trtllm-serve config yaml:

moe_config:
  backend: TRTLLM          # AUTO (default), CUTLASS, CUTEDSL, CUTEDSL_FC12, TRTLLM, DEEPGEMM,
                           # DENSEGEMM, MEGAMOE_CUTEDSL, MEGAMOE_DEEPGEMM, MARLIN, ...

The Backend Capability Matrix and Quantization Support tables: MOE_DEVELOPER_GUIDE.md.

Terminology

• world_size: number of ranks (GPUs) the model is served on.

• NVLink domain: the set of GPUs reachable over NVLink. GB300 (NVL72) forms one domain of up to 72 GPUs, so EP crosses the domain only when world_size > 72. B300 forms one domain per 8-GPU node, so EP crosses the domain when world_size > 8 and falls back to the slower network.

• prefill / decode: prefill processes the whole prompt at once (large GEMM M, compute bound), decode produces one token per request per step (small M, communication and memory bound). The two phases usually need different configurations.

Recommended Configuration

To provide recommended MoE configurations, we use the following two derived variables.

• activated_tokens_per_rank = num_tokens * top_k / world_size (pure EP, moe_tp_size = 1) This is the total number of token-expert assignments processed by one rank, summed across its local experts. The per-rank workload is not determined by batch size alone: it also depends on top_k and world_size. Folding both in provides a unified threshold for the actual per-rank workload across models and batch sizes.

• dispatch_KB = activated_tokens_per_rank * hidden_size * bytes_per_elem / 1024 This quantifies the communication volume between ranks as a byte count (bytes_per_elem is 0.5 for NVFP4 and 1.0 for W4A8_MXFP4_MXFP8), providing a unified threshold for selecting the communication method.

Decision Tree

═════════════════ STEP1: Parallelism ═════════════════

Parallelism
│
└─ MoE Module                                        →  EP


═════════════════ STEP2: Backend ═════════════════

Backend
│
├─ SM90  (Hopper: H100 / H200)
│      │
│      ├─ gpt-oss  → CUTLASS/TRITON
│      └─ else     → CUTLASS
│
├─ SM120 / SM121  (RTX PRO 6000 Blackwell / DGX Spark)
│      │
│      ├─ NVFP4, tokens per rank < 64, ep_size==1, no attention DP  → CUTEDSL
│      └─ else                                                      → CUTLASS
│
└─ SM100 / SM103  (B300 / GB300)
       │
       ├─ attention TP                                          → TRTLLM
       │
       └─ attention DP
              │
              ├─ GB300 with world_size <= 72, or B300 with world_size <= 8
              │  (EP within one NVLink domain)
              │      │
              │      ├─ NVFP4
              │      │      ├─ decode (CUDA graph on)
              │      │      │      ├─ activated_tokens_per_rank <= 512
              │      │      │      │      ├─ world_size <= 8      → TRTLLM
              │      │      │      │      └─ else                 → CUTEDSL
              │      │      │      └─ else                        → MEGAMOE_CUTEDSL
              │      │      │
              │      │      └─ prefill (CUDA graph off)
              │      │             ├─ activated_tokens_per_rank <= 16384
              │      │             │                              → TRTLLM
              │      │             └─ else                        → MEGAMOE_CUTEDSL
              │      │
              │      └─ W4A8_MXFP4_MXFP8                          → MEGAMOE_DEEPGEMM
              │
              └─ B300 with world_size > 8
                 (EP crosses the NVLink domain)
                        ├─ NVFP4             → CUTEDSL
                        └─ W4A8_MXFP4_MXFP8  → TRTLLM


═════════════════ STEP3: Communication ═════════════════

Communication
│
├─ EP crosses the NVLink domain
│  (B300 with world_size > 8)
│      │
│      ├─ dispatch_KB <= 8192  (~8 MB per rank)
│      │      ├─ DEEPEPLOWLATENCY supported  → DEEPEPLOWLATENCY
│      │      └─ else                        → AUTO
│      │
│      └─ else                               → ALLGATHER
│
└─ else                                      → AUTO

AUTO is the default: leave TRTLLM_FORCE_COMM_METHOD unset and TensorRT-LLM selects the strategy itself.

DEEPEPLOWLATENCY supported: hidden_size in {2048, 2560, 3584, 4096, 5120, 6144, 7168} and top_k <= 16.

Notes

• The tree is an empirical summary from bench_moe sweeps on TensorRT-LLM v1.3.0rc26 (21dc97fbc8, 2026-09-13).

• Coverage: GB300 / B300, typical workloads of key models (DeepSeek-V4-Pro, GLM-5, Kimi-K2, Kimi-K3, Qwen3.8) on the MoE Perf Dashboard, module-level bench_moe with perfect routing and --use_low_precision_moe_combine. GB300 is covered only through world_size <= 72; larger GB300 deployments (EP crossing the NVLink domain) were not benchmarked.

• Perfect routing assigns tokens evenly across experts. Relative rankings of backends and communication strategies hold under this configuration, but a real router can be skewed, so absolute latency can differ from what the deployment sees.

• The decision tree is a fit to those sweeps, and may not be optimal for a specific workload. Meanwhile, results can become outdated as kernels and autotuning change. To push performance further, test the options yourself with bench_moe, as described in Tuning a Specific Workload.

Hints for Making the Choice

Impacts of Each Option

Parallelism decides how much work lands on each rank. Under expert parallelism a rank holds a subset of the experts, so a token has to be dispatched to whichever rank owns its target expert. A hybrid TP x EP layout splits every expert as well, which shrinks the dispatch, at the cost of a narrower GEMM on each rank and of every rank having to read every token.

Communication sets how the dispatch and the combine are carried out. The tokens can be written straight into the peer’s memory with no handshake, exchanged after a two-sided handshake, sent out over the network, or not routed at all, which means broadcasting every token to every rank and reducing the outputs back afterwards.

Backend governs how the expert GEMM runs. The implementations differ in how their kernels are tuned, some picking parameters from the problem shape and some using a fixed configuration. The MegaMoE backends are the special case as they fold the exchange into the GEMM kernel and move data while they compute.

A Uniform View for Three Options

All three options switch for the same reason. Every configuration pays two kinds of cost, and the number of tokens in flight decides which one dominates.

          fixed cost                                  data volume
   kernel launches, cross-rank                 bytes to dispatch and
   synchronisation, handshakes,                combine, FLOPs the
   peers to coordinate with                    expert GEMM runs
          |                                             |
          +---------------- threshold ------------------+
          |                                             |
   dominates when few tokens                    dominates when many
   are in flight                                tokens are in flight

Rationale Behind Each Threshold

The MoE layout is always expert parallelism. Under attention DP, expert parallelism is always the optimum at every workload point in the sweep. Under attention TP, a hybrid TP x EP layout can be slightly better at small token counts, but the gain is small (0.3% at the median and 4% at the 90th percentile). A deployment that is squeezing the last few percent out of a low-latency configuration should still measure TP<k>EP<m>.

The fused path is not always the best choice. The fused scheme carries a fixed setup cost: three cross-rank NVLink barriers inside the kernel, plus metadata preparation whose cost follows the token bucket size rather than the number of tokens actually present. With few tokens in flight that cost exceeds the overlapped dispatch and combine cost, and fusion only takes off once the workload is large enough for the cost to be amortised and for the overlap to repay it. The threshold activated_tokens_per_rank = 512 with CUDA graph on is derived from the bench_moe sweep over typical workloads.

We prefer TRTLLM over CUTEDSL when world_size <= 8. A small world size leaves many experts on each rank (num_experts / world_size can be 32 to 224), so the grouped GEMM has many groups with a small M dimension. In these cases, TRTLLM-Gen’s tuned kernels fit that shape better than the generic CuteDSL grouped GEMM.

The crossover moves out much further with CUDA graph off. A CUDA graph replays a recorded launch sequence and reduces the kernel launch overhead during forward. Without CUDA graph, TRTLLM drives its whole MoE from one host-side call that issues its kernels internally, while the fused path is a chain of separate host-side steps, including quantize, staging copies, the fused kernel, and a separate top-k reduce, each carrying its own dispatch and tactic lookup. With CUDA graph off, the host overhead dominates the execution of the MoE module. The fused path’s expert-GEMM advantage therefore stays out of the comparison until TRTLLM’s GPU work has grown past that dispatch cost, which moves the crossover point much further out. In a disaggregated deployment, CUDA graph off maps to the prefill phase.

Attention TP always uses TRTLLM. Attention TP is a low-latency choice, and the MoE forward never gets a large batch: across the disaggregated-serving workloads behind this guide, attention TP appears only in the decode phase and activated_tokens_per_rank never exceeds 64. CUTEDSL does overtake TRTLLM once the expert GEMM becomes compute bound, but that only happens above roughly 24576 activated tokens per rank, which attention TP does not reach in a disaggregated deployment.

Impacts of Crossing the NVLink Domain

An NVL72 system keeps up to 72 GPUs in one domain, while B300 keeps 8 per node. Once expert parallelism extends beyond that, the tokens go over the network, where per-GPU bandwidth drops. The same bytes then cost close to twenty times more, which moves every crossover earlier and is why the cross-domain branch switches on absolute dispatch bytes (dispatch_KB) rather than on a token count (activated_tokens_per_rank).

The thresholds above were obtained from sweeps over typical workloads on key models, all measured with --use_low_precision_moe_combine enabled. This flag speeds up NVLINK_ONE_SIDED by about 4% while leaving the fused NONE path untouched.

Typical Deployment Scenarios

Low Latency

Optimize for the smallest possible per-step latency at low concurrency, accepting lower GPU utilization.

Attention	TP
MoE parallelism	EP
Backend	TRTLLM on SM100 / SM103
Communication	NONE (attention TP needs no dispatch)
CUDA graph	On

The MoE forward here is launch-bound, not compute-bound: activated_tokens_per_rank stays small. Every fixed cost is therefore fully exposed. If you are chasing the last few percent, measure the hybrid TP<k>EP<m> layouts as well, under attention TP they can edge out pure EP at small token counts.

High Throughput

Optimize for aggregate throughput at high concurrency, accepting higher per-request latency.

Attention	DP
MoE parallelism	EP, typically wide
Backend	MEGAMOE_CUTEDSL (NVFP4) / MEGAMOE_DEEPGEMM (W4A8_MXFP4_MXFP8)
Communication	NONE
CUDA graph	On for decode, off for prefill

Attention DP accumulates tokens per rank as concurrency grows. Fusion is for that case: the MoE module has enough work to benefit from overlapping dispatch and combine with the GEMM operations. It is also important to keep expert parallelism inside one NVLink domain if you can.

Disaggregated Serving

In a disaggregated deployment the two phases are separate services and should be configured separately rather than compromised into one profile:

• Prefill / context servers: large M, compute bound, CUDA graph off. Follow the CUDA-graph-off branch of the tree (crossover at activated_tokens_per_rank = 16384). This is also the only phase where DWDP applies.

• Decode / generation servers: small M per step, communication and memory bound, CUDA graph on. Follow the CUDA-graph-on branch (crossover at 512). This is the phase where EPLB pays off, since expert imbalance shows up as a straggler on every step.

Tuning a Specific Workload

The decision trees give a general configuration that works well across a wide range of deployments. For a specific workload and world size, searching the whole configuration space can find a better one.

bench_moe runs the MoE module on its own, without deploying the full model. With the model, quantization, world size and token counts fixed, --search full expands backend, communication, parallel layout, and CUDA Graph. This includes layouts the decision trees do not select, such as MoE TP and the even-split hybrid (D|T)TP<k>EP<m> modes. It can be executed as:

PYTHONPATH=tests/microbenchmarks:${PYTHONPATH:-} \
mpirun --allow-run-as-root --oversubscribe --bind-to none --map-by slot -np 8 \
  python3 -m bench_moe \
  --world_size 8 \
  --model deepseek_v4_pro \
  --quant NVFP4 \
  --search full \
  --balanced_total_num_tokens 256 8192 \
  --use_low_precision_moe_combine \
  --output_file out/deepseek_v4_pro_ws8.json

This writes out/deepseek_v4_pro_ws8.json and out/deepseek_v4_pro_ws8.analysis.xlsx. If attention parallelism is already decided, pin --parallel_mode DEP or TEP and --search backend comm instead.

The JSON has results (one object per candidate) and rankings grouped by (num_tokens, parallel_mode). Start at rankings: best is the status=success candidate with the lowest score_ms in that group.

{
  "num_tokens": 256,
  "parallel_mode": "DEP",
  "best": {
    "backend": "TRTLLM",
    "comm_method": "NVLinkOneSided",
    "cuda_graph": true,
    "score_ms": 0.85,
    "status": "success"
  }
}

score_ms is the trimmed mean of per-iteration slowest-rank forward times; lower is better. In the workbook, best_by_workload lists those winners and all_results is the full table. Take the DEP or TEP group that matches the serving job. CUDA Graph on/off share that group, so if the job pins Graph (on for decode, off for prefill), filter cuda_graph in all_results. Set the winner with moe_config.backend and TRTLLM_FORCE_COMM_METHOD as in Configuration Options.

Search axes and further recipes: BENCH_MOE_USER_GUIDE.md.

One thing to know before trusting a bench_moe ranking: it has been cross-validated against end-to-end disaggregated serving, detailed in Appendix.

Advanced Techniques

The two techniques below go beyond picking a configuration: they change how experts are placed or how their weights move, and each targets a cost that the options above cannot remove.

Expert Parallelism Load Balancer (EPLB)

Expert Parallelism Load Balancer (EPLB), introduced in DeepSeek-V3, is proposed to remove the straggler effect caused by uneven expert activation under large-scale expert parallelism, where the ranks holding the most-activated experts dominate the latency of the whole module while the rest idle. It replicates hot experts and packs the resulting slots onto ranks so that the expected load is even, deriving the assignment from measured routing statistics.

It is recommended to enable EPLB on MoE models when expert parallelism is large (ep_size typically > 8), the MoE is a significant fraction of runtime, and ranks are imbalanced. This setting usually corresponds to the decode phase of a disaggregated deployment.

EPLB can use an offline plan or recompute the placement online. Offline EPLB is suitable when the traffic pattern is known and stable. Online EPLB is for production when the traffic mix can drift, because hot experts differ across datasets and requests. The online path follows that drift without regenerating a placement. The cost is a full host copy of the experts, background weight-update threads, and platform requirements (GDRCopy, huge pages). At small per-GPU batches, the statistics and update work may not hide behind the MoE GEMMs.

Usage: examples/wide_ep/ep_load_balancer/README.md.

Distributed Weight Data Parallelism (DWDP)

Distributed Weight Data Parallelism (DWDP) targets layer-wise synchronization and token-exchange overhead in the prefill phase, where differences in sequence lengths and KV-cache hits can leave workers waiting for the slowest rank. DWDP keeps a resident subset of experts on each worker and asynchronously prefetches the remaining expert weights from its NVLink peers. Each worker computes on its own tokens, replacing synchronized token dispatch/combine with weight transfers that overlap with computation.

DWDP can be applied to the prefill phase of a serving system when the context batch is large enough for computation to hide the weight prefetch. Decode typically has too little computation to hide these transfers, so generation keeps the normal EP dispatch. Experimental cost of DWDP is a TTFT regression, from a lower service rate on the context stage, plus extra prefetch memory: each rank stores only its local experts, but adds a double-buffered region of about two layers of remote experts. DWDP cannot run on the same MoE path as EPLB. A disaggregated deployment can use DWDP on context servers and EPLB on generation servers.

Usage: examples/dwdp/README.md and blog19.

Appendix

MoE Perf Dashboard

The MoE Perf Dashboard publishes MoE performance of typical workloads on key models. The recommended configuration in this guide is summarized from these sweeps. Browse it at MoE Perf Dashboard.

Covered Models with MoE Configuration:

Model	num_experts	top_k	hidden_size	intermediate_size
DeepSeek-V4-Pro	384	6	7168	3072
GLM-5	256	8	6144	2048
Kimi-K2	384	8	7168	2048
Kimi-K3	896	16	3584	3072
Qwen3.8	512	10	8192	2048

Cross Validation of Microbenchmark with End-to-end Performance

The microbenchmark ranks MoE configurations by module latency, without serving the full model. This ranking is validated against disaggregated serving.

Baseline: the Pareto serving configuration

The baseline is the MoE configuration on the Pareto Curve of the InferenceX Dashboard. The curve comes from InferenceX’s public benchmark (fixed ISL/OSL, sweeping concurrency and parallelism), and each point is Pareto-optimal for system throughput and per-user interactivity (tps_per_user).

These configurations are published in InferenceX:

• Dashboard: each point’s tooltip shows the recipe (model, framework, precision, parallelism, ISL/OSL, concurrency) and a link to the GitHub Actions run.

• nvidia-master.yaml: lists the disagg topology (num-worker, tp, ep, dp-attn, ISL/OSL, concurrency) and the CONFIG_FILE path.

• NVIDIA/srt-slurm: the CONFIG_FILE YAML holds the serving configuration (moe_config.backend, EP/TP, CUDA Graph, batch, MTP), for example ctx1_gen4_tep8_batch1_eplb0_mtp3.yaml.

How a Pareto point is compared to bench_moe microbenchmark?

Each serving case (ISL, OSL, instance layout, batch, MTP, concurrency) is mapped to a bench_moe shape: the same model configuration, quantization, hardware, world size, num_tokens of the MoE forward, and CUDA Graph on or off. Candidates with the same deployed attention parallelism (DP or TP) are then ranked by module latency (score_ms, lower is better).

The deployed MoE config is compared with that best bench_moe candidate and labeled Match if they are the same, Mismatch otherwise. Each Mismatch is evaluated in disaggregated serving with both the Pareto-curve configuration and the bench_moe candidate, and compared on tps_per_user (tokens per second per user).

• Improvement: the bench_moe candidate raises tps_per_user by more than 3%.

• Flat: the change is within ±3%.

• Regression: the bench_moe candidate lowers tps_per_user by more than 3%.

Model	Hardware	Match	Mismatch	Improvement	Flat	Regression	Regression after Perfect Routing
DeepSeek-V4-Pro	GB300	92/108 (85.19%, prefill 54/54, decode 38/54)	16/108	9/16	6/16	1/16	0/16
Kimi-K2	GB200	33/50 (66%, prefill 25/25, decode 8/25)	17/50	4/17	10/17	3/17	0/17
Kimi-K2	GB300	35/50 (70%, prefill 25/25, decode 10/25)	15/50	1/15	13/15	1/15	0/15
GLM-5	GB200	75/92 (81.52%, prefill 43/46, decode 32/46)	17/92	3/17	13/17	1/17	0/17
GLM-5	GB300	36/90 (40.00%, prefill 1/45, decode 35/45)	54/90	5/54	49/54	0/54	0/54
DeepSeek-R1	GB200	92/104 (88.46%, prefill 49/52, decode 43/52)	12/104	5/12	7/12	0/12	0/12

Regression cases are re-run with perfect routing (balanced expert load). They go to zero in the table, indicating the end-to-end gap came from router skew, as bench_moe ranks under balanced expert load.
