CorrDiff COSMO-REA2 Score-Based Data Assimilation

Assimilate weather-station observations into COSMO-REA2 with CorrDiff.

This example covers a dense-station region spanning the Netherlands, NW Germany, and the adjacent North Sea. Given an ERA5 driving state for a historical time and sparse GHCNHourly 10 m wind reports, diffusion posterior sampling (DPS) steers the diffusion downscaler's denoising trajectory toward the observations, producing a high-resolution COSMO-REA analysis guided toward what the stations actually measured.

CorrDiff-COSMO is a single-shot diagnostic downscaler. It does not propagate state between times; each call produces an independent analysis conditioned on the ERA5 input for one time.

A random subset of stations is assimilated and the analysis is compared to the held-out stations. This single case illustrates observation behavior at the held-out sites -- it is not a statistical skill assessment, and one time / split / ensemble does not guarantee improvement.

In this example you will learn:

  • Load CorrDiffCosmoEra5SDA on a COSMO-REA2 sub-domain
  • Fetch an ERA5 driving state (ARCO ERA5) and regrid it onto the downscaler's input grid
  • Fetch GHCNHourly 10 m wind observations over the model domain

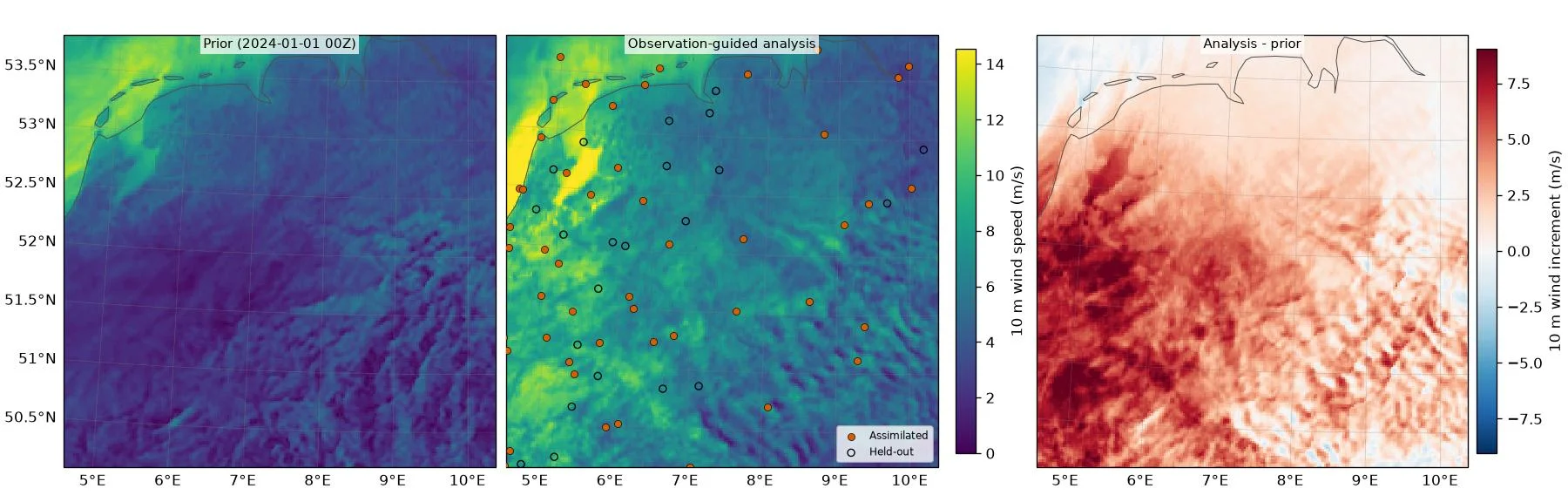

  • Produce a prior (free, no-obs) downscaling and an observation-guided analysis
  • Compare both fields to held-out stations (prior vs analysis RMSE)

Note

The default ~206 x 206-cell sub-domain completed in a few minutes and used about 5 GB of GPU memory in one test run (bf16). Set DOMAIN = None for the full domain; its time and memory requirements were not validated.

Set Up

import os
from datetime import datetime, timedelta

import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr
from scipy.interpolate import RegularGridInterpolator
from scipy.spatial import cKDTree

INIT_TIME = datetime(2024, 1, 1, 0)
ASSIMILATE = ("u10m", "v10m")
# Set to None for the full COSMO-REA2 domain.
DOMAIN = dict(lat_min=50.2, lat_max=53.8, lon_min=4.6, lon_max=10.4)
ENSEMBLE_SIZE = 1
SAMPLER_STEPS = 12  # Reduced from 18 for this example.
SDA_STD_OBS = 0.5
SDA_GAMMA = 5e-5
VAL_FRAC = 0.3
OBS_TIME_TOLERANCE = timedelta(minutes=30)
DEVICE = "cuda:0"
DATA = ccrs.PlateCarree()
PROJ = ccrs.RotatedPole(pole_longitude=-170.0, pole_latitude=40.0)

os.makedirs("outputs", exist_ok=True)

Load Assimilation Model

CorrDiffCosmoEra5SDA wraps a diffusion-mode CorrDiffCosmoEra5 downscaler. assimilate_variables is required and must be identity-transform, unit-scale output channels -- here the 10 m wind, which matches the station reports' height.

from earth2studio.data import ARCO_ERA5, GHCNHourly, fetch_data
from earth2studio.models.da import CorrDiffCosmoEra5SDA

package = CorrDiffCosmoEra5SDA.load_default_package()

sda = CorrDiffCosmoEra5SDA.load_model(
    package,
    assimilate_variables=ASSIMILATE,
    resolution="rea2",
    domain=DOMAIN,
    time_tolerance=OBS_TIME_TOLERANCE,
    number_of_samples=ENSEMBLE_SIZE,
    sampler_steps=SAMPLER_STEPS,
    sda_std_obs=SDA_STD_OBS,
    sda_gamma=SDA_GAMMA,
    amp=True,
).to(DEVICE)
sda.seed = 0
Console output98 lines
Downloading config.json: 0%|          | 0.00/74.0 [00:00<?, ?B/s]
Downloading config.json: 100%|██████████| 74.0/74.0 [00:00<00:00, 750B/s]

Downloading metadata.json: 0%|          | 0.00/5.46k [00:00<?, ?B/s]
Downloading metadata.json: 100%|██████████| 5.46k/5.46k [00:00<00:00, 44.7kB/s]
Downloading metadata.json: 100%|██████████| 5.46k/5.46k [00:00<00:00, 44.3kB/s]

Downloading diffusion.mdlus: 0%|          | 0.00/663M [00:00<?, ?B/s]
Downloading diffusion.mdlus: 2%|▏         | 10.0M/663M [00:01<01:21, 8.37MB/s]
Downloading diffusion.mdlus: 3%|▎         | 20.0M/663M [00:01<00:38, 17.5MB/s]
Downloading diffusion.mdlus: 5%|▍         | 30.0M/663M [00:01<00:24, 27.3MB/s]
Downloading diffusion.mdlus: 6%|▌         | 40.0M/663M [00:01<00:17, 37.4MB/s]
Downloading diffusion.mdlus: 8%|▊         | 50.0M/663M [00:01<00:13, 47.2MB/s]
Downloading diffusion.mdlus: 9%|▉         | 60.0M/663M [00:01<00:11, 55.1MB/s]
Downloading diffusion.mdlus: 11%|█         | 70.0M/663M [00:02<00:09, 63.3MB/s]
Downloading diffusion.mdlus: 12%|█▏        | 80.0M/663M [00:02<00:08, 68.2MB/s]
Downloading diffusion.mdlus: 14%|█▎        | 90.0M/663M [00:02<00:08, 73.3MB/s]
Downloading diffusion.mdlus: 15%|█▌        | 100M/663M [00:02<00:07, 76.6MB/s]
Downloading diffusion.mdlus: 17%|█▋        | 110M/663M [00:02<00:07, 81.8MB/s]
Downloading diffusion.mdlus: 18%|█▊        | 120M/663M [00:02<00:07, 80.1MB/s]
Downloading diffusion.mdlus: 20%|█▉        | 130M/663M [00:02<00:07, 78.8MB/s]
Downloading diffusion.mdlus: 21%|██        | 140M/663M [00:02<00:07, 76.0MB/s]
Downloading diffusion.mdlus: 23%|██▎       | 150M/663M [00:03<00:07, 76.8MB/s]
Downloading diffusion.mdlus: 24%|██▍       | 160M/663M [00:03<00:06, 77.7MB/s]
Downloading diffusion.mdlus: 26%|██▌       | 170M/663M [00:03<00:06, 82.3MB/s]
Downloading diffusion.mdlus: 27%|██▋       | 180M/663M [00:03<00:06, 84.2MB/s]
Downloading diffusion.mdlus: 30%|███       | 200M/663M [00:03<00:05, 89.6MB/s]
Downloading diffusion.mdlus: 32%|███▏      | 210M/663M [00:03<00:05, 89.3MB/s]
Downloading diffusion.mdlus: 33%|███▎      | 220M/663M [00:03<00:05, 90.8MB/s]
Downloading diffusion.mdlus: 35%|███▍      | 230M/663M [00:03<00:05, 90.1MB/s]
Downloading diffusion.mdlus: 36%|███▌      | 240M/663M [00:04<00:04, 89.7MB/s]
Downloading diffusion.mdlus: 38%|███▊      | 250M/663M [00:04<00:05, 82.8MB/s]
Downloading diffusion.mdlus: 39%|███▉      | 260M/663M [00:04<00:04, 87.5MB/s]
Downloading diffusion.mdlus: 41%|████      | 270M/663M [00:04<00:04, 84.2MB/s]
Downloading diffusion.mdlus: 42%|████▏     | 280M/663M [00:04<00:04, 82.5MB/s]
Downloading diffusion.mdlus: 44%|████▎     | 290M/663M [00:04<00:04, 79.0MB/s]
Downloading diffusion.mdlus: 45%|████▌     | 300M/663M [00:04<00:04, 84.1MB/s]
Downloading diffusion.mdlus: 47%|████▋     | 310M/663M [00:04<00:04, 86.1MB/s]
Downloading diffusion.mdlus: 48%|████▊     | 320M/663M [00:05<00:04, 86.6MB/s]
Downloading diffusion.mdlus: 50%|████▉     | 330M/663M [00:05<00:03, 90.0MB/s]
Downloading diffusion.mdlus: 51%|█████     | 340M/663M [00:05<00:03, 90.6MB/s]
Downloading diffusion.mdlus: 53%|█████▎    | 350M/663M [00:05<00:03, 90.3MB/s]
Downloading diffusion.mdlus: 54%|█████▍    | 360M/663M [00:05<00:03, 88.3MB/s]
Downloading diffusion.mdlus: 56%|█████▌    | 370M/663M [00:05<00:03, 87.5MB/s]
Downloading diffusion.mdlus: 59%|█████▉    | 390M/663M [00:05<00:03, 87.0MB/s]
Downloading diffusion.mdlus: 60%|██████    | 400M/663M [00:06<00:03, 80.2MB/s]
Downloading diffusion.mdlus: 62%|██████▏   | 410M/663M [00:06<00:03, 83.7MB/s]
Downloading diffusion.mdlus: 63%|██████▎   | 420M/663M [00:06<00:03, 73.7MB/s]
Downloading diffusion.mdlus: 65%|██████▍   | 430M/663M [00:06<00:03, 77.2MB/s]
Downloading diffusion.mdlus: 66%|██████▋   | 440M/663M [00:06<00:03, 73.5MB/s]
Downloading diffusion.mdlus: 68%|██████▊   | 450M/663M [00:06<00:03, 71.6MB/s]
Downloading diffusion.mdlus: 69%|██████▉   | 460M/663M [00:06<00:02, 73.2MB/s]
Downloading diffusion.mdlus: 71%|███████   | 470M/663M [00:07<00:02, 74.9MB/s]
Downloading diffusion.mdlus: 72%|███████▏  | 480M/663M [00:07<00:02, 74.0MB/s]
Downloading diffusion.mdlus: 74%|███████▍  | 490M/663M [00:07<00:02, 74.1MB/s]
Downloading diffusion.mdlus: 75%|███████▌  | 500M/663M [00:07<00:02, 77.0MB/s]
Downloading diffusion.mdlus: 77%|███████▋  | 510M/663M [00:07<00:02, 74.5MB/s]
Downloading diffusion.mdlus: 78%|███████▊  | 520M/663M [00:07<00:01, 77.4MB/s]
Downloading diffusion.mdlus: 80%|███████▉  | 530M/663M [00:07<00:01, 81.0MB/s]
Downloading diffusion.mdlus: 81%|████████▏ | 540M/663M [00:08<00:01, 83.0MB/s]
Downloading diffusion.mdlus: 83%|████████▎ | 550M/663M [00:08<00:01, 81.4MB/s]
Downloading diffusion.mdlus: 84%|████████▍ | 560M/663M [00:08<00:01, 83.9MB/s]
Downloading diffusion.mdlus: 86%|████████▌ | 570M/663M [00:08<00:01, 80.5MB/s]
Downloading diffusion.mdlus: 87%|████████▋ | 580M/663M [00:08<00:01, 82.2MB/s]
Downloading diffusion.mdlus: 89%|████████▉ | 590M/663M [00:08<00:00, 82.1MB/s]
Downloading diffusion.mdlus: 90%|█████████ | 600M/663M [00:08<00:00, 83.0MB/s]
Downloading diffusion.mdlus: 92%|█████████▏| 610M/663M [00:08<00:00, 86.4MB/s]
Downloading diffusion.mdlus: 93%|█████████▎| 620M/663M [00:09<00:00, 80.1MB/s]
Downloading diffusion.mdlus: 95%|█████████▍| 630M/663M [00:09<00:00, 79.0MB/s]
Downloading diffusion.mdlus: 96%|█████████▋| 640M/663M [00:09<00:00, 81.5MB/s]
Downloading diffusion.mdlus: 98%|█████████▊| 650M/663M [00:09<00:00, 85.4MB/s]
Downloading diffusion.mdlus: 99%|█████████▉| 660M/663M [00:09<00:00, 88.1MB/s]
Downloading diffusion.mdlus: 100%|██████████| 663M/663M [00:09<00:00, 72.9MB/s]

Downloading stats.json: 0%|          | 0.00/7.07k [00:00<?, ?B/s]
Downloading stats.json: 100%|██████████| 7.07k/7.07k [00:00<00:00, 56.5kB/s]
Downloading stats.json: 100%|██████████| 7.07k/7.07k [00:00<00:00, 55.9kB/s]

Downloading grids.nc: 0%|          | 0.00/4.32M [00:00<?, ?B/s]
Downloading grids.nc: 100%|██████████| 4.32M/4.32M [00:00<00:00, 6.24MB/s]
Downloading grids.nc: 100%|██████████| 4.32M/4.32M [00:00<00:00, 6.15MB/s]

Downloading invariants_norm_stats.json: 0%|          | 0.00/992 [00:00<?, ?B/s]
Downloading invariants_norm_stats.json: 100%|██████████| 992/992 [00:00<00:00, 9.90kB/s]

Downloading invariants_rea2_ext.nc: 0%|          | 0.00/114M [00:00<?, ?B/s]
Downloading invariants_rea2_ext.nc: 9%|▉         | 10.0M/114M [00:00<00:09, 11.9MB/s]
Downloading invariants_rea2_ext.nc: 18%|█▊        | 20.0M/114M [00:01<00:04, 21.5MB/s]
Downloading invariants_rea2_ext.nc: 26%|██▋       | 30.0M/114M [00:01<00:02, 32.3MB/s]
Downloading invariants_rea2_ext.nc: 44%|████▍     | 50.0M/114M [00:01<00:01, 52.8MB/s]
Downloading invariants_rea2_ext.nc: 53%|█████▎    | 60.0M/114M [00:01<00:00, 59.9MB/s]
Downloading invariants_rea2_ext.nc: 62%|██████▏   | 70.0M/114M [00:01<00:00, 65.8MB/s]
Downloading invariants_rea2_ext.nc: 70%|███████   | 80.0M/114M [00:01<00:00, 72.4MB/s]
Downloading invariants_rea2_ext.nc: 79%|███████▉  | 90.0M/114M [00:01<00:00, 77.2MB/s]
Downloading invariants_rea2_ext.nc: 88%|████████▊ | 100M/114M [00:02<00:00, 77.2MB/s]
Downloading invariants_rea2_ext.nc: 97%|█████████▋| 110M/114M [00:02<00:00, 76.1MB/s]
Downloading invariants_rea2_ext.nc: 100%|██████████| 114M/114M [00:02<00:00, 54.0MB/s]
2026-08-25 11:55:54.508 | INFO     | earth2studio.models.dx.corrdiff_cosmo_era5:load_model:1916 - Loaded CorrDiffCosmoEra5 resolution=rea2 mode=diffusion (22 output channels)

Fetch Coarse-Resolution State

Fetch an ERA5 reanalysis for the historical time and regrid it onto the downscaler's regional input grid. The result is an xr.DataArray with dims (time, variable, lat, lon) -- the same driving state the downscaler conditions on; the time coord also drives its day/night (solar) input.

def regrid_to_input(x_src, src_coords, dvars, dlat, dlon):
    """Subset to the downscaler's ERA5 variables and bilinearly regrid a global
    regular lat/lon field onto its regional grid. Returns [n_var, n_lat, n_lon]."""
    svars = list(src_coords["variable"])
    slat = np.asarray(src_coords["lat"]).astype(float)
    slon = np.asarray(src_coords["lon"]).astype(float)
    field = x_src.reshape(-1, len(svars), len(slat), len(slon))[0].float().cpu().numpy()
    field = field[[svars.index(v) for v in dvars]]  # select the ERA5 channels
    if slat[0] > slat[-1]:  # ensure ascending latitude
        slat, field = slat[::-1], field[:, ::-1, :]
    field_w = np.concatenate([field, field[:, :, 0:1]], axis=-1)  # lon wrap column
    slon_w = np.concatenate([slon, [slon[0] + 360.0]])
    lon2d, lat2d = np.meshgrid(dlon % 360.0, dlat)
    pts = np.stack([lat2d.ravel(), lon2d.ravel()], axis=-1)
    out = np.empty((len(dvars), len(dlat), len(dlon)), np.float32)
    for c in range(len(dvars)):
        out[c] = RegularGridInterpolator(
            (slat, slon_w), field_w[c], bounds_error=False, fill_value=None
        )(pts).reshape(len(dlat), len(dlon))
    return out


ic = sda.init_coords()[0]
dvars = list(ic["variable"])
dlat, dlon = np.asarray(ic["lat"]), np.asarray(ic["lon"])

t = np.array([np.datetime64(INIT_TIME)])
x_src, c_src = fetch_data(
    ARCO_ERA5(),
    time=t,
    variable=np.array(dvars),
    lead_time=np.array([np.timedelta64(0, "h")]),
    device=DEVICE,
)
era5 = regrid_to_input(x_src, c_src, dvars, dlat, dlon)
x_da = xr.DataArray(
    data=era5[None],
    dims=["time", "variable", "lat", "lon"],
    coords={"time": t, "variable": np.array(dvars), "lat": dlat, "lon": dlon},
)
Console output7 lines
Fetching ARCO data:   0%|          | 0/12 [00:00<?, ?it/s]
Fetching ARCO data:   8%|▊         | 1/12 [00:00<00:01,  6.59it/s]
Fetching ARCO data:  42%|████▏     | 5/12 [00:00<00:00, 20.53it/s]
Fetching ARCO data:  67%|██████▋   | 8/12 [00:01<00:00,  4.40it/s]
Fetching ARCO data:  83%|████████▎ | 10/12 [00:02<00:00,  3.89it/s]
Fetching ARCO data: 100%|██████████| 12/12 [00:02<00:00,  3.44it/s]
Fetching ARCO data: 100%|██████████| 12/12 [00:02<00:00,  4.11it/s]

Fetch Observations

Fetch paired wind reports and split stations into assimilated and held-out sets.

glat = sda.model.lat_output_numpy
glon = sda.model.lon_output_numpy
bbox = (float(glat.min()), float(glon.min()), float(glat.max()), float(glon.max()))

stations = GHCNHourly.get_stations_bbox(bbox)
ghcn = GHCNHourly(stations=stations, time_tolerance=OBS_TIME_TOLERANCE, verbose=False)
raw = ghcn(INIT_TIME, list(ASSIMILATE))
raw = raw[raw["variable"].isin(ASSIMILATE)].dropna(subset=["observation"]).copy()
raw["dt"] = (pd.to_datetime(raw["time"]) - INIT_TIME).abs()
raw = raw.sort_values("dt").drop_duplicates(["station", "variable"], keep="first")
complete_stations = raw.groupby("station")["variable"].nunique().eq(len(ASSIMILATE))
raw = raw[raw["station"].isin(complete_stations[complete_stations].index)]
station_ids = sorted(raw["station"].unique())
print(f"Stations with {'+'.join(ASSIMILATE)} at {INIT_TIME}: {len(station_ids)}")
if len(station_ids) < 2:
    raise RuntimeError(
        f"Need at least 2 usable stations (got {len(station_ids)}); widen DOMAIN, "
        "loosen OBS_TIME_TOLERANCE, or choose another time."
    )

rng = np.random.default_rng(0)
n_val = min(len(station_ids) - 1, max(1, int(round(len(station_ids) * VAL_FRAC))))
val_ids = set(rng.choice(station_ids, size=n_val, replace=False))
obs_cols = ["time", "lat", "lon", "variable", "observation"]
is_held_out = raw["station"].isin(val_ids)
assimilated_reports = raw[~is_held_out]
held_out_reports = raw[is_held_out]
assimilation_obs = assimilated_reports[obs_cols]
n_assim = len(station_ids) - len(val_ids)
print(f"Assimilated: {n_assim} stations | Held-out: {len(val_ids)} stations")
Console output2 lines
Stations with u10m+v10m at 2024-01-01 00:00:00: 77
Assimilated: 54 stations | Held-out: 23 stations

Prior vs. Observation-Guided Analysis

Run the downscaler twice on the same ERA5 state: once with no observations (the prior, obs=None) and once with the observations selected for assimilation. Both return an ensemble with dims (time, sample, variable, y, x).

def to_numpy(da):
    """Return the DataArray data as a NumPy array."""
    arr = da.data
    return arr.get() if hasattr(arr, "get") else np.asarray(arr)


post = sda(x_da, assimilation_obs)  # analysis (observation-guided)
free = sda(x_da)  # prior (free, no-obs downscaling)

# Locate the wind-component channels and output grid used for evaluation and plotting.
output_variables = list(post["variable"].values)
u_index = output_variables.index("u10m")
v_index = output_variables.index("v10m")
output_lat = np.asarray(post["lat"])
output_lon = np.asarray(post["lon"])

post_np, free_np = to_numpy(post), to_numpy(free)  # [time, sample, variable, y, x]
Console output1 line
2026-08-25 11:56:31.583 | WARNING  | earth2studio.models.da.utils:dfseries_to_torch:99 - Converting pandas Series to GPU tensor. Consider installing cudf for zero-copy transfer and better performance.

Single Posterior Sample

Compare the observation-guided analysis with the prior using 10 m wind speed and vector-wind RMSE.

ws_post = np.hypot(post_np[0, :, u_index], post_np[0, :, v_index]).mean(0)
ws_free = np.hypot(free_np[0, :, u_index], free_np[0, :, v_index]).mean(0)
analysis_u = post_np[0, :, u_index].mean(0)
analysis_v = post_np[0, :, v_index].mean(0)
prior_u = free_np[0, :, u_index].mean(0)
prior_v = free_np[0, :, v_index].mean(0)
print(
    f"Finite values: Posterior={np.isfinite(post_np).all()}, "
    f"Prior={np.isfinite(free_np).all()}"
)
Console output1 line
Finite values: Posterior=True, Prior=True

Compare to Held-Out Stations

Compute the vector-wind RMSE of each analysis against the observations, at the stations' nearest output cells. The held-out stations were never assimilated, so their prior-vs-posterior RMSE illustrates how the analysis behaves at unassimilated sites for this single case -- it is a diagnostic, not a statistical skill claim, and a single time/split/ensemble does not guarantee improvement.

def vector_rmse_at(df, u_field, v_field):
    """Compute vector wind RMSE at station locations."""
    u_reports = df[df["variable"] == "u10m"][["station", "lat", "lon", "observation"]]
    v_reports = df[df["variable"] == "v10m"][["station", "observation"]]
    merged = u_reports.merge(v_reports, on="station", suffixes=("_u", "_v"))
    if not len(merged):
        return float("nan")
    tree = cKDTree(np.column_stack([output_lat.ravel(), (output_lon % 360).ravel()]))
    _, flat = tree.query(np.column_stack([merged["lat"], merged["lon"] % 360]))
    bi, bj = np.unravel_index(flat, output_lat.shape)
    u_error = u_field[bi, bj] - merged["observation_u"].values
    v_error = v_field[bi, bj] - merged["observation_v"].values
    return float(np.sqrt(np.mean(u_error**2 + v_error**2)))


held_out_prior = vector_rmse_at(held_out_reports, prior_u, prior_v)
held_out_analysis = vector_rmse_at(held_out_reports, analysis_u, analysis_v)
assimilated_prior = vector_rmse_at(assimilated_reports, prior_u, prior_v)
assimilated_analysis = vector_rmse_at(assimilated_reports, analysis_u, analysis_v)
print("Vector 10 m wind RMSE vs. GHCNHourly (m/s)")
print(f"Held-out: Prior={held_out_prior:.3f}, Analysis={held_out_analysis:.3f}")
print(
    f"Assimilated: Prior={assimilated_prior:.3f}, Analysis={assimilated_analysis:.3f}"
)
Console output3 lines
Vector 10 m wind RMSE vs. GHCNHourly (m/s)
Held-out: Prior=7.177, Analysis=2.592
Assimilated: Prior=7.465, Analysis=1.560

Plot the Analyses and Their Difference

Finally, we can plot the results:

  • Left: prior 10 m wind speed.
  • Center: observation-guided analysis with assimilated and held-out stations.
  • Right: signed analysis increment.
title_box = {"facecolor": "white", "alpha": 0.75, "edgecolor": "none", "pad": 2}


def format_map(ax, title, left_labels=False):
    """Style a map axis."""
    ax.set_title(title, fontsize=9, y=0.95, color="black", bbox=title_box, zorder=5)
    ax.set_extent(extent, crs=PROJ)
    ax.coastlines(resolution="50m", linewidth=0.6, color="0.3")
    gridlines = ax.gridlines(
        crs=DATA, draw_labels=True, linewidth=0.3, color="0.5", alpha=0.5
    )
    gridlines.x_inline = gridlines.y_inline = False
    gridlines.top_labels = gridlines.right_labels = False
    gridlines.left_labels = left_labels
    gridlines.rotate_labels = False


assimilated_stations = assimilated_reports.drop_duplicates("station")
held_out_stations = held_out_reports.drop_duplicates("station")
rp = PROJ.transform_points(DATA, output_lon, output_lat)
x_rotated, y_rotated = rp[..., 0], rp[..., 1]
extent = [x_rotated.min(), x_rotated.max(), y_rotated.min(), y_rotated.max()]
speed_max = float(max(np.nanpercentile(ws_free, 99), np.nanpercentile(ws_post, 99)))
speed_style = {
    "transform": DATA,
    "shading": "nearest",
    "cmap": "viridis",
    "vmin": 0,
    "vmax": speed_max,
}
increment = ws_post - ws_free
increment_limit = float(np.nanpercentile(np.abs(increment), 99))

plt.close("all")
fig, axes = plt.subplots(
    1, 3, figsize=(15, 4.8), subplot_kw={"projection": PROJ}, layout="constrained"
)
prior_mesh = axes[0].pcolormesh(output_lon, output_lat, ws_free, **speed_style)
axes[1].pcolormesh(output_lon, output_lat, ws_post, **speed_style)
increment_mesh = axes[2].pcolormesh(
    output_lon,
    output_lat,
    increment,
    transform=DATA,
    shading="nearest",
    cmap="RdBu_r",
    vmin=-increment_limit,
    vmax=increment_limit,
)

format_map(axes[0], f"Prior ({INIT_TIME:%Y-%m-%d %HZ})", left_labels=True)
format_map(axes[1], "Observation-guided analysis")
format_map(axes[2], "Analysis - prior")
station_styles = [
    (assimilated_stations, {"c": "#D55E00", "linewidths": 0.4, "label": "Assimilated"}),
    (held_out_stations, {"facecolors": "none", "linewidths": 0.8, "label": "Held-out"}),
]
for stations, style in station_styles:
    axes[1].scatter(
        stations["lon"],
        stations["lat"],
        s=24,
        edgecolors="k",
        transform=DATA,
        zorder=3,
        **style,
    )
axes[1].legend(loc="lower right", fontsize=7)
colorbar_style = {"shrink": 0.82, "pad": 0.02}
fig.colorbar(prior_mesh, ax=axes[:2], label="10 m wind speed (m/s)", **colorbar_style)
fig.colorbar(
    increment_mesh, ax=axes[2], label="10 m wind increment (m/s)", **colorbar_style
)
plt.savefig("outputs/03_corrdiff_cosmo_sda.jpg", dpi=120)
Console output2 lines
/__w/earth2studio/earth2studio/.venv/lib/python3.13/site-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

Output from CorrDiff COSMO-REA2 Score-Based Data Assimilation

Download Python sourceDownload Jupyter notebookexecuted in 81.6s
Execution profile

Runtime telemetry

Profiled phases

Total runtime1m 22s
Setup1m 11s · 67 samples
Duration1m 11sTagged cells
CPU load10%Average · Peak 27%
Process memory3.9 GiBPeak resident set
Network received1.5 GiBHost-wide estimate
Network sent4.2 MiBHost-wide estimate
GPU utilization0%Peak 0%
GPU memory1.4 GiBof 79.6 GiB
GPU power81 WPeak draw
Inference4.7 s · 4 samples
Duration4.7 sTagged cells
CPU load8%Average · Peak 10%
Process memory4.0 GiBPeak resident set
Network received954 BHost-wide estimate
Network sent888 BHost-wide estimate
GPU utilization98%Peak 98%
GPU memory5.7 GiBof 79.6 GiB
GPU power335 WPeak draw
Plotting2.6 s · 3 samples
Duration2.6 sTagged cells
CPU load9%Average · Peak 9%
Process memory4.0 GiBPeak resident set
Network received461.8 KiBHost-wide estimate
Network sent7.3 KiBHost-wide estimate
GPU utilization0%Peak 0%
GPU memory5.7 GiBof 79.6 GiB
GPU power250 WPeak draw

Execution environment

CPUAMD EPYC 7313P 16-Core Processor
GPUNVIDIA H100 PCIe · 79.6 GiB
System RAM58.5 GiB
PlatformLinux 6.8.0-137-generic
Python3.13.13
GPU driver / CUDADriver 595.84 · CUDA support 13.2
