Simulate your GPU infrastructure on CPU nodes.

Mokka

Mokka simulates the software contracts around NVIDIA devices rather than the devices themselves. The rule of thumb: reach for Mokka when your system reads hardware state and reacts to it, and for real hardware when it executes work, moves data, or measures performance.

That makes it a good fit for:

• Kubernetes discovery and allocation through the device plugin or DRA — scheduling, ResourceClaims, CDI visibility, topology attributes.
• Software that consumes NVML, nvidia-smi, DCGM or DCGM Exporter.
• Monitoring dashboards, parsers, alerting, and remediation logic that cordons, drains, reschedules and recovers.
• Repeatable fault injection — device loss, Xid errors, ECC errors, temperature, power, utilisation, clocks, and GPU-side NVLink errors.
• Code that interprets declared PCI, NUMA, NVLink, fabric UUID or clique topology.
• IMEX peer readiness and liveness. The peer protocol is real and runs over the pod network; no GPU or NVLink traffic is involved.

Try it

kind create cluster --name mokka \
    --image ghcr.io/nvidia/mokka-kind-node:latest

helm install nvml-mock oci://ghcr.io/nvidia/k8s-test-infra/chart/nvml-mock \
    --namespace mokka --create-namespace

Every node now reports mock GPUs. The Quick Start takes it from here.

Simulation depth by area

Kubernetes control flows and client binaries are real. Hardware identity, topology, counters and failures are synthesised.

Area	What Mokka simulates	Good for	What it does not prove
GPU and NVML	A configurable NVML-visible GPU. Profiles and per-device overrides define identity, model, memory size, PCI and NUMA identity, clocks, temperature, power, utilisation, ECC state, process records and failure responses. nvml-mock-ctl changes most of them at runtime.	Inventory, monitoring, parsers, DCGM integration, alert handling, failure recovery	No kernel driver, firmware, CUDA kernels, contexts, streams or data path. Unimplemented NVML functions return NVML_ERROR_NOT_SUPPORTED, so a new consumer should confirm the calls it makes. MIG instances and partition lifecycle are absent.
Kubernetes allocation	Real allocation workflows over synthetic devices. The device plugin and DRA driver advertise and allocate GPUs; Kubernetes schedules pods and creates ResourceClaims, ResourceSlices, CDI assignments and topology attributes.	Scheduler, operator, admission, claim lifecycle and controller-recovery tests	A claim proves allocation, not that a workload used GPU memory or did work. Process records do not follow allocations. Driver, firmware and toolkit install or upgrade paths are not exercised.
Metrics	Utilisation, temperature, power, profiling activity and NVLink counters, either configured or generated from elapsed time. See Metric Fidelity for which is which.	Dashboards, thresholds, alerts, autoscaling inputs, deterministic failure scenarios	No metric is workload-correlated, so none can establish throughput, efficiency, thermal behaviour, timing or performance.
PCI and NUMA	A synthetic discovery tree: PCI BDFs, root-complex paths, NUMA node values, selected device nodes, and sysfs content for served containers.	Discovery, placement, topology parsing, and behaviour driven by declared locality	No PCIe transactions, DMA, IOMMU or ACS behaviour, bandwidth, latency or hardware errors, and no real CPU or memory locality. A consumer that does not receive the tree through CDI or NRI reads the host's own sysfs instead.
NVLink	Link generation, count, state, remote GPU or NVSwitch endpoint, capabilities and line rate. nvidia-smi topo -m renders the declared local matrix, counters accrue synthetically, and GPU-side link errors reach DCGM health.	Topology parsing, policy decisions, local link health, fault handling, clique logic	No CUDA peer access, GPU traffic, cross-node NVLink path, collectives, NCCL, congestion, bandwidth or latency. Counters do not reflect workload traffic.
NVSwitch and Fabric Manager	GPU-visible fabric state: NVSwitch endpoints in the declared topology, plus fabric UUID, clique, registration and health. The Fabric Manager stand-in publishes a node-local readiness marker and can delay registration.	Software that waits for fabric registration, reads fabric identity, or reacts to GPU-visible fabric health	No NVSwitch ASIC, forwarding, NSCQ, SXID model, switch control API or CLI, firmware, partitions or routing.
InfiniBand HCA	Synthetic HCA sysfs, UMAD and verbs surfaces with configurable model, firmware, GUID, LID, GID, link layer, state and rate. ibstat, ibstatus, ibv_devices and much of ibv_devinfo work against them.	Discovery, parsers, inventory, link-state handling, selected management-plane workflows	No kernel provider, queue pairs, completion queues, memory registration, verbs execution, RDMA traffic or performance.
InfiniBand fabric	Peer HCAs registered across pods, SA and SMP replies, a deterministic synthetic subnet-manager identity, iblinkinfo, ibnetdiscover, and cross-node ibping over the pod network.	Tool compatibility, parser behaviour, peer discovery, simple control-plane failure handling	No IB switch, subnet-manager election, switch NOS, firmware, routing, adaptive routing, congestion, QoS, PKeys, cable behaviour or IB data path. The fabric view is synthesised from a full-mesh HCA model.

Use real hardware for

• CUDA application correctness, compatibility, kernels, memory access and CUDA peer-to-peer.
• NCCL collectives, GPUDirect, RDMA, and NVLink, NVSwitch or InfiniBand data paths.
• Throughput, latency, oversubscription, congestion, scaling efficiency and thermal behaviour.
• GPU, HCA, NVSwitch or IB switch driver and firmware installation, upgrade, reset and recovery.
• Operating a switch through its management plane, CLI, telemetry, routing or firmware interfaces.
• Reproducing hardware faults, race conditions and timing with physical fidelity.
• MIG partition creation and lifecycle, and Confidential Computing.

Tested consumers

Consumer	What works
Node Feature Discovery	PCI vendor labels derived from the feature file Mokka writes
GPU Feature Discovery	Node labels derived from NVML
NVIDIA Device Plugin	Allocatable nvidia.com/gpu matches the profile, and workloads schedule against it
NVIDIA DRA Driver	ResourceSlices report the right GPUs, and a ResourceClaimTemplate pod reaches Running
NVIDIA GPU Operator	The full operand stack installs and its validator starts
DCGM / dcgm-exporter	Telemetry, time-varying power, and injected Xid errors
Run:ai fake-gpu-operator	Profile ConfigMaps published in the shape its discovery expects

Where to go next

• Get it running

  Install into a KIND cluster and see simulated GPUs in five minutes.

  Quick Start

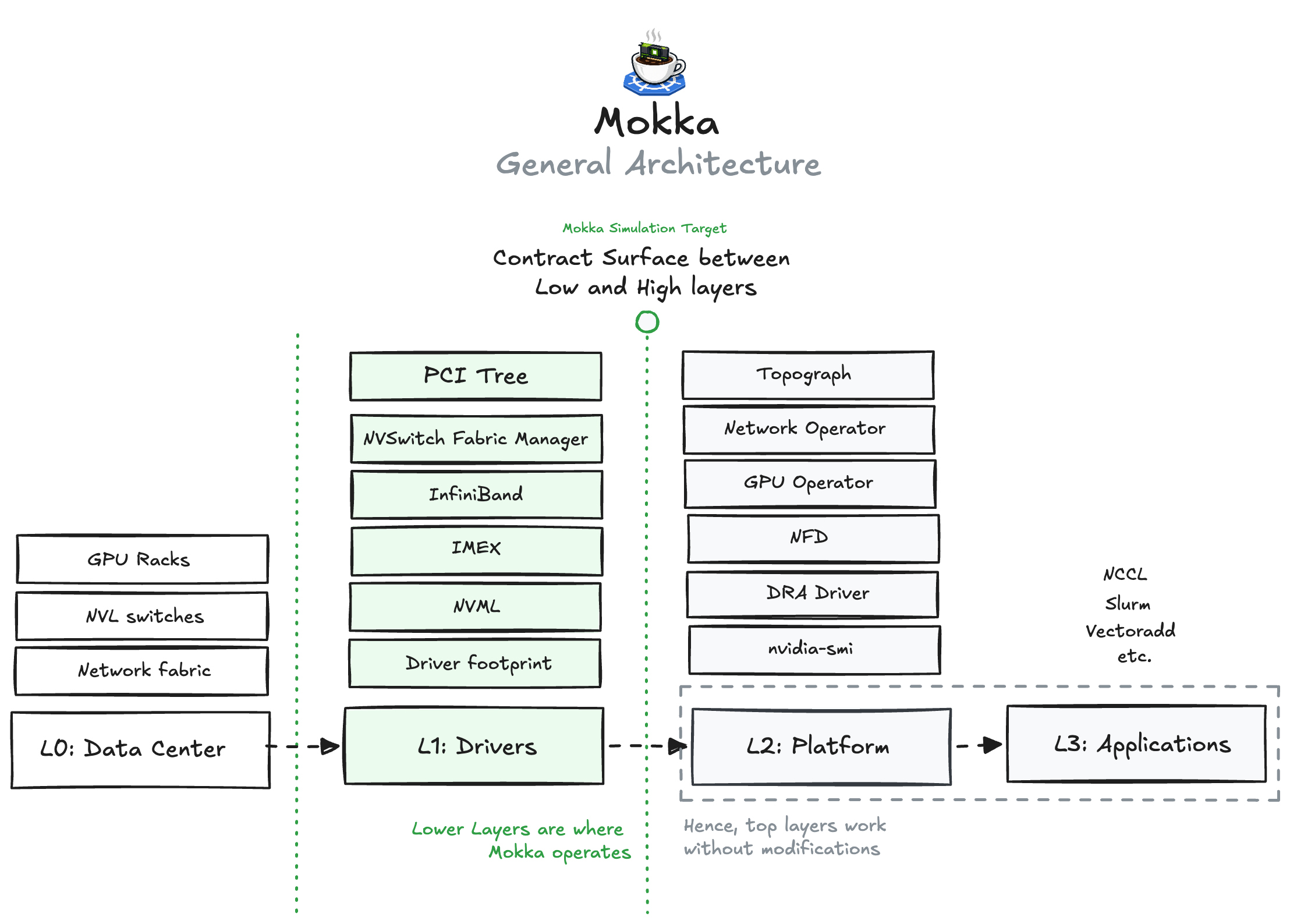

• Understand how it works

  The moving parts, how they connect, and how the system behaves.

  Architecture

• Do something specific

  Task-oriented walkthroughs: the device plugin, DRA, the GPU Operator, failure injection, node-wide injection.

  Guides

• Change Mokka

  Local development with Tilt, the test suites, and how to submit a change.

  Contributing

The FAQ answers what usually comes up next: which GPU models ship, which surfaces are not staged at all, and why nvidia-smi reports the numbers it does.
