StormScope Meteosat FCI Nowcasting¶

StormScope inference workflow with MTG-I1 FCI satellite imagery.

This example will demonstrate how to run inference to generate nowcasts of Meteosat Third Generation (MTG-I1) FCI satellite imagery using StormScopeMeteosatEU, a generative diffusion model that predicts the next 10-minute FCI frame from a sliding window of recent observations.

In this example you will learn:

How to instantiate earth2studio.models.px.StormScopeMeteosatEU
Creating a earth2studio.data.MeteosatFCI data source
Fetching FCI observations as the model input
Running iterative nowcasting

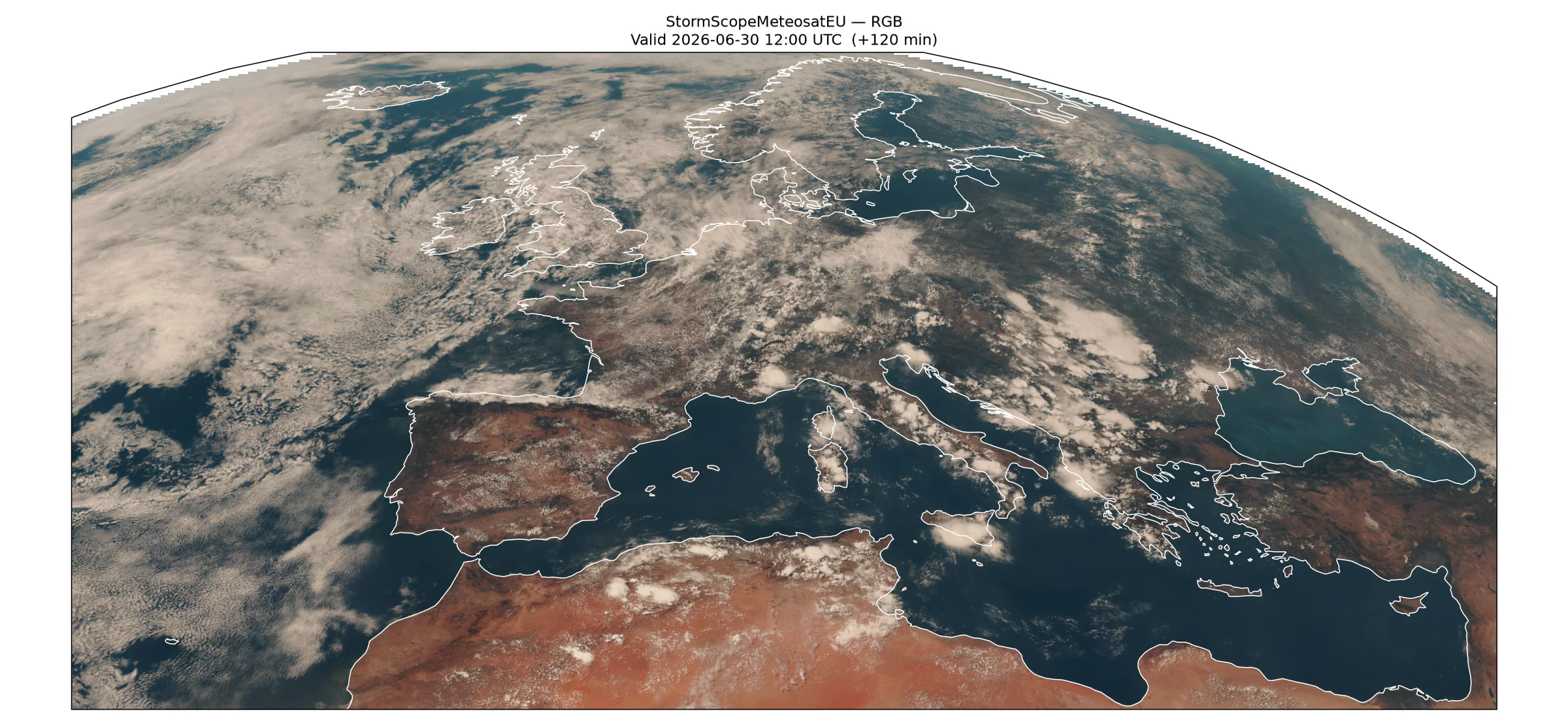

Plotting an RGB composite of FCI channels with cartopy

Set Up¶

StormScopeMeteosatEU is a pure-observation nowcasting model: it requires no external NWP conditioning. The only input is a sliding window of L consecutive FCI frames ending at the analysis time.

The model operates on a rectangular sub-region of the full MTG disk defined in native FCI pixel coordinates by [StormScopeMeteosatEU.Model_FCI_BBox][]. We configure earth2studio.data.MeteosatFCI with the matching pixel_bbox so that data fetching returns exactly the pixels the model expects, with no interpolation needed.

EUMETSAT Data Store credentials must be available via the environment variables EUMETSAT_CONSUMER_KEY and EUMETSAT_CONSUMER_SECRET, or in the ~/.eumdac/credentials file.

import os
from datetime import datetime, timezone

os.makedirs("outputs", exist_ok=True)
from dotenv import load_dotenv

load_dotenv()

import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import numpy as np
import torch
from tqdm import tqdm

from earth2studio.data import fetch_data
from earth2studio.data.meteosat_fci import (
    PERSPECTIVE_POINT_HEIGHT,
    SEMI_MAJOR_AXIS,
    SEMI_MINOR_AXIS,
    MeteosatFCI,
)
from earth2studio.models.px.stormscope_meteosat import StormScopeMeteosatEU
from earth2studio.utils.coords import map_coords

Load Model¶

Load StormScopeMeteosatEU from a package.

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

package = StormScopeMeteosatEU.load_default_package()
model = StormScopeMeteosatEU.load_model(package=package)
model = model.to(device)
model.eval()
model.compile_model()
