Writing and Replaying Trajectories with Zarr

Zarr is a chunked, compressed array format designed for large scientific datasets. nvalchemi uses it as the on-disk representation for trajectories: each dynamics snapshot is serialised into a CSR-style layout (pointer arrays + concatenated fields) so that random-access reads and incremental appends are both efficient.

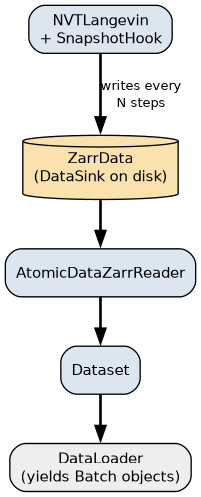

The data flow for a full simulation-to-training pipeline is:

NVTLangevin + SnapshotHook
    │  (writes every N steps)
    ▼
ZarrData  (DataSink backed by Zarr store on disk)
    │
    ▼
AtomicDataZarrReader  ──►  Dataset  ──►  DataLoader
                                          (yields Batch objects)

This example demonstrates each step:

1. Build a periodic argon NVT simulation using the Lennard-Jones potential.

2. Attach a SnapshotHook that writes every 10 steps into a ZarrData sink.

3. Run 100 steps, then read the trajectory back via AtomicDataZarrReader and DataLoader.

4. Validate round-trip shape correctness.

import logging
import tempfile
from pathlib import Path

import torch

from nvalchemi.data import AtomicData, Batch
from nvalchemi.data.datapipes import AtomicDataZarrReader, DataLoader, Dataset
from nvalchemi.dynamics import NVTLangevin, ZarrData
from nvalchemi.dynamics.hooks import NeighborListHook, SnapshotHook, WrapPeriodicHook
from nvalchemi.models.lj import LennardJonesModelWrapper

logging.basicConfig(level=logging.INFO)

Build an argon NVT simulation

Argon LJ parameters (Rappe & Casewit 1991): epsilon = 0.0104 eV, sigma = 3.40 Å. We use a small 3×3×3 simple-cubic lattice (27 atoms) with a 10.5 Å cubic box so that the nearest-neighbour distance (3.5 Å) is safely inside the 8.5 Å cutoff.

The LennardJonesModelWrapper requires a NeighborListHook to be registered on the dynamics engine so that batch.neighbor_matrix is populated before each model forward pass.

torch.manual_seed(0)

model = LennardJonesModelWrapper(epsilon=0.0104, sigma=3.40, cutoff=8.5)
model.eval()

# Build a 3x3x3 simple-cubic lattice of argon atoms.
SPACING = 3.5  # Å — nearest-neighbour distance
N_SIDE = 3
BOX = SPACING * N_SIDE  # 10.5 Å

coords = []
for ix in range(N_SIDE):
    for iy in range(N_SIDE):
        for iz in range(N_SIDE):
            coords.append([ix * SPACING, iy * SPACING, iz * SPACING])  # noqa: PERF401

n_atoms = len(coords)  # 27
positions = torch.tensor(coords, dtype=torch.float32)

# Add small random displacements to break perfect symmetry.
g = torch.Generator()
g.manual_seed(1)
positions += torch.randn(n_atoms, 3, generator=g) * 0.05

cell = torch.eye(3, dtype=torch.float32).unsqueeze(0) * BOX

# Temperature 50 K: Maxwell-Boltzmann velocities.
KB_EV = 8.617333e-5  # eV/K
kT = 50.0 * KB_EV
mass_ar = 39.948  # atomic mass units (amu); forces in eV/Å, mass in amu
g2 = torch.Generator()
g2.manual_seed(2)
velocities = torch.randn(n_atoms, 3, generator=g2) * (kT / mass_ar) ** 0.5

data = AtomicData(
    positions=positions,
    atomic_numbers=torch.full((n_atoms,), 18, dtype=torch.long),  # Ar = 18
    atomic_masses=torch.full((n_atoms,), mass_ar),
    forces=torch.zeros(n_atoms, 3),
    energies=torch.zeros(1, 1),
    cell=cell,
    pbc=torch.tensor([[True, True, True]]),
)
data.add_node_property("velocities", velocities)

batch = Batch.from_data_list([data])

Setting up the ZarrData sink and SnapshotHook

ZarrData accepts any zarr-compatible store. Here we use a temporary directory on disk so the example is self-contained. SnapshotHook writes the full batch state to the sink every frequency steps.

zarr_dir = tempfile.mkdtemp(suffix="_argon_traj")
zarr_path = Path(zarr_dir) / "trajectory.zarr"

zarr_sink = ZarrData(store=str(zarr_path), capacity=10_000)
snapshot_hook = SnapshotHook(sink=zarr_sink, frequency=10)

Configuring the NVT integrator

Register:

1. NeighborListHook — builds neighbor_matrix before each force eval.

2. WrapPeriodicHook — folds coordinates back into the primary cell after each position update to prevent atoms drifting outside the box.

3. SnapshotHook — writes to the Zarr sink every 10 steps.

nl_hook = NeighborListHook(model.model_card.neighbor_config)
wrap_hook = WrapPeriodicHook()

nvt = NVTLangevin(
    model=model,
    dt=1.0,  # fs
    temperature=50.0,
    friction=0.1,
    random_seed=42,
    n_steps=100,
    hooks=[nl_hook, wrap_hook, snapshot_hook],
)

Running and collecting the trajectory

After 100 steps with frequency=10, the sink holds 10 snapshots (steps 10, 20, …, 100).

logging.info("Running 100 NVT steps on %d-atom argon system...", n_atoms)
batch = nvt.run(batch)

n_snaps = len(zarr_sink)
logging.info("Trajectory written: %d snapshots at %s", n_snaps, zarr_path)

Reading back with DataLoader

The read path is: AtomicDataZarrReader provides random-access sample loading; Dataset wraps it and returns AtomicData objects with optional device transfer; DataLoader collates them into Batch objects of a given batch size.

reader = AtomicDataZarrReader(str(zarr_path))
ds = Dataset(reader, device="cpu", num_workers=1)
loader = DataLoader(ds, batch_size=2)

logging.info("Dataset length: %d samples", len(ds))
logging.info("DataLoader yields %d batches of size 2", len(loader))

# Iterate over all batches and collect.
loaded_batches: list[Batch] = []
for loaded_batch in loader:
    loaded_batches.append(loaded_batch)
    logging.info(
        "  batch: num_graphs=%d  positions.shape=%s",
        loaded_batch.num_graphs,
        tuple(loaded_batch.positions.shape),
    )

ds.close()

Round-trip validation

Check that the loaded trajectory has the correct number of snapshots and that each snapshot contains the right number of atoms with the expected tensor shapes.

total_loaded = sum(b.num_graphs for b in loaded_batches)
assert total_loaded == n_snaps, f"Expected {n_snaps} snapshots, got {total_loaded}"

# Inspect the first snapshot from the first loaded batch.
first_snap = loaded_batches[0]
assert first_snap.positions.shape[-1] == 3, "positions must be (N, 3)"
assert first_snap.atomic_numbers is not None, "atomic_numbers must be present"

logging.info(
    "Round-trip OK: %d snapshots, each with %d atoms.",
    n_snaps,
    n_atoms,
)

Summary

The Zarr store persists at zarr_path and can be reloaded in future sessions or used for training downstream ML models. For long simulations, ZarrData is preferred over HostMemory because it streams directly to disk rather than accumulating in RAM.

logging.info("Zarr store location: %s", zarr_path)
