Processing Large Datasets with Inflight Batching

The problem: a production relaxation campaign may require running thousands of structures through FIRE → NVT stages. Loading all of them into GPU memory at once is impossible; processing one at a time wastes GPU throughput.

The solution: inflight batching (Mode 2 in FusedStage). A fixed-size live batch occupies the GPU at all times. Whenever a system graduates (converges or exhausts its step budget), it is evicted and a new sample from the dataset takes its slot. The SizeAwareSampler handles bin-packing so the replacement fits within the memory envelope of the slot it replaces.

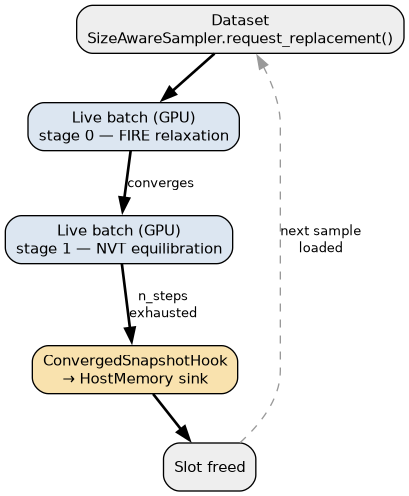

Lifecycle of a system:

Dataset → SizeAwareSampler.request_replacement()
    │
    ▼
Live batch (GPU) — stage 0 (FIRE relaxation)
    │ converges
    ▼
Live batch (GPU) — stage 1 (NVT equilibration)
    │ n_steps exhausted
    ▼
ConvergedSnapshotHook → HostMemory sink
    │
    ▼
Slot freed → next sample loaded from dataset

Key concept: system_id. Each sample loaded from the dataset receives a monotonically-increasing integer system_id stamped by the sampler. This lets downstream code track individual trajectories across refill events.

This example uses DemoModelWrapper (a small neural network) so no neighbor list is needed. For a real LJ or MACE model, add NeighborListHook to each sub-stage.

import logging

import torch

from nvalchemi.data import AtomicData
from nvalchemi.dynamics import FIRE, NVTLangevin, SizeAwareSampler
from nvalchemi.dynamics.base import ConvergenceHook, FusedStage
from nvalchemi.dynamics.hooks import ConvergedSnapshotHook
from nvalchemi.dynamics.sinks import HostMemory
from nvalchemi.models.demo import DemoModelWrapper

logging.basicConfig(level=logging.INFO)

The dataset interface

SizeAwareSampler requires a dataset that implements exactly three methods:

• __len__() — total number of samples.

• __getitem__(idx) -> (AtomicData, dict) — load one sample by index. The dict carries arbitrary per-sample metadata (empty is fine).

• get_metadata(idx) -> (num_atoms, num_edges) — return atom/edge counts without constructing the full AtomicData object.

The get_metadata method exists for efficiency: the sampler pre-scans the entire dataset at construction time to build size-aware bins. If loading each sample were necessary just for bin-packing, large datasets would be prohibitively slow to initialise.

class MixedSizeDataset:
    """A dataset of random molecular systems with varying atom counts.

    Systems have between ``min_atoms`` and ``max_atoms`` atoms, assigned
    by cycling through a range.  This produces a realistic distribution of
    sizes that exercises the bin-packing logic.

    Parameters
    ----------
    n_samples : int
        Total number of systems.
    min_atoms : int
        Minimum atom count.
    max_atoms : int
        Maximum atom count.
    seed : int
        Base RNG seed.
    """

    def __init__(
        self,
        n_samples: int,
        min_atoms: int = 4,
        max_atoms: int = 6,
        seed: int = 0,
    ) -> None:
        self.n_samples = n_samples
        self.min_atoms = min_atoms
        self.max_atoms = max_atoms
        self.base_seed = seed
        # Pre-assign atom counts to each sample index.
        span = max_atoms - min_atoms + 1
        self._atom_counts = [min_atoms + (i % span) for i in range(n_samples)]

    def __len__(self) -> int:
        return self.n_samples

    def get_metadata(self, idx: int) -> tuple[int, int]:
        """Return ``(num_atoms, num_edges)`` without loading the sample.

        The sampler calls this for **every** sample at construction time.
        It must be cheap — no I/O, no tensor allocation.

        Parameters
        ----------
        idx : int
            Sample index.

        Returns
        -------
        tuple[int, int]
            ``(num_atoms, num_edges)``; num_edges=0 for models without edge
            lists.
        """
        return self._atom_counts[idx], 0

    def __getitem__(self, idx: int) -> tuple[AtomicData, dict]:
        """Load one sample.

        Parameters
        ----------
        idx : int
            Sample index.

        Returns
        -------
        tuple[AtomicData, dict]
            The AtomicData and an (empty) metadata dict.
        """
        n = self._atom_counts[idx]
        g = torch.Generator()
        g.manual_seed(self.base_seed + idx)
        data = AtomicData(
            positions=torch.randn(n, 3, generator=g),
            atomic_numbers=torch.randint(1, 10, (n,), dtype=torch.long, generator=g),
            atomic_masses=torch.ones(n),
            forces=torch.zeros(n, 3),
            energies=torch.zeros(1, 1),
        )
        data.add_node_property("velocities", torch.zeros(n, 3))
        return data, {}

SizeAwareSampler

The sampler consumes the dataset lazily. It builds atom-count bins at construction (calling get_metadata on every sample) and then serves replacements via request_replacement(num_atoms, num_edges), which finds an unconsumed sample small enough to fit in the vacated slot.

max_atoms=24 allows at most 4–6 systems of 4–6 atoms each in the live batch. max_batch_size=6 caps the graph count independently. max_edges=None disables the edge constraint (DemoModelWrapper does not use a neighbor list).

dataset = MixedSizeDataset(n_samples=30, min_atoms=4, max_atoms=6, seed=200)

sampler = SizeAwareSampler(
    dataset,
    max_atoms=24,
    max_edges=None,
    max_batch_size=6,
)
logging.info(
    "Sampler created: %d samples, bins: %s",
    len(sampler),
    sorted(sampler._bins.keys()),
)

Building the pipeline

Two sub-stages:

• Stage 0 — FIRE geometry relaxation (convergence at fmax < 0.5 eV/Å; deliberately loose so most systems converge quickly in this demo).

• Stage 1 — NVT equilibration for 20 steps.

ConvergedSnapshotHook fires at ON_CONVERGE. When a system exits stage 1 (its step budget is exhausted and it graduates), the hook writes only that system’s data to the HostMemory sink. This is the recommended pattern for collecting results in inflight runs without writing intermediate states.

torch.manual_seed(42)
model = DemoModelWrapper()
model.eval()

results_sink = HostMemory(capacity=30)
converged_hook = ConvergedSnapshotHook(sink=results_sink)

fire_stage = FIRE(
    model=model,
    dt=0.1,
    convergence_hook=ConvergenceHook.from_forces(threshold=0.5),
)
nvt_stage = NVTLangevin(
    model=model,
    dt=0.5,
    temperature=300.0,
    friction=0.1,
    random_seed=11,
    n_steps=20,
    hooks=[converged_hook],
)

fused = FusedStage(
    sub_stages=[(0, fire_stage), (1, nvt_stage)],
    sampler=sampler,
    sinks=[results_sink],
    refill_frequency=5,
)

Running in inflight mode (batch=None)

Passing batch=None tells FusedStage to call sampler.build_initial_batch() to create the first live batch, then run until the sampler is exhausted and all remaining systems have graduated through all stages.

n_steps=500 is the maximum total step budget. If the dataset is fully processed before this limit, the run terminates early and returns None.

logging.info("Starting inflight batching run...")
result = fused.run(batch=None, n_steps=500)

if result is None:
    logging.info("All %d systems processed — sampler exhausted.", dataset.n_samples)
else:
    logging.info(
        "Step budget exhausted with %d systems still active.", result.num_graphs
    )

/home/kinlongkelvi/Repos/nvalchemi-toolkit/.venv/lib/python3.13/site-packages/warp/_src/torch.py:280: UserWarning: The .grad attribute of a Tensor that is not a leaf Tensor is being accessed. Its .grad attribute won't be populated during autograd.backward(). If you indeed want the .grad field to be populated for a non-leaf Tensor, use .retain_grad() on the non-leaf Tensor. If you access the non-leaf Tensor by mistake, make sure you access the leaf Tensor instead. See github.com/pytorch/pytorch/pull/30531 for more information. (Triggered internally at /pytorch/build/aten/src/ATen/core/TensorBody.h:492.)
  if t.grad is not None:

Inspecting results

The HostMemory sink accumulates graduated systems on CPU. Drain it to retrieve a single Batch containing all collected structures.

n_collected = len(results_sink)
logging.info("Results sink contains %d systems.", n_collected)

if n_collected > 0:
    results_batch = results_sink.drain()
    system_ids = results_batch.system_id.squeeze(-1).tolist()
    logging.info("Collected system_ids (first 10): %s", system_ids[:10])
    logging.info(
        "Results batch: num_graphs=%d, num_nodes=%d",
        results_batch.num_graphs,
        results_batch.num_nodes,
    )
else:
    logging.info("No results collected (step budget may have been too small).")
