OGLO Tactile Glove Plugin#

C++ plugin that streams OGLO tactile gloves over BLE into the standard DeviceIO recording path. Each glove (one BLE device per hand) provides 80 tactile taxels (5 fingers × 4×4) plus a 6-axis IMU at 100 Hz. Source and plugin README: src/plugins/oglo_tactile/README.md.

This plugin follows the Add a New Device pattern (FlatBuffer schema → plugin SchemaPusher → tracker → MCAP) and is modeled on the OAK camera plugin.

../_images/oglo-demo.gif

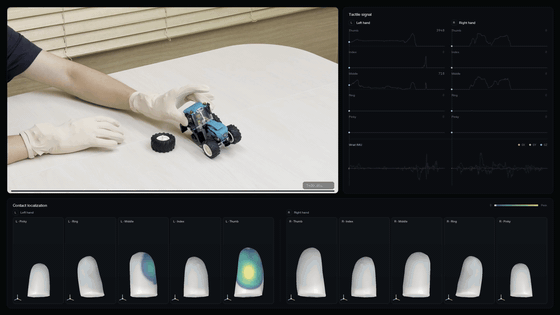

Both OGLO gloves driving a live per-finger contact heatmap while manipulating an object — 80 taxels + a 6-axis IMU per hand, streamed over BLE at 100 Hz and time-synced with the operator’s hand/head tracking.#

Components#

Build#

Linux only (BlueZ). The plugin is off by default.

sudo apt install libdbus-1-dev          # BlueZ daemon + libdbus for the BLE backend
cmake -B build -DBUILD_PLUGIN_OGLO=ON
cmake --build build --target oglo_tactile_plugin --parallel

nlohmann/json (MIT) is fetched automatically.

Note

BLE backend. The plugin talks to BlueZ directly over libdbus (AFL-2.1, permissive), so the build carries no copyleft dependency and works out of the box. The transport is isolated behind the OgloBleClient interface (src/plugins/oglo_tactile/ble/oglo_ble_client.hpp), so an alternative backend can be dropped in via make_ble_client() without touching the parser, schema, or tracker.

Usage#

The plugin streams one glove (--side) and pushes it via OpenXR for a host OgloTactileTracker to record:

# Push for a host OgloTactileTracker into a shared session MCAP
./build/src/plugins/oglo_tactile/oglo_tactile_plugin --side right --collection-prefix=oglo

The packet parser reads the device Config characteristic first and branches on the notify flags byte (0x04 packed12 v5 — primary; 0x02/0x01 legacy schema-4 fallback), so payload sizes are never hardcoded.

Recorded data#

The host OgloTactileTracker records per hand into channels oglo_<side>/oglo and oglo_<side>/oglo_tracked, carrying core.OgloGloveSampleRecord: seq, device_time_us, taxels[80] (raw 12-bit, finger,row,col), and a 6-axis IMU, each with a DeviceDataTimestamp whose sample_time_local_common_clock is on the shared host monotonic clock — so OGLO aligns in time with hand/head streams.

Naming. The glove’s identity threads through several layers, but all of them derive from the single --collection-prefix you pick (oglo below), with the hand side appended. For the left hand:

Layer

Where it is set

Value (left hand)

CLI flag

oglo_tactile_plugin --collection-prefix

oglo

OpenXR collection id

OgloTactileTracker("<prefix>/left")

oglo/left

MCAP recording base name

McapRecordingConfig tracker name

oglo_left

MCAP channels

OgloRecordingTraits (oglo, oglo_tracked)

oglo_left/oglo, oglo_left/oglo_tracked

Plugin device path

src/plugins/oglo_tactile/plugin.yaml

/glove/oglo_left

The right hand mirrors this (right / oglo_right), so mcap info on a recording shows oglo_left/oglo (+ _tracked) and oglo_right/oglo (+ _tracked).

A complete data-collection demo (MetaQuest hand/head + both gloves + a live in-headset tactile heatmap) lives at examples/oglo_tactile; see its README.md.

IMU frame#

Each sample includes a 6-axis IMU reading — a 3-axis accelerometer and 3-axis gyroscope — as raw int16 sensor counts. Scale: accel ±8 g (≈0.000244 g/LSB), gyro ±2000 dps (≈0.061 dps/LSB). The IMU is wrist-mounted, so its axes form a single wrist-fixed frame — they track the wrist, not individual fingers, and are the sensor’s own raw axes (not aligned to an anatomical hand frame). For absolute orientation, apply the IMU-to-hand extrinsic supplied with the hardware, or calibrate against gravity for just “up”.

Tests#

test_oglo_packet_parser validates the wire decode against the firmware’s own 12-bit packing reference, plus the schema-4 fallback and malformed-packet rejection:

ctest --test-dir build -R oglo_packet_parser --output-on-failure
