Egocentric Hand Reconstruction#

Automated pipeline for 4D hand and camera pose reconstruction from egocentric videos. Integrates ViPE and Dyn-HaMR in containerized environments.

Video Capture#

To capture egocentric video with an OAK camera, see the OAK camera plugin documentation.

Setup#

System Requirement#

OS: Ubuntu 24.04
GPU: NVIDIA RTX 6000 Ada or L40
Memory: 100GB (for a reference 30s video, more for longer)
Storage: 100GB

Prepare data files#

Place required files in the outputs/ directory.

...
├── doc/
├── docker/
├── scripts/
├── ...
└── outputs/
    ├── MANO_RIGHT.pkl
    └── BMC/
        └── *.npy

MANO model (required):

Download from: https://mano.is.tue.mpg.de/
Place: outputs/MANO_RIGHT.pkl

BMC data (required):

Follow the README in MengHao666/Hand-BMC-pytorch to generate (until the step python calculate_bmc.py)
Place all .npy files in: outputs/BMC/

Note

The Hand-BMC-pytorch repository is no longer actively maintained, so parts of its setup may not work out-of-the-box on newer systems. At the time of writing, the environment.yml pins PyTorch to a specific build (py3.7_cuda10.0.130_cudnn7.6.2_0) that may no longer be available on Conda channels or compatible with current hardware. If Conda fails to resolve the environment, one workaround is to relax the pins in environment.yml:

# Before
- pytorch==1.2.0=py3.7_cuda10.0.130_cudnn7.6.2_0
- torchvision==0.4.0=py37_cu100

# After
- pytorch=1.2.0
- torchvision=0.4.0

This fix reflects the state of the upstream repo at the time of writing and may need to be adjusted as the ecosystem evolves.

Build Docker images#

./docker/vipe.sh build
./docker/dynhamr.sh build

Note

Building these Docker images pulls third-party source code, libraries, and pre-trained model weights from external repositories. These components are subject to their own respective licenses, which may include restrictions on use, modification, or redistribution. It is the user’s responsibility to review and comply with all applicable third-party licenses before building, using, or distributing these images. Refer to each Dockerfile for the specific sources pulled during the build.

Hand Reconstruction#

Run complete reconstruction (ViPE + Dyn-HaMR) with a single command:

# Using a local video file
./scripts/run_reconstruction.sh path/to/your_video.mp4

# Using a remote video file
./scripts/run_reconstruction.sh s3://path/to/your_video.mp4

The script accepts either a local file path or a s3:// URL pointing to a video on a S3-compatible cloud storage. When a URL is provided, the video is automatically downloaded to the outputs/ directory before processing begins.

To use a remote video, set the following environment variables for credentials:

Variable	Required	Description
`ACCESS_KEY_ID`	Yes	Your S3 access key ID
`SECRET_ACCESS_KEY`	Yes	Your S3 access key
`BUCKET_REGION`	No	Region (default: `us-east-1`)
`BUCKET_ENDPOINT_URL`	No	Custom endpoint for S3-compatible storage

By default, the pipeline reads data files from and writes results to the outputs/ directory. Set OUTPUTS_DIR to use a different location:

OUTPUTS_DIR=/path/to/outputs ./scripts/run_reconstruction.sh path/to/your_video.mp4

The pipeline will:

Copy or download the video to outputs/.
Run ViPE to estimate camera poses.
Run Dyn-HaMR for hand reconstruction.
Save all results to outputs/logs/.

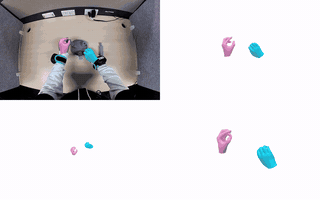

View results#

# List results
ls outputs/logs/video-custom/<DATE>/<VIDEO_NAME>*/

# View visualization
vlc outputs/logs/video-custom/<DATE>/<VIDEO_NAME>*/*_grid.mp4
