Camera Streaming#

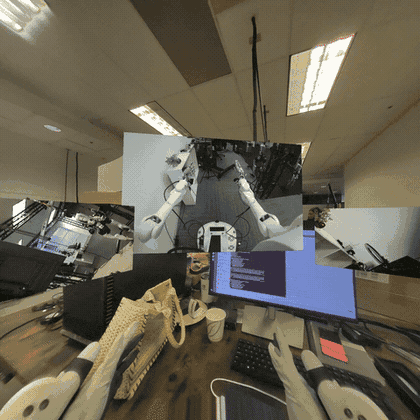

camera_viz is the reference camera-streaming sample built on Televiz (isaacteleop.viz). It captures frames from one or more cameras and visualizes them on a desktop window or an XR headset — one plane per camera, aspect-fit — and can stream a robot’s cameras to a remote workstation over the network.

The sample lives at examples/camera_viz/; this page summarizes how it works. For the exact command surface and flags, see the README.

Modes #

Mode	What it does
Direct	The workstation runs the viewer with cameras attached locally (`source: local`).
Split	The robot runs a sender that ships RTP H.264 to a workstation receiver (`source: rtp`). Wired Ethernet only.

Supported cameras #

The camera kind is selected per entry by the YAML type: field:

`type:`	Notes
`synthetic`	GPU test pattern — no hardware. `stereo: true` adds a `disparity_px` offset between eyes.
`v4l2`	USB / UVC cameras — anything `v4l2-ctl --list-formats-ext` reports.
`oakd`	OAK-D mono RGB / LEFT / RIGHT (stereo not yet wired).
`zed`	ZED 2 / Mini / X One; mono or `stereo: true` (per-eye SDK retrieve, zero-copy on the GPU).

Output goes to a window or an XR headset. Stereo cameras render true side-by-side stereo in XR; window mode shows the left eye. XR placement lock modes are world / head / lazy.

How it works #

The sample is organized so that capture, transport, and visualization are cleanly separated, with Televiz as the compositor at the end of the chain:

camera_viz/
├── camera_viz.sh        — CLI: setup / loopback / run / deploy / service-*
├── camera_viz.py        — receiver / viewer (drives a Televiz VizSession)
├── camera_streamer.py   — robot-side RTP sender (per-camera supervisor)
├── pipeline/            — source ABC + threaded runner
├── placements/          — XR lock-mode strategies (world / head / lazy)
├── sources/             — V4L2 / OAK-D / ZED / synthetic / rtp_h264
├── transports/          — RTP sender + receiver (native + GStreamer)
├── codec/               — native NVENC / NVDEC pybind module
├── configs/             — one YAML per camera kind
└── scripts/             — installer + systemd unit template

Sources (sources/) implement a common source ABC and hand frames to a threaded runner in pipeline/. Each source produces GPU frames where possible — e.g. the ZED source uses retrieve_image(MEM.GPU) so BGRA8 stays in VRAM and a CUDA kernel channel-swaps into contiguous RGBA with no host round-trip.
The viewer (camera_viz.py) creates a VizSession and adds one QuadLayer per enabled camera, then submits each frame to its layer and calls render() once per frame. Stereo cameras submit both eyes.
Transport (transports/) carries the split mode: an RTP H.264 sender on the robot and a receiver on the workstation, with a native NVENC/NVDEC codec module (codec/) or a GStreamer fallback.
Placement (placements/) holds the XR lock-mode strategies. Placement is application policy — Televiz only renders a layer at whatever pose the app sets each frame.

Setup #

One-time setup builds the Televiz wheel and installs the sample’s Python environment:

cmake -B build -DBUILD_VIZ=ON
cmake --build build --target python_wheel --parallel
examples/camera_viz/camera_viz.sh setup
source examples/camera_viz/.venv/bin/activate

setup installs every Python dependency into .venv/ via uv, builds the native NVENC/NVDEC codec, and probes system packages (GStreamer plugins, cairo / girepository headers, JetPack cuda-nvrtc + ld.so wiring). When something is missing it prints the exact apt-get line and prompts [y/N] — answering n or running non-interactively aborts.

Useful flags: --no-{v4l2,oakd,rtp}, --with-zed, --sender-only, --jetson. Pass --venv PATH to install into an existing virtual environment.

Running #

Direct (cameras on the workstation)#

Set source: local in the config and run the viewer:

./camera_viz.sh run configs/v4l2.yaml

Swap the config for oakd.yaml, zed.yaml, synthetic.yaml, synthetic_stereo.yaml, or multi_camera.yaml.

Split (robot → workstation over RTP)#

Warning

Wired networks only. There is no retransmit or FEC — one lost packet corrupts one frame until the next IDR (default every 5 s).

Set source: rtp in the config, export the robot/streaming credentials once per shell, then deploy the sender and run the viewer:

export REMOTE_HOST=10.0.0.5 REMOTE_USER=nvidia
export STREAMING_HOST=10.0.0.42                  # workstation IP

./camera_viz.sh deploy configs/v4l2.yaml         # full deploy + systemd unit on the robot
./camera_viz.sh run    configs/v4l2.yaml         # viewer on the workstation

deploy rsyncs the source to the robot, installs sender dependencies, renders a camera-streamer.service systemd user unit (injecting --host from $STREAMING_HOST without editing the YAML on disk), and enables it. Operate the running unit with ./camera_viz.sh service-{status,logs,restart}. The sender retries forever across unplug, SDK errors, and network blips.

Loopback #

./camera_viz.sh loopback configs/v4l2.yaml runs the sender and viewer together on 127.0.0.1 — the quickest way to smoke-test the RTP path on one machine.

Configuration #

A single YAML drives both capture and visualization. Each cameras: entry becomes its own plane (and, in split mode, its own RTP port). Abbreviated:

source: local | rtp
streaming:
  host: 192.168.1.100         # workstation IP (overridden at deploy time)
encoder: auto | native | gstreamer

cameras:
  - name: cam
    enabled: true
    type: v4l2                # v4l2 | oakd | zed | synthetic
    width: 2560
    height: 720
    fps: 30
    stereo: false             # zed / synthetic only — per-eye capture + SBS in XR
    rtp:
      port: 5000              # left eye when stereo
      port_right: 5001        # required when stereo + source: rtp
      bitrate_mbps: 15

display:
  mode: window | xr
  window: { width, height }
  xr:     { near_z, far_z }
  clear_color: [r, g, b, a]
  placements:
    cam:
      lock_mode: lazy         # world | head | lazy
      distance: 1.5
      # size: [w_m, h_m]
      # stereo_baseline_mm: 0

See the configs/ directory for a complete, commented YAML per camera kind.

Lock modes (XR)#

How a camera plane is positioned relative to the operator’s head each frame:

Mode	Behavior
`world`	Placed once in front of you and stays put.
`head`	Follows your head every frame.
`lazy`	World-locked, but re-snaps in front of you when you look away (default).

Lazy-mode knobs live under placements.<name>: look_away_angle_deg, reposition_distance, reposition_delay_s, transition_duration_s.
