Interactive 3D Viewer#

The tool //tools/ncore_vis provides a browser-based interactive 3D viewer for NCore V4 sequence data, built on viser.

Each connected browser client gets an independent set of GUI controls and 3D scene state, allowing multiple users to inspect the same sequence concurrently.

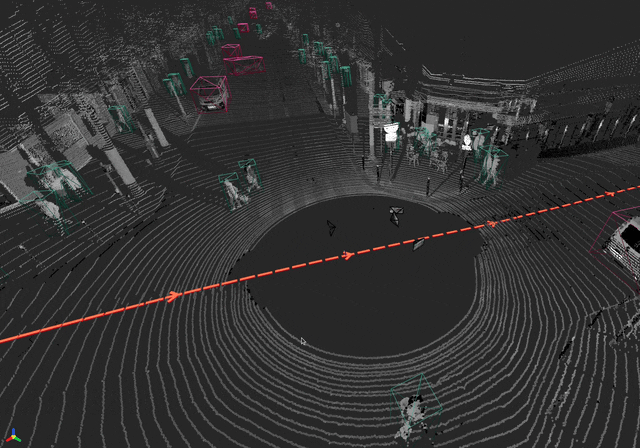

Interactive 3D viewer demo showing camera frustums, lidar point clouds, and cuboid overlays

Usage#

Basic invocation:

bazel run //tools/ncore_vis -- v4 --component-group=<SEQUENCE_META.json>

With multiple component groups:

bazel run //tools/ncore_vis \
    -- \
    v4 \
    --component-group=<COMPONENT_GROUP0> \
    --component-group=<COMPONENT_GROUP1>

With a custom port:

bazel run //tools/ncore_vis \
    -- \
    --port=9090 \
    v4 \
    --component-group=<SEQUENCE_META.json>

Global Options#

Option

Default

Description

--host

0.0.0.0

Server host address

--port

8080

Server port

--rig-frame-id

rig

Pose graph frame ID for the rig/vehicle body

--world-frame-id

world

Pose graph frame ID for the world/map reference

--debug

off

Start a debugpy remote debugging session

--debug-port

5678

Port on which debugpy will wait for a client to connect

V4 Sub-command Options#

Option

Default

Description

--component-group

(required)

Data component group or sequence meta path (may be repeated)

--poses-component-group

default

Component group name for poses

--intrinsics-component-group

default

Component group name for intrinsics

--masks-component-group

default

Component group name for masks (none to disable)

--cuboids-component-group

default

Component group name for cuboids (none to disable)

Features#

Sequence Tab and Playback#

The Sequence tab (shown first) provides global controls:

  • Reference Frame: slider to navigate through frames (shown first)

  • Reference Sensor: select which sensor drives frame synchronization (defaults to the first lidar, if available)

  • Play / Pause: auto-advance the reference frame at a configurable FPS

  • Playback FPS: frames per second during playback (default 5)

  • Loop: when enabled (default), playback wraps to frame 0 at the end

  • Rig Trajectory: toggle visibility of the trajectory path

  • Show Rig Frame: toggle a coordinate frame tripod at the current rig pose (updates live as the reference frame changes)

  • Show World Frame: toggle a coordinate frame tripod at the world origin (disabled by default)

All controls have hover tooltips describing their purpose.

Camera Frustums#

Renders per-camera frustums showing decoded RGB images at the current frame. Clicking a frustum moves the client camera to the corresponding viewpoint.

The Cameras tab provides:

  • Enabled: master toggle to show/hide all cameras and skip rendering when disabled

  • Show Labels: toggle per-camera name labels

  • Each camera has an independent frame slider, a Show Camera visibility toggle, and a Go to Frame button

Camera Overlay Settings#

The Overlay Settings folder (collapsed by default) in the Cameras tab contains shared controls that apply uniformly to all cameras, grouped by feature with the toggle as the first entry in each group:

Cuboid overlay:

  • Overlay Cuboids: toggle cuboid edge projection on all cameras

  • Cuboid Source: label source (LabelSource) for cuboid overlays

Lidar projection (only shown if lidar sensors are available):

  • Project Lidar: toggle lidar point projection on all cameras

  • Lidar Sensor: select which lidar to project

  • Projection Mode: rolling-shutter (default), mean, start, end

  • Point Size and Range Cycle (m): for lidar projection jet colormap

Mask overlay (only shown if masks are available):

  • Show Mask: toggle mask overlay on all cameras

  • Mask Name: select a named camera mask to overlay

  • Mask Opacity: transparency of the mask color tint (default 0.3)

Camera Cuboid Overlay#

When enabled, 3D cuboid bounding box edges are projected onto all camera images using rolling-shutter-aware projection via CameraModel.

Lidar Projection Overlay#

Projects a lidar point cloud onto the camera image with range-based coloring (similar to //tools:ncore_project_pc_to_img).

Camera Mask Overlay#

Overlays static per-camera masks (loaded from the sequence) as a semi-transparent color tint on the camera image. Mask names are discovered from all cameras in the sequence and shown in a shared dropdown. The opacity of the tint is adjustable. Masks are boolean images stored per-sensor and are not per-frame.

Lidar Point Clouds#

Renders per-lidar point clouds in world coordinates.

The Lidars tab provides:

  • Enabled: master toggle to show/hide all lidar point clouds and skip rendering when disabled

Each lidar sensor has its own folder with:

  • Frame: per-lidar frame slider

  • Show Lidar: per-lidar visibility toggle

  • Point Cloud Settings (subfolder):

    • Point Size Radius (cm): rendered point size (default 25, range 0–50)

    • Color Style: Intensity, Intensity γ=1/2, Intensity γ=1/4, Range (jet), Height (turbo), Timestamp, Model Row, Model Column

    • Range Cycle (m): configurable cycle distance for the jet colormap (default 50 m)

    • Height Range (m): configurable min/max Z range for the turbo colormap

    • Timestamp: colors points by per-ray capture time within the frame (turbo colormap, early=blue, late=red)

    • Model Row / Model Column: colors points by their structured lidar model element indices (row = elevation, column = azimuth); only available when model element data is present in the sequence

    • Fuse: accumulate point clouds across a configurable frame range and step

    • Motion Compensation: toggle between motion-compensated (default) and non-motion-compensated point clouds

3D Cuboid Bounding Boxes#

Wireframe cuboid boxes rendered in world coordinates at the current reference frame’s timestamp. Cuboid observations are queried by timestamp window and transformed to world coordinates via the pose graph, independent of any specific sensor’s frame index.

The Cuboids tab provides:

  • Enabled: master toggle to show/hide all cuboids and skip rendering when disabled

  • Cuboid Source: label source selection (LabelSource)

  • Show Labels: toggle track_id[class_id] text labels above each cuboid

Rig Trajectory#

Red boxes along the rig trajectory sampled from the pose graph, with directional arrow indicators every 10th pose.

  • A rig coordinate frame tripod shows the current rig pose and updates live as the reference frame changes.

  • A world coordinate frame tripod at the origin can be toggled on (disabled by default).

Both tripods use standard RGB axis coloring (red=X, green=Y, blue=Z).

When rig_frame_id is None (programmatic use only), the trajectory and rig frame are skipped; the world frame tripod is still available.

Architecture#

The viewer uses a component-based plugin architecture:

tools/ncore_vis/
├── cli.py               # CLI entry point (click group + v4 sub-command)
├── server.py            # Viser server lifecycle, per-client management
├── renderer.py          # Per-client GUI and component orchestration
├── data_loader.py       # SequenceLoaderProtocol wrapper for visualization
├── utils.py             # Shared math/rotation utilities
└── components/
    ├── __init__.py      # Component registry + built-in imports
    ├── base.py          # VisualizationComponent ABC + @register_component
    ├── camera.py        # Camera frustums with cuboid/lidar/mask overlays
    ├── lidar.py         # Point clouds with fusing, motion compensation
    ├── cuboids.py       # 3D wireframe cuboid bounding boxes
    └── trajectory.py    # Rig trajectory boxes + rig/world frame indicators

The VisualizationComponent base class defines the lifecycle:

  1. create_gui(tab_group) – build GUI elements inside the tab group.

  2. create_sequence_gui(sequence_tab) – optionally add controls to the Sequence tab.

  3. populate_scene() – render initial 3D objects.

  4. on_reference_frame_change(interval_us: HalfClosedInterval) – react to frame sync.

Extending the Viewer#

To add a new visualization component:

  1. Create a module in tools/ncore_vis/components/ (e.g. radar.py).

  2. Implement the component:

    from tools.ncore_vis.components.base import VisualizationComponent, register_component

@register_component
class RadarComponent(VisualizationComponent):
    def create_gui(self, tab_group):
        with tab_group.add_tab("Radar"):
            # Add GUI controls ...
            pass

    def populate_scene(self):
        # Render initial 3D objects ...
        pass

  3. Register by importing the module in components/__init__.py:

    from tools.ncore_vis.components import radar  # noqa: F401

  4. Add the new source file to BUILD.bazel under pylib_components.

The component will automatically be instantiated for every connected client. Registration order in __init__.py determines GUI tab ordering.
