Segment Ops: Pooling, Autograd, and torch.compile

Segment operations are the scatter/gather primitives behind graph pooling and message passing. Each one reduces or broadcasts a per-element array over variable-length segments defined by a sorted index — exactly the operation you need to pool per-atom quantities up to per-molecule ones (and to push per-molecule quantities back down to atoms).

We use a tiny batch of molecules as the running example: 12 atoms grouped into 3 molecules. A single atom_idx array maps each atom to its molecule, and the segment ops do the pooling.

In this example you will learn:

• How each of the six segment ops pools (or broadcasts) atom data over molecules

• How a pooled energy backpropagates to per-atom forces (first-order grad) and to a Hessian-vector product (second-order grad) — the quantities an MLIP trains on

• That the ops are torch.compile-clean: an MLIP model can compile straight through them with fullgraph=True

Important

atom_idx must be int32 and sorted in non-decreasing order (atoms of the same molecule are contiguous). The script runs on CUDA if available, otherwise CPU.

Setup

Import the six public ops and define the atom-to-molecule map. atom_idx is the only piece of bookkeeping the segment ops need.

from __future__ import annotations

import matplotlib.pyplot as plt
import numpy as np
import torch

from nvalchemiops.torch.segment_ops import (
    segmented_dot,
    segmented_matvec,
    segmented_mean,
    segmented_mul,
    segmented_rms_norm,
    segmented_sum,
)

device = "cuda" if torch.cuda.is_available() else "cpu"
torch.manual_seed(0)

# 12 atoms, 3 molecules. atom_idx[i] is the molecule atom i belongs to.
atom_idx = torch.tensor(
    [0, 0, 0, 0, 1, 1, 1, 2, 2, 2, 2, 2], dtype=torch.int32, device=device
)
n_atoms = atom_idx.numel()
n_molecules = 3
print(f"{n_atoms} atoms over {n_molecules} molecules, running on {device}")

12 atoms over 3 molecules, running on cuda

Pooling a per-atom scalar: segmented_sum and segmented_mean

Give every atom a partial charge. segmented_sum gives each molecule’s net charge; segmented_mean gives its average. Both map (n_atoms,) down to (n_molecules,).

charge = torch.tensor(
    [0.4, -0.3, 0.1, -0.2, 0.5, -0.5, 0.2, -0.1, 0.3, -0.4, 0.2, 0.1],
    device=device,
)

net_charge = segmented_sum(charge, atom_idx, n_molecules)
mean_charge = segmented_mean(charge, atom_idx, n_molecules)

print("net charge per molecule :", net_charge.tolist())
print("mean charge per molecule:", mean_charge.tolist())

net charge per molecule : [-1.4901161193847656e-08, 0.20000000298023224, 0.10000001639127731]
mean charge per molecule: [-3.725290298461914e-09, 0.06666667014360428, 0.020000003278255463]

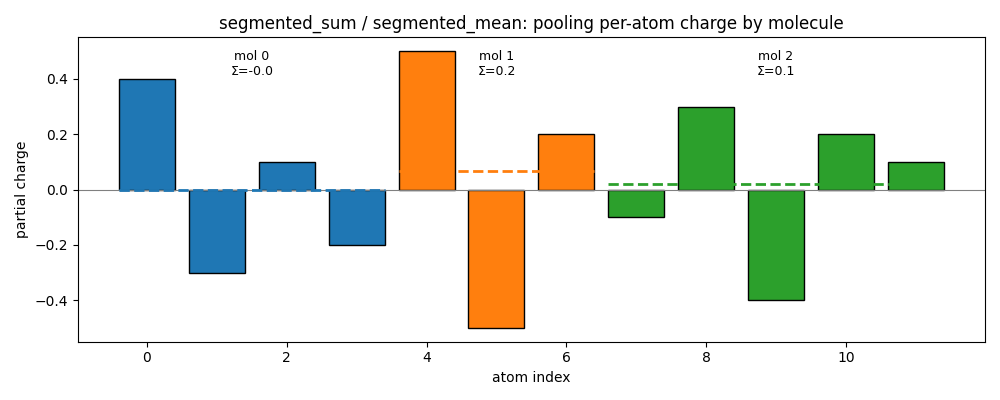

The scatter-then-reduce picture: each bar is one atom’s charge, colored by its molecule; the dashed lines mark the per-molecule mean that segmented_mean returns and the annotation gives the segmented_sum total.

colors = plt.cm.tab10(np.arange(n_molecules))
idx_np = atom_idx.cpu().numpy()

fig, ax = plt.subplots(figsize=(10, 4))
ax.bar(range(n_atoms), charge.cpu().numpy(), color=colors[idx_np], edgecolor="black")
ax.axhline(0, color="gray", lw=0.8)
for mol in range(n_molecules):
    atoms = np.where(idx_np == mol)[0]
    ax.hlines(
        mean_charge[mol].item(),
        atoms[0] - 0.4,
        atoms[-1] + 0.4,
        color=colors[mol],
        ls="--",
        lw=2,
    )
    ax.text(
        atoms.mean(),
        ax.get_ylim()[1] * 0.92,
        f"mol {mol}\nΣ={net_charge[mol].item():.1f}",
        ha="center",
        va="top",
        fontsize=9,
    )
ax.set_xlabel("atom index")
ax.set_ylabel("partial charge")
ax.set_title("segmented_sum / segmented_mean: pooling per-atom charge by molecule")
plt.tight_layout()
plt.show()

Pooling per-atom vectors

Give every atom a 3-vector (say a displacement). The remaining reductions act per molecule:

• segmented_dot contracts two per-atom vector fields and sums the result

• segmented_rms_norm is the root-mean-square vector magnitude

displacement = torch.randn(n_atoms, 3, device=device)
velocity = torch.randn(n_atoms, 3, device=device)

overlap = segmented_dot(displacement, velocity, atom_idx, n_molecules)  # (n_molecules,)
rms = segmented_rms_norm(displacement, atom_idx, n_molecules)  # (n_molecules,)

print("Σ <disp, vel> per molecule:", [f"{v:.3f}" for v in overlap.tolist()])
print("RMS |disp| per molecule   :", [f"{v:.3f}" for v in rms.tolist()])

Σ <disp, vel> per molecule: ['-3.245', '1.591', '1.859']
RMS |disp| per molecule   : ['2.127', '1.644', '1.604']

Broadcasting per-molecule values back to atoms

The other direction: take a per-molecule quantity and apply it to every atom in that molecule.

• segmented_mul scales each atom’s vector by its molecule’s scalar

• segmented_matvec applies its molecule’s 3x3 matrix to each atom’s vector

scale = torch.tensor([2.0, 0.5, -1.0], device=device)  # one scalar per molecule
scaled = segmented_mul(displacement, scale, atom_idx, n_molecules)  # (n_atoms, 3)

rotation = torch.randn(n_molecules, 3, 3, device=device)  # one matrix per molecule
rotated = segmented_matvec(
    displacement, rotation, atom_idx, n_molecules
)  # (n_atoms, 3)

print("scaled  shape:", tuple(scaled.shape), "(per-atom, scaled by molecule)")
print("rotated shape:", tuple(rotated.shape), "(per-atom, matvec'd by molecule)")

scaled  shape: (12, 3) (per-atom, scaled by molecule)
rotated shape: (12, 3) (per-atom, matvec'd by molecule)

First-order autograd: forces from a pooled energy

The ops are differentiable, so a pooled energy backpropagates to per-atom gradients with no special handling. Here a toy per-atom energy ||r||^2 is summed into a per-molecule energy; the gradient of the total energy w.r.t. positions is the per-atom force.

positions = torch.randn(n_atoms, 3, device=device, requires_grad=True)

atom_energy = (positions**2).sum(dim=1)  # (n_atoms,)
molecule_energy = segmented_sum(atom_energy, atom_idx, n_molecules)  # (n_molecules,)
total_energy = molecule_energy.sum()

total_energy.backward()
forces = -positions.grad
print("force on atom 0:", forces[0].tolist())

force on atom 0: [-0.7031645178794861, 2.8342819213867188, 1.6697746515274048]

Second-order autograd: a Hessian-vector product

Training on forces (a “force loss”) differentiates the gradient again, so the segment op must support double-backward. create_graph=True keeps the first gradient in the graph; differentiating grad · v then gives the Hessian-vector product — all the way through segmented_sum.

positions = torch.randn(n_atoms, 3, device=device, requires_grad=True)

atom_energy = (positions**2).sum(dim=1)
total_energy = segmented_sum(atom_energy, atom_idx, n_molecules).sum()

(grad,) = torch.autograd.grad(total_energy, positions, create_graph=True)
v = torch.randn_like(positions)
(hvp,) = torch.autograd.grad((grad * v).sum(), positions)
print("‖Hessian·v‖:", hvp.norm().item())

‖Hessian·v‖: 14.210844993591309

Compiling through the ops with torch.compile

Each op is a torch.library custom op wrapping a Warp kernel, so TorchDynamo captures it as a single opaque node. A model that pools with these ops compiles with fullgraph=True — one graph, no breaks — and matches eager exactly.

def molecule_energy_model(positions: torch.Tensor) -> torch.Tensor:
    """Toy MLIP energy: per-atom ``||r||^2`` pooled to a scalar total energy."""
    atom_energy = (positions**2).sum(dim=1)
    return segmented_sum(atom_energy, atom_idx, n_molecules).sum()


positions = torch.randn(n_atoms, 3, device=device, requires_grad=True)
eager_energy = molecule_energy_model(positions)
(eager_force,) = torch.autograd.grad(eager_energy, positions)

compiled_model = torch.compile(molecule_energy_model, fullgraph=True)
compiled_energy = compiled_model(positions)
(compiled_force,) = torch.autograd.grad(compiled_energy, positions)

torch.testing.assert_close(compiled_energy, eager_energy)
torch.testing.assert_close(compiled_force, eager_force)
print("torch.compile(fullgraph=True): energy and force match eager")

torch.compile(fullgraph=True): energy and force match eager

Summary

Using a 12-atom / 3-molecule batch, this guide showed the six segment ops in their natural roles:

• Pooling per-atom data to molecules: segmented_sum, segmented_mean, segmented_dot, segmented_rms_norm

• Broadcasting per-molecule data back to atoms: segmented_mul, segmented_matvec

• First-order autograd turning a pooled energy into per-atom forces

• Second-order autograd (Hessian-vector product) for force-loss training

• ``torch.compile`` capturing the whole pooled-energy model in one graph

Each op is a Warp-backed torch.library custom op: differentiable to second order and opaque to TorchDynamo, so it drops into a compiled MLIP model without forcing a graph break.

print("Done.")

Done.
