Visual Materials Workflow#

This guide takes one asset to demonstrable conformance on visual materials. You author an OpenPBR surface and a display colour, validate the result against a profile, render it in Kit, and work out what the render result is worth.

Visual materials in SimReady cover two separate things. A material describes a shaded surface through a shading network. Display colour is a primvar holding a single colour per prim and no network at all, which is what makes it readable by consumers that never evaluate a material. Each gets its own tool here, because they are different contracts.

There are two ways in, and both depend on the contract in step 1. Step 2 exports a conformant material from Blender. Step 3 upgrades an asset that already exists. All commands run from the repository root unless stated otherwise.

What you end up with#

Stage	Tool	Outcome
Baseline	`simready-validate`	A profile report, and a record of what it does not cover
OpenPBR surfaces	`migrate_to_openpbr.py`	`outputs:mtlx:surface` on every visual material, textures reconnected
Display colour	`author_display_color.py`	`primvars:displayColor` on every renderable Gprim
Re-validation	`simready-validate`	The static contract, confirmed
Benchmark	`simready-benchmark`	Evidence that the geometry bound to each surface drew in the engine

Static validation and the benchmark answer different questions. Validation inspects the authored scene description and confirms the file holds the right values. The benchmark loads the asset in Kit and confirms the engine resolved it. Neither establishes that the asset looks correct, and step 5 is about where that line falls.

Prerequisites#

Requirement	How to get it	Needed for
Python	3.12	All steps
Git LFS	`git lfs install`	Sample assets
`simready-validate` and the validator dependencies	`pip install -r requirements.txt`	Steps 2 and 3
`simready-foundation-tier-core`	`pip install simready-foundation-tier-core`	Steps 2 and 3
`simready-benchmark`	Refer to Running Tests	Step 4
Kit or Isaac Sim	2024.2.0 or later	Step 4

One environment covers steps 2 and 3. requirements.txt lists simready-validate and numpy, and usd-core arrives behind them. Two more are needed and neither is in that file:

pip install -r requirements.txt
pip install "MaterialX>=1.39" pillow

MaterialX supplies the OpenPBR node definitions. A usd-core wheel ships no usdMtlx plugin, so in a pip environment the Python package is the only source of them. Without it VM.PBR.002 and VM.PBR.003 have nothing to compare an asset against and report nothing, which looks the same as a clean asset. The validator emits one line per run, VM.PBR.002 and VM.PBR.003 did not run. VM.PBR.001 matches one shader identifier, needs no node definition, and runs either way. Pillow is how VM.TEX.001 gets a texture’s dimensions, and the display-colour script uses it to sample texture maps.

The core tier#

simready-validate checks an asset against the core tier: the capabilities, features, profiles and rule checkers that make up the spec. It is a separate package from the validator, so install it alongside:

pip install simready-foundation-tier-core

SimReady Foundation PyPI Packages covers the tiers, the index to install from, and how content is discovered.

The benchmark#

Give simready-benchmark a virtual environment of its own: it installs a Kit engine plugin on top of its own USD build, and Running Tests covers the setup.

The worked example uses the toaster sample. Both conform scripts write into an asset in place, so take a copy and work on that. The samples are LFS-tracked binaries and a rewrite moves the file hash even when nothing about the content changes.

mkdir -p ../vm-workflow
cp -r sample_content/common_assets/props_general/gen_appliance_toaster_v01_01 ../vm-workflow/

The shipped samples already have an OpenPBR surface and a display colour, so the worked example below confirms a conformant asset. Point the same commands at your own asset to see them repair one, and read each transcript for the shape of its output; the counts and colours belong to this sample.

1. The material contract#

Three surfaces on one prim#

A SimReady Material prim can declare three surface outputs at once, one per render context. A render context is the token a renderer uses to choose which shader inside a material it evaluates.

Output	Shader	Render context	Feature	Requirement
`outputs:surface`	UsdPreviewSurface	universal	`FET_006_STANDARD`	com.nvidia.usd.VM.PS.001
`outputs:mdl:surface`	OmniPBR	`mdl`	`FET_006_MDL`	VM.MDL.001
`outputs:mtlx:surface`	OpenPBR	`mtlx`	`FET_006_OPENPBR`	VM.PBR.001

These are sibling contracts. An asset may declare any combination, and none of the three depends on another. OpenPBR is the recommended target for new assets because it is a portable format that needs no vendor-specific material; MDL stays permitted for existing content. Refer to FET006 OpenPBR Materials for the full contract.

Which surface the renderer picks#

Kit resolves one surface per material by walking an ordered list of render contexts and taking the first one the material has. The list is the carb setting /persistent/app/hydra/material/renderContexts, and Kit ships it as ["mdl", "mtlx", ""].

An asset with both an OmniPBR and an OpenPBR surface therefore renders the OmniPBR one. If you open a migrated asset in Kit and it looks unchanged, that is why: you are looking at MDL.

The benchmark tests in step 4 pin the context themselves and verify the pin took, so you do not need to change the setting to see the OpenPBR surface rendered. Refer to How a Surface Is Measured for how they do it.

Render context is a different mechanism from binding purpose. Render context selects which shader inside a material is evaluated. Binding purpose, authored as material:binding:full or material:binding:preview, selects which material is bound to a prim in the first place. This guide concerns render context.

Display colour is a primvar#

primvars:displayColor has no render context and no surface output, because it has no shading network. That is the point of it: it is the appearance layer available to a consumer that never evaluates a material, such as a low-fidelity or non-ray-traced render path. In Kit, the RTX default material takes it as its diffuse tint for geometry with no material bound.

Code	Requirement	Status
`DISP.001`	Every renderable Gprim resolves a `primvars:displayColor`	Required
`DISP.002`	Every component is within `[0, 1]` and finite, and the element count agrees with the interpolation	Required
`DISP.003`	`primvars:displayOpacity`, where authored, is within `[0, 1]` and finite	Optional

Display opacity works differently. A material has to opt in to reading displayOpacity; gltf/pbr.mdl is one that does. Kit’s RTX default material has no opacity term, so geometry with no material bound picks up the colour and nothing else. Neither conform script in this guide authors display opacity.

Colour space#

Colours and data channels both need colour space information, and the rules differ. Constants are linear everywhere. Textures declare their own, and each of the three surfaces declares it somewhere else, with a different default and a different vocabulary.

Constants and display colour are linear. primvars:displayColor, and any constant you type onto a surface input, are Linear Rec.709 with a D65 white point. 0.18 is mid grey. USD resolves the colour space from the attribute’s own colorSpace metadata, then from UsdColorSpaceAPI on the prim, then from the nearest ancestor that authors one, and falls back to lin_rec709_scene when none is authored, so an asset that authors nothing still has a defined colour space.

So a value taken from an sRGB colour picker needs converting before you write it. 0.5 picked as mid grey in sRGB is much lighter once interpreted as linear. The display-colour script in step 3 handles this by decoding every texel through the sRGB transfer function before it averages, so you only need to think about it when you author a value by hand.

Textures are where the three surfaces diverge.

Surface	Declared on	No declaration means	Requirement
UsdPreviewSurface	`inputs:sourceColorSpace` on the `UsdUVTexture`	`auto`	`VM.TEX.003`
MDL	`colorSpace` metadata on the shader’s own `asset inputs:*`	`auto`	`VM.TEX.005`
OpenPBR	`colorSpace` metadata on the image node’s `inputs:file`	no transform at all	`VM.TEX.004`

auto reads the image file’s own colour-space metadata; where the file states nothing, it decodes any 8-bit three- or four-channel image as sRGB and treats everything else as raw.

Two consequences follow, and they pull in opposite directions.

On UsdPreviewSurface and MDL a colour texture can rely on the default, because auto decodes 8-bit RGB the way a colour texture needs. A data texture cannot: image editors write 8-bit RGB as a matter of course, so a roughness, metalness or occlusion map left undeclared is decoded as though it held colour and every value comes out low. Declare raw on data inputs. Single-channel and high-bit-depth files fall outside the sRGB branch, so auto is already correct for a single-channel mask.

On OpenPBR there is no auto. An undeclared texture gets no transform whatever the file is, so a colour texture must declare srgb_texture or it is consumed undecoded and renders washed out. A data texture needs nothing, or none.

Author srgb_texture, not srgb_rec709_scene. The two name the same encoding, the sRGB transfer function over Rec.709 primaries, but only the MaterialX spelling resolves on an OpenPBR surface. OpenUSD adopted srgb_rec709_scene in 24.11; MaterialX defines its transform nodes under srgb_texture, and the mapping between the two vocabularies arrived in MaterialX 1.39.4, which no runtime SimReady targets ships. A texture tagged with the OpenUSD name is consumed undecoded and renders washed out with nothing reported. The MDL loader does resolve srgb_rec709_scene, so an asset with both surfaces can be correct on one and wrong on the other.

Mid grey is 0.18 as a constant and code 118 in an 8-bit sRGB texture. Both are the 18% grey card; they differ because the texture is sRGB-encoded and the constant is linear. Code 128 is not mid grey in a colour texture: it is the middle of the encoding range and decodes to 0.216, about 20% lighter than a grey card.

The materials requirements overview states the conventions of all four appearance formats side by side, including display colour.

2. Authoring in Blender#

Blender 5.2 LTS writes an OpenPBR surface with no add-on. One export puts both a UsdPreviewSurface and an OpenPBR surface on the same Material prim, which is the shape FET006 OpenPBR Materials describes. One thing stands between that and a conformant material: the setting that writes the OpenPBR network is off by default.

This is the path for a material built from scratch. Step 3 is the other one, for an asset that already exists. This section covers the stock exporter only.

The commands here run outside the repository, against Blender 5.2.0 LTS in headless mode:

blender --background --factory-startup --python export.py

The export operator is bpy.ops.wm.usd_export. It takes around seventy properties, so read them off the build in front of you instead of from a list that may have moved:

for p in bpy.ops.wm.usd_export.get_rna_type().properties:
    print(p.identifier, p.type, p.default)

Export settings#

Property	Default	Use	What it does
`generate_materialx_network`	`False`	`True`	Writes the OpenPBR network
`generate_preview_surface`	`True`	leave on	Derives the UsdPreviewSurface from the Principled BSDF
`export_textures_mode`	`NEW`	leave on `NEW`	Copies referenced maps into `textures/` beside the USD and points the asset paths at the copies
`export_materials`	`True`	leave on	Off writes no materials at all

Nothing in the output flags generate_materialx_network being off. An export with it off is a complete, valid USD file with a working UsdPreviewSurface and no OpenPBR anywhere.

Turning generate_preview_surface off does not remove the UsdPreviewSurface. It swaps the one derived from the Principled BSDF for a placeholder built from the material’s viewport display settings, and renames the prim from Principled_BSDF to previewShader. A material whose Principled BSDF base colour is (0.11, 0.12, 0.13) and whose viewport colour is left at Blender’s default exports diffuseColor = (0.8, 0.8, 0.8). The terminal still satisfies com.nvidia.usd.VM.PS.001 while showing an appearance nobody authored, so leave the setting on.

What Principled BSDF maps to#

Principled BSDF is the route to OpenPBR. Blender translates its inputs to ND_open_pbr_surface_surfaceshader one at a time, and several do not survive the trip intact. The table covers every input the Principled BSDF panel exposes. It comes from giving each one a distinct constant, exporting once, and reading which value landed where. The three vector inputs need a node connected, so they were measured separately.

Principled BSDF input	OpenPBR input	Carried as
Base Color	`base_color`, `subsurface_color`, `transmission_color`	Copied to all three
Metallic	`base_metalness`	Unchanged
Roughness	`specular_roughness`	Unchanged
IOR	`specular_ior`	Unchanged
Alpha	`geometry_opacity`	Unchanged
Thin Wall	`geometry_thin_walled`	Unchanged
Diffuse Roughness	`base_diffuse_roughness`	Unchanged
Subsurface Weight	`subsurface_weight`	Unchanged
Subsurface Scale	`subsurface_radius`	Unchanged
Subsurface Radius	`subsurface_radius_scale`	Unchanged
Subsurface Anisotropy	`subsurface_scatter_anisotropy`	Unchanged
Specular Tint	`specular_color`	Unchanged
Transmission Weight	`transmission_weight`	Unchanged
Coat Weight	`coat_weight`	Unchanged
Coat Roughness	`coat_roughness`	Unchanged
Coat IOR	`coat_ior`	Unchanged
Coat Tint	`coat_color`	Unchanged
Sheen Weight	`fuzz_weight`	Unchanged
Sheen Roughness	`fuzz_roughness`	Unchanged
Sheen Tint	`fuzz_color`	Unchanged
Emission Color	`emission_color`	Unchanged
Thin Film IOR	`thin_film_ior`	Unchanged
Normal	`geometry_normal`	Through `ND_normalmap_float`
Coat Normal	`geometry_coat_normal`	Through `ND_normalmap_float`
Specular IOR Level	`specular_weight`	Doubled
Anisotropic	`specular_roughness_anisotropy`	Scaled by 0.7
Emission Strength	`emission_luminance`	Number copied, meaning changed
Thin Film Thickness	`thin_film_thickness`	Nanometres to micrometres
Anisotropic Rotation	none	A rotation inside the tangent chain
Tangent	`geometry_tangent`	Flattened to a world-space tangent
Subsurface IOR	none	Dropped

Five are not straight copies, so know them before you tune a material in Blender and expect the numbers back.

Specular IOR Level is doubled. Blender’s 0.5 default becomes specular_weight = 1, and 1.0 becomes 2, above the node definition’s soft maximum of 1.

Anisotropic is scaled by 0.7. Blender’s full 1.0 reaches 0.7 of a range the node definition caps at 1, so the slider cannot reach the top of OpenPBR’s anisotropy.

Anisotropic Rotation never reaches an OpenPBR input. It becomes the amount on an ND_rotate3d_vector3 node in the tangent chain, in degrees, as -(turns * 360 + 90): 0 gives -90 and 0.25 gives -180. That chain only feeds geometry_tangent when Anisotropic is above zero. At zero the unrotated tangent is connected instead and the rotation node is left dangling in the graph.

Thin Film Thickness is divided by 1000, converting Blender’s nanometres to the micrometres the node definition asks for. Authoring any non-zero thickness also sets thin_film_weight to 1, which has no Blender input of its own.

Emission Strength is copied unchanged into emission_luminance, which the node definition defines as a luminance in nits. Blender treats the same number as a multiplier on Emission Color. The number survives and the brightness does not.

Two inputs go nowhere useful. Subsurface IOR leaves no trace in the export. Tangent does reach the graph, and lands the same way whatever you feed it: a Blender Tangent node exports as ND_tangent_vector3 with space = "world" whether it is set to a UV map or to radial around an axis, and with nothing connected the exporter emits that same node itself. So the OpenPBR tangent is the world-space one either way, and choosing a tangent in Blender changes nothing in the file.

Going the other way, base_weight is written as 1 with no Blender input behind it, the same way thin_film_weight is. And eight OpenPBR inputs are declared with no value, because nothing on the Principled BSDF feeds them: coat_darkening, coat_roughness_anisotropy, geometry_coat_tangent, transmission_depth, transmission_dispersion_abbe_number, transmission_dispersion_scale, transmission_scatter and transmission_scatter_anisotropy.

The UsdPreviewSurface written alongside is derived on its own terms, and it disagrees with the OpenPBR surface in one place. Alpha reaches geometry_opacity on the OpenPBR shader but never reaches opacity on the UsdPreviewSurface, which is set to 1 - Transmission Weight instead. A material with Alpha 0.24 and no transmission exports geometry_opacity = 0.24 alongside opacity = 1. Emission is combined instead of passed through: emissiveColor is Emission Color multiplied by Emission Strength and left unclamped, so strength 2 on a light colour writes components above 1.

Textures#

Wire an image texture to Base Color and the map crosses into the MaterialX network. The reader node is ND_image_*, one per Blender image node, all fed from a single shared ND_texcoord_vector2. Blender never emits tiledimage.

Blender wiring	MaterialX nodes	Feeds
Image Texture -> Base Color	`ND_image_color4` -> `ND_convert_color4_color3`	`base_color`
Image Texture -> Roughness	`ND_image_vector4` -> `ND_extract_vector4` (`index = 0`)	`specular_roughness`
Image Texture -> Normal Map -> Normal	`ND_image_vector4` -> `ND_convert_vector4_vector3` -> `ND_normalmap_float`	`geometry_normal`

Colour space lands in three places on a Blender export.

On the MaterialX image node, a colour map gets colorSpace = "srgb_texture" on its inputs:file. A map set to Non-Color in Blender gets no colour space metadata there at all.

On the UsdPreviewSurface side, Blender writes inputs:sourceColorSpace on the UsdUVTexture and gets it right both ways: a colour map exports sRGB, and a map set to Non-Color exports raw.

Blender also writes colorSpace:name on the texture Shader prims themselves, srgb_rec709_display for a colour map and data for a Non-Color map. srgb_rec709_display is display-referred, where a texture needs the scene-referred srgb_rec709_scene. No renderer consults UsdColorSpaceAPI today, so it has no effect on what you see, but it would be wrong if one started.

export_textures_mode controls where the file itself lands, and it interacts with the MaterialX network in a way its three descriptions do not cover. Measured on one texture:

Mode	Asset path written	Copy in `textures/`
`KEEP`	The original location, relative	Written, referenced by nothing
`PRESERVE`	The original location, relative	Written, referenced by nothing
`NEW` (default)	`./textures/<name>`	Written and referenced

With generate_materialx_network off, KEEP and PRESERVE copy nothing, which is what their descriptions state. Turning the MaterialX network on copies them anyway while the asset paths still point at the originals, so the export ends up with a duplicate nothing uses and stays dependent on a path outside itself. Leave the mode on NEW, which is self-contained and leaves no stray file.

What the export looks like#

Both terminals sit on one Material prim, with the OpenPBR reader nodes gathered into a NodeGraph and the UsdPreviewSurface readers as siblings beside the shader:

def Material "ProbeMat" (
    prepend apiSchemas = ["MaterialXConfigAPI", "ColorSpaceAPI"]
)
{
    uniform token colorSpace:name = "lin_rec709_scene"
    string config:mtlx:version = "1.39"
    token outputs:mtlx:surface.connect = </root/_materials/ProbeMat/bnode__Principled_BSDF.outputs:surface>
    token outputs:surface.connect = </root/_materials/ProbeMat/Principled_BSDF.outputs:surface>

    def Shader "Principled_BSDF"
    {
        uniform token info:id = "UsdPreviewSurface"
        color3f inputs:diffuseColor.connect = </root/_materials/ProbeMat/Image_Texture.outputs:rgb>
        ...
    }

    def Shader "Image_Texture" ...
    def Shader "uvmap" ...

    def Shader "bnode__Principled_BSDF"
    {
        uniform token info:id = "ND_open_pbr_surface_surfaceshader"
        color3f inputs:base_color.connect = </root/_materials/ProbeMat/NodeGraphs.outputs:node_out>
        ...
    }

    def NodeGraph "NodeGraphs" ...
}

The OpenPBR shader’s output is named surface here, where the node definition declares out. Both names resolve, and VM.PBR.001 accepts either. Hydra derives the MaterialX terminal from the node definition’s type, through HdMtlxGetMxTerminalName, and never looks at the USD output property name. Both names are in circulation: usdMtlx normalises any surfaceshader-typed output to surface when it loads a MaterialX document, so a MaterialX file converted with no Blender in the picture lands the same way, while the shipped OpenPBR material library authors out. Expect either in an asset somebody else made, and author out to match the library.

No MDL surface is written, and that determines what Kit draws. Kit walks ["mdl", "mtlx", ""] and takes the first context the material has, as step 1 describes. A Blender export has nothing ahead of mtlx in that list, so the OpenPBR surface is the one that resolves, with no setting changed. The migrated sample in step 3 goes the other way, with MDL in front.

Confirm it conforms#

The materials come out conformant, so the profile run is about what the rest of the export is missing. Copy bl_probe.usda and its textures/ beside it into the repository root, or give the command an absolute path to where the export landed:

simready-validate --project-config sample_content/project_config.toml --profile Robotics-Prop --version 3.3.0 --output results.json bl_probe.usda

3.3.0 is the first Robotics-Prop version that requires FET_006_STANDARD instead of marking it optional, so it is the one that tests whether the UsdPreviewSurface half of the export holds up.

Asset: bl_probe.usda
  [FAILED] Robotics-Prop v3.3.0
           FET_000_STANDARD: failing requirements: ['com.nvidia.simready.NP.005', 'com.nvidia.simready.NP.006']
           FET_003_STANDARD: failing requirements: ['com.nvidia.simready.RB.001']
           FET_004_STANDARD: failing requirements: ['com.nvidia.simready.RB.001']
           ...

Twelve lines, three distinct requirements, each repeated once per runtime physics variant. RB.001 is No physics rigid bodies found under the default prim; NP.005 and NP.006 are naming and path requirements a bare export does not meet. Physics and naming are outside what this section covers.

The material features are absent from that list. The features_summary in results.json gives them by name:

FET_006_STANDARD      {"dependencies": "[]", "passed": true, "version": "0.2.0"}
FET_006_OPENPBR       {"dependencies": "[]", "passed": true, "version": "0.1.0"}
FET_006_MDL           {"dependencies": "[]", "passed": true, "version": "0.2.0"}
FET_010_STANDARD {"dependencies": "[]", "optional requirements": "['com.nvidia.simready.DISP.001']", "passed": true, "version": "0.1.0"}

The first three pass. The fourth is this export’s one gap on visual materials: the probe has no primvars:displayColor, so DISP.001 goes unsatisfied and shows up as an optional requirement instead of a failure. The next subsection closes it.

Note

migrate_to_openpbr.py --verify and VM.PBR.001 both read outputs:mtlx:surface, so a material with only OmniPBR on outputs:mdl:surface is a problem to each of them. They differ in scope: --verify reads every material in the asset, while VM.PBR.001 resolves each renderable Gprim’s binding at the full purpose and judges only what comes back. A material nothing binds is a --verify problem and outside VM.PBR.001.

Run the migration script over a Blender export and it leaves the material alone, reporting a conflict, because it owns a prim named OpenPBR_Shader and Blender names its shader after the Blender node.

Display colour#

A Color Attribute named displayColor is what produces primvars:displayColor. The name does all the work. Three candidates measured on one export:

Authored in Blender	Exported as
Color Attribute named `Col`, Blender’s default	`color4f[] primvars:Col`
Color Attribute named `displayColor`	`color3f[] primvars:displayColor`, `interpolation = "faceVarying"`
Viewport Display colour on the material	nothing

Only the rename gives both the right name and the right type, with alpha dropped on the way. The Viewport Display colour never reaches the file.

For a mesh with no Color Attribute, step 3’s script reads the export and authors the primvar from the bound material instead:

python skills/simready-foundation-conform-fet-010-standard/assets/scripts/author_display_color.py bl_probe.usda --verify

FAIL bl_probe.usda
  /root/ProbeCube/Cube: GPrim '/root/ProbeCube/Cube' does not resolve a 'primvars:displayColor', authored on the prim or inherited from an ancestor (DISP.001)

1 problem(s) across 1 asset(s) checked

python skills/simready-foundation-conform-fet-010-standard/assets/scripts/author_display_color.py bl_probe.usda

bl_probe.usda: 1 authored, 0 skipped
  /root/ProbeCube/Cube: (0.3419, 0.1413, 0.0273)
      ProbeMat -> (0.3419, 0.1413, 0.0273)  UsdPreviewSurface diffuseColor <- be_basecolor.png sampled over 12 triangle(s)

Per-material area-weighted colour:
  ./ProbeMat: (0.3419, 0.1413, 0.0273) across 1 Gprim(s)

1 Gprim(s) given a display colour across 1 asset(s)

Note which tier the value came from. The script resolves OpenPBR first and here it fell through to the UsdPreviewSurface, because on a Blender export the OpenPBR base_color arrives through a NodeGraph output instead of straight from an image reader. Both tiers hold the same map, so the value is the same either way.

3. Upgrading an Omniverse asset with OmniPBR#

This path is for an asset that already exists and already has an OmniPBR (MDL) surface on outputs:mdl:surface. The job is to add an OpenPBR surface and a display colour beside it without disturbing what is there. It assumes an asset that already loads and passes the core SimReady features.

Four passes follow: a baseline profile run, the OpenPBR conform, the display-colour conform, and a second profile run.

Establish a baseline#

Run the profile the asset targets:

simready-validate --project-config sample_content/project_config.toml --profile Robotics-Prop --version 3.3.0 ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd

--project-config takes the capability, feature and profile directories from the [validate] section of that file, which the repository keeps pointed at the core tier. Spelling the three out with --rules-path, --features-path and --profiles-path does the same thing, and is the form SimReady Validation Workflow shows. This guide takes the short one because it runs the command four times.

The run prints a page of capability-parsing warnings before it prints anything about your asset. The result is the last two lines, and the exit code is 0 for a pass and 1 for anything else:

Asset: ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd
  [PASSED] Robotics-Prop v3.3.0

Name a profile version that does not exist and you get the Asset: line, no verdict, and exit 1. The reason is in the warnings above it, as Profile ... is not registered — cannot validate. Refer to Profiles for the versions on offer.

Note

A green profile line establishes less about visual materials than it appears to. Robotics-Prop 3.3.0 requires the UsdPreviewSurface preview (FET_006_STANDARD) and marks display colour, OpenPBR and MDL optional. Three profiles list FET_006_OPENPBR and FET_010_STANDARD: Robotics-Prop, Robot-Body and Robot-Gripper. All three mark both optional. An optional feature’s requirements still run, and they are reported under optional requirements in the JSON report, but they cannot fail the profile. So no profile today fails an asset for shipping no OpenPBR surface or no display colour.

Two requirements ask for less than their names suggest:

VM.PBR.001 asks for an OpenPBR surface on outputs:mtlx:surface, and nothing else on that terminal satisfies it. An MDL surface is VM.MDL.003, a separate requirement, so a profile that accepts either lists both. It resolves each renderable Gprim’s binding at the full purpose and judges the material that comes back, so an unused material in /Looks and one bound only for preview both fall outside it.
VM.PBR.003 asks for a connected surface terminal in some render context. A preview plus an MDL surface satisfies it with no MaterialX anywhere.

So a profile run covers everything except the OpenPBR and display-colour contracts. The next two subsections each open with the tool that covers one of those.

Conform the OpenPBR surfaces#

Use the skill at skills/simready-foundation-conform-fet-006-openpbr/. Its bundled script authors an OpenPBR surface on materials that already have a UsdPreviewSurface preview and an OmniPBR final surface, which is the shape every sample under sample_content/common_assets/props_general/ has.

The path argument takes a USD file, or a directory to search for simready_usd assets.

Start with the state of the asset:

python skills/simready-foundation-conform-fet-006-openpbr/assets/scripts/migrate_to_openpbr.py ../vm-workflow/gen_appliance_toaster_v01_01 --verify

ok   ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd

0 problem(s) across 1 asset(s)

--verify reports VM.PBR.001, VM.PBR.002 and texture resolution, and exits 0 only when it finds nothing. On an asset with no OpenPBR surface it exits 1 and prints one line per material, each naming the prim, the problem and the requirement:

/RootNode/Geometry/body_obj_01/body_mesh_01/VisualMaterials/m_opaque__plastic__toaster_v01_01: no outputs:mtlx:surface (VM.PBR.001)

Now see what a run would write, without writing anything:

python skills/simready-foundation-conform-fet-006-openpbr/assets/scripts/migrate_to_openpbr.py ../vm-workflow/gen_appliance_toaster_v01_01 --dry-run

../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd: 6 migrated, 2 skipped (dry run)
  /RootNode/Geometry/body_obj_01/body_mesh_01/VisualMaterials/m_opaque__plastic__toaster_v01_01: emission_color=(1, 1, 1), geometry_opacity=1.0, specular_ior=1.5
      texture: base_color <- t_gen_appliance_toaster_v01_01_a.png (rgb)
      texture: base_metalness <- t_gen_appliance_toaster_v01_01_orm.png (b)
      texture: specular_roughness <- t_gen_appliance_toaster_v01_01_orm.png (g)
      texture: geometry_normal <- t_gen_appliance_toaster_v01_01_n.png (rgb)
  /RootNode/Geometry/body_obj_01/body_mesh_01/VisualMaterials/m_opaque__metal__toaster_v01_01: emission_color=(1, 1, 1), geometry_opacity=1.0, specular_ior=1.5
      texture: base_color <- t_gen_appliance_toaster_v01_01_a.png (rgb)
      texture: base_metalness <- t_gen_appliance_toaster_v01_01_orm.png (b)
      texture: specular_roughness <- t_gen_appliance_toaster_v01_01_orm.png (g)
      texture: geometry_normal <- t_gen_appliance_toaster_v01_01_n.png (rgb)
  ...

6 material(s) migrated across 1 asset(s)
24 channel(s) carried across as textures.

Those counts are what the run would author, whatever is there already. The script owns the prims it writes and rewrites them from scratch every pass, so a conformant asset reports the same six materials as a broken one. Each mesh has its own VisualMaterials scope, so a material shared by several meshes is authored once per mesh. The two skipped materials are the asset’s physics materials, which describe friction, so the script leaves them alone.

Drop --dry-run to write. The output is the same, without (dry run):

python skills/simready-foundation-conform-fet-006-openpbr/assets/scripts/migrate_to_openpbr.py ../vm-workflow/gen_appliance_toaster_v01_01

The four flags are --verify, --dry-run, --textures and --no-textures. Textures are reconnected by default, so --textures names the default and changes nothing. --no-textures flattens texture-driven channels to constants instead; those materials still satisfy VM.PBR.001 and VM.PBR.002, and they will not look like the original. The before-and-after image in step 5 is exactly that difference.

The prims the script owns are one OpenPBR_Shader per material plus the reader nodes named OpenPBR_Shader_* beside it. A material that already has an OpenPBR surface under a different prim name was authored by hand or by a DCC; the script reports it as a conflict and leaves it alone. Because these assets are LFS-tracked binaries that cannot be merged, re-running the script is the way to resolve a collision with someone else’s edit.

A re-run rewrites the binary layer even when nothing changes, so the file hash moves. To confirm a re-run was inert, compare flattened USD instead of file hashes.

Note

--verify checks authored scene description. It covers VM.PBR.001, VM.PBR.002 and whether each texture it names resolves to a file. VM.PBR.003, the structural check on the shading network, belongs to simready-validate.

VM.PBR.002 and VM.PBR.003 need MaterialX installed, which the Prerequisites cover.

Conform display colour#

Use the skill at skills/simready-foundation-conform-fet-010-standard/. Its script authors a constant primvars:displayColor on every renderable Gprim, derived from the material bound to that Gprim. It takes the same four flags as the OpenPBR script, with --textures and --no-textures controlling whether base colour maps are sampled.

The script resolves base colour through OpenPBR first, then UsdPreviewSurface, then MDL, and reports which tier it used. On these samples the first two tiers hold the same map, so running this before or after the OpenPBR conform gives the same values.

python skills/simready-foundation-conform-fet-010-standard/assets/scripts/author_display_color.py ../vm-workflow/gen_appliance_toaster_v01_01 --verify

FAIL ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd
  /RootNode/Geometry/body_obj_01/body_mesh_01/body_mesh_01: GPrim '/RootNode/Geometry/body_obj_01/body_mesh_01/body_mesh_01' does not resolve a 'primvars:displayColor', authored on the prim or inherited from an ancestor (DISP.001)
  /RootNode/Geometry/lever_obj_01/lever_mesh_01: GPrim '/RootNode/Geometry/lever_obj_01/lever_mesh_01' does not resolve a 'primvars:displayColor', authored on the prim or inherited from an ancestor (DISP.001)
  ...

5 problem(s) across 1 asset(s) checked

--verify reports DISP.001 and DISP.002, one line per Gprim, and exits 1. None of the five meshes has a display colour yet, which is what the authoring step below fixes; re-run it afterwards and it reports ok and 0 problem(s).

Then author. --edit-target binding puts each opinion in the layer holding that Gprim’s material:binding, which for these samples is payloads/instances.usda. The meshes are instanceable, and a primvar cannot be authored on an instance proxy at the path it appears on, so the default --edit-target stage reaches nothing here:

python skills/simready-foundation-conform-fet-010-standard/assets/scripts/author_display_color.py ../vm-workflow/gen_appliance_toaster_v01_01 --edit-target binding

../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd: 5 authored, 0 skipped
  /RootNode/Geometry/body_obj_01/body_mesh_01/body_mesh_01: (0.2469, 0.2459, 0.2434) -> instances.usda/Instances/body_mesh_01/body_mesh_01
      m_opaque__plastic__toaster_v01_01 -> (0.0840, 0.0840, 0.0840)  OpenPBR base_color <- t_gen_appliance_toaster_v01_01_a.png sampled over 13952 triangle(s)
      m_opaque__metal__toaster_v01_01 -> (0.3500, 0.3484, 0.3443)  OpenPBR base_color <- t_gen_appliance_toaster_v01_01_a.png sampled over 20640 triangle(s)
  /RootNode/Geometry/lever_obj_01/lever_mesh_01: (0.0123, 0.0123, 0.0123) -> instances.usda/Instances/lever_mesh_01/lever_mesh_01
      m_opaque__plastic__toaster_v01_01 -> (0.0123, 0.0123, 0.0123)  OpenPBR base_color <- t_gen_appliance_toaster_v01_01_a.png sampled over 940 triangle(s)
  /RootNode/Geometry/tray_obj_01/tray_mesh_01: (0.3788, 0.3731, 0.3592) -> instances.usda/Instances/tray_mesh_01/tray_mesh_01
      m_opaque__metal__toaster_v01_01 -> (0.3788, 0.3731, 0.3592)  OpenPBR base_color <- t_gen_appliance_toaster_v01_01_a.png sampled over 2012 triangle(s)
  ...
  instances.usda: 5 colour(s) authored

Per-material area-weighted colour:
  gen_appliance_toaster_v01_01/m_opaque__metal__toaster_v01_01: (0.3506, 0.3489, 0.3446) across 2 Gprim(s)
  gen_appliance_toaster_v01_01/m_opaque__plastic__toaster_v01_01: (0.0822, 0.0822, 0.0822) across 4 Gprim(s)

5 Gprim(s) given a display colour across 1 asset(s)

Read the per-material lines under each Gprim as well as the value. They name which material each contribution came from and how it was derived, and the same record goes into the primvar’s customData so it survives in the file:

color3f[] primvars:displayColor = [(0.37882704, 0.3730906, 0.35922563)] (
    colorSpace = "lin_rec709_scene"
    customData = {
        dictionary simready = {
            string displayColorSource = "m_opaque__metal__toaster_v01_01: OpenPBR base_color <- t_gen_appliance_toaster_v01_01_a.png sampled over 2012 triangle(s)"
        }
    }
    interpolation = "constant"
)

The console rounds to four decimals for reading; the primvar holds the full value.

Three properties of the derivation decide what its output is good for.

One colour per Gprim. The value is the area-weighted mean of the texels the bound geometry lands on, taken in linear light. Where a Gprim has several materials through materialBind GeomSubsets, they are blended. The toaster’s body mesh resolves (0.2469, 0.2459, 0.2434), which matches neither its plastic (0.0840, 0.0840, 0.0840) nor its metal (0.3500, 0.3484, 0.3443). A printed label or a painted stripe disappears into the mean.

Sampling only where the geometry lands. Five of the electricians toolbox’s materials share one atlas. Averaging the whole image would hand the same yellow to all five; sampling per material gives the locks (0.011, 0.010, 0.007) and the lid (0.633, 0.448, 0.042).

Nothing is invented. A Gprim with no bound material, no base colour, or an unresolvable texture is listed as SKIPPED with its reason and left without a display colour, so DISP.001 still fails on it visibly. Out-of-range components are clamped; NaN and Inf are refused.

The script is safe to re-run, and its sampling uses a fixed stratified point set instead of a random one, so a second pass over an unchanged asset produces the same values. Geometry that already has a display colour without the simready:displayColorSource record was authored by hand, and is reported as a conflict and left alone.

Re-validate#

Run the baseline command again, against the copy you have been working on:

simready-validate --project-config sample_content/project_config.toml --profile Robotics-Prop --version 3.3.0 ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd

Asset: ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd
  [PASSED] Robotics-Prop v3.3.0

The console line is identical whatever the two conform scripts did, because the features they conform are optional in every profile that lists them. To see per-feature detail, write a JSON report:

simready-validate --project-config sample_content/project_config.toml --profile Robotics-Prop --version 3.3.0 --output results.json ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd

results.json is keyed by asset path, and each asset has a features_summary with one entry per feature holding passed, version, dependencies and, where they apply, failing requirements and optional requirements. The four visual-material features on the conformed toaster:

FET_010_STANDARD {"dependencies": "[]", "passed": true, "version": "0.1.0"}
FET_006_MDL           {"dependencies": "[]", "passed": true, "version": "0.2.0"}
FET_006_OPENPBR       {"dependencies": "[]", "passed": true, "version": "0.1.0"}
FET_006_STANDARD      {"dependencies": "[]", "passed": true, "version": "0.2.0"}

This is where an unmet optional requirement shows up. An asset whose materials have no physically based final surface still reports "passed": true for FET_006_OPENPBR, with the requirement it missed listed alongside:

FET_006_OPENPBR       {"dependencies": "[]", "optional requirements": "['com.nvidia.simready.VM.PBR.001']", "passed": true, "version": "0.1.0"}

Removing the OpenPBR surface produces that line even where an MDL surface remains, since VM.PBR.001 reads only outputs:mtlx:surface.

So optional requirements lists what did not pass and did not block. For a visual-materials review that makes the JSON the interesting output, and it makes each conform script’s --verify your pass or fail gate for its own feature. --verify is the only place today where a missing OpenPBR surface or a missing display colour produces a non-zero exit code.

Refer to SimReady Validation Workflow for stamping results into the asset with --stamp-asset-validation, which is what makes the benchmark plan these tests without --features.

4. Benchmark#

Four tests cover visual materials. Each loads the asset in Kit and measures pixels.

Test	What it renders	Feature
openpbr_renders	The OpenPBR surface on `outputs:mtlx:surface`	`FET_006_OPENPBR`
mdl_renders	The MDL surface on `outputs:mdl:surface`	`FET_006_MDL`
preview_surface_renders	The UsdPreviewSurface on `outputs:surface`	`FET_006_STANDARD`
display_color_response	`primvars:displayColor` through the OpenPBR material DISP.001 nominates	`FET_010_STANDARD`

The first three share a room, a light rig and a camera framing, so a difference between them comes from the material. Each puts its own render context at the front of Kit’s list, checks the value took before it renders anything, and puts the list back afterwards. Nothing edits the asset’s materials. The number each one reports is what the geometry bound to a material with that context contributed, measured by hiding exactly that geometry and differencing, so on a partly migrated asset it is smaller than what the asset as a whole drew.

display_color_response works by substitution. It binds one material over the whole asset from a single relationship on the asset’s root prim, marked bindMaterialAs = "strongerThanDescendants", which beats every binding the asset authors below it, including bindings inside prototypes. That material is the OpenPBR surface DISP.001’s guidance nominates, with a MaterialX primvar reader feeding displayColor into base_color. The test renders the asset through four variants of it and takes the answer from the differences:

Variant	What it changes	What the difference answers
Read	The reader, falling back to magenta	The frame everything else is compared against
Altered	The same reader, falling back to green	Whether any Gprim fell back, which is DISP.001
Removed	No reader, flat magenta	Whether the primvar drove the pixels, or a constant did
Opacity	The Read material with the `displayOpacity` fallback at 0	DISP.003

Nothing on the asset is edited and nothing is written to disk. mtlx has to be in Kit’s render-context list for the substituted material to resolve at all, so the test checks the list and fails the run when it is missing.

The asset’s stamped profile drives planning, so an asset stamped against a profile without a feature will not pick its tests up. --features bypasses that gate while the plan is built:

simready-benchmark --assets ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd --features FET_006_OPENPBR

simready-benchmark --assets ../vm-workflow/gen_appliance_toaster_v01_01/simready_usd/sm_gen_appliance_toaster_v01_01.usd --features FET_010_STANDARD

Pass one --features value per invocation. --only-features is a different flag: it narrows a plan that already exists, where --features acts while the plan is built. Refer to Running Tests for installation and engine configuration.

A surface test can skip, fail or pass. It skips when no material on the asset has a surface for its context, because the asset never claimed that feature: an asset shipping only MDL skips the OpenPBR and UsdPreviewSurface tests instead of failing them. It fails in two cases: the asset has the surface but no material with it is bound to geometry the render draws, and the bound geometry draws too few pixels to measure. Otherwise it passes.

5. Read the report#

Results land under _testing/. Open index.html for the run, with a page per asset under _testing/assets/. Captured frames and the per-test result.json sit under _testing/results/<asset path>/.simready/runtime/<test name>/. Refer to Reading Reports for the full layout and exit codes.

The frames are more informative than the counts, so open them. Each surface test keeps four: the asset hidden, that frame repeated to establish a noise floor, the asset shown with its supporting geometry hidden, and the asset shown. The number the test judges is the difference between the last two.

openpbr_renders expected result

The toaster in the mid-grey room, shaded by the OpenPBR surface on outputs:mtlx:surface. One run of openpbr_renders on this sample reported five Gprims bound to a material with an OpenPBR surface, drawing 293,685 pixels against a 212 pixel noise floor, with the context list pinned to [mtlx, mdl, universal]. Two identical frames would mean that geometry contributed nothing.

What a pass establishes#

Geometry bound to a material with the named surface drew the frame, with that context first in Kit’s list. That is a stronger claim than “the asset rendered”: the test resolves bindings before it measures, so an unbound MaterialX material sitting in /Looks cannot supply the pass while other materials supply the pixels.

display_color_response establishes that the display colours in the file reach the shader. Swapping the primvar reader’s fallback changes the frame only where a Gprim resolved no display colour, so a pass means none did. Taking the reader out entirely changes the frame wherever the primvar was driving the shading, so a pass means it was. The test also checks the file for coverage and reports both answers side by side. Their disagreement is the useful signal: a file that resolves everywhere and a render that does not means the primvar is not reaching the shader, which is a different defect from the asset not having one.

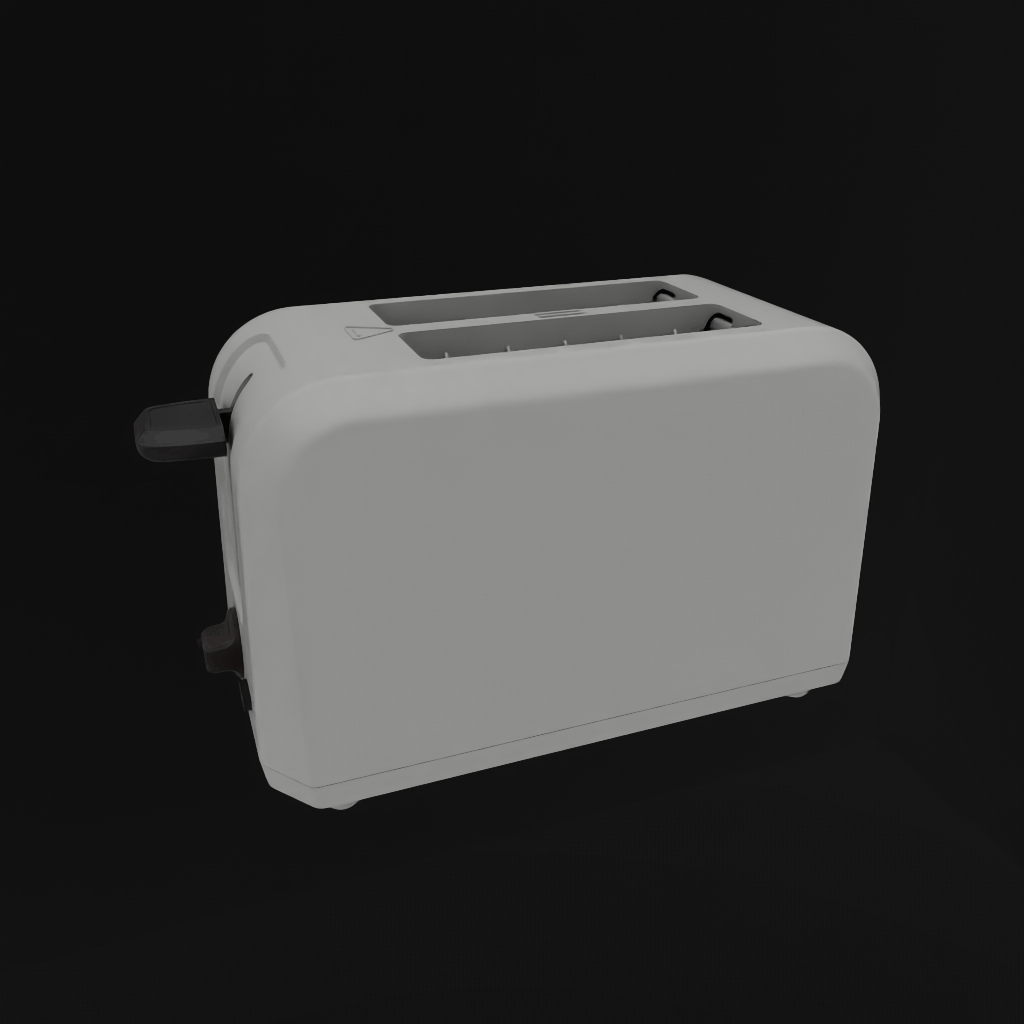

display_color_response expected result

What a pass does not establish#

That the surface network under test is the one Kit evaluated. The trailing render contexts stay in the list as fallbacks, deliberately, because without them everything with no surface for the pinned context renders as the default material. So geometry whose OpenPBR network fails to resolve still draws, through MDL, and still counts. Catching that needs a probe that writes a known value into the shader under test and looks for it, which means editing the material, and no test in this family does that today.

Nor does a pass establish that the surface looks correct or has its intended textures. The clearest way to see the size of that gap is the same prop rendered through the same room, light rig and camera, before and after migration:

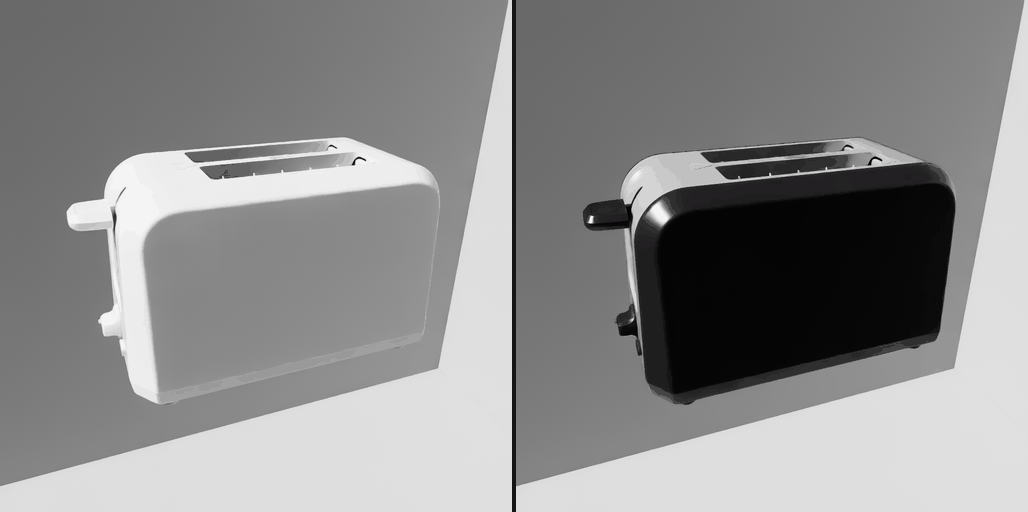

OpenPBR surface before and after sample migration

Left, the OpenPBR surface with constant inputs and no textures wired: flat white, because base_color was unauthored and fell back to the node definition’s default. Right, the same prop after migration kept its maps. Both pass openpbr_renders. Everything separating those two frames is outside what the test judges, which is why the frames are kept instead of reduced to a number.

The same boundary applies to display colour, and display_color_response is explicit about it. The test asserts nothing about which display colour is brighter than which, and no match between a pixel and an authored value. RTX tone-maps and the scene is dome-lit, so no absolute match is available, and DISP.002 sets no plausibility band to check a relative one against. Whether the shipped colours are the right colours is not something a render can settle: the conform script’s derivation approximates albedo without claiming to match what a path tracer produces for the same object.

A full green run supports one narrow claim. The asset has the surfaces and primvars the features describe, the values are in range, and the geometry bound to each surface drew the frame with that context resolved first. Whether the asset looks right is a judgement a human still has to make by looking at the frames.

Common mistakes#

Symptom	Cause	Fix
Migrated asset looks unchanged in Kit	Kit resolved the MDL surface, which sits ahead of `mtlx` in the shipped context order	Run the step 4 benchmark, which pins the context and confirms the pin took
Display colours all come back `(0.8, 0.8, 0.8)`	`numpy` or `Pillow` is missing, so the script fell back to material constants	Install both and re-run; the log records when this happened
Display colour looks washed out	An sRGB value was written without converting to linear	Decode through the sRGB transfer function first
A profile pass on an asset with no OpenPBR surface	`FET_006_OPENPBR` is `optional=true` in every shipped profile	Use `migrate_to_openpbr.py --verify` as the gate
A Blender export has no `outputs:mtlx:surface`	`generate_materialx_network` is `False` by default	Set it to `True` and export again
A Blender export has an unreferenced copy under `textures/`	`export_textures_mode` was set to `KEEP` or `PRESERVE` with the MaterialX network on	Leave the mode on `NEW`

Where to go next#

FET006 OpenPBR Materials and FET010 Display Color for the two contracts in full.
Visual Materials capability for VM.PBR.001, and Display Color capability for DISP.001 to DISP.003.
FET006 Materials and FET010 Display Color for the benchmark families and what each test guards against.
SimReady Validation Workflow for validator setup, JSON reports and stamping.
Profiles for which profiles select these features and at which version.
