Spherical attention equivariance test

Tests rotational equivariance of spherical attention modules. The core idea: applying attention then rotating should match rotating then applying attention.

Method:

1. Rotate input signals using SO(3) transformations

2. Apply attention module

3. Rotate output back

4. Compare with direct attention application

Interpolation error provides a baseline for numerical accuracy of the rotation procedure.

Setup

import torch
import torch.nn as nn
import torch_harmonics as th
import numpy as np
from scipy.interpolate import RegularGridInterpolator

from torch_harmonics.quadrature import precompute_latitudes
from torch_harmonics.plotting import plot_sphere

Configuration

Grid type and device selection for the tests.

grid="equiangular"
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
torch.set_grad_enabled(False)

torch.autograd.grad_mode.set_grad_enabled(mode=False)

Helper functions

Rotation and interpolation utilities for testing equivariance on the sphere:

• rotate_grid: applies SO(3) YZY Euler rotations to spherical coordinates

• interpolate_to_grid: performs cubic interpolation between grids

• equivariance_test_signal: main test function that rotates, applies attention, and computes error metrics

def cartesian_to_spherical(x, y, z):
    """Convert from cartesian to spherical coordinates (theta, phi). phi in [0, 2pi)"""
    theta = np.arccos(z)
    phi = (np.arctan2(y, x) + 2*np.pi) % (2*np.pi)
    return theta, phi

def rotate_grid(theta_grid, phi_grid, alpha, beta, gamma):
    """Apply SO(3) YZY rotation to a lat/lon grid."""
    # Convert to cartesian
    x = np.sin(theta_grid) * np.cos(phi_grid)
    y = np.sin(theta_grid) * np.sin(phi_grid)
    z = np.cos(theta_grid)
    # Stack and flatten
    coords = np.stack([x.flatten(), y.flatten(), z.flatten()])
    # Rotation matrix for YZY (passive rotation)
    # This is a placeholder, you might use scipy.spatial.transform.Rotation if needed
    from scipy.spatial.transform import Rotation as R
    rot = R.from_euler('yzy', [gamma, beta, alpha])
    rotated = rot.apply(coords.T)
    # Convert back to spherical
    x_rot, y_rot, z_rot = rotated[:,0], rotated[:,1], rotated[:,2]
    theta_rot, phi_rot = cartesian_to_spherical(x_rot, y_rot, z_rot)
    theta_rot = theta_rot.reshape(theta_grid.shape)
    phi_rot = phi_rot.reshape(phi_grid.shape)
    return theta_rot, phi_rot

def interpolate_to_grid(signal, theta_to, phi_to, method="cubic"):
    """Interpolate signal defined on (theta_from, phi_from) to (theta_to, phi_to)."""
    orig_shape = signal.shape
    # cylindrical extension to handle boundary
    signal = torch.cat([signal, signal[..., 0:1]], dim=-1)
    phi_from = np.linspace(0, 2 * np.pi, signal.shape[-1])
    theta_from = np.linspace(0, np.pi, signal.shape[-2])
    signal = signal.reshape(-1, *signal.shape[-2:]).movedim(0, -1)
    # Assume signal: [batch, nlat, nlon], theta_from, phi_from: [nlat, nlon]
    interpolator = RegularGridInterpolator(
        (theta_from, phi_from),
        signal.cpu().detach().numpy(),
        method=method,
        bounds_error=True,
        fill_value=0.
    )
    interp_points = np.stack([theta_to.flatten(), phi_to.flatten()], axis=-1)
    signal_interp = interpolator(interp_points)
    return torch.tensor(signal_interp, dtype=signal.dtype, device=signal.device).movedim(-1, 0).reshape(orig_shape)

def equivariance_test_signal(q, k, v, attention_module, theta, phi, alpha, beta, gamma, quadrature_weights):
    """Test equivariance by rotating, running attention, rotating back, and comparing."""
    # 1. Rotate input grid
    theta_r, phi_r = rotate_grid(theta, phi, alpha, beta, gamma)
    # 2. Interpolate signal to rotated grid
    q_rot = interpolate_to_grid(q, theta_r, phi_r)
    k_rot = interpolate_to_grid(k, theta_r, phi_r)
    v_rot = interpolate_to_grid(v, theta_r, phi_r)
    # 3. Apply attention module
    out_rot = attention_module(q_rot, k_rot, v_rot)
    # 4. Undo rotation: rotate grid by SO(3) inverse, interpolate back
    theta_inv, phi_inv = rotate_grid(theta, phi, -gamma, -beta, -alpha)
    out_rot_back = interpolate_to_grid(out_rot, theta_inv, phi_inv)
    # 5. Reference: apply attention module to signal directly
    out_ref = attention_module(q, k, v)
    # 6. Compute equivariance error: weighted L2 norm over the sphere
    equiv_error = ((out_rot_back - out_ref) ** 2 * quadrature_weights).sum(dim=(-1, -2)).sqrt() / (out_ref ** 2 * quadrature_weights).sum(dim=(-1, -2)).sqrt()
    # 7. Compute reference by computing interpolation error in the rotation
    out_rotrot = interpolate_to_grid(interpolate_to_grid(out_ref, theta_r, phi_r), theta_inv, phi_inv)
    interp_error = ((out_rotrot - out_ref) ** 2 * quadrature_weights).sum(dim=(-1, -2)).sqrt() / (out_ref ** 2 * quadrature_weights).sum(dim=(-1, -2)).sqrt()
    return equiv_error, interp_error

Visualization test

Quick visual check of the rotation and interpolation pipeline. Generates a spherical harmonic signal, rotates it, and rotates it back to verify the procedure works correctly.

torch.manual_seed(333)

nlat = 65
nlon = 2*(nlat-1)

# sh coefficients
l_degree = 12
m_degree = 12

# input signal is a spherical harmonic
isht = th.InverseRealSHT(nlat, nlon, lmax=l_degree+1, mmax=m_degree+1)
# signal = torch.zeros(l_degree+1, m_degree+1, dtype=torch.complex64)
# signal[l_degree, m_degree] = 1.0
# signal = isht(signal)
signal = torch.randn(l_degree+1, m_degree+1, dtype=torch.complex64)
signal = isht(signal)

# do the rotated signal

# Define grid (equiangular example)
theta = np.linspace(0, np.pi, nlat)
phi = np.linspace(0, 2 * np.pi, nlon, endpoint=False)
theta_grid, phi_grid = np.meshgrid(theta, phi, indexing='ij')

# Example: some SO(3) rotation
alpha, beta, gamma = 0.0, np.pi/5, np.pi/2

# passively rotate the grid and interpolate
theta_r, phi_r = rotate_grid(theta_grid, phi_grid, -gamma, -beta, -alpha)
signal_rot = interpolate_to_grid(signal, theta_r, phi_r)

# passively rotate the grid back and interpolate
theta_rr, phi_rr = rotate_grid(theta_grid, phi_grid, alpha, beta, gamma)
signal_rotrot = interpolate_to_grid(signal_rot, theta_rr, phi_rr)

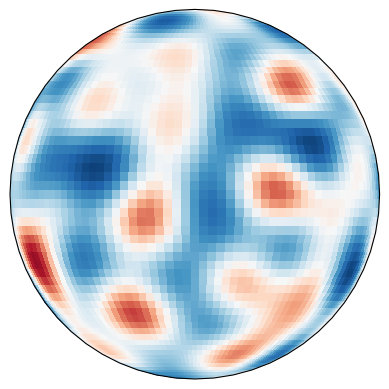

plot_sphere(signal, projection="orthographic", central_longitude=180, colorbar=True)

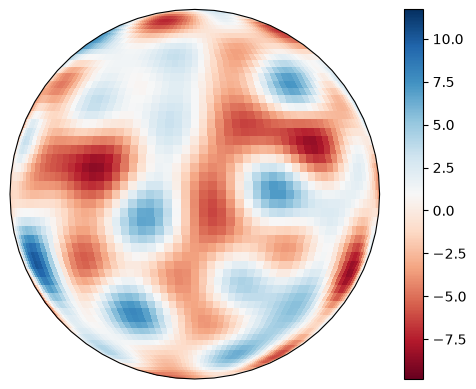

plot_sphere(signal_rot, projection="orthographic", central_longitude=180, colorbar=True)
plot_sphere(signal_rotrot, projection="orthographic", central_longitude=180, colorbar=True)

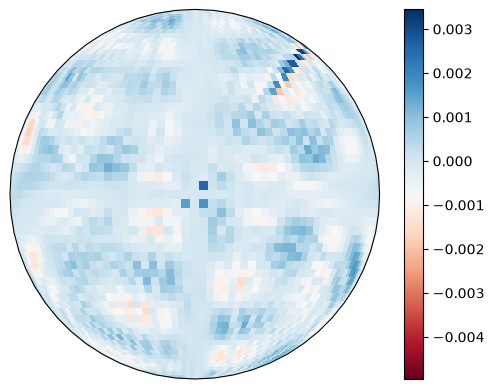

plot_sphere(signal_rotrot - signal, projection="orthographic", central_longitude=180, colorbar=True)

<cartopy.mpl.geocollection.GeoQuadMesh at 0x12f86d2e0>

channels = out_channels = 1
k_channels = 3

attention_module = th.AttentionS2(channels, 1, (nlat, nlon), (nlat, nlon), grid_in=grid, grid_out=grid, k_channels=k_channels, out_channels=out_channels)

signal = attention_module(signal.unsqueeze(0).unsqueeze(0)).squeeze()
signal_rot = attention_module(signal_rot.unsqueeze(0).unsqueeze(0)).squeeze()

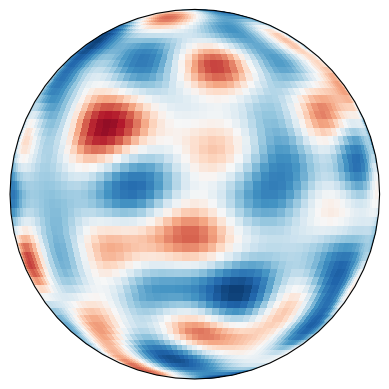

plot_sphere(signal.detach(), projection="orthographic", central_longitude=180)

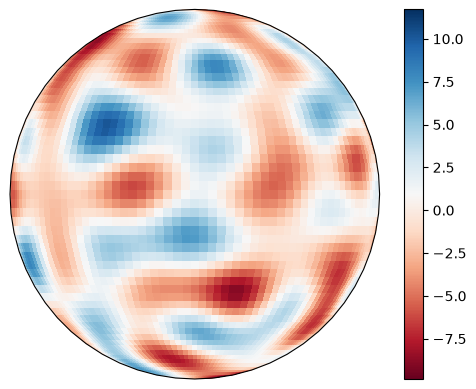

plot_sphere(signal_rot.detach(), projection="orthographic", central_longitude=180)

<cartopy.mpl.geocollection.GeoQuadMesh at 0x12f97ffb0>

Equivariance test: identical query, key, value

Tests AttentionS2 with the same input for query, key, and value across multiple grid resolutions. Measures how equivariance error scales with grid refinement. Lower resolutions have higher interpolation artifacts.

torch.manual_seed(333)
torch.cuda.manual_seed(333)

in_channels = out_channels = 1
k_channels = 1

# sh coefficients
l_degree = 12
m_degree = 12

q_weights = nn.Parameter(torch.randn(k_channels, in_channels, 1, 1, device=device))
k_weights = nn.Parameter(torch.randn(k_channels, in_channels, 1, 1,  device=device))
v_weights = nn.Parameter(torch.randn(out_channels, in_channels, 1, 1,  device=device))
proj_weights = nn.Parameter(torch.randn(out_channels, out_channels, 1, 1,  device=device))

nlats = 2**np.arange(3,8) + 1


coeffs = torch.randn(1, in_channels, l_degree+1, m_degree+1, dtype=torch.complex64)

print(f"nlats={nlats}")

for nlat in nlats:

    nlon = 2*(nlat-1)

    # Define grid (equiangular example)
    theta = np.linspace(0, np.pi, nlat)
    phi = np.linspace(0, 2 * np.pi, nlon, endpoint=False)
    theta_grid, phi_grid = np.meshgrid(theta, phi, indexing='ij')

    # Assume quadrature weights are given or use Gaussian quadrature as done in torch-harmonics for accuracy
    # quadrature_weights = np.ones((nlat, nlon)) * (4*np.pi) / (nlat*nlon) # Placeholder
    _, quad_weights = precompute_latitudes(nlat, grid=grid)
    quad_weights = 2 * np.pi * quad_weights.reshape(-1, 1) / nlon

    # input signal is a spherical harmonic
    isht = th.InverseRealSHT(nlat, nlon, lmax=l_degree+1, mmax=m_degree+1)
    # signal = torch.zeros(l_degree+1, m_degree+1, dtype=torch.complex64)
    # signal[l_degree, m_degree] = 1.0
    # signal = isht(signal).to(device)
    signal = isht(coeffs).to(device)

    # Example: some SO(3) rotation
    # alpha, beta, gamma = 0, np.pi/5, 0
    alpha, beta, gamma = np.pi/3, np.pi/5, np.pi/2

    # Define your torch-harmonics spherical attention module
    attention_module = th.AttentionS2(in_channels, 1, (nlat, nlon), (nlat, nlon), grid_in=grid, grid_out=grid, k_channels=k_channels, out_channels=out_channels).to(device)
    # attention_module = th.NeighborhoodAttentionS2(in_channels, (nlat, nlon), (nlat, nlon), grid_in=grid, grid_out=grid, k_channels=k_channels, out_channels=out_channels, theta_cutoff=0.25 * np.pi, optimized_kernel=True).to(device)
    attention_module.q_weights = q_weights
    attention_module.k_weights = k_weights
    attention_module.v_weights = v_weights
    attention_module.proj_weights = proj_weights

    equiv_error, interp_error = equivariance_test_signal(
        signal, signal, signal, attention_module,
        theta_grid, phi_grid,
        alpha, beta, gamma,
        torch.tensor(quad_weights, device=device)
    )
    print(f"grid: {nlat}x{nlon}")
    print(f"Interpolation error: {interp_error.item()}")
    print(f"Equivariance error: {equiv_error.item()}")

nlats=[  9  17  33  65 129]
grid: 9x16
Interpolation error: 0.547884481270984
Equivariance error: 0.7313590599527867
grid: 17x32
Interpolation error: 0.27779018421011237
Equivariance error: 0.4753986803499113
grid: 33x64
Interpolation error: 0.1639783752757204
Equivariance error: 0.2584725718742366
grid: 65x128
Interpolation error: 0.08244463632493265
Equivariance error: 0.12208064529073714

/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_14179/3010684959.py:60: UserWarning: To copy construct from a tensor, it is recommended to use sourceTensor.detach().clone() or sourceTensor.detach().clone().requires_grad_(True), rather than torch.tensor(sourceTensor).
  torch.tensor(quad_weights, device=device)

grid: 129x256
Interpolation error: 0.03347704813575838
Equivariance error: 0.044356914035899926

Equivariance test: distinct query, key, value

Tests NeighborhoodAttentionS2 with different inputs for query, key, and value. Runs on a batch of random spherical harmonic signals to compute statistical measures (mean and standard deviation) of equivariance error across multiple samples.

torch.manual_seed(333)
torch.cuda.manual_seed(333)

batch_size = 32

in_channels = out_channels = 1
k_channels = 1

# sh coefficients
l_degree = 12
m_degree = 12

q_weights = nn.Parameter(torch.ones(k_channels, in_channels, 1, 1, device=device))
k_weights = nn.Parameter(torch.ones(k_channels, in_channels, 1, 1,  device=device))
v_weights = nn.Parameter(torch.ones(out_channels, in_channels, 1, 1,  device=device))
proj_weights = nn.Parameter(torch.ones(out_channels, out_channels, 1, 1,  device=device))

nlats = 3 * 2**np.arange(2,7) + 1

coeffs_q = torch.randn(batch_size, in_channels, l_degree+1, m_degree+1, dtype=torch.complex64)
coeffs_k = torch.randn(batch_size, in_channels, l_degree+1, m_degree+1, dtype=torch.complex64)
coeffs_v = torch.randn(batch_size, in_channels, l_degree+1, m_degree+1, dtype=torch.complex64)

print(f"nlats={nlats}")

for nlat in nlats:

    nlat = int(nlat)
    nlon = 2*(nlat-1)

    # Define grid (equiangular example)
    theta = np.linspace(0, np.pi, nlat)
    phi = np.linspace(0, 2 * np.pi, nlon, endpoint=False)
    theta_grid, phi_grid = np.meshgrid(theta, phi, indexing='ij')

    _, quad_weights = precompute_latitudes(nlat, grid=grid)
    quad_weights = 2 * np.pi * quad_weights.reshape(-1, 1) / nlon

    # input signal is a spherical harmonic
    isht = th.InverseRealSHT(nlat, nlon, lmax=l_degree+1, mmax=m_degree+1)
    q = isht(coeffs_q).to(device)
    k = isht(coeffs_k).to(device)
    v = isht(coeffs_v).to(device)

    alpha, beta, gamma = np.pi/3, np.pi/5, np.pi/2

    attention_module = th.NeighborhoodAttentionS2(in_channels, (nlat, nlon), (nlat, nlon), grid_in=grid, grid_out=grid, k_channels=k_channels, out_channels=out_channels, theta_cutoff=0.25 * np.pi, optimized_kernel=True).to(device)
    attention_module.q_weights = q_weights
    attention_module.k_weights = k_weights
    attention_module.v_weights = v_weights
    attention_module.proj_weights = proj_weights

    interp_errors = []
    equiv_errors = []

    for i in range(batch_size):
        equiv_error, interp_error = equivariance_test_signal(
            q[i:i+1], k[i:i+1], v[i:i+1], attention_module,
            theta_grid, phi_grid,
            alpha, beta, gamma,
            torch.as_tensor(quad_weights, device=device)
        )
        equiv_errors.append(equiv_error.sum().item())
        interp_errors.append(interp_error.sum().item())

    print(f"grid: {nlat}x{nlon}")
    std, mean = torch.std_mean(torch.Tensor(interp_errors))
    print(f"Interpolation error mean: {mean.item()} std: {std.item()}")
    std, mean = torch.std_mean(torch.Tensor(equiv_errors))
    print(f"Equivariance error mean: {mean.item()} std: {std.item()}")

nlats=[ 13  25  49  97 193]
grid: 13x24
Interpolation error mean: 0.3527798056602478 std: 0.04832783713936806
Equivariance error mean: 0.8970544338226318 std: 0.14966122806072235
grid: 25x48
Interpolation error mean: 0.20696806907653809 std: 0.019902728497982025
Equivariance error mean: 0.5265681743621826 std: 0.07344599068164825
grid: 49x96
Interpolation error mean: 0.10652338713407516 std: 0.012716345489025116
Equivariance error mean: 0.21776877343654633 std: 0.02615395560860634
grid: 97x192
Interpolation error mean: 0.04518754780292511 std: 0.00758200092241168
Equivariance error mean: 0.08621252328157425 std: 0.014278355054557323
grid: 193x384
Interpolation error mean: 0.014401651918888092 std: 0.0031418600119650364
Equivariance error mean: 0.029198382049798965 std: 0.0055313510820269585
