Quadrature#
This is a notebook that illustrates differences in the quadrature methods which are central to the evaluation of
Quadrature is used to compute the projection onto the associated Legendre functions in torch-harmonics.
In order to illustrate how interpolation and quadrature affect the error in the computation of the SHT, this notebook contains example for both errors.
Setup#
import numpy as np
import torch
import matplotlib.pyplot as plt
from torch_harmonics.quadrature import legendre_gauss_weights, lobatto_weights, clenshaw_curtiss_weights
n_theta = 80
Test interpolation#
Different quadrature rules place their nodes at different locations on \([0, \pi]\). When data is given on a uniform (equiangular) grid, using Gauss or Lobatto quadrature requires interpolating the data onto the quadrature nodes. This introduces an interpolation error that can dominate the overall projection error.
We define a simple linear interpolation routine and compare the node distributions:
def interpolate(t, tq, f):
j = np.searchsorted(t, tq) - 1
d = torch.from_numpy( (tq - t[j]) / np.diff(t)[j] )
j = torch.as_tensor(j)
interp = torch.lerp(torch.as_tensor(f[j]), torch.as_tensor(f[j+1]), d)
return interp
cost_lg, wlg = legendre_gauss_weights(n_theta, -1, 1)
cost_lg, wlg = cost_lg.numpy(), wlg.numpy()
tq = np.flip(np.arccos(cost_lg))
teq = np.linspace(0, np.pi, n_theta, dtype=np.float64)

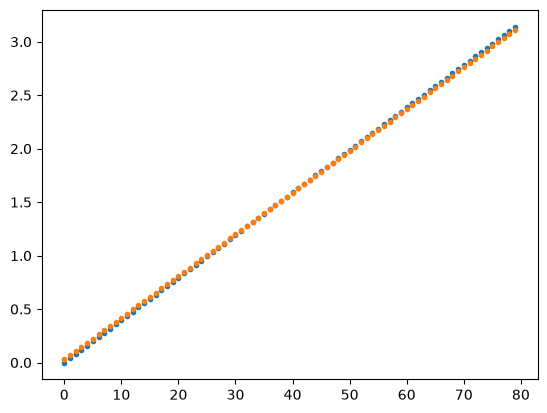

Plotting the equiangular nodes (orange) vs. Gauss–Legendre nodes (blue) shows how the Gauss nodes cluster near the poles:
plt.plot(teq, '.')
plt.plot(tq, '.')
plt.show()

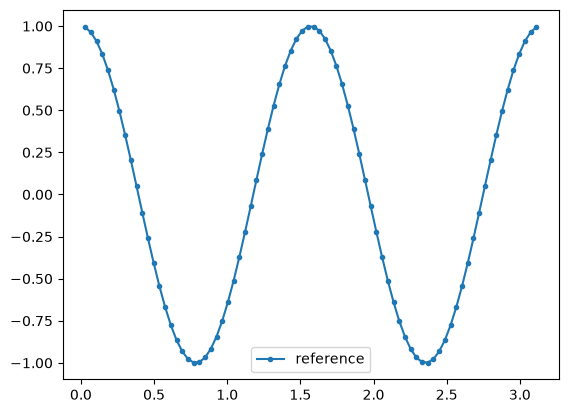

We use \(f(\theta) = \cos(4\theta)\) as a test function and interpolate it from the equiangular grid onto the Gauss–Legendre nodes:
f = lambda t : np.cos(4*t)
# f = lambda t : 1 / (1 + 25 * (2*(t-np.pi/2)/np.pi)**2)
# f = lambda t : 1 / (1 + 25 * np.cos(t)**2)
# f = lambda t : t**5 - 3*t**2 - 2*t + 1.0
interp = interpolate(teq, tq, f(teq))
# plt.plot(teq, f(teq), '.-', label="reference")
plt.plot(tq, f(tq), '.-', label="reference")
# plt.plot(tq, interp, '.-', label="interpolated")
plt.legend()
plt.show()
Test quadrature with associated Legendre polynomials#
The SHT projects a function onto the associated Legendre polynomials \(P_l^m(\cos\theta)\) using quadrature:
We implement the three-term recurrence for \(P_l^m\) and compare the projection accuracy of different quadrature rules.
def precompute_legpoly(m_max, l_max, x):
"""
Computes the values of P^m_n(\cos \theta) at the positions specified by x (theta)
The resulting tensor has shape (m_max, l_max, len(x))
"""
# compute the tensor P^m_n:
pct = np.zeros((m_max, l_max, len(x)), dtype=np.float64)
sinx = np.sin(x)
cosx = np.cos(x)
a = lambda m, l: np.sqrt((4*l**2 - 1) / (l**2 - m**2))
b = lambda m, l: -1 * np.sqrt((2*l+1)/(2*l-3)) * np.sqrt(((l-1)**2 - m**2)/(l**2 - m**2))
# start by populating the diagonal and the second higher diagonal
amm = np.sqrt( 1. / (4 * np.pi) )
pct[0,0,:] = amm
pct[0,1,:] = a(0, 1) * cosx * amm
for m in range(1, min(m_max, l_max)):
pct[m,m,:] = -1*np.sqrt( (2*m+1) / (2*m) ) * pct[m-1,m-1,:] * sinx
if m + 1 < l_max:
pct[m,m+1,:] = a(m, m+1) * cosx * pct[m,m,:]
# fill the remaining values on the upper triangle
for m in range(0, m_max):
for l in range(m+2, l_max):
pct[m,l,:] = a(m,l) * cosx * pct[m,l-1,:] + b(m,l) * pct[m,l-2,:]
return torch.from_numpy(pct)
<>:3: SyntaxWarning: invalid escape sequence '\c'
<>:3: SyntaxWarning: invalid escape sequence '\c'
/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_17287/1445552984.py:3: SyntaxWarning: invalid escape sequence '\c'
Computes the values of P^m_n(\cos \theta) at the positions specified by x (theta)

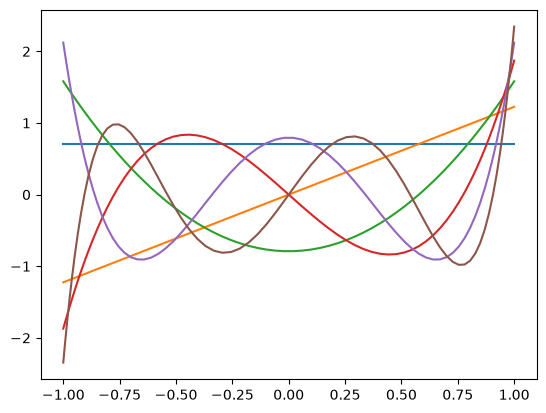

The first few Legendre polynomials \(P_l^0(\cos\theta)\) for \(l = 0, \ldots, 5\):
m = 0
pct = np.sqrt(2 * np.pi) * precompute_legpoly(n_theta, n_theta, teq)
fig, ax = plt.subplots(1, 1)
for l in range(6):
ax.plot(np.cos(teq), pct[0, l])
fig.show()
/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_17287/4206737847.py:8: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()
We define a project function that computes the forward projection (analysis)
followed by the backward synthesis, reconstructing the function from its
spectral coefficients. The reconstruction error reveals the quadrature accuracy:
def project(t, w, f, mmax=None):
m = 0
if mmax == None:
mmax = len(t)
weights = torch.from_numpy(w)
pct = np.sqrt(2 * np.pi) * precompute_legpoly(mmax, mmax, t)
weights = torch.einsum('mlk,k->mlk', pct, weights)
proj = torch.einsum('...k,lk->...l', torch.as_tensor(f), weights[m])
rec = torch.einsum('...l, lk->...k', proj, pct[m] )
return rec
Projection accuracy without interpolation#
We compare the three quadrature rules by projecting \(f(\theta)\) directly onto its Legendre expansion (no interpolation — each rule evaluates \(f\) at its own nodes):
t = np.linspace(0, np.pi, n_theta)
plt.plot(t, f(t), label="reference")
for quadrature in [legendre_gauss_weights, lobatto_weights, clenshaw_curtiss_weights]:
cost, wq = quadrature(n_theta, -1, 1)
cost, wq = cost.numpy(), wq.numpy()
tq = np.flip(np.arccos(cost))
out = project(tq, wq, f(tq))
plt.plot(tq, out, '.-', label=quadrature.__name__)
plt.legend(loc='lower left')
plt.show()

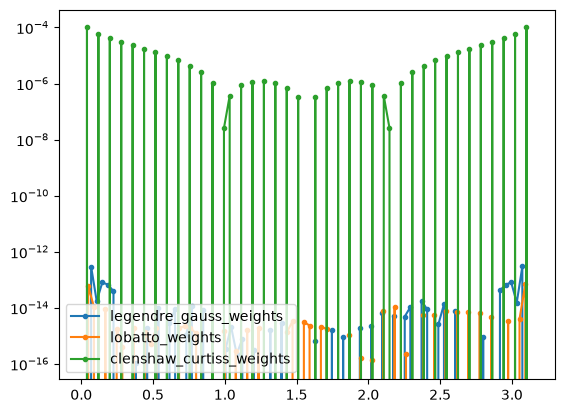

The pointwise projection error on a logarithmic scale:
for quadrature in [legendre_gauss_weights, lobatto_weights, clenshaw_curtiss_weights]:
cost, wq = quadrature(n_theta, -1, 1)
cost, wq = cost.numpy(), wq.numpy()
tq = np.flip(np.arccos(cost))
out = project(tq, wq, f(tq))
plt.semilogy(tq, out - f(tq), '.-', label=quadrature.__name__)
plt.legend(loc='lower left')
plt.show()
/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_17287/311733599.py:8: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
plt.semilogy(tq, out - f(tq), '.-', label=quadrature.__name__)

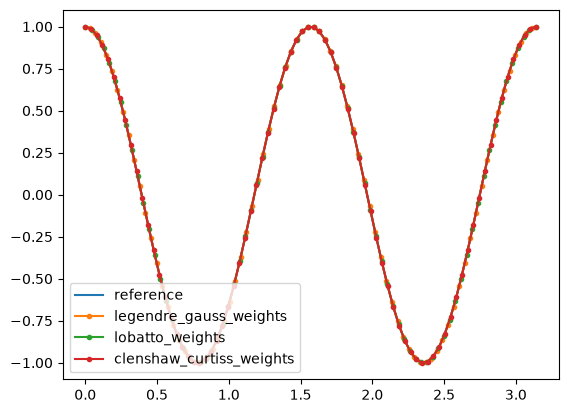

Projection accuracy with interpolation#
In practice, data is often given on a fixed equiangular grid. Gauss and Lobatto quadrature then require interpolating the data onto their nodes before projection. Clenshaw–Curtis nodes coincide with the equiangular grid, so no interpolation is needed.
Let us see how this affects the reconstruction:
t = np.linspace(0, np.pi, n_theta)
ref = f(t)
plt.plot(t, ref, label="reference")
for quadrature in [legendre_gauss_weights, lobatto_weights, clenshaw_curtiss_weights]:
cost, wq = quadrature(n_theta, -1, 1)
cost, wq = cost.numpy(), wq.numpy()
tq = np.flip(np.arccos(cost))
if quadrature == lobatto_weights or quadrature == legendre_gauss_weights:
f_interp = interpolate(t, tq, ref)
mmax = len(tq)
else:
f_interp = ref
mmax = len(tq)
out = project(tq, wq, f_interp, mmax=mmax)
plt.plot(tq, out, '.-', label=quadrature.__name__)
plt.legend(loc='lower left')
plt.show()

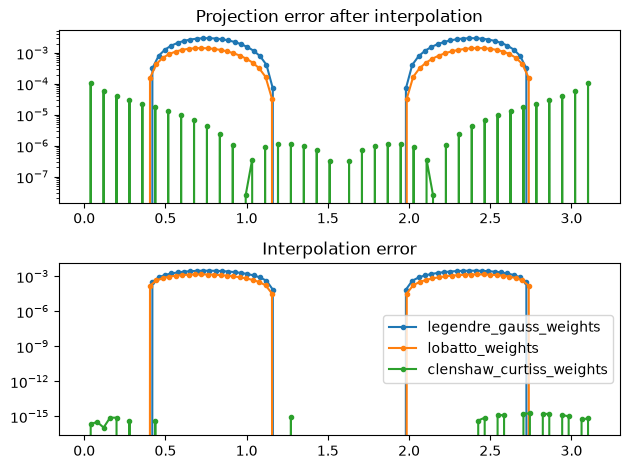

The top panel shows the total error (projection + interpolation), while the bottom panel isolates the interpolation error alone:
t = np.linspace(0, np.pi, n_theta)
ref = f(t)
fig, ax = plt.subplots(2, 1)
for quadrature in [legendre_gauss_weights, lobatto_weights, clenshaw_curtiss_weights]:
cost, wq = quadrature(n_theta, -1, 1)
cost, wq = cost.numpy(), wq.numpy()
tq = np.flip(np.arccos(cost))
if quadrature == lobatto_weights or quadrature == legendre_gauss_weights:
f_interp = interpolate(t, tq, ref)
mmax = len(tq)
else:
f_interp = ref
mmax = len(tq)
out = project(tq, wq, f_interp, mmax=mmax)
ax[0].semilogy(tq, out - f(tq), '.-', label=quadrature.__name__)
ax[1].semilogy(tq, f_interp - f(tq), '.-', label=quadrature.__name__)
ax[0].set_title("Projection error after interpolation")
ax[1].set_title("Interpolation error")
plt.legend()
fig.tight_layout()
plt.show()
/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_17287/608274088.py:20: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
ax[0].semilogy(tq, out - f(tq), '.-', label=quadrature.__name__)
/var/folders/zb/v9dmh1fn4pl8d1n8452xmw_h0000gp/T/ipykernel_17287/608274088.py:21: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
ax[1].semilogy(tq, f_interp - f(tq), '.-', label=quadrature.__name__)
Conclusion#
The interpolation error dominates when data must be transferred between grids. For this reason, Clenshaw–Curtis quadrature is a natural choice when the input data lives on an equiangular grid — it avoids interpolation entirely and matches the accuracy of Gauss quadrature in practice.
