HealDA Global Data Assimilation#
Producing a global weather analysis from satellite and in-situ observations.
This example demonstrates how to use the HealDA data assimilation model to produce a global weather analysis on a HEALPix grid from sparse in-situ (conventional) and satellite radiance observations sourced from the NOAA UFS replay archive. Three runs are compared: conventional observations only, satellite observations only, and both combined to illustrate the impact of each observation type.
In this example you will learn:
How to load and initialise the HealDA data assimilation model
Fetching UFS conventional and satellite observation DataFrames
Running the model with different observation combinations

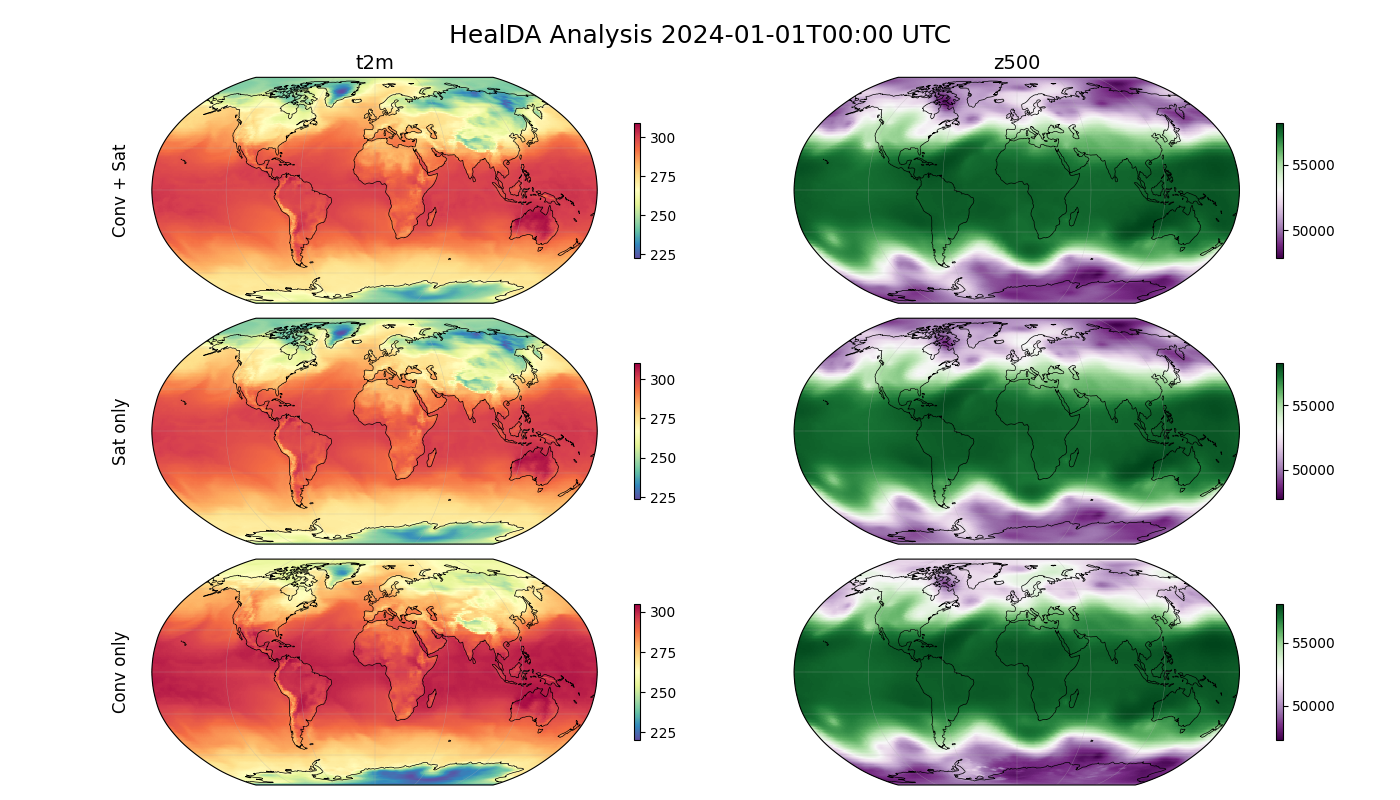

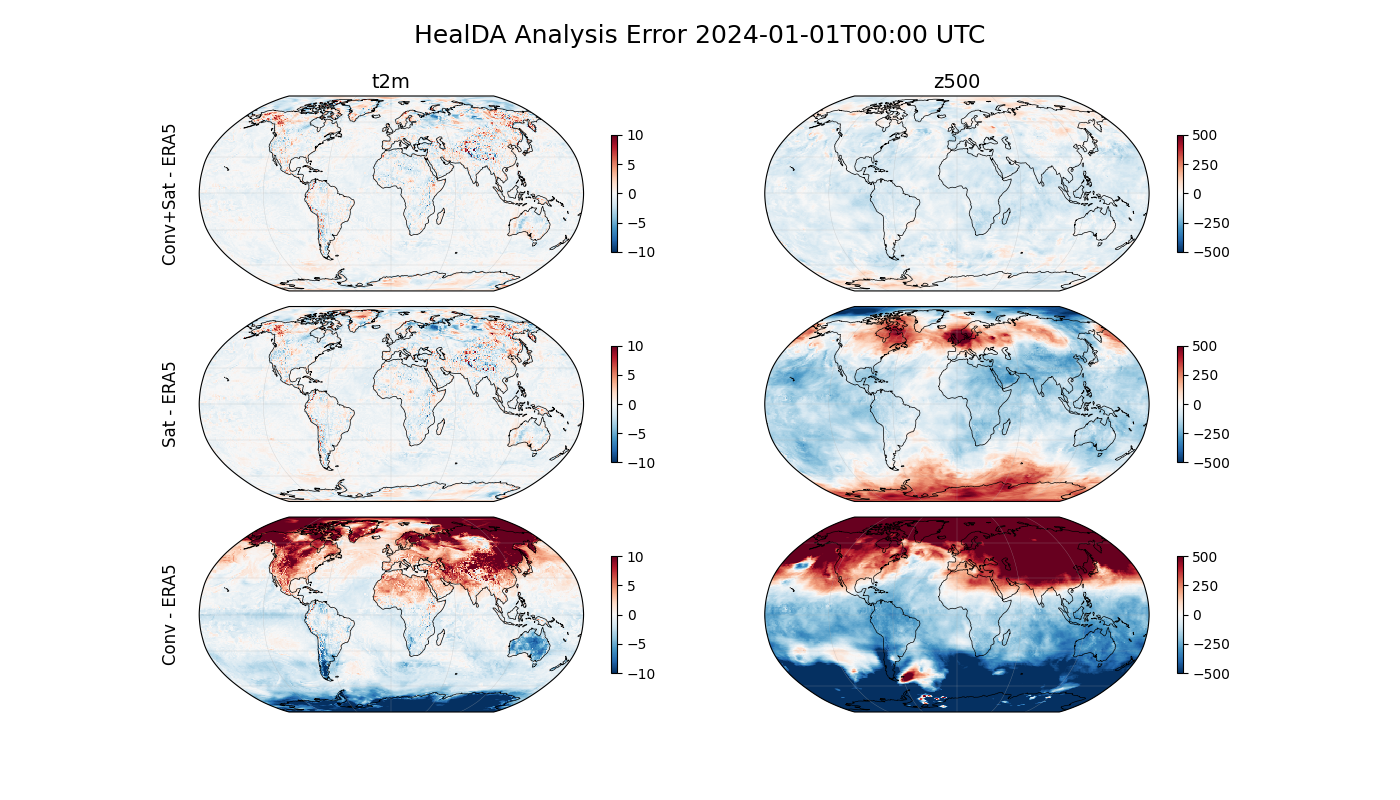

Comparing the assimilated global fields against ERA5 data
# /// script
# dependencies = [
# "earth2studio[da-healda] @ git+https://github.com/NVIDIA/earth2studio.git",
# "cartopy",
# ]
# ///
Set Up#
This example requires the following components:
Assimilation Model: HealDA
earth2studio.models.da.HealDA.Datasource (conv): UFS conventional observations
earth2studio.data.UFSObsConv.Datasource (sat): UFS satellite observations
earth2studio.data.UFSObsSat.
HealDA is a stateless neural-network-based data assimilation model that ingests conventional (radiosonde, surface station, GPS-RO, etc.) and satellite radiance observations and produces a single global weather analysis on a HEALPix level-6 grid.
import os
os.makedirs("outputs", exist_ok=True)
from dotenv import load_dotenv
load_dotenv() # TODO: make common example prep function
from datetime import timedelta
import numpy as np
import torch
from loguru import logger
from tqdm import tqdm
logger.remove()
logger.add(lambda msg: tqdm.write(msg, end=""), colorize=True)
from earth2studio.data import NCAR_ERA5, UFSObsConv, UFSObsSat, fetch_dataframe
from earth2studio.models.da import HealDA
# Load the default model package (downloads checkpoint from HuggingFace)
# Setting lat_lon=True regrids the native HEALPix output to a regular lat-lon grid.
package = HealDA.load_default_package()
model = HealDA.load_model(package, lat_lon=True)
model = model.to("cuda:0")
Fetch Observations#

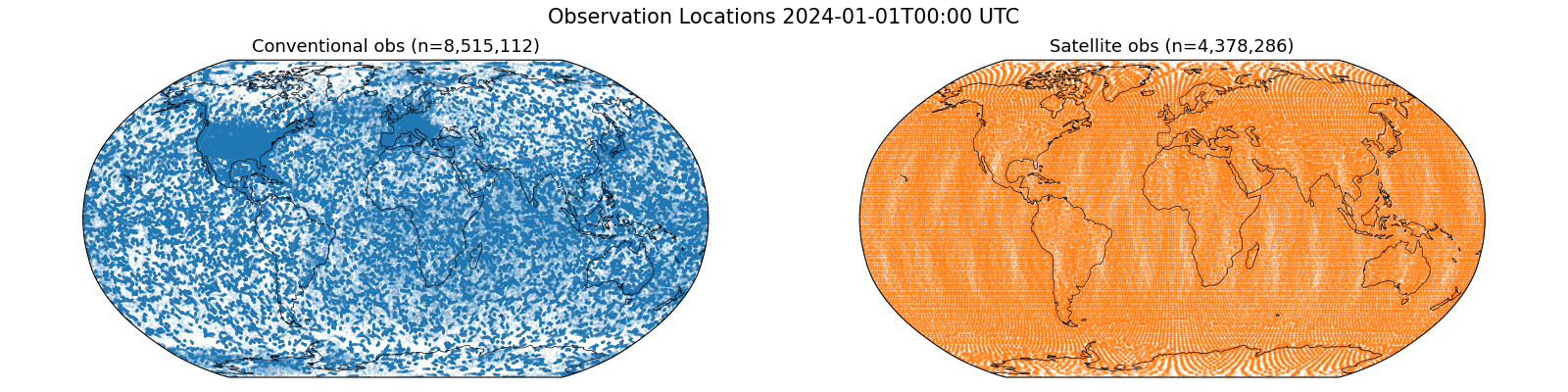

Pull conventional and satellite observation DataFrames for the analysis time.
The UFS data sources return pandas DataFrames that match the schemas expected by
HealDA.input_coords(). We use
earth2studio.data.fetch_dataframe() which attaches request_time
metadata required by the model. The time_tolerance parameter defines a time
window around the analysis time so that observations will be retrieved for.
analysis_time = np.array([np.datetime64("2024-01-01T00:00")])
conv_source = UFSObsConv(time_tolerance=(timedelta(hours=-21), timedelta(hours=3)))
conv_schema, sat_schema = model.input_coords()
conv_df = fetch_dataframe(
conv_source,
time=analysis_time,
variable=np.array(conv_schema["variable"]),
fields=np.array(list(conv_schema.keys())),
)
logger.info(f"Fetched {len(conv_df)} conventional observations")
sat_source = UFSObsSat(time_tolerance=(timedelta(hours=-21), timedelta(hours=3)))
sat_df = fetch_dataframe(
sat_source,
time=analysis_time,
variable=np.array(sat_schema["variable"]),
fields=np.array(list(sat_schema.keys())),
)
logger.info(f"Fetched {len(sat_df)} satellite observations")
