CBottle Tropical Cyclone Guidance#

Guided tropical cyclone sampling with cBottle and odds-ratio diagnostics.

This example demonstrates the cBottle TC guidance model for generating synthetic tropical cyclone samples at user-specified locations and computing the log-odds ratio between the guided and unguided distributions. The odds ratio quantifies how much more likely a particular sample is under guidance compared to the base model.

For more information on cBottle see:

https://arxiv.org/abs/2505.06474v1

For more information on the odds ratio see:

https://arxiv.org/abs/2605.03802

In this example you will learn:

Running guided TC sampling with earth2studio.models.dx.CBottleTCGuidance
Visualizing a guided sample over a regional domain
Reloading the model with second-order derivative support for odds-ratio computation
Computing and interpreting the log-odds ratio of a guided sample

# /// script
# dependencies = [
#   "earth2studio[cbottle] @ git+https://github.com/NVIDIA/earth2studio.git",
#   "cartopy",
# ]
# ///

Set Up#

For this example we need the cBottle TC guidance diagnostic model. We load it twice:

Default (fast) path for standard guided sampling
Second-order-derivative path for odds-ratio computation

Thus, we need the following:

Diagnostic Model: Use the built in CBottle TC Guidance Model earth2studio.models.dx.CBottleTCGuidance.

import os

os.makedirs("outputs", exist_ok=True)
from dotenv import load_dotenv

load_dotenv()  # TODO: make common example prep function

from datetime import datetime

import numpy as np
import torch

from earth2studio.models.dx import CBottleTCGuidance

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

# Load the default model package which downloads the checkpoint from NGC
package = CBottleTCGuidance.load_default_package()

Guided TC Sampling (Fast Path)#

The guidance tensor marks the location where we want TC activity. Here we place a single guidance point near Florida and request one timestamp during hurricane season. The fast model path (allow_second_order_derivatives=False) is optimized for standard guided inference.

lat = torch.tensor([27.0], device=device)  # Near Florida
lon = torch.tensor([-82.0], device=device)  # Converted internally to [0, 360)
times = [datetime(2005, 10, 11, 12)]

model = CBottleTCGuidance.load_model(package, seed=0).to(device)
# Create guidance tensor
guidance, coords = model.create_guidance_tensor(lat, lon, times)
guidance = guidance.to(device)
# Run guided sampling
guided_sample, guided_coords = model(guidance, coords)

Downloading training-state-002176000.checkpoint: 0%|          | 0.00/1.67G [00:00<?, ?B/s]
Downloading training-state-002176000.checkpoint: 1%|          | 10.0M/1.67G [00:00<00:33, 53.8MB/s]
Downloading training-state-002176000.checkpoint: 4%|▎         | 60.0M/1.67G [00:00<00:07, 236MB/s]
Downloading training-state-002176000.checkpoint: 6%|▋         | 110M/1.67G [00:00<00:05, 325MB/s]
Downloading training-state-002176000.checkpoint: 9%|▉         | 160M/1.67G [00:00<00:04, 374MB/s]
Downloading training-state-002176000.checkpoint: 12%|█▏        | 210M/1.67G [00:00<00:03, 405MB/s]
Downloading training-state-002176000.checkpoint: 15%|█▌        | 260M/1.67G [00:00<00:03, 421MB/s]
Downloading training-state-002176000.checkpoint: 18%|█▊        | 310M/1.67G [00:00<00:03, 437MB/s]
Downloading training-state-002176000.checkpoint: 21%|██        | 360M/1.67G [00:00<00:03, 447MB/s]
Downloading training-state-002176000.checkpoint: 24%|██▍       | 410M/1.67G [00:01<00:03, 446MB/s]
Downloading training-state-002176000.checkpoint: 27%|██▋       | 460M/1.67G [00:01<00:02, 453MB/s]
Downloading training-state-002176000.checkpoint: 30%|██▉       | 510M/1.67G [00:01<00:02, 459MB/s]
Downloading training-state-002176000.checkpoint: 33%|███▎      | 560M/1.67G [00:01<00:02, 464MB/s]
Downloading training-state-002176000.checkpoint: 36%|███▌      | 610M/1.67G [00:01<00:02, 466MB/s]
Downloading training-state-002176000.checkpoint: 39%|███▊      | 660M/1.67G [00:01<00:02, 463MB/s]
Downloading training-state-002176000.checkpoint: 42%|████▏     | 710M/1.67G [00:01<00:02, 466MB/s]
Downloading training-state-002176000.checkpoint: 45%|████▍     | 760M/1.67G [00:01<00:02, 467MB/s]
Downloading training-state-002176000.checkpoint: 48%|████▊     | 810M/1.67G [00:01<00:02, 468MB/s]
Downloading training-state-002176000.checkpoint: 50%|█████     | 860M/1.67G [00:02<00:01, 466MB/s]
Downloading training-state-002176000.checkpoint: 53%|█████▎    | 910M/1.67G [00:02<00:01, 419MB/s]
Downloading training-state-002176000.checkpoint: 56%|█████▋    | 960M/1.67G [00:02<00:01, 402MB/s]
Downloading training-state-002176000.checkpoint: 59%|█████▉    | 0.99G/1.67G [00:02<00:01, 417MB/s]
Downloading training-state-002176000.checkpoint: 62%|██████▏   | 1.04G/1.67G [00:02<00:01, 418MB/s]
Downloading training-state-002176000.checkpoint: 65%|██████▌   | 1.08G/1.67G [00:02<00:01, 386MB/s]
Downloading training-state-002176000.checkpoint: 67%|██████▋   | 1.12G/1.67G [00:02<00:01, 394MB/s]
Downloading training-state-002176000.checkpoint: 70%|███████   | 1.17G/1.67G [00:03<00:01, 417MB/s]
Downloading training-state-002176000.checkpoint: 73%|███████▎  | 1.22G/1.67G [00:03<00:01, 427MB/s]
Downloading training-state-002176000.checkpoint: 76%|███████▌  | 1.27G/1.67G [00:03<00:01, 414MB/s]
Downloading training-state-002176000.checkpoint: 79%|███████▉  | 1.32G/1.67G [00:03<00:00, 434MB/s]
Downloading training-state-002176000.checkpoint: 82%|████████▏ | 1.37G/1.67G [00:03<00:00, 448MB/s]
Downloading training-state-002176000.checkpoint: 85%|████████▌ | 1.42G/1.67G [00:03<00:00, 456MB/s]
Downloading training-state-002176000.checkpoint: 88%|████████▊ | 1.46G/1.67G [00:03<00:00, 466MB/s]
Downloading training-state-002176000.checkpoint: 91%|█████████ | 1.51G/1.67G [00:03<00:00, 471MB/s]
Downloading training-state-002176000.checkpoint: 94%|█████████▍| 1.56G/1.67G [00:03<00:00, 469MB/s]
Downloading training-state-002176000.checkpoint: 97%|█████████▋| 1.61G/1.67G [00:04<00:00, 473MB/s]
Downloading training-state-002176000.checkpoint: 100%|█████████▉| 1.66G/1.67G [00:04<00:00, 477MB/s]
Downloading training-state-002176000.checkpoint: 100%|██████████| 1.67G/1.67G [00:04<00:00, 430MB/s]

Post Processing Guided Sample#

Plot the 10-metre zonal wind (u10m) over a Caribbean domain to visualize the generated tropical cyclone structure.

import cartopy.crs as ccrs
import matplotlib.pyplot as plt

plt.close("all")

variables = guided_coords["variable"]
u_var = "u10m"
u_idx = int(np.where(variables == u_var)[0][0])

# guided_sample dims: [time, lead_time, variable, lat, lon]
u = guided_sample[0, 0, u_idx].detach().cpu().numpy()
lat_coords = guided_coords["lat"]
lon_coords = guided_coords["lon"]

# Caribbean box in 0-360 longitude convention
lon_min, lon_max = 260.0, 300.0  # 100W to 60W
lat_min, lat_max = 15.0, 40.0  # 15N to 40N
lon_mask = (lon_coords >= lon_min) & (lon_coords <= lon_max)
lat_mask = (lat_coords >= lat_min) & (lat_coords <= lat_max)

u_carib = u[np.ix_(lat_mask, lon_mask)]
lat_carib = lat_coords[lat_mask]
lon_carib = lon_coords[lon_mask]
# Convert to -180..180 for plotting
lon_carib_deg = ((lon_carib + 180.0) % 360.0) - 180.0

fig, ax = plt.subplots(subplot_kw={"projection": ccrs.PlateCarree()}, figsize=(8, 4.5))
pcm = ax.pcolormesh(
    lon_carib_deg,
    lat_carib,
    u_carib,
    shading="auto",
    cmap="RdBu_r",
    vmin=-30,
    vmax=30,
    transform=ccrs.PlateCarree(),
)
ax.set_extent([-100.0, -60.0, lat_min, lat_max], crs=ccrs.PlateCarree())
ax.coastlines(resolution="110m", linewidth=0.8)
ax.gridlines(draw_labels=True, linewidth=0.5, alpha=0.5, linestyle="--")
plt.colorbar(pcm, ax=ax, label=f"{u_var} (m/s)", pad=0.08, shrink=0.92)

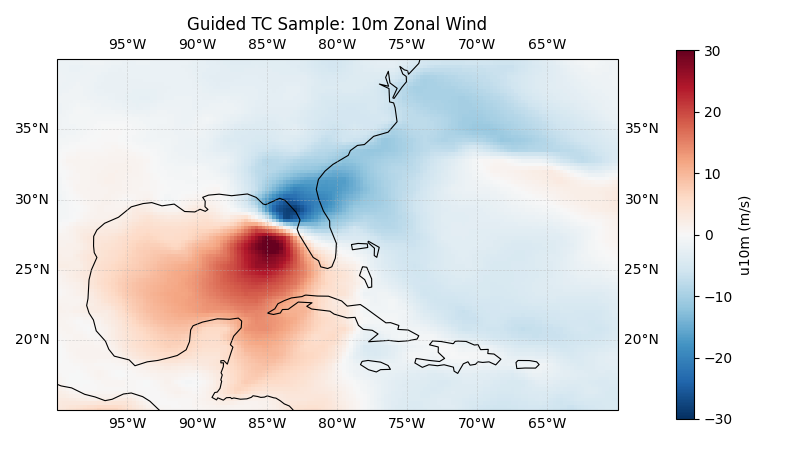

ax.set_title("Guided TC Sample: 10m Zonal Wind")
plt.tight_layout()
plt.savefig("outputs/05_cbottle_tc_guided_sample.jpg")

Computing the Odds Ratio#

The odds ratio requires computing Hutchinson divergence terms that need second-order derivatives through the model. We reload with allow_second_order_derivatives=True for odds ratio calculations.

Note: sampler_steps is also reduced in this section to speed up runtime. Use the default sampler settings for improved quality and more stable odds-ratio values.

model = CBottleTCGuidance.load_model(
    package,
    seed=0,
    sampler_steps=2,
    allow_second_order_derivatives=True,
).to(device)

log_odds_ratio, forward_latents, latent_coords = model.calculate_odds_ratio(
    guidance,
    coords,
)

print(f"Log odds ratio: {log_odds_ratio:.4f}")

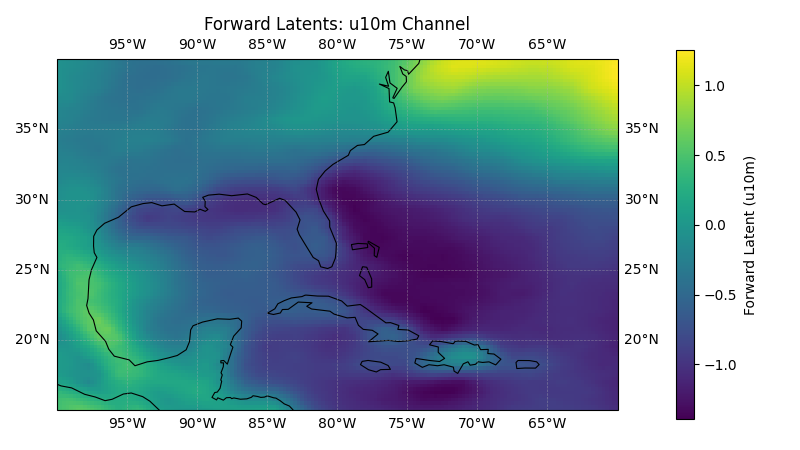

print(f"Forward latents shape: {tuple(forward_latents.shape)}")

calculate_odds_ratio[forward]:   0%|          | 0/27 [00:00<?, ?it/s]
calculate_odds_ratio[forward]:   4%|▎         | 1/27 [00:00<00:25,  1.01it/s]
calculate_odds_ratio[forward]:   7%|▋         | 2/27 [00:01<00:24,  1.04it/s]
calculate_odds_ratio[forward]:  11%|█         | 3/27 [00:02<00:23,  1.04it/s]
calculate_odds_ratio[forward]:  15%|█▍        | 4/27 [00:03<00:21,  1.05it/s]
calculate_odds_ratio[forward]:  19%|█▊        | 5/27 [00:04<00:21,  1.04it/s]
calculate_odds_ratio[forward]:  22%|██▏       | 6/27 [00:05<00:20,  1.05it/s]
calculate_odds_ratio[forward]:  26%|██▌       | 7/27 [00:06<00:19,  1.05it/s]
calculate_odds_ratio[forward]:  30%|██▉       | 8/27 [00:07<00:18,  1.05it/s]
calculate_odds_ratio[forward]:  33%|███▎      | 9/27 [00:08<00:17,  1.04it/s]
calculate_odds_ratio[forward]:  37%|███▋      | 10/27 [00:09<00:16,  1.04it/s]
calculate_odds_ratio[forward]:  41%|████      | 11/27 [00:10<00:15,  1.04it/s]
calculate_odds_ratio[forward]:  44%|████▍     | 12/27 [00:11<00:14,  1.04it/s]
calculate_odds_ratio[forward]:  48%|████▊     | 13/27 [00:12<00:13,  1.05it/s]
calculate_odds_ratio[forward]:  52%|█████▏    | 14/27 [00:13<00:12,  1.05it/s]
calculate_odds_ratio[forward]:  56%|█████▌    | 15/27 [00:14<00:11,  1.05it/s]
calculate_odds_ratio[forward]:  59%|█████▉    | 16/27 [00:15<00:10,  1.05it/s]
calculate_odds_ratio[forward]:  63%|██████▎   | 17/27 [00:16<00:09,  1.05it/s]
calculate_odds_ratio[forward]:  67%|██████▋   | 18/27 [00:17<00:08,  1.04it/s]
calculate_odds_ratio[forward]:  70%|███████   | 19/27 [00:18<00:07,  1.05it/s]
calculate_odds_ratio[forward]:  74%|███████▍  | 20/27 [00:19<00:06,  1.05it/s]
calculate_odds_ratio[forward]:  78%|███████▊  | 21/27 [00:20<00:05,  1.05it/s]
calculate_odds_ratio[forward]:  81%|████████▏ | 22/27 [00:21<00:05,  1.14s/it]
calculate_odds_ratio[forward]:  85%|████████▌ | 23/27 [00:22<00:04,  1.08s/it]
calculate_odds_ratio[forward]:  89%|████████▉ | 24/27 [00:23<00:03,  1.04s/it]
calculate_odds_ratio[forward]:  93%|█████████▎| 25/27 [00:24<00:02,  1.01s/it]
calculate_odds_ratio[forward]:  96%|█████████▋| 26/27 [00:25<00:00,  1.00it/s]
calculate_odds_ratio[forward]: 100%|██████████| 27/27 [00:26<00:00,  1.02it/s]


calculate_odds_ratio[backward]:   0%|          | 0/26 [00:00<?, ?it/s]
calculate_odds_ratio[backward]:   4%|▍         | 1/26 [00:05<02:06,  5.07s/it]
calculate_odds_ratio[backward]:   8%|▊         | 2/26 [00:09<01:58,  4.93s/it]
calculate_odds_ratio[backward]:  12%|█▏        | 3/26 [00:16<02:12,  5.76s/it]
calculate_odds_ratio[backward]:  15%|█▌        | 4/26 [00:23<02:14,  6.14s/it]
calculate_odds_ratio[backward]:  19%|█▉        | 5/26 [00:30<02:13,  6.35s/it]
calculate_odds_ratio[backward]:  23%|██▎       | 6/26 [00:36<02:09,  6.48s/it]
calculate_odds_ratio[backward]:  27%|██▋       | 7/26 [00:43<02:04,  6.56s/it]
calculate_odds_ratio[backward]:  31%|███       | 8/26 [00:50<01:59,  6.62s/it]
calculate_odds_ratio[backward]:  35%|███▍      | 9/26 [00:57<01:53,  6.66s/it]
calculate_odds_ratio[backward]:  38%|███▊      | 10/26 [01:03<01:46,  6.68s/it]
calculate_odds_ratio[backward]:  42%|████▏     | 11/26 [01:10<01:40,  6.69s/it]
calculate_odds_ratio[backward]:  46%|████▌     | 12/26 [01:17<01:33,  6.71s/it]
calculate_odds_ratio[backward]:  50%|█████     | 13/26 [01:23<01:27,  6.72s/it]
calculate_odds_ratio[backward]:  54%|█████▍    | 14/26 [01:30<01:20,  6.72s/it]
calculate_odds_ratio[backward]:  58%|█████▊    | 15/26 [01:38<01:16,  6.92s/it]
calculate_odds_ratio[backward]:  62%|██████▏   | 16/26 [01:44<01:08,  6.87s/it]
calculate_odds_ratio[backward]:  65%|██████▌   | 17/26 [01:51<01:01,  6.83s/it]
calculate_odds_ratio[backward]:  69%|██████▉   | 18/26 [01:58<00:54,  6.80s/it]
calculate_odds_ratio[backward]:  73%|███████▎  | 19/26 [02:05<00:47,  6.78s/it]
calculate_odds_ratio[backward]:  77%|███████▋  | 20/26 [02:11<00:40,  6.77s/it]
calculate_odds_ratio[backward]:  81%|████████  | 21/26 [02:18<00:33,  6.76s/it]
calculate_odds_ratio[backward]:  85%|████████▍ | 22/26 [02:25<00:27,  6.75s/it]
calculate_odds_ratio[backward]:  88%|████████▊ | 23/26 [02:31<00:20,  6.74s/it]
calculate_odds_ratio[backward]:  92%|█████████▏| 24/26 [02:38<00:13,  6.74s/it]
calculate_odds_ratio[backward]:  96%|█████████▌| 25/26 [02:45<00:06,  6.74s/it]
calculate_odds_ratio[backward]: 100%|██████████| 26/26 [02:50<00:00,  6.17s/it]


calculate_odds_ratio[backward_no_guidance]:   0%|          | 0/26 [00:00<?, ?it/s]
calculate_odds_ratio[backward_no_guidance]:   4%|▍         | 1/26 [00:04<01:49,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:   8%|▊         | 2/26 [00:08<01:44,  4.36s/it]
calculate_odds_ratio[backward_no_guidance]:  12%|█▏        | 3/26 [00:13<01:40,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:  15%|█▌        | 4/26 [00:17<01:36,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:  19%|█▉        | 5/26 [00:21<01:31,  4.38s/it]
calculate_odds_ratio[backward_no_guidance]:  23%|██▎       | 6/26 [00:26<01:27,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:  27%|██▋       | 7/26 [00:30<01:23,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:  31%|███       | 8/26 [00:34<01:18,  4.38s/it]
calculate_odds_ratio[backward_no_guidance]:  35%|███▍      | 9/26 [00:39<01:14,  4.37s/it]
calculate_odds_ratio[backward_no_guidance]:  38%|███▊      | 10/26 [00:43<01:09,  4.36s/it]
calculate_odds_ratio[backward_no_guidance]:  42%|████▏     | 11/26 [00:48<01:08,  4.56s/it]
calculate_odds_ratio[backward_no_guidance]:  46%|████▌     | 12/26 [00:53<01:03,  4.50s/it]
calculate_odds_ratio[backward_no_guidance]:  50%|█████     | 13/26 [00:57<00:58,  4.46s/it]
calculate_odds_ratio[backward_no_guidance]:  54%|█████▍    | 14/26 [01:01<00:53,  4.44s/it]
calculate_odds_ratio[backward_no_guidance]:  58%|█████▊    | 15/26 [01:06<00:48,  4.43s/it]
calculate_odds_ratio[backward_no_guidance]:  62%|██████▏   | 16/26 [01:10<00:44,  4.41s/it]
calculate_odds_ratio[backward_no_guidance]:  65%|██████▌   | 17/26 [01:14<00:39,  4.40s/it]
calculate_odds_ratio[backward_no_guidance]:  69%|██████▉   | 18/26 [01:19<00:35,  4.40s/it]
calculate_odds_ratio[backward_no_guidance]:  73%|███████▎  | 19/26 [01:23<00:30,  4.40s/it]
calculate_odds_ratio[backward_no_guidance]:  77%|███████▋  | 20/26 [01:28<00:26,  4.40s/it]
calculate_odds_ratio[backward_no_guidance]:  81%|████████  | 21/26 [01:32<00:21,  4.39s/it]
calculate_odds_ratio[backward_no_guidance]:  85%|████████▍ | 22/26 [01:36<00:17,  4.39s/it]
calculate_odds_ratio[backward_no_guidance]:  88%|████████▊ | 23/26 [01:41<00:13,  4.39s/it]
calculate_odds_ratio[backward_no_guidance]:  92%|█████████▏| 24/26 [01:45<00:08,  4.39s/it]
calculate_odds_ratio[backward_no_guidance]:  96%|█████████▌| 25/26 [01:50<00:04,  4.39s/it]
calculate_odds_ratio[backward_no_guidance]: 100%|██████████| 26/26 [01:54<00:00,  4.38s/it]

Log odds ratio: 2.2465
Forward latents shape: (1, 45, 721, 1440)

Post Processing Forward Latents#

The forward_latents tensor is returned on the same grid as the model output (lat-lon when lat_lon=True). We visualize a single channel (u10m) over the same Caribbean domain. This shows the latent-space representation that the odds-ratio computation operates on.

plt.close("all")

# Identify the u10m channel in output variable ordering
latent_variables = latent_coords["variable"]
u_latent_idx = int(np.where(latent_variables == u_var)[0][0])
latent_u = forward_latents[0, u_latent_idx].detach().cpu().numpy()

latent_u_carib = latent_u[np.ix_(lat_mask, lon_mask)]

fig, ax = plt.subplots(subplot_kw={"projection": ccrs.PlateCarree()}, figsize=(8, 4.5))
pcm = ax.pcolormesh(
    lon_carib_deg,
    lat_carib,
    latent_u_carib,
    shading="auto",
    cmap="viridis",
    transform=ccrs.PlateCarree(),
)
ax.set_extent([-100.0, -60.0, lat_min, lat_max], crs=ccrs.PlateCarree())
ax.coastlines(resolution="110m", linewidth=0.8)
ax.gridlines(draw_labels=True, linewidth=0.5, alpha=0.5, linestyle="--")
plt.colorbar(pcm, ax=ax, label=f"Forward Latent ({u_var})", pad=0.08, shrink=0.92)
ax.set_title(f"Forward Latents: {u_var} Channel")
plt.tight_layout()
plt.savefig("outputs/05_cbottle_tc_forward_latents.jpg")

Total running time of the script: (5 minutes 39.602 seconds)

Gallery generated by Sphinx-Gallery
